UFO high bay ||150 watt | 140 Lm/W | 5000K | power/beam adj.
950-120This versatile UFO high bay is characterized by the fact that you can adjust it to your needs. This fixture offers the possibility to switch between four different wattages (80W, 100W, 120W or 150W) and a variable beam angle (60°, 80° or 100°). Ideal for businesses, stores and more.
Features
- >140 Lm/W High light efficiency
- DIP switch for setting: 80W, 100W, 120W, 150W
- Adjustable beam angle by simply rotating the lens: 60°, 80°, 100°
- 50.000 hours, 5 year warranty
Product Name
UFO high bay ||150 watt | 140 Lm/W | 5000K | power/beam adj.
Ean
8714984936942
Outer box qty
1st
Dimmable
No
Dimming 0-10 V
No
Lamp type
LED not exchangeable
Housing colour
Black
Housing material
Aluminium
Connection type
Other

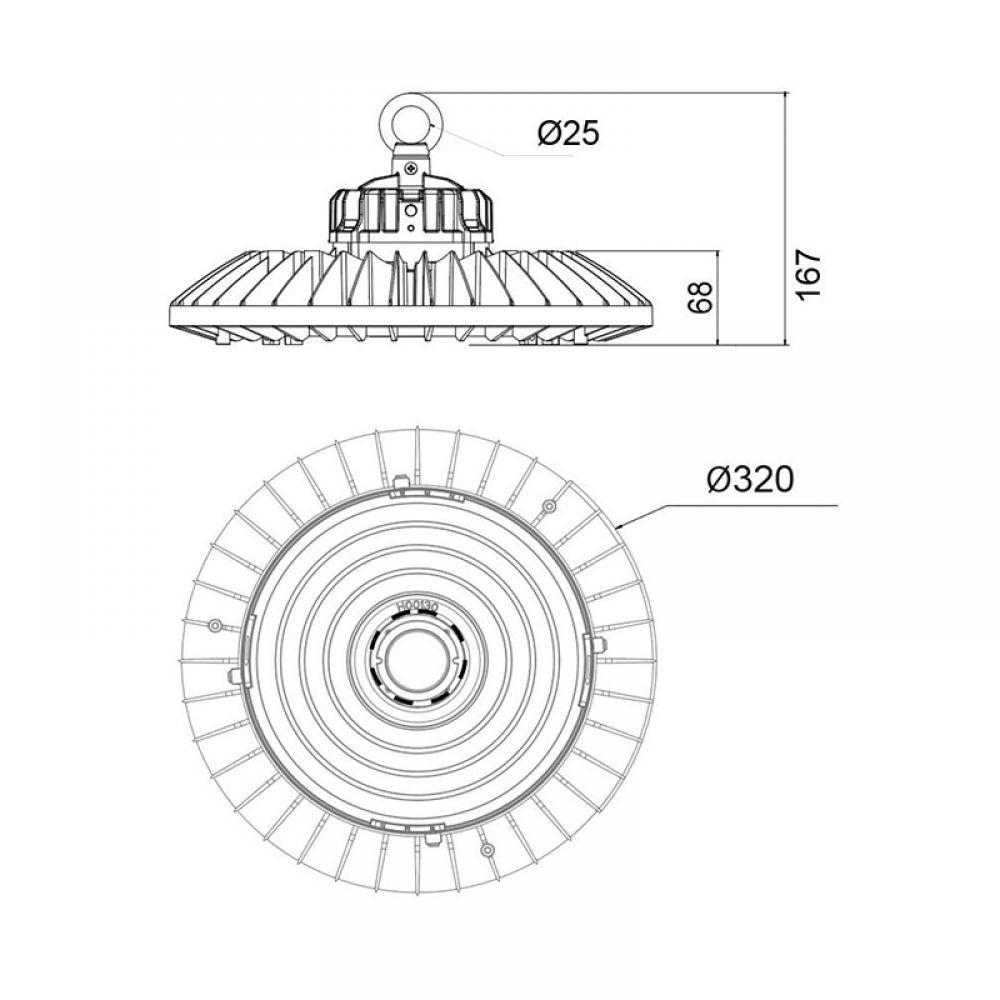

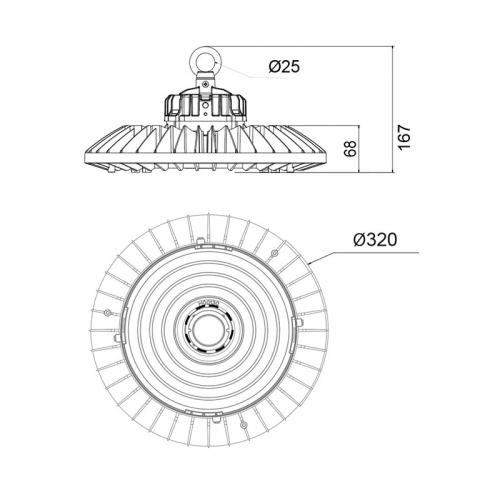

Height/depth
167mm
Outer diameter
320mm
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM6
Colour temperature
5000K
Colour rendering index CRI
70-79
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle
> 80° - Extreme wide beam
Beam angle adjustable
Positions
Voltage type
AC
Nominal current
625 - 682mA
Nominal voltage
220 - 240V
Number of poles
3
Light distributor
Focal lens
Light distribution
Symmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP)
IP42
Impact strength
IK07
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
150W
Rated luminous flux according to IEC 62722-2- 1
11200 - 21000lm
Luminaire efficacy
140 - 140lm/W
Power factor
0.92
Type of wiring
Ending
Suitable for ceiling mounting
Yes
Suitable for suspended mounting
Yes
Reflector
None
Warranty
5 years
Product Name
UFO high bay ||150 watt | 140 Lm/W | 5000K | power/beam adj.
Voltage type
AC
Ean
8714984936942
Nominal current
625 - 682mA
Outer box qty
1st
Nominal voltage
220 - 240V
Dimmable
No
Number of poles
3
Dimming 0-10 V
No
Light distributor
Focal lens
Lamp type
LED not exchangeable
Light distribution
Symmetric
Housing colour
Black
Connectable conductor cross section
0.75 - 2.5mm²
Housing material
Aluminium
Type of control gear
LED operating device current-controlled
Connection type
Other
Exchangeable control gear
No
Height/depth
167mm
With control gear
Yes
Outer diameter
320mm
Degree of protection (IP)
IP42
With movement sensor
No
Impact strength
IK07
With presence detector
No
Rated lifetime L70/B50 at 25 °C
50000h
With light sensor
No
Max. system power
150W
Colour of light
White
Rated luminous flux according to IEC 62722-2- 1
11200 - 21000lm
Colour consistency (McAdam ellipse)
SDCM6
Luminaire efficacy
140 - 140lm/W
Colour temperature
5000K
Power factor
0.92
Colour rendering index CRI
70-79
Type of wiring
Ending
Colour of light adjustable
Positions
Suitable for ceiling mounting
Yes
Luminous flux adjustable
Positions
Suitable for suspended mounting
Yes
Beam angle
> 80° - Extreme wide beam
Reflector
None
Beam angle adjustable
Positions
Warranty
5 years
This versatile UFO high bay is characterized by the fact that you can adjust it to your needs. This fixture offers the possibility to switch between four different wattages (80W, 100W, 120W or 150W) and a variable beam angle (60°, 80° or 100°). Ideal for businesses, stores and more.
Features
>140 Lm/W High light efficiency
DIP switch for setting: 80W, 100W, 120W, 150W
Adjustable beam angle by simply rotating the lens: 60°, 80°, 100°
50.000 hours, 5 year warranty
Datasheet
Datasheet-ufo-high-bay-150-watt-140-lmw-5000k-powerbeam-adj-950-120.pdf
Energy labels
Other attachment
950-120_~60__Luminaire_photometric_test_report.pdf
950-120_~80__Luminaire_photometric_test_report.pdf
950-120_~100__Luminaire_photometric_test_report.pdf
950-120_~60_IES_.IES
950-120_~80__IES.IES
950-120_~100__IES.IES
Characteristics sheet
950-120_technical_datasheet_extended.pdf
Manual
950-120_Manual_NL.pdf
950-120_Manual_EN.pdf
