Zigbee | controller | Zigbee/RF to trailing edge

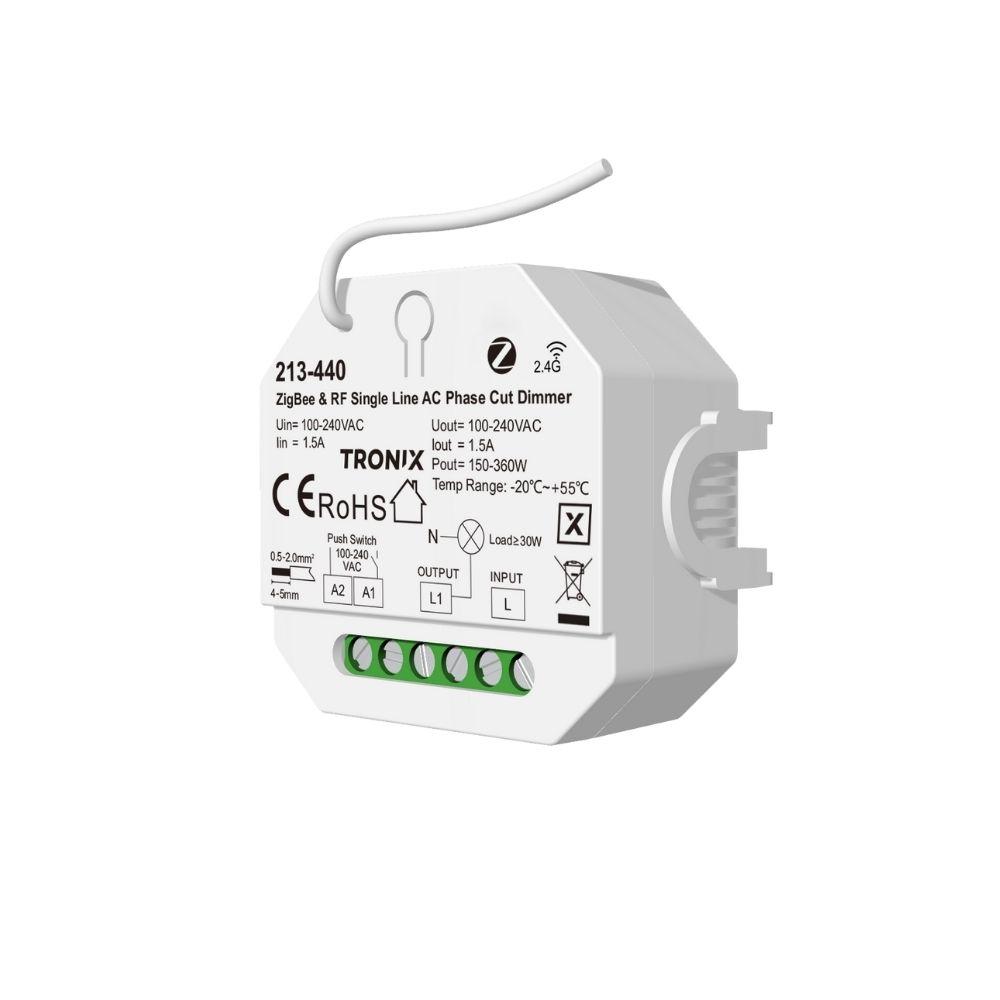

213-440Zigbee 3.0 trailing edge phase-cut dimmer for wireless switching and dimming of dimmable 230 V light sources. Designed for professional installations where compact recessed mounting, smooth dimming performance and smart control are required.
Key product features
- Light value memory: Yes
- Nominal voltage (V): 100–240
- Control voltage (V): 100–240
- Trailing edge dimming: Yes
- Max. switching capacity LED (W): 360
- Control method: Zigbee
Product Name
Zigbee | controller | Zigbee/RF to trailing edge
Ean
8714984953888
Outer box qty
1st
Colour
White
Connection type
Screwed terminal
Operating method
Other
Control method
Zigbee
Mounting method
Built-in
Material
Plastic
Material quality
Thermoplastic
Applicable with presence indicator
Yes
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
Yes
Applicable with button
Yes
Applicable with transmission button
Yes
Applicable with time switch/timer
Yes
Nominal voltage
100 - 240V
Control voltage
100 - 240V
Min. depth of built-in installation box
28mm
Min. brightness controllable
Yes
Max. switching power LED
200W
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9016
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
Zigbee | controller | Zigbee/RF to trailing edge
Applicable with button
Yes
Ean
8714984953888
Applicable with transmission button
Yes
Outer box qty
1st
Applicable with time switch/timer
Yes
Colour
White
Nominal voltage
100 - 240V
Connection type
Screwed terminal
Control voltage
100 - 240V
Operating method
Other
Min. depth of built-in installation box
28mm
Control method
Zigbee
Min. brightness controllable
Yes
Mounting method
Built-in
Max. switching power LED
200W
Material
Plastic
Light value memory
Yes
Material quality
Thermoplastic
Halogen free
Yes
Applicable with presence indicator
Yes
RAL-number (similar)
9016
Suitable for degree of protection (IP)
IP20
Core cross section
0.75 - 2.5mm²
Applicable with movement sensor
Yes
Warranty
5 years
This Zigbee + RF single-line AC trailing edge dimmer is designed for switching and dimming single-colour dimmable LED lamps, incandescent lamps and halogen lighting on mains voltage. The dimmer features one output channel and supports trailing edge phase-cut dimming for stable and smooth light control across the full dimming range.
Control is provided via Zigbee 3.0, complemented by local operation using an RF remote control or a conventional 230 V push button. Via the DimmIt smart app (gateway required), functions such as on/off control, smooth dimming, scenes, timers, schedules and delayed switching can be configured. The dimmer supports 256 dimming levels from 0 to 100% and allows the minimum dim level to be set for optimal compatibility with different light sources.
Thanks to its compact design, the dimmer can be easily installed in a standard wall box behind a push button. Protection against overheating and overload ensures safe and reliable operation with automatic recovery. When combined with a Zigbee gateway, cloud-based control and voice control are also supported, making this dimmer suitable for a wide range of professional residential and commercial smart lighting applications.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-zigbee-controller-zigbeerf-to-trailing-edge-213-440.pdf
Characteristics sheet
213-440_manual.pdf
