Zigbee | receiver | 100-240V trailing edge | recessed

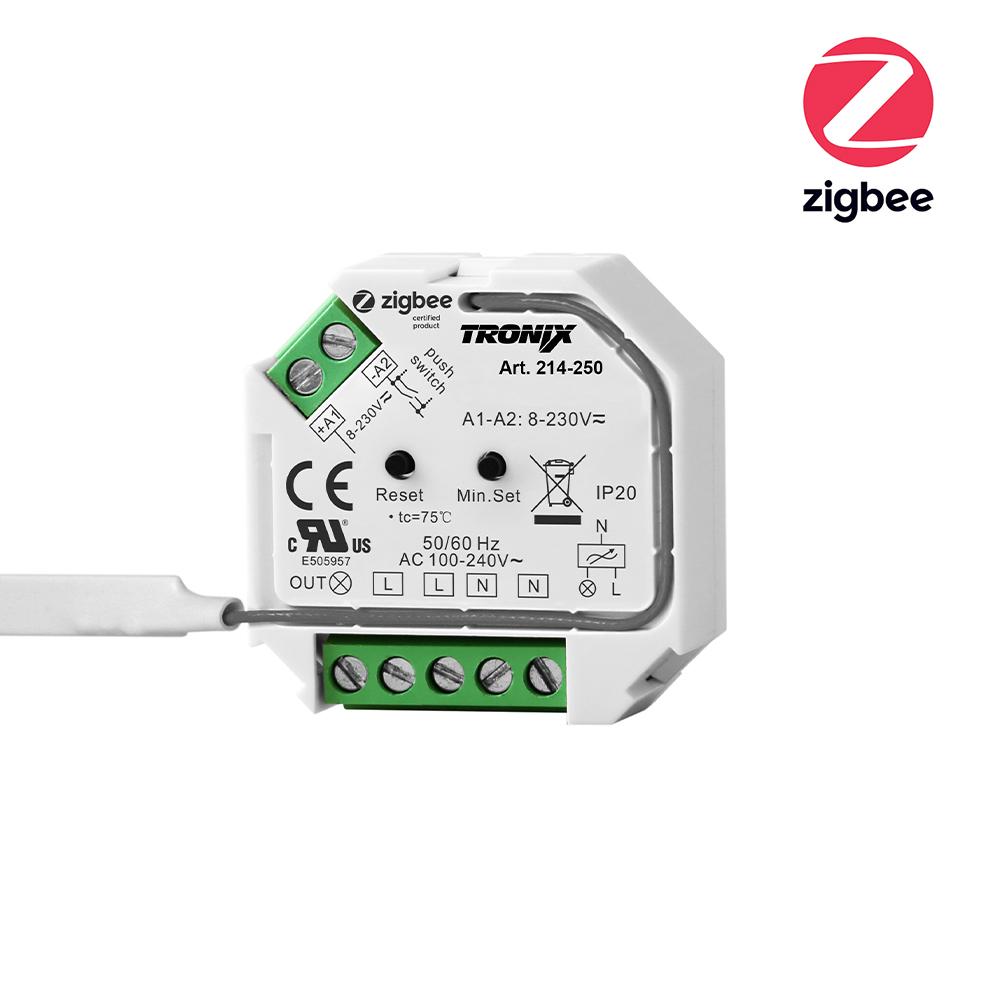

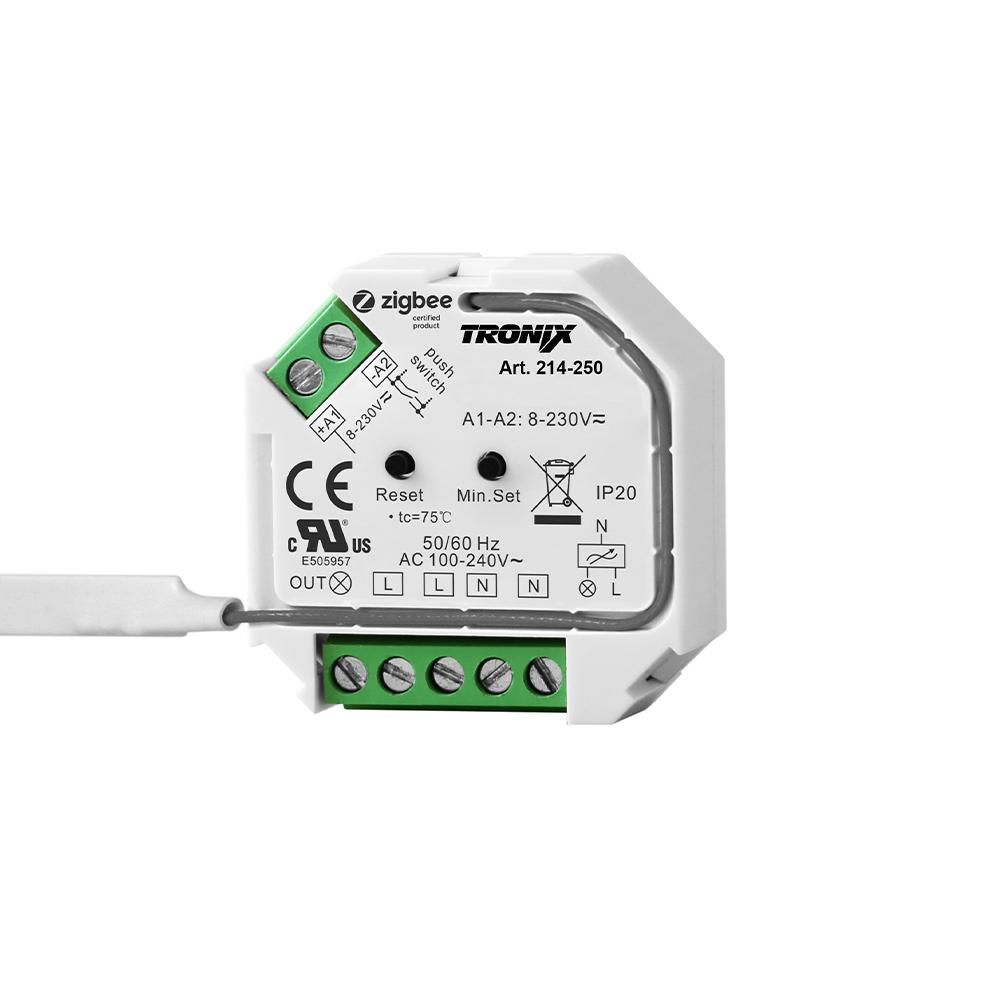

214-250Zigbee 3.0 LED dimmer for wireless control of 230V LED lighting. Supports push-button operation, flicker-free dimming up to 200W and compatibility with leading smart home platforms.
Key product features
- Light value memory: Yes
- Nominal voltage (V): 100 – 240
- Control voltage (V): 100 – 240
- Dimming phase cut-off (trailing edge): Yes
- Max. switching power LED (W): 200
- Control method: Zigbee
Product Name
Zigbee | receiver | 100-240V trailing edge | recessed
Ean
8714984937604
Outer box qty
1st
Colour
White
Connection type
Screwed terminal
Operating method
Radio frequency (RF)
Control method
Zigbee
Mounting method
Built-in
Material
Plastic
Material quality
Thermoplastic
Device width
45mm
Device height
45mm
Device depth
21mm
Applicable with presence indicator
Yes
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
Yes
Applicable with button
Yes
Applicable with transmission button
Yes
Applicable with time switch/timer
Yes
Nominal voltage
100 - 240V
Control voltage
100 - 240V
Min. depth of built-in installation box
21mm
Min. brightness controllable
Yes
Max. switching power LED
200W
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9016
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
Zigbee | receiver | 100-240V trailing edge | recessed
Applicable with movement sensor
Yes
Ean
8714984937604
Applicable with button
Yes
Outer box qty
1st
Applicable with transmission button
Yes
Colour
White
Applicable with time switch/timer
Yes
Connection type
Screwed terminal
Nominal voltage
100 - 240V
Operating method
Radio frequency (RF)
Control voltage
100 - 240V
Control method
Zigbee
Min. depth of built-in installation box
21mm
Mounting method
Built-in
Min. brightness controllable
Yes
Material
Plastic
Max. switching power LED
200W
Material quality
Thermoplastic
Light value memory
Yes
Device width
45mm
Halogen free
Yes
Device height
45mm
RAL-number (similar)
9016
Device depth
21mm
Core cross section
0.75 - 2.5mm²
Applicable with presence indicator
Yes
Warranty
5 years
Suitable for degree of protection (IP)
IP20
This compact trailing edge dimmer is designed for wireless switching and dimming of dimmable 230V LED lighting up to 200 watts. Operating on the Zigbee 3.0 protocol, it is directly compatible with platforms such as Philips Hue, IKEA TRÅDFRI and Homey.
The dimmer supports control via an external push-button (8–230V AC). A short press toggles the light, while a long press adjusts brightness. The Min.Set function allows you to pre-set the minimum dim level — ideal for preventing flicker at low brightness.
Supported features include Touchlink, Find & Bind, Zigbee Green Power (supporting up to 20 battery-free switches), and OTA updates. The dimmer can independently create a Zigbee network and pair up to 30 devices, including wireless switches and sensors.

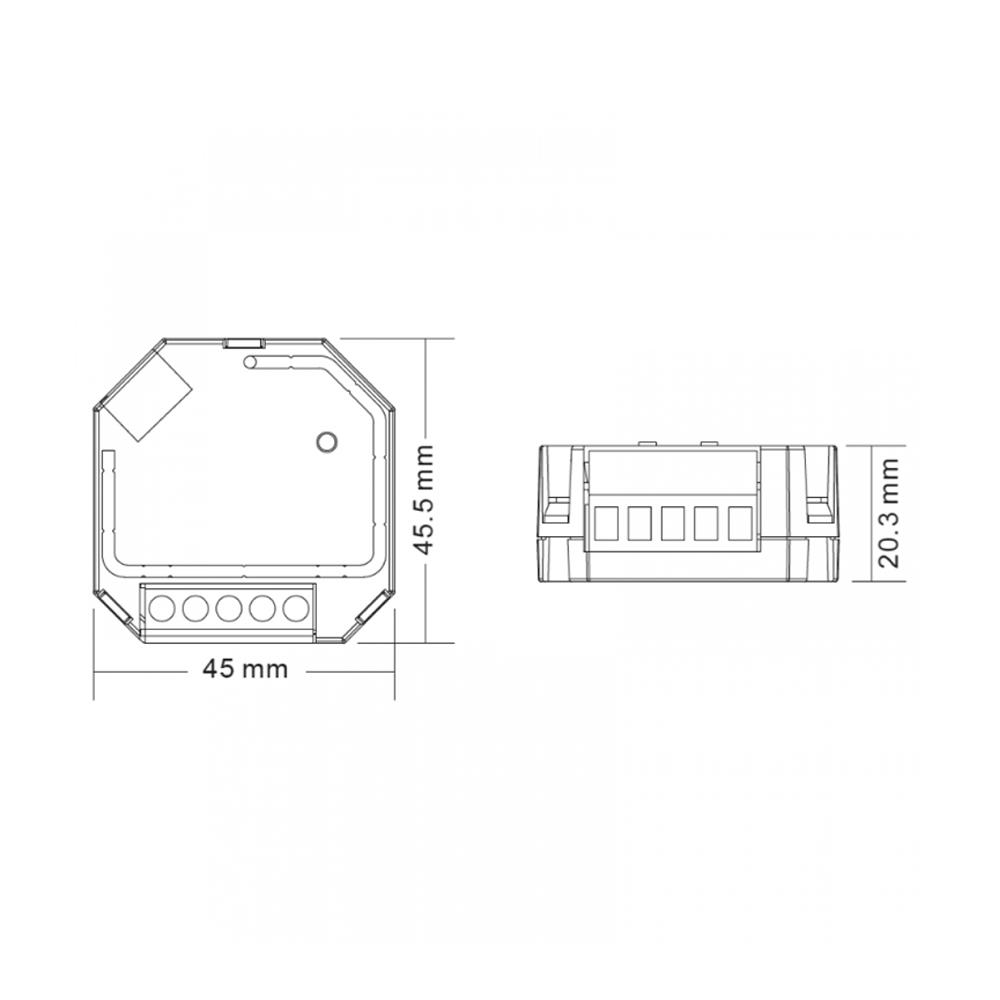

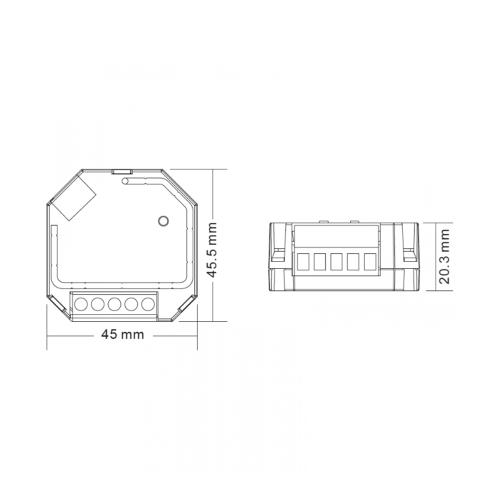

With its compact housing (45.5 × 45 × 20.3 mm), the dimmer fits easily into standard wall boxes. It features screw terminals, short-circuit protection and overload protection. Suitable for dry indoor use only (IP20).
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
