Zigbee | remote control | 4 groups | SC

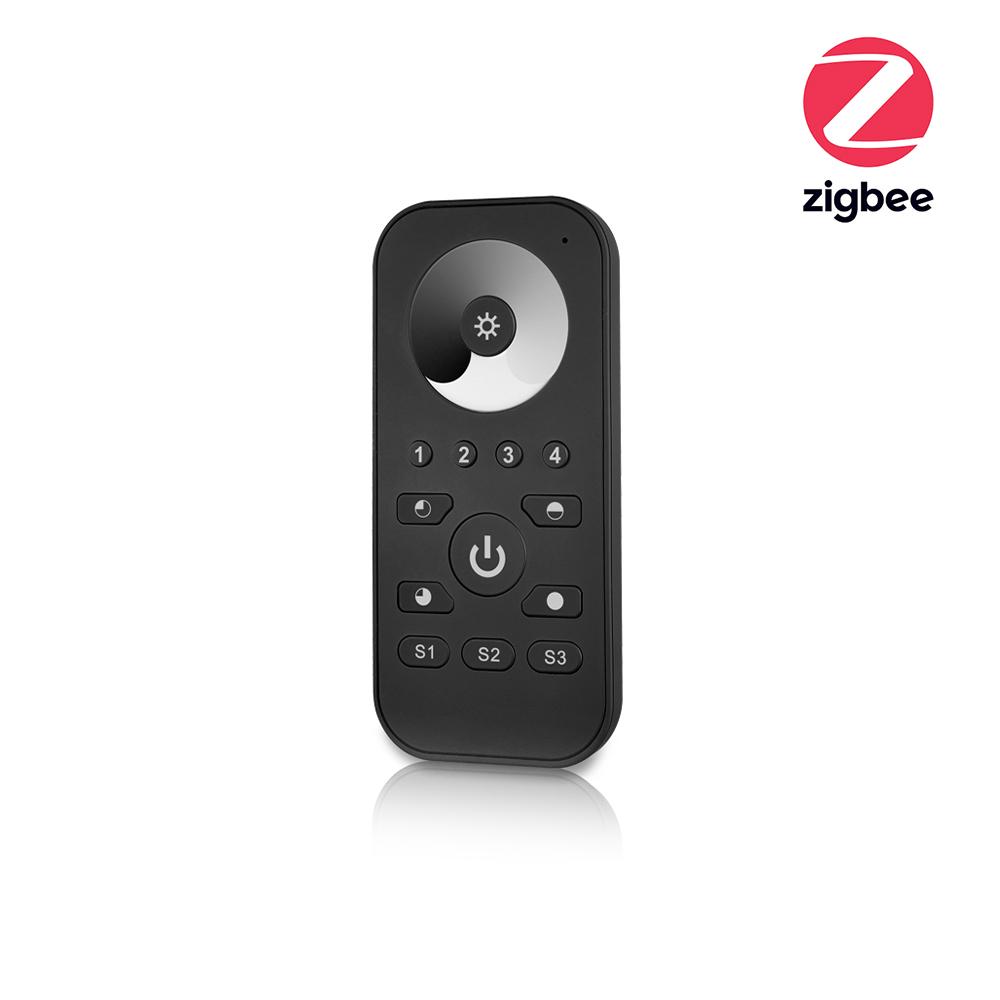

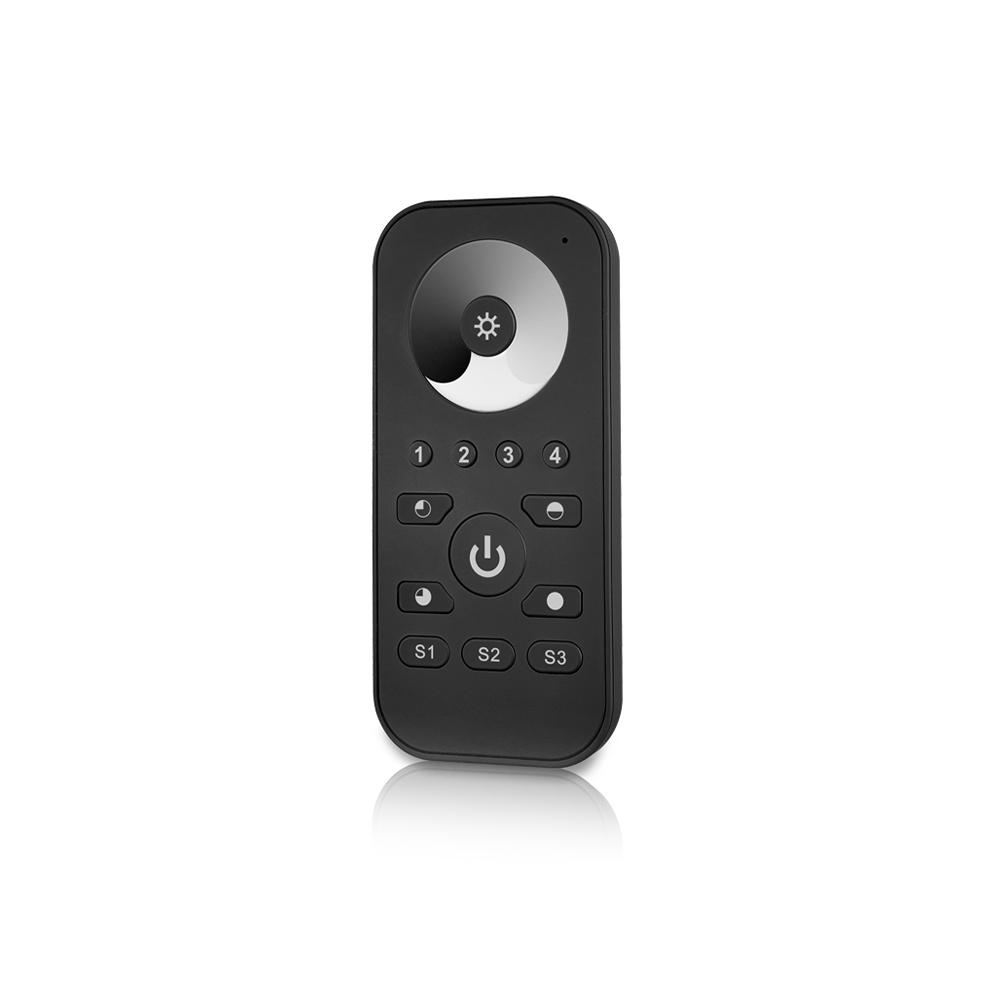

214-277Zigbee 3.0 remote control for single-colour LED lighting. Supports 4 groups with individually adjustable dimming. Supplied with magnetic wall mount.
Key product features
- Number of colour channels: 1
- Type of control: Zigbee
- Number of zones: 4
Product Name
Zigbee | remote control | 4 groups | SC
Ean
8714984937666
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Output voltage
0 - 0V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
120mm
Width
55mm
Height
17mm
Number of zones
4
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
4.5 - 4.5V
Control method
Zigbee
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
Zigbee | remote control | 4 groups | SC
Height
17mm
Ean
8714984937666
Number of zones
4
Outer box qty
1st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
No
Programmable
Yes
Input voltage
4.5 - 4.5V
Output voltage
0 - 0V
Control method
Zigbee
Suitable for outdoor use
No
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
120mm
Compatible with Casambi
No
Width
55mm
Warranty
5 years
This Zigbee 3.0 remote is designed for switching and dimming single-colour LED lighting. The 4 control buttons allow individual control of 4 separate groups. Up to 30 luminaires can be assigned per group. A short press switches the lights on or off, while a long press activates the dimming function.
Powered by 3 AAA batteries (4.5V), the remote communicates via Zigbee 3.0 with a wireless range of approximately 30 metres (open field). It supports Touchlink, Find & Bind and Zigbee Green Power, allowing for direct pairing without a gateway. Can be used stand-alone or within an existing Zigbee network.
Compatible with systems such as Philips Hue*, Homey and Amazon Echo (with Zigbee functionality). The LED indicator on the housing displays status and connection feedback.
The remote is IP20-rated, suitable for dry indoor environments, and comes with a magnetic wall holder – ideal for fixed installation or handheld use.
*Please note: when used with Philips Hue, some functions are limited to on/off and dimming.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
