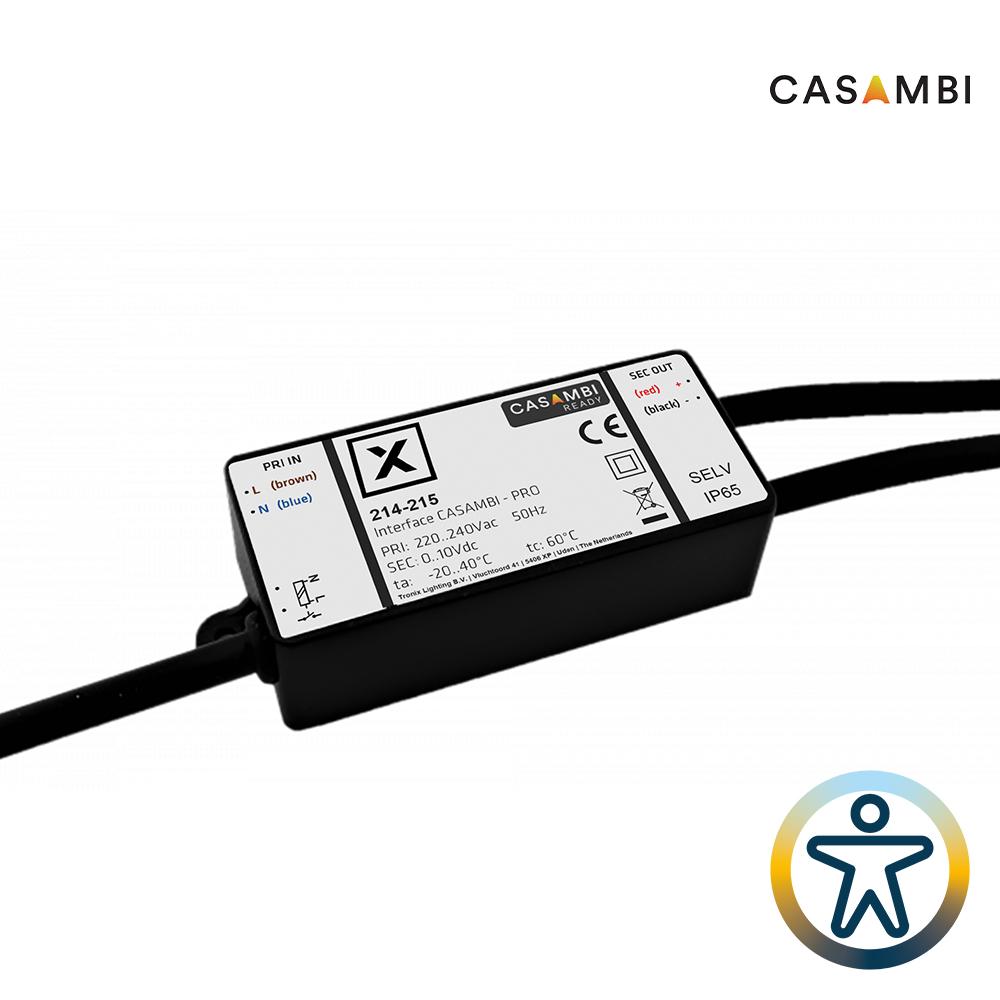

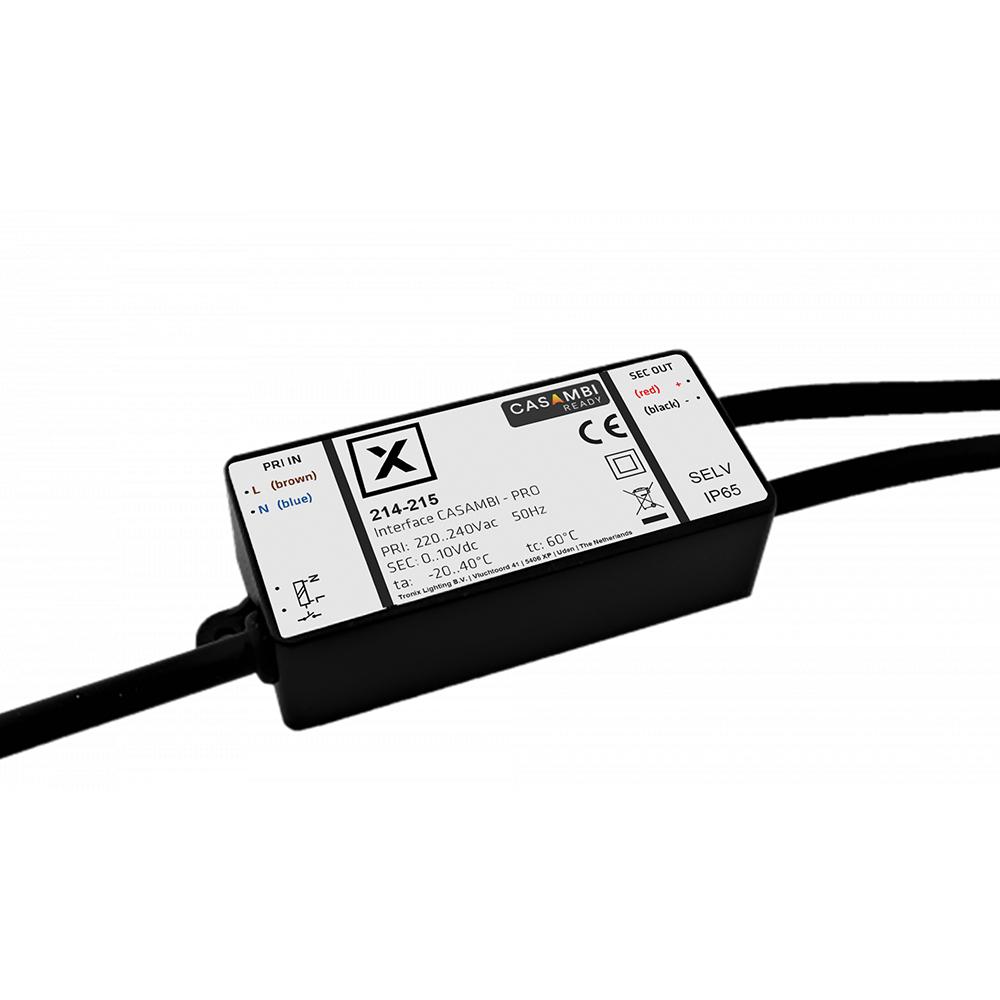

Casambi | interface | DALI / 0-10V | IP65
214-215Waterproof interface for wireless Casambi control of drivers with DALI or 0–10V input.
Features a built-in antenna and IP65 rating, making it suitable for outdoor use.
Key product features
- Number of colour channels: 1
- Input voltage (V): 220 – 240
- IP rating: IP65
- Type of control: Casambi
Product Name
Casambi | interface | DALI / 0-10V | IP65
Ean
8714984941861
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
0.007A
Output voltage
1 - 10V
Suitable for outdoor use
Yes
Degree of protection (IP)
IP65
Length
100mm
Width
37mm
Height
24mm
Number of zones
1
Number of colour channels
4, RGBW
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
220 - 240V
Control method
Casambi
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
Yes
Warranty
5 years
Product Name
Casambi | interface | DALI / 0-10V | IP65
Height
24mm
Ean
8714984941861
Number of zones
1
Outer box qty
1st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
220 - 240V
Max. output current
0.007A
Control method
Casambi
Output voltage
1 - 10V
DIN-rail mounting
No
Suitable for outdoor use
Yes
Brand
Tronix Lighting
Degree of protection (IP)
IP65
Compatible with Casambi
Yes
Length
100mm
Warranty
5 years
Width
37mm
This robust and versatile Bluetooth interface enables wireless control of DALI or 0–10V drivers via the Casambi platform. Thanks to its IP65 rating, the module is ideal for damp or dusty environments, such as façade installations, utility rooms or industrial settings.
Operating on 220–240V AC (50 Hz), it delivers the selected output signal as either DALI (broadcast) or 0–10V (max. 7 mA), depending on the chosen profile in the Casambi app. Communication is based on Bluetooth Low Energy and requires no gateway.
The module is equipped with fixed 15 cm connection cables and an integrated antenna.
Note: to ensure stable signal transmission, the antenna must not be covered by metal. The unit includes short-circuit protection.
This waterproof Casambi interface is the perfect solution for wirelessly integrating existing installations in environments where IP protection is essential.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-casambi-interface-dali-0-10v-ip65-214-215.pdf
Characteristics sheet
214-215_technical_datasheet_extended.pdf
