Casambi || receiver | 12-24V | 16A | TW/RGB/RGBW/1..4CH.

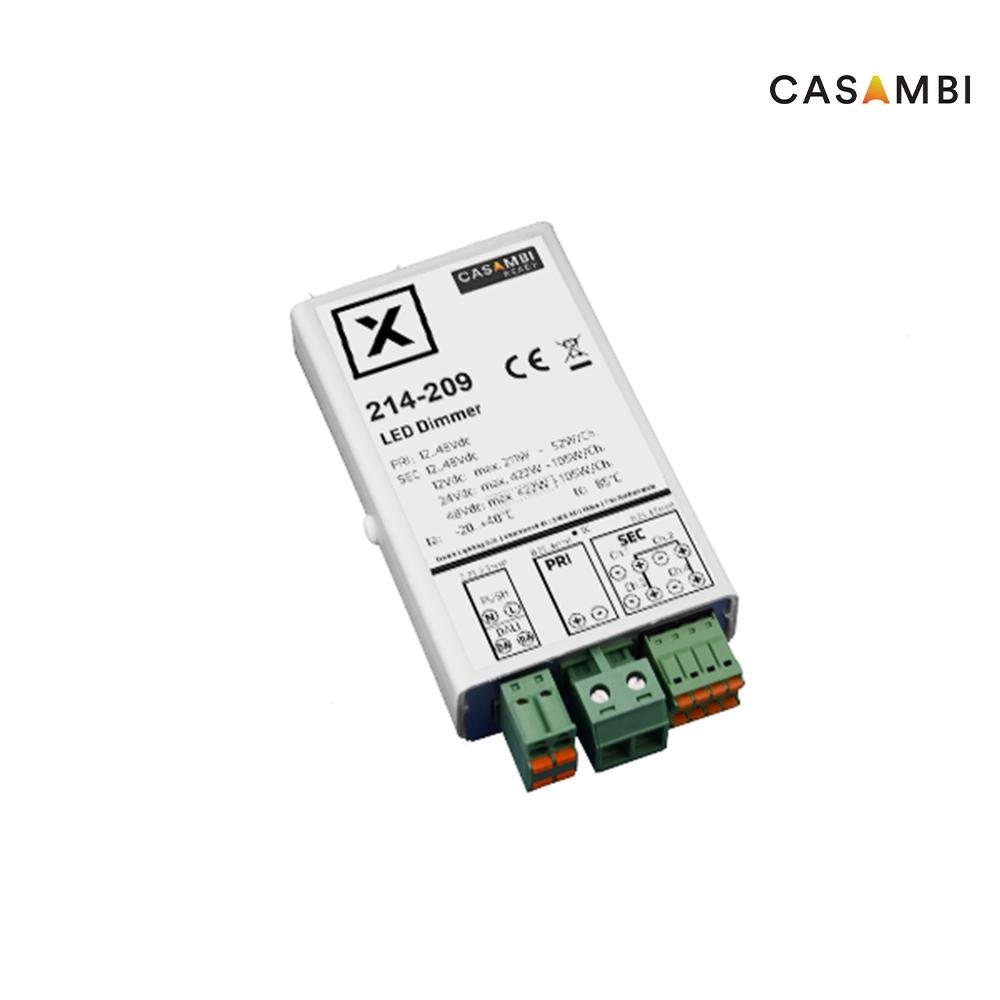

214-209Professional 4-channel LED controller for constant voltage systems (12–48V DC), with wireless Casambi control. Suitable for RGBW, tuneable white and single-colour lighting, for use in Casambi or DALI networks.
Key product features
- Number of colour channels: 4
- Output voltage (V): 12 – 48
- Input voltage (V): 12 – 48
- Max. output current (A): 4.3
- Type of control: Casambi
- Control type: Constant voltage
- Number of zones: 4
Product Name
Casambi || receiver | 12-24V | 16A | TW/RGB/RGBW/1..4CH.
Ean
8714984941359
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
4.3A
Output voltage
12 - 48V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

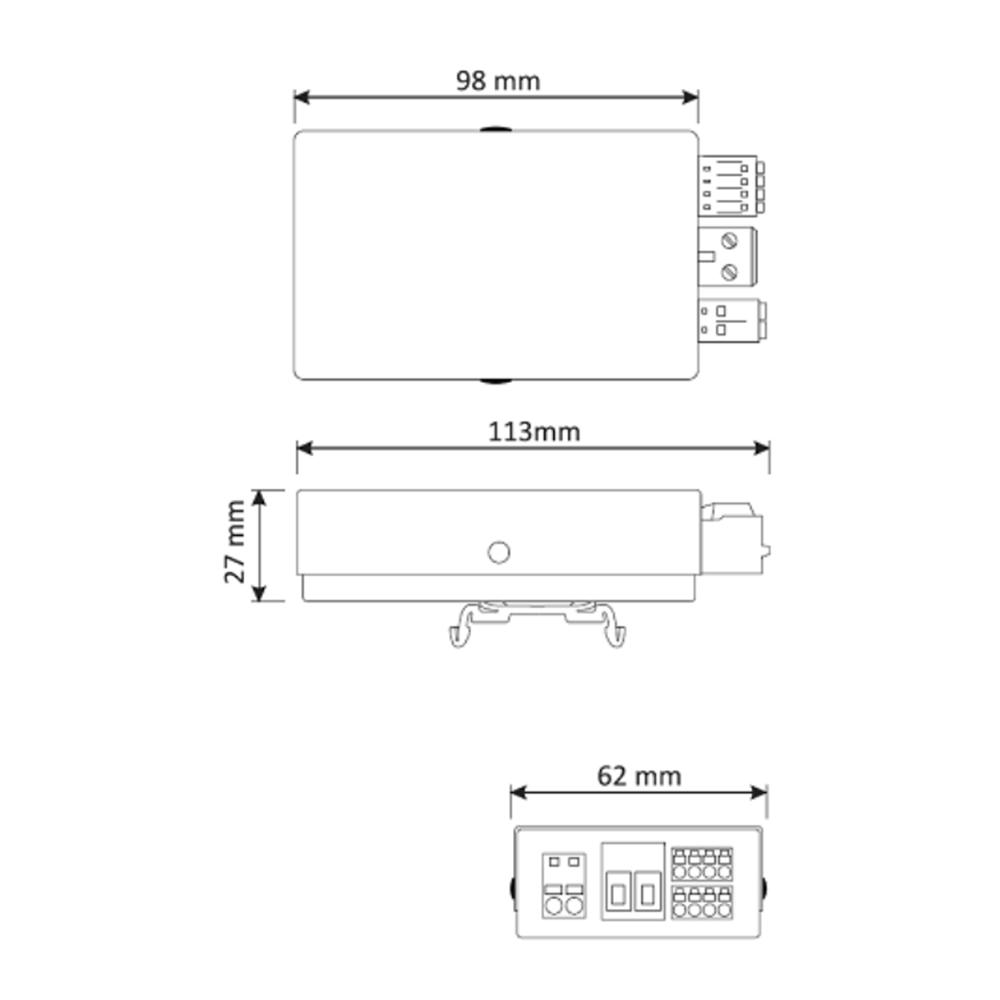

Length
113mm
Width
62mm
Height
27mm
Number of zones
4
Number of colour channels
4, RGBW
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 48V
Control method
Casambi
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
Yes
Control type
Constant voltage
Warranty
5 years
Product Name
Casambi || receiver | 12-24V | 16A | TW/RGB/RGBW/1..4CH.
Height
27mm
Ean
8714984941359
Number of zones
4
Outer box qty
1st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 48V
Max. output current
4.3A
Control method
Casambi
Output voltage
12 - 48V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
Yes
Length
113mm
Control type
Constant voltage
Width
62mm
Warranty
5 years
This versatile Bluetooth LED controller operates on Casambi technology and offers four individually configurable PWM channels for 12–48V DC LED lighting. The Casambi app allows users to configure the profile as RGBW, tuneable white or a single- to four-channel dimmer for monochrome applications.
The controller supports a maximum output of 52 W per channel at 12V (total 211 W) and 105 W per channel at 48V (total 422 W). The PWM frequency can be set in eight steps between 122 and 976 Hz via the app. Linking outputs via the negative channel enables optimal power usage.
In addition to wireless Bluetooth control, local control via a pushbutton is supported, as well as integration into a DALI system. Note: do not place switching components in the secondary 12/24V loop. The unit features a built-in antenna and is supplied with plug connectors for quick installation and DIN rail clips. Mounting the controller inside a metal switch cabinet may weaken the Bluetooth signal.
This controller is ideal for professional applications in offices, shops, museums or other multi-channel lighting environments.
More information
More details about this product can be found in the specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-casambi-receiver-12-24v-16a-twrgbrgbw14ch-214-209.pdf
Characteristics sheet
214-209_technical_datasheet_extended.pdf
