Ceiling light | Ø180mm | 5/7 Watt | 2700K/3000K/4000K | PIR

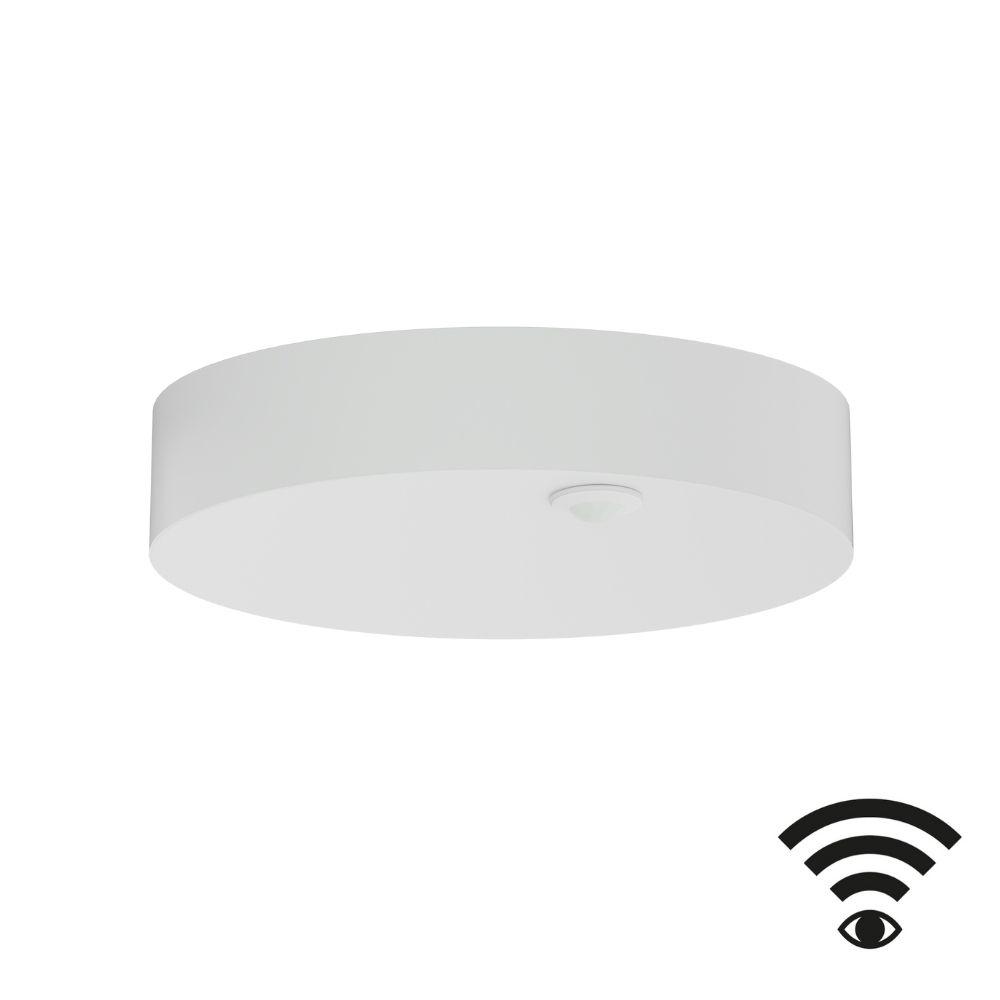

136-026Compact indoor ceiling luminaire with adjustable power and three selectable colour temperatures. With a PIR sensor for automatic control.
Key product features
- Colour temperature (K): 2700–4000
- Housing colour: White
- With movement sensor: Yes
- Max. system power (W): 5–7
Product Name
Ceiling light | Ø180mm | 5/7 Watt | 2700K/3000K/4000K | PIR
Ean
8714984952058
Outer box qty
40st
Lamp type
LED not exchangeable
Housing material
Plastic
Housing colour
White
Material cover
Plastic, opal
Suitable for emergency lighting
No
Nominal current
22 - 30mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes

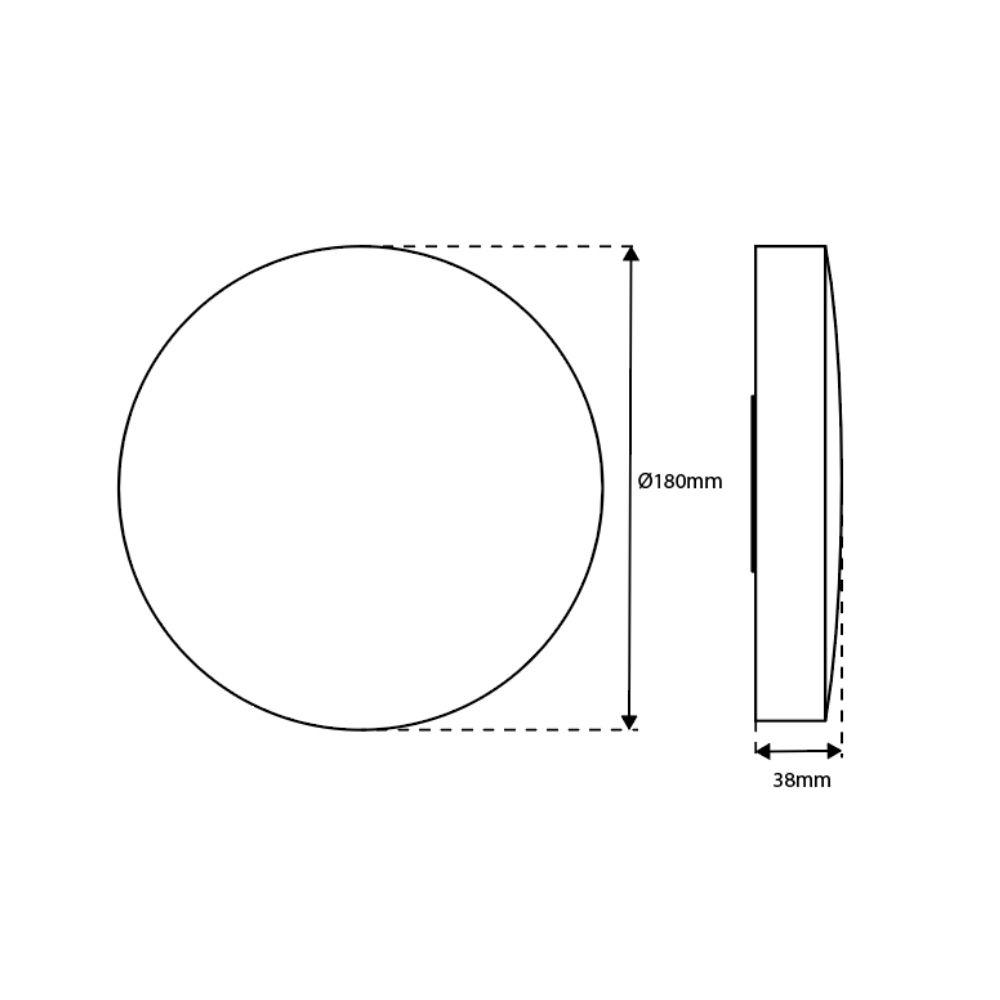

Outer diameter
180mm
Constant light output (CLO)
No
Type of grid
Matt
Nominal voltage
220 - 240V
Height/depth
38mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
Yes
With presence detector
Yes
Impact strength
IK06
With light sensor
Yes
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Dimming RF
No
Dimming Zigbee
No
Light distributor
Other
Surface protection housing
Untreated
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
50000h
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Max. system power
7W
Beam angle adjustable
No
Power factor
0.9
Type of wiring
Suitable for loop-through wiring
Number of poles
2
Compatible with Casambi
No
Luminaire efficacy
130 - 130lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
570 - 920lm
Emergency power supply system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 2.5mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Movement sensor/presence detector technology
Passive infrared
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
25
Degree of protection (IP), rear side
IP44
Degree of protection (IP), front side
IP44
With mounting material
Yes
Colour temperature
2700 - 3000 - 4000K
With connection cord and plug
No
Warranty
5 years
Product Name
Ceiling light | Ø180mm | 5/7 Watt | 2700K/3000K/4000K | PIR
Light outlet
Direct
Ean
8714984952058
Dimming RF
No
Outer box qty
40st
Dimming Zigbee
No
Lamp type
LED not exchangeable
Light distributor
Other
Housing material
Plastic
Surface protection housing
Untreated
Housing colour
White
Colour consistency (McAdam ellipse)
SDCM6
Material cover
Plastic, opal
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for emergency lighting
No
Colour of light adjustable
Positions
Nominal current
22 - 30mA
Luminous flux adjustable
Positions
Voltage type
AC
Max. system power
7W
Type of control gear
LED operating device current-controlled
Beam angle adjustable
No
With control gear
Yes
Power factor
0.9
Outer diameter
180mm
Type of wiring
Suitable for loop-through wiring
Constant light output (CLO)
No
Number of poles
2
Type of grid
Matt
Compatible with Casambi
No
Nominal voltage
220 - 240V
Luminaire efficacy
130 - 130lm/W
Height/depth
38mm
Dimmable
No
Colour of light
White
Rated luminous flux according to IEC 62722-2- 1
570 - 920lm
Colour rendering index CRI
80-89
Emergency power supply system
None
Exchangeable control gear
No
Suitable for ceiling mounting
Yes
Dimming 0-10 V
No
Connectable conductor cross section
0.75 - 2.5mm²
Dimming 1-10 V
No
Suitable for wall mounting
Yes
Dimming DALI
No
Suitable for suspended mounting
No
Dimming phase cut-off (trailing edge)
No
Movement sensor/presence detector technology
Passive infrared
With movement sensor
Yes
Suitable for workplace according to EN 12464-1
No
With presence detector
Yes
Unified Glare Ratio (UGR)
25
Impact strength
IK06
Degree of protection (IP), rear side
IP44
With light sensor
Yes
Degree of protection (IP), front side
IP44
Suitable for surface mounting
Yes
With mounting material
Yes
Suitable for built-in mounting
No
Colour temperature
2700 - 3000 - 4000K
Light distribution
Symmetric
With connection cord and plug
No
Beam angle
> 80° - Extreme wide beam
Warranty
5 years

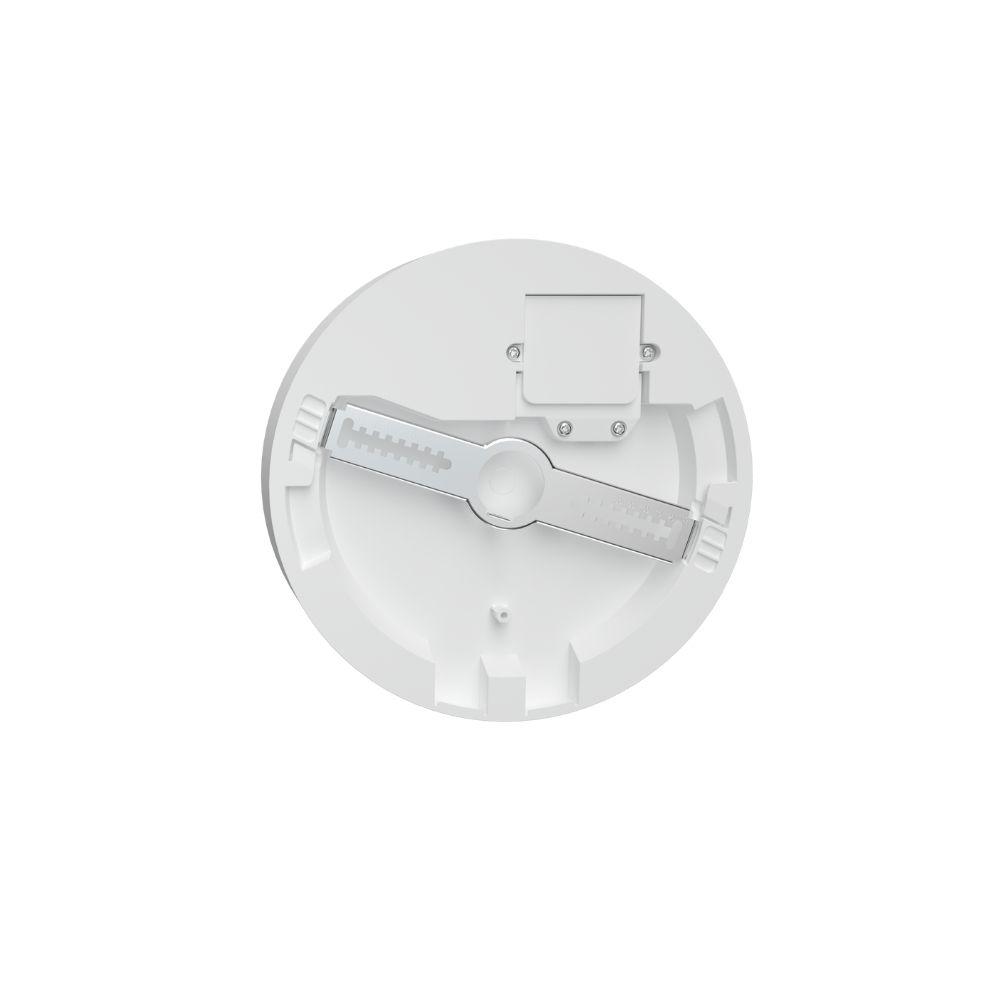

These compact LED ceiling fixture for indoor use (IP44) are designed for corridors, sanitary areas, and other functional spaces. Both models feature selectable power (5W or 7W) and three colour temperatures (2700K, 3000K, or 4000K), easily configured via internal DIP switches. The fixture is supplied with a practical mounting bracket and spacious wiring compartment, ensuring fast and safe installation.

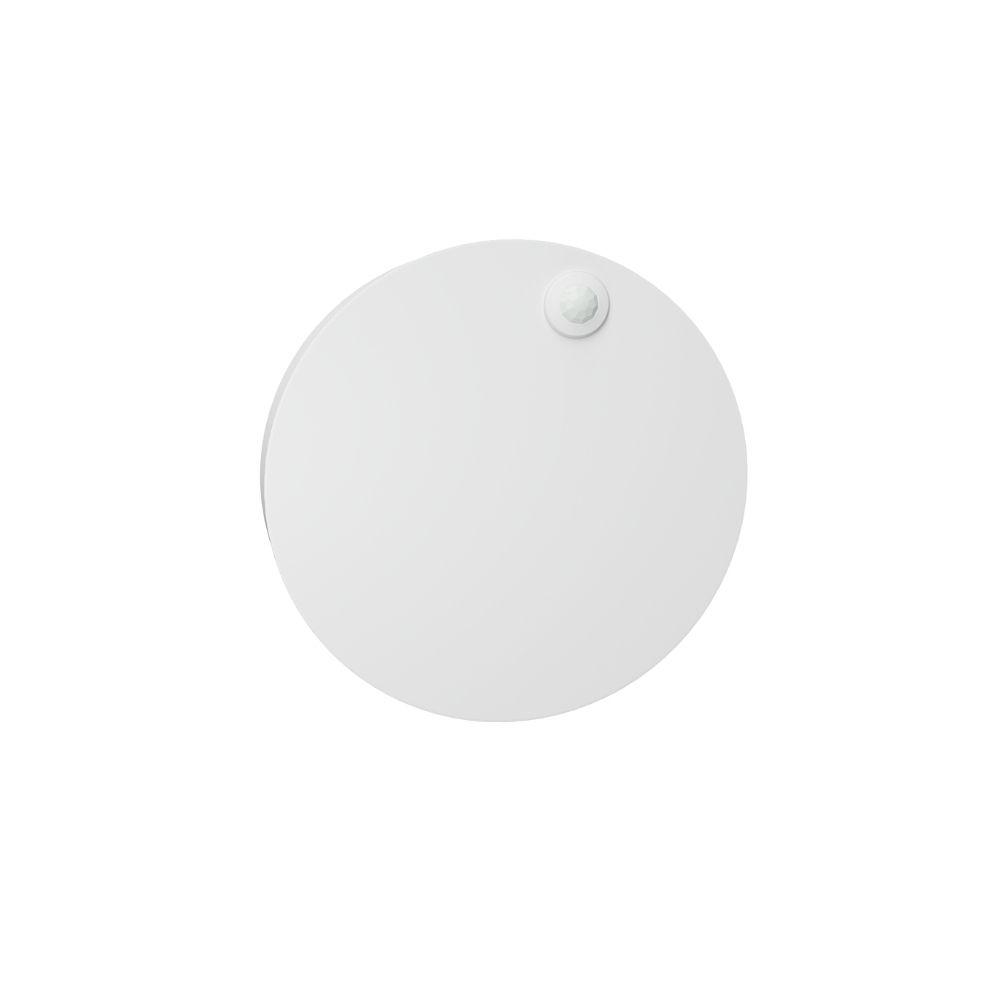

An additional version is available with an integrated PIR sensor that automatically switches the light on when movement is detected and off after the selected hold time. The built-in daylight sensor prevents unnecessary switching when sufficient ambient light is present. Thanks to the IP44 rating, both variants are suitable for humid indoor environments. The durable plastic housing and a lifetime of up to 50,000 hours ensure reliable, long-term performance.
Additional Information
More details about this product can be found in the specifications. For accessories, available options, and related products, see the related items section. For inquiries or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-ceiling-light-o180mm-57-watt-2700k3000k4000k-pir-136-026.pdf
Energy labels
Characteristics sheet
136-026-photometric-light-report.pdf
136-026-photometric-light-report-detailed.zip
136-026-eulumdat.zip
