Controller | TW | 12~24V | push buttons
213-008Compact LED controller for Tuneable White with 3 integrated buttons. Enables seamless control of brightness and colour temperature from warm to cool white. Ideal for short LED strips or installations with limited space.
Key product features
- Number of colour channels: 2
- Output voltage (V): 12 – 24
- Input voltage (V): 12 – 24
- Max. output current (A): 3
- Control type: Voltage-controlled
Product Name
Controller | TW | 12~24V | push buttons
Ean
8714984952935
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
3A
Output voltage
12 - 24V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

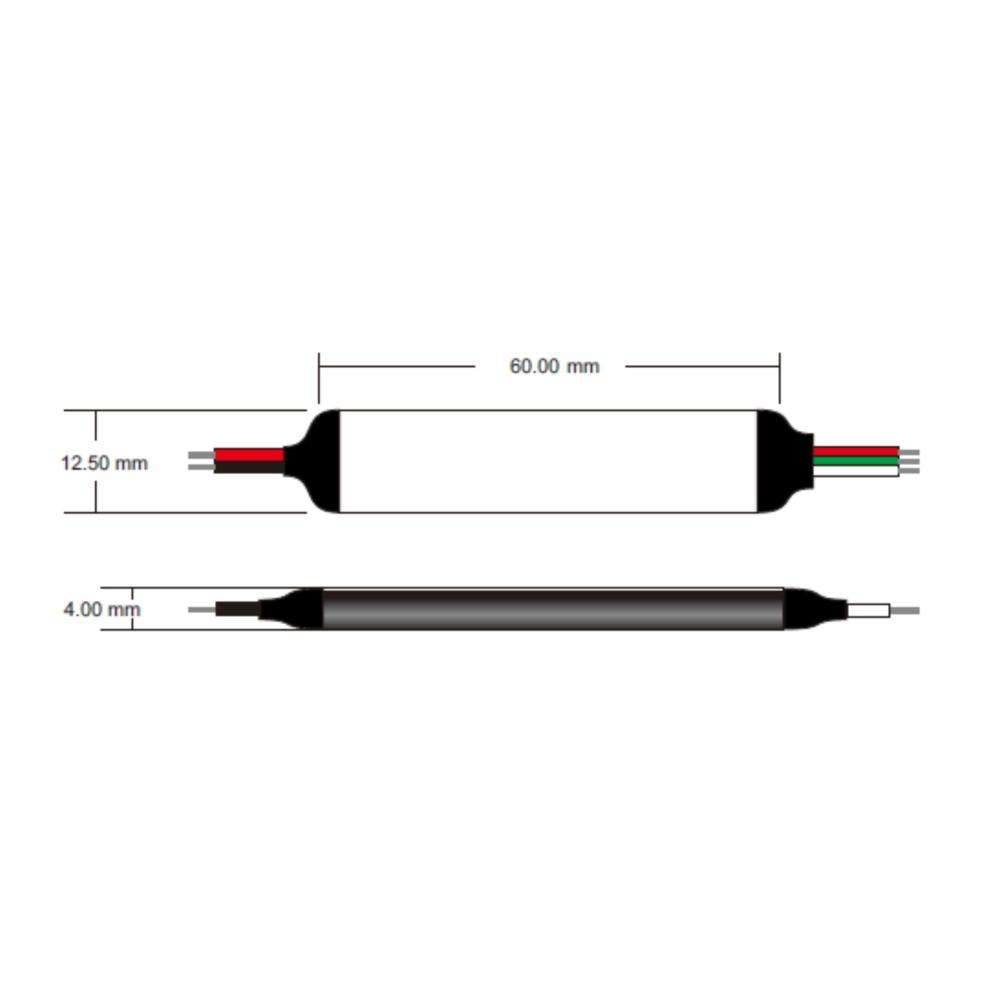

Length
60mm
Width
12.50mm
Height
4mm
Number of zones
1
Number of colour channels
2, Tuneable White
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 24V
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
Controller | TW | 12~24V | push buttons
Height
4mm
Ean
8714984952935
Number of zones
1
Outer box qty
1st
Number of colour channels
2, Tuneable White
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
No
Input voltage
12 - 24V
Max. output current
3A
DIN-rail mounting
No
Output voltage
12 - 24V
Brand
Tronix Lighting
Suitable for outdoor use
No
Compatible with Casambi
No
Degree of protection (IP)
IP20
Control type
Constant voltage
Length
60mm
Warranty
5 years
Width
12.50mm

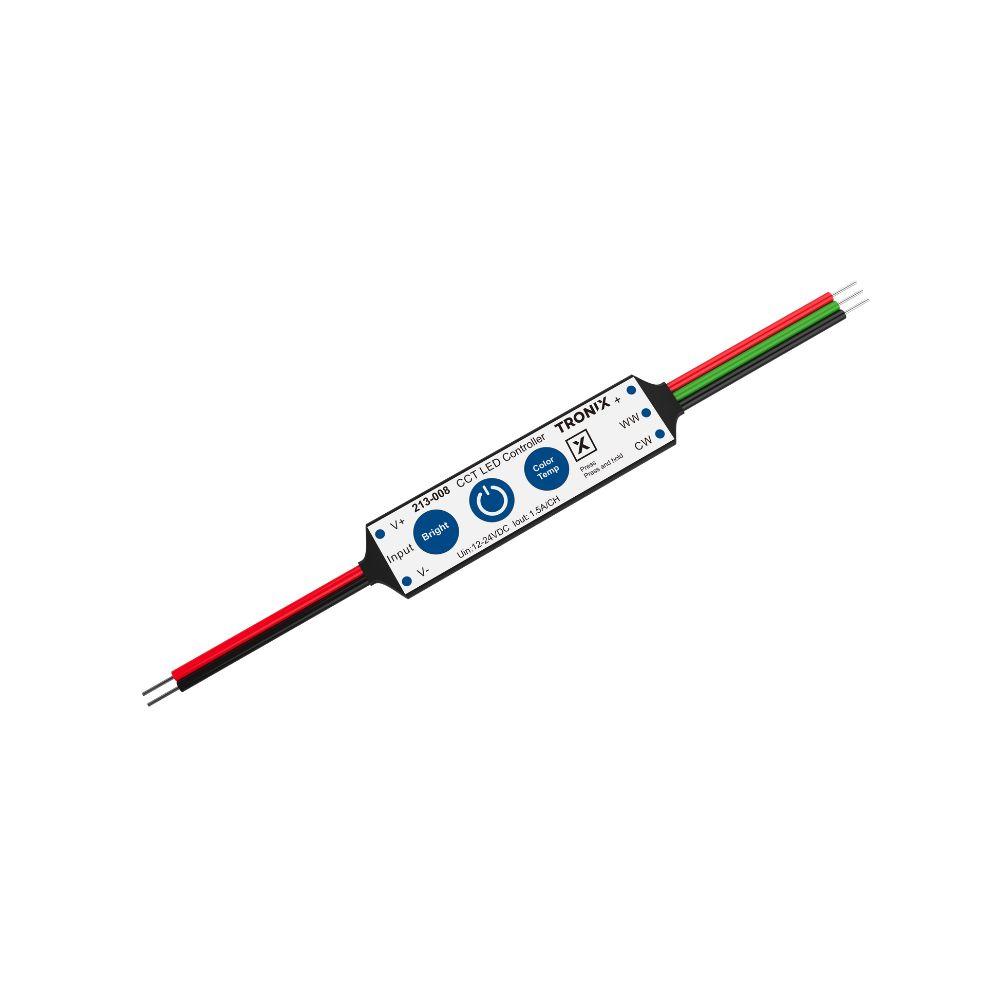

This mini controller is designed for direct control of Tuneable White LED strips operating on 12–24 V DC. The 3 integrated buttons independently control power on/off, brightness, and colour temperature. Short presses adjust brightness or colour in steps, while long presses enable smooth, continuous transitions.
The 2 outputs supply power separately to cool and warm white LEDs, allowing precise colour temperature adjustment. With a PWM frequency of 750 Hz, the controller ensures flicker-free dimming, even at low light levels.
Thanks to its ultra-compact design, this controller is perfect for applications with limited space, such as showcases, furniture, profiles, or display lighting.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-controller-tw-1224v-push-buttons-213-008.pdf
Characteristics sheet
213-008_manual.pdf
