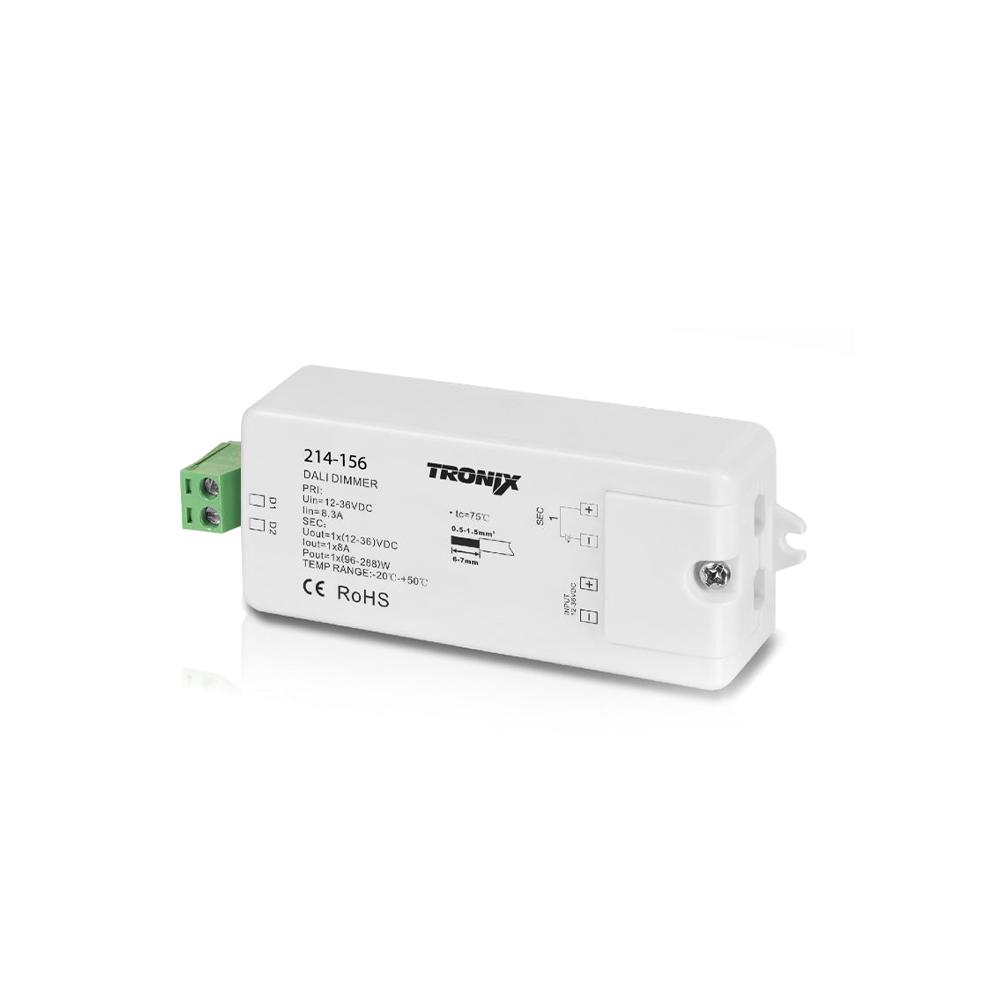

DALI dimming module | 1 channel | 12V/24V
214-156Single-channel LED controller for single-colour constant voltage lighting (12–36V DC, max. 8 A). Supports dimming via DALI or 230V push switch. PWM output ensures stable light control. IP20 rated.
Key product features
- Type of control: DALI
- Number of colour channels: 1
- Output voltage (V): 12 – 36
- Input voltage (V): 12 – 36
- Max. output current (A): 8
- Control type: Voltage controlled
Product Name
DALI dimming module | 1 channel | 12V/24V
Ean
8714984920453
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
8A
Output voltage
12 - 36V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
95mm
Width
37mm
Height
21mm
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
12 - 36V
Control method
DALI
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
DALI dimming module | 1 channel | 12V/24V
Height
21mm
Ean
8714984920453
Number of colour channels
1, Single Colour
Outer box qty
1st
Suitable for surface mounting
Yes
Model
Dynamic
Suitable for built-in mounting
No
Housing
Plastic housing
Input voltage
12 - 36V
Programmable
Yes
Control method
DALI
Max. output current
8A
DIN-rail mounting
No
Output voltage
12 - 36V
Brand
Tronix Lighting
Suitable for outdoor use
No
Compatible with Casambi
No
Degree of protection (IP)
IP20
Control type
Constant voltage
Length
95mm
Warranty
5 years
Width
37mm
Compact LED controller with one output channel, designed for constant voltage single-colour LED lighting. Compatible with standard DALI control of Push DIM via a conventional 230V push switch. Suitable for integration into ceiling boxes, luminaires or control cabinets.
The controller operates on 12–36V DC and provides a stable PWM output with a maximum of 8 A, allowing a power range from 96 W (at 12V) to 288 W (at 36V). DALI addressing is automatically assigned by the connected master controller.
In Push DIM mode:
- Short press toggles the light on or off.
- Long press dims the light until the button is released. Repeated pressing reverses the dimming direction.
The housing is IP20 rated and intended for dry indoor environments. Equipped with integrated protection against overheating, overcurrent and short circuit.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
