DALI dimming module || 2 channels | 100-240V trailing edge
214-176DALI trailing edge dimmer with 2 outputs for dimming 230V dimmable LED, halogen, or incandescent lamps. Supports DALI DT6 control, operates on 100–240V AC and offers up to 288 W per channel.
Key product features
- Light value memory: Yes
- Nominal voltage (V): 100 – 240
- Control voltage (V): 100 – 240
- Dimming phase cut-off (trailing edge): Yes
- Max. switching capacity LED (W): 288
- Control method: DALI
Product Name
DALI dimming module || 2 channels | 100-240V trailing edge
Ean
8714984935228
Outer box qty
50st
Colour
White
Connection type
Screwed terminal
Operating method
Other
Control method
DALI
Mounting method
Surface mounted
Material
Plastic
Material quality
Thermoplastic
Device width
170mm
Device height
59mm
Device depth
29mm
Applicable with presence indicator
Yes
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
Yes
Applicable with button
No
Applicable with transmission button
No
Applicable with time switch/timer
Yes
Nominal voltage
100 - 240V
Control voltage
100 - 240V
Min. depth of built-in installation box
30mm
Min. brightness controllable
Yes
Max. switching power LED
288W
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9016
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
DALI dimming module || 2 channels | 100-240V trailing edge
Applicable with movement sensor
Yes
Ean
8714984935228
Applicable with button
No
Outer box qty
50st
Applicable with transmission button
No
Colour
White
Applicable with time switch/timer
Yes
Connection type
Screwed terminal
Nominal voltage
100 - 240V
Operating method
Other
Control voltage
100 - 240V
Control method
DALI
Min. depth of built-in installation box
30mm
Mounting method
Surface mounted
Min. brightness controllable
Yes
Material
Plastic
Max. switching power LED
288W
Material quality
Thermoplastic
Light value memory
Yes
Device width
170mm
Halogen free
Yes
Device height
59mm
RAL-number (similar)
9016
Device depth
29mm
Core cross section
0.75 - 2.5mm²
Applicable with presence indicator
Yes
Warranty
5 years
Suitable for degree of protection (IP)
IP20

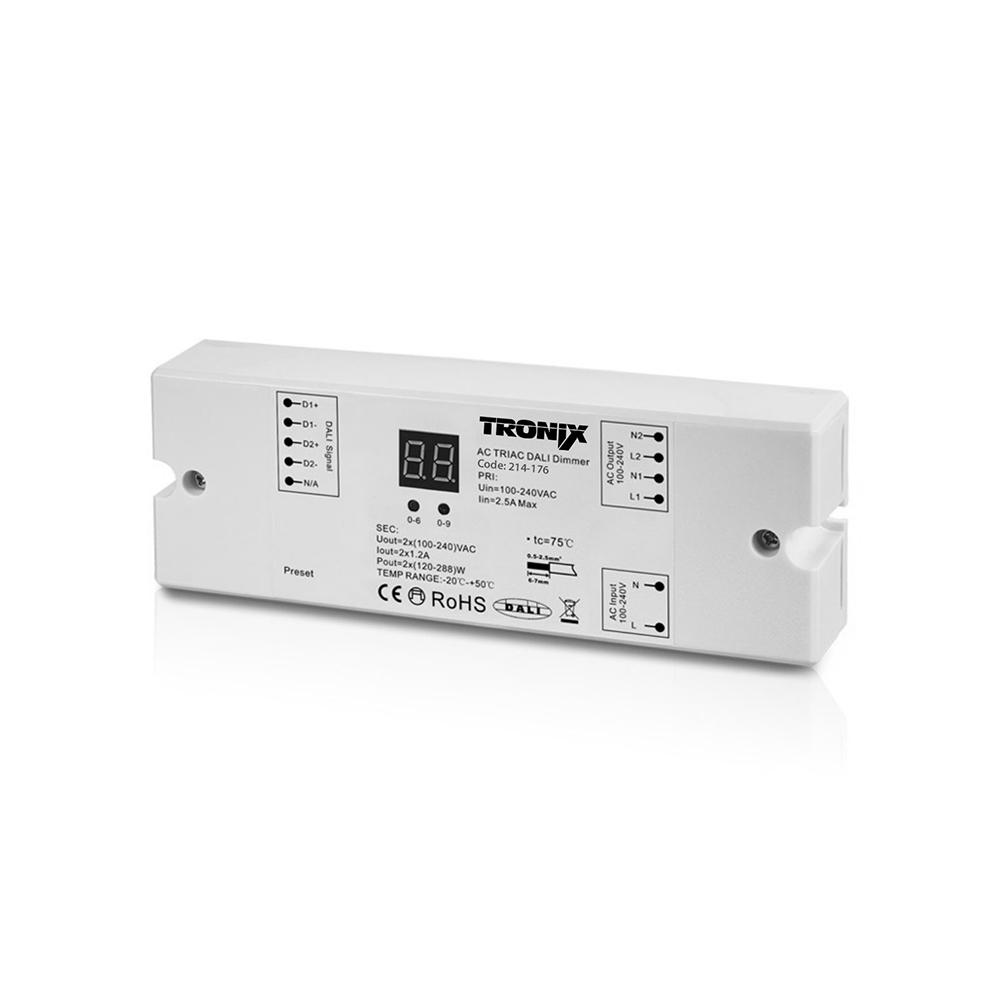

This 2-channel trailing edge dimmer is suitable for switching and dimming 230V dimmable LED lighting, as well as halogen and incandescent lamps. It supports DALI DT6 and is compatible with standard DALI masters. The built-in display and buttons allow for easy configuration of the DALI address and operating mode.
Both outputs provide 100–240V AC and support a current of up to 1.2 A, delivering a maximum of 288 W per channel. In 1A mode, both outputs share the same DALI address; in 2A mode, they operate with separate sequential addresses.
The adjustable minimum brightness ensures stable performance at low dim levels. This level is set by dimming the lighting via the DALI master and then pressing the preset button. Resetting to factory settings is done by dimming to 100% and pressing the button again.
Designed for use in dry indoor spaces (IP20), this dimmer has a compact size of 170 × 59 × 29 mm. Suitable for installation in cabinets, ceilings or luminaires.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
