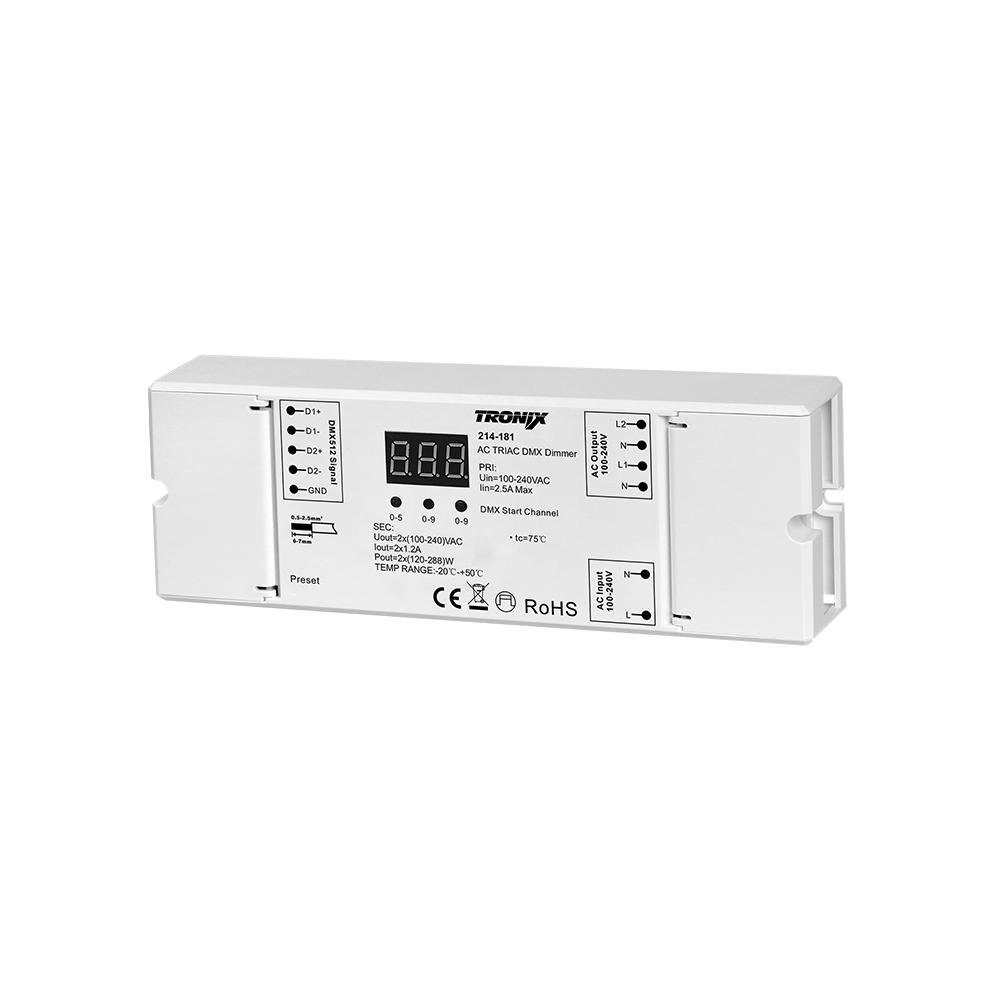

DMX dimming module || 2 channels | 100-240V trailing edge
214-1812-channel DMX512 dimmer for dimmable 230 V lighting. Each channel supports leading or trailing edge dimming. Max. 2×288 W, compact and fully isolated design.
Key product features
- Light value memory: Yes
- Nominal voltage (V): 100 – 240
- Control voltage (V): 100 – 240
- Dimming phase cut-on (leading edge): Yes
- Dimming phase cut-off (trailing edge): Yes
- Max. switching power LED (W): 288
- Control method: DMX
Product Name
DMX dimming module || 2 channels | 100-240V trailing edge
Ean
8714984939141
Outer box qty
64st
Colour
White
Connection type
Screwed terminal
Operating method
Other
Control method
DMX
Mounting method
Surface mounted
Material
Plastic
Material quality
Thermoplastic
Device width
170mm
Device height
59mm
Device depth
29mm
Applicable with presence indicator
Yes
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
Yes
Applicable with button
No
Applicable with transmission button
No
Applicable with time switch/timer
Yes
Nominal voltage
100 - 240V
Control voltage
100 - 240V
Min. depth of built-in installation box
30mm
Min. brightness controllable
Yes
Max. switching power LED
288W
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9016
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
DMX dimming module || 2 channels | 100-240V trailing edge
Applicable with movement sensor
Yes
Ean
8714984939141
Applicable with button
No
Outer box qty
64st
Applicable with transmission button
No
Colour
White
Applicable with time switch/timer
Yes
Connection type
Screwed terminal
Nominal voltage
100 - 240V
Operating method
Other
Control voltage
100 - 240V
Control method
DMX
Min. depth of built-in installation box
30mm
Mounting method
Surface mounted
Min. brightness controllable
Yes
Material
Plastic
Max. switching power LED
288W
Material quality
Thermoplastic
Light value memory
Yes
Device width
170mm
Halogen free
Yes
Device height
59mm
RAL-number (similar)
9016
Device depth
29mm
Core cross section
0.75 - 2.5mm²
Applicable with presence indicator
Yes
Warranty
5 years
Suitable for degree of protection (IP)
IP20
This DMX512 dimmer enables dimming and switching of 230 V lighting loads – including dimmable LED, halogen and incandescent lamps – using either leading or trailing edge dimming per channel. This ensures maximum compatibility across different loads.
It features 2 independent outputs (100 – 240 V AC), each supporting up to 288 W at 230 V.
The user-friendly display allows configuration of the DMX address and channel mode: both outputs on a single address or each on a separate one. The dimming mode (leading or trailing edge) can be set individually for each output.
The minimum brightness level can be preset using the button, ensuring flicker-free performance at low light levels. The fully isolated design ensures safe installation in professional environments.
With compact dimensions (170 × 59 × 29 mm) and IP20 rating, this dimmer is suitable for use in dry indoor spaces, such as cabinets, ceilings or fixtures.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
