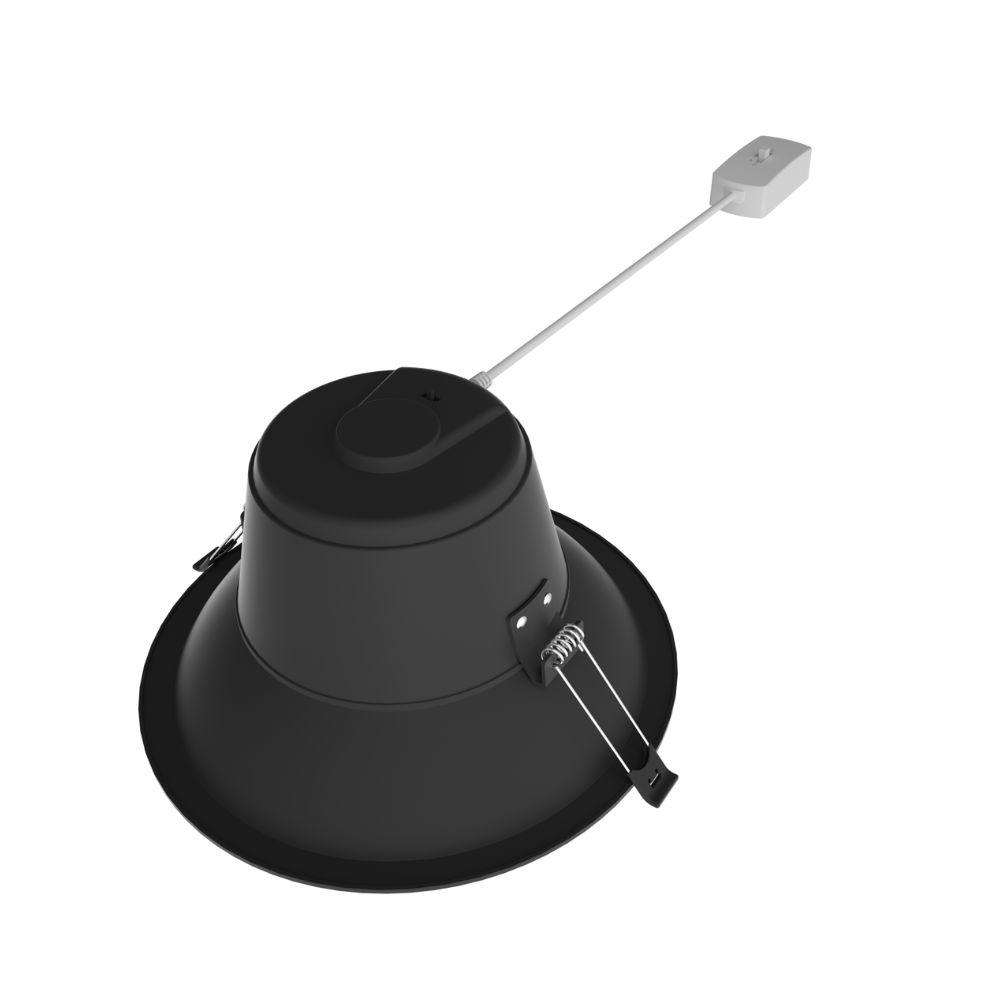

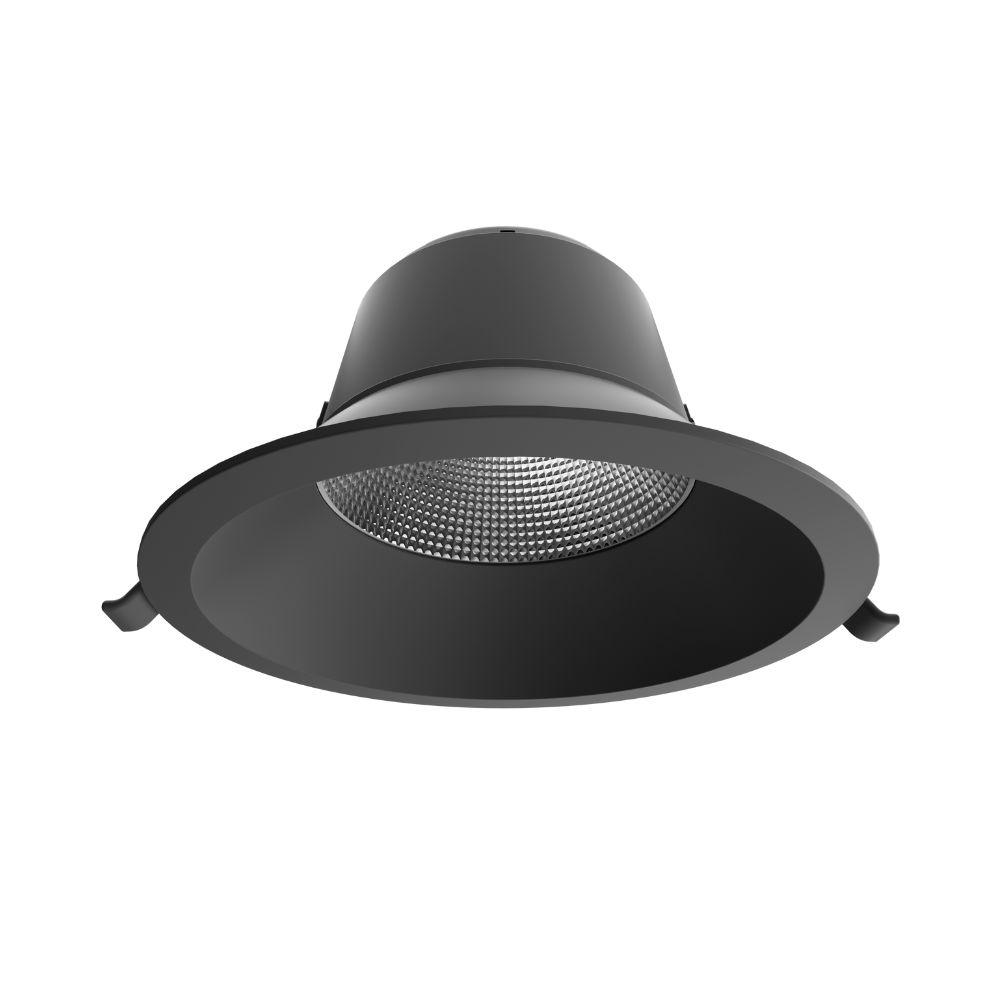

Downlight | Ø192mm | black | 5-CCT | 6~15W | EU plug
136-5185 colour temperatures, 5 wattages, 5 sizes. This versatile downlight combines adaptability, performance and reliability in one compact solution. Features an IP44 front, low glare (UGR<19) and 5-year warranty.
Key product features
- Max. system power (W): 15
- Colour temperature (K): 2700 – 3000 – 3500 – 4000 – 5700
- Housing colour: Black

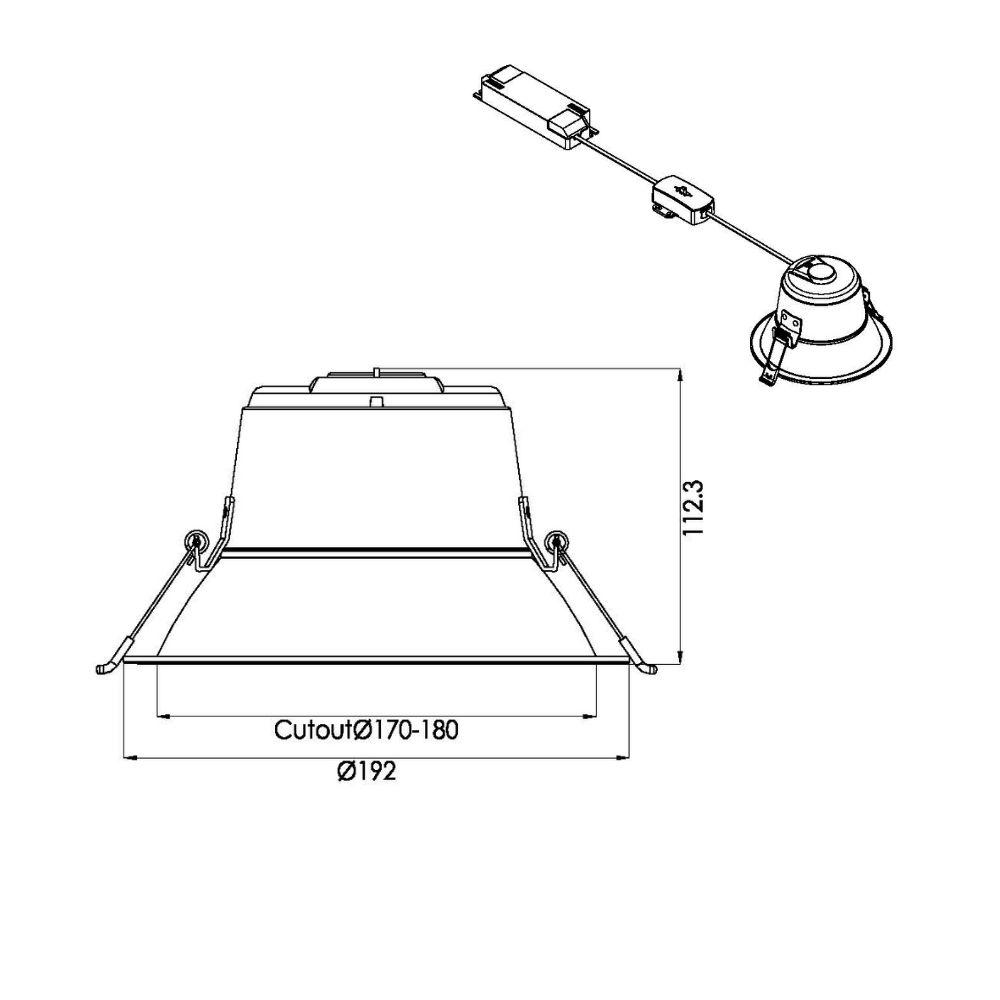

- Outer diameter (mm): 192
- Luminous flux adjustable: fixed steps
- Built-in diameter (mm): 170 - 180
- Connection type: Euro plug
Product Name
Downlight | Ø192mm | black | 5-CCT | 6~15W | EU plug
Ean
8714984951570
Outer box qty
20st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Black
Housing material
Aluminium
Material cover
Plastic, opal
Connection type
EU plug
Height/depth
112mm
Outer diameter
192mm
Built-in diameter
170 - 180mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
Positions
Reflector colour
Silver
Colour temperature
2700 - 3000 - 3500 - 4000 - 5700K
Colour rendering index CRI
90-100
Luminous flux adjustable
Positions
Light outlet
Direct
Beam angle
41-80° - Wide beam
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
31 - 63mA
Number of poles
2
Light source included
Yes, fixed LED
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.5 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
Yes
With control gear
Yes
Degree of protection (IP), front side
IP44
Degree of protection (IP), rear side
IP20
Surface protection
Powder coating
Impact strength
IK02
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
15W
Rated luminous flux according to IEC 62722-2- 1
540 - 1350lm
Luminaire efficacy
90 - 90lm/W
Power factor
0.96
Suitable for lamp power
0 - 0W
Dimming method
Non-dimmable
Surface brushed
No
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
16
Reflector
High-gloss
Warranty
5 years
Product Name
Downlight | Ø192mm | black | 5-CCT | 6~15W | EU plug
Beam angle adjustable
No
Ean
8714984951570
Voltage type
AC
Outer box qty
20st
Nominal voltage
220 - 240V
Lamp type
LED not exchangeable
Nominal current
31 - 63mA
Lamp holder
None
Number of poles
2
Housing colour
Black
Light source included
Yes, fixed LED
Housing material
Aluminium
Light distributor
Reflector
Material cover
Plastic, opal
Light distribution
Symmetric
Connection type
EU plug
Connectable conductor cross section
0.5 - 2.5mm²
Height/depth
112mm
Type of control gear
LED operating device current-controlled
Outer diameter
192mm
Exchangeable control gear
Yes
Built-in diameter
170 - 180mm
With control gear
Yes
Suitable for built-in mounting
Yes
Degree of protection (IP), front side
IP44
Suitable for surface mounting
No
Degree of protection (IP), rear side
IP20
Suitable for pedestal/floor mounting
No
Surface protection
Powder coating
Suitable for wall mounting
No
Impact strength
IK02
Suitable for ceiling mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for light-track mounting
No
Max. system power
15W
Suitable for clamp-mounting
Yes
Rated luminous flux according to IEC 62722-2- 1
540 - 1350lm
With movement sensor
No
Luminaire efficacy
90 - 90lm/W
With presence detector
No
Power factor
0.96
With light sensor
No
Suitable for lamp power
0 - 0W
Colour of light
White
Dimming method
Non-dimmable
Colour consistency (McAdam ellipse)
SDCM3
Surface brushed
No
Colour of light adjustable
Positions
Type of wiring
Ending
Reflector colour
Silver
Emergency power supply system
None
Colour temperature
2700 - 3000 - 3500 - 4000 - 5700K
Emergency function monitoring system
None
Colour rendering index CRI
90-100
Adjustability
not adjustable
Luminous flux adjustable
Positions
Unified Glare Ratio (UGR)
16
Light outlet
Direct
Reflector
High-gloss
Beam angle
41-80° - Wide beam
Warranty
5 years
This 5CCT downlight with adjustable colour temperature offers maximum flexibility during installation and application. A built-in switch in the cable between the fixture and the driver allows you to preselect one of five colour settings. From warm white (2700K) to cool daylight (5700K).
The series is available in 5 wattages (10–24 W) and diameters from Ø108 to Ø220 mm, making it suitable for both retrofit and new-build applications. Thanks to its low UGR rating (<19), this downlight is ideal for offices and reception areas.
The front is IP44-rated (splashproof), and the connection type can be selected according to the project: with EU plug or GST connector. Available in white or black. Lifetime: 50,000 hours. Standard 5-year warranty.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-downlight-o192mm-black-5-cct-615w-eu-plug-136-518.pdf
Energy labels
Characteristics sheet
136-518-photometric-light-report.pdf
136-518-photometric-light-report-detailed.zip
136-518-eulumdat.zip
