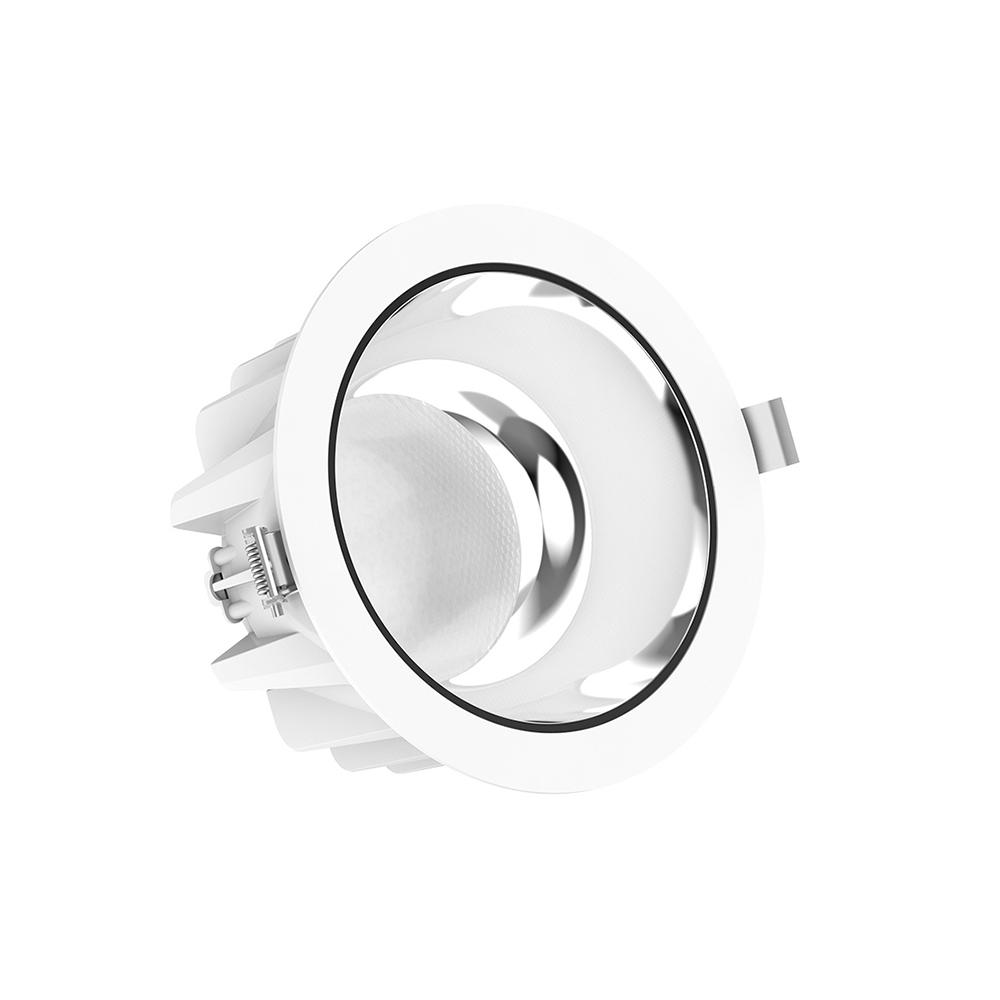

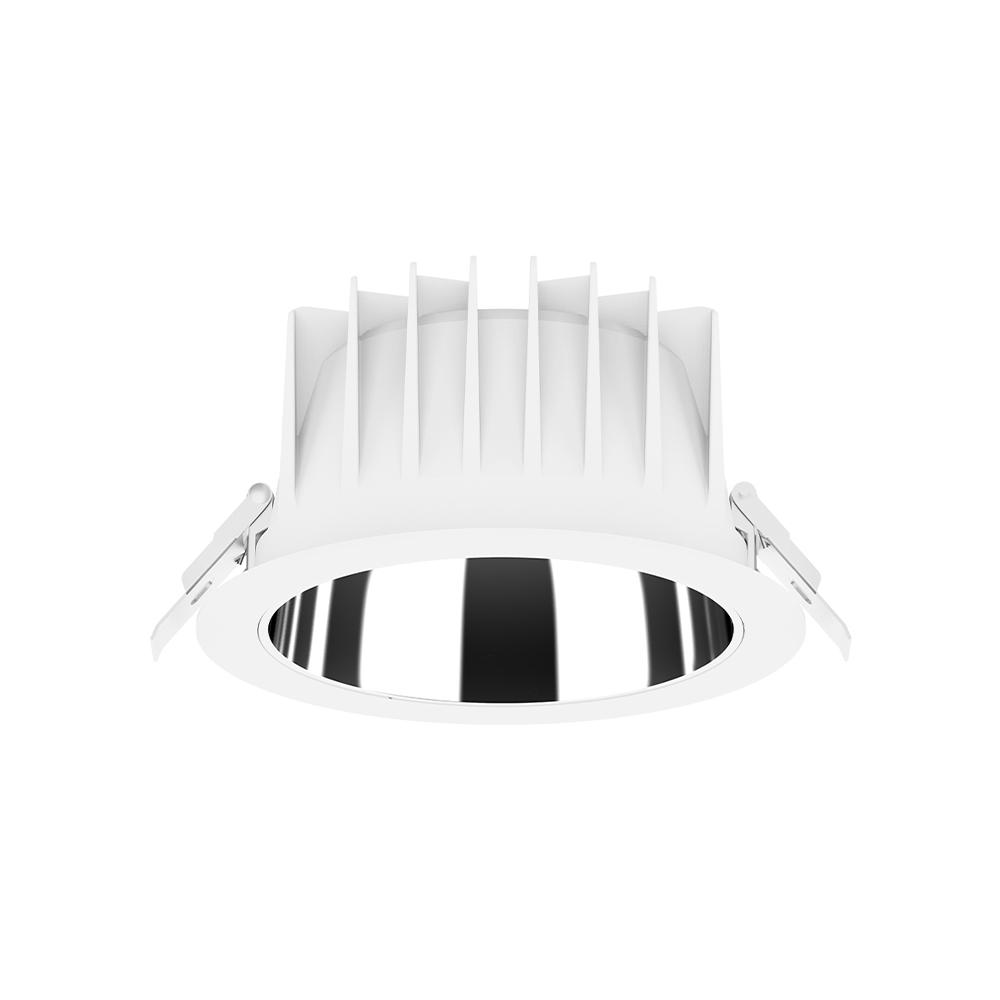

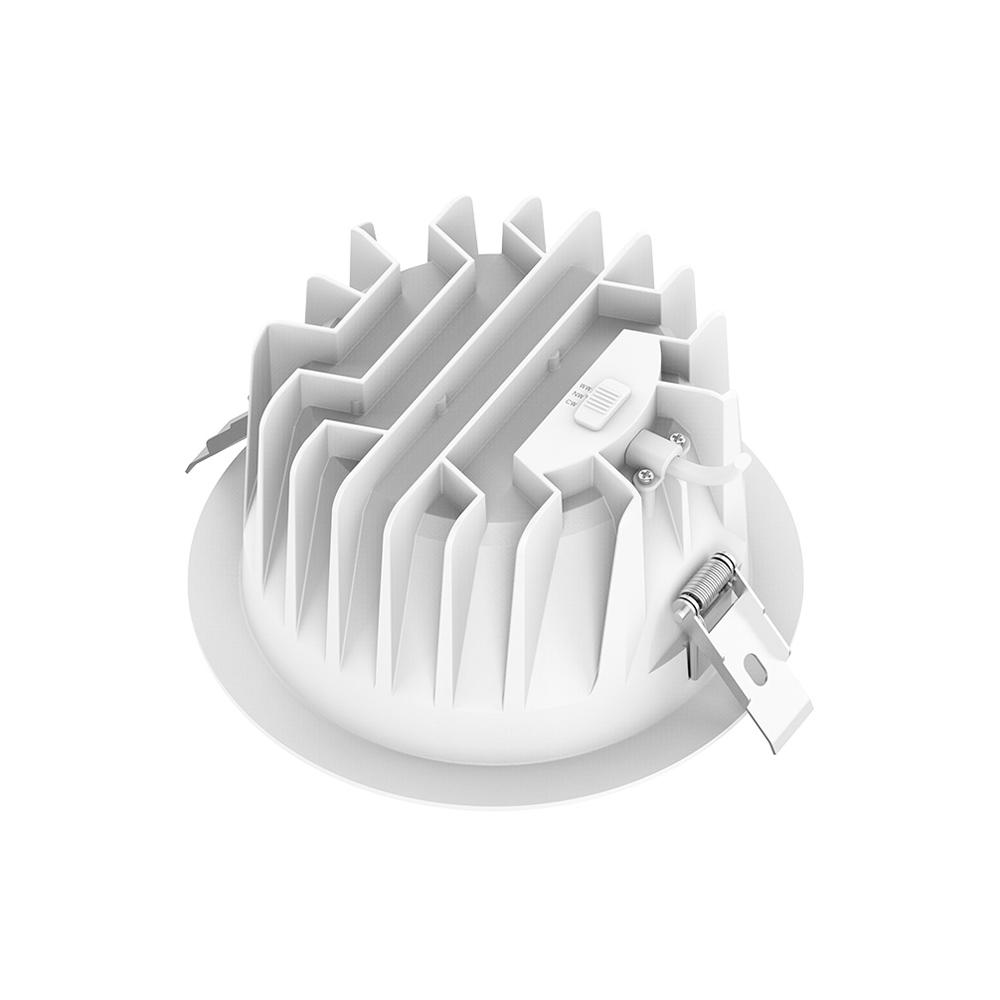

Downlight|| Ø280mm | white | 60° | 3-CCT | 750mA | no driver
136-411This downlight minimizes glare with a mirror reflector and offers an adjustable light Colour. Perfect for bright, comfortable lighting in commercial and residential settings.
Key product features:
- Max. system power (W): 30
- Colour temperature (K): 3000 - 5700
- Housing colour: White
- Outer diameter (mm): 280
- Built-in diameter (mm): 224 - 260
- Connection type: Other
- Unified Glare Ratio (UGR): 19
Product Name
Downlight|| Ø280mm | white | 60° | 3-CCT | 750mA | no driver
Ean
8714984942608
Outer box qty
6st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
White
Housing material
Aluminium
Material cover
Plastic, transparent
Connection type
Stripped wire

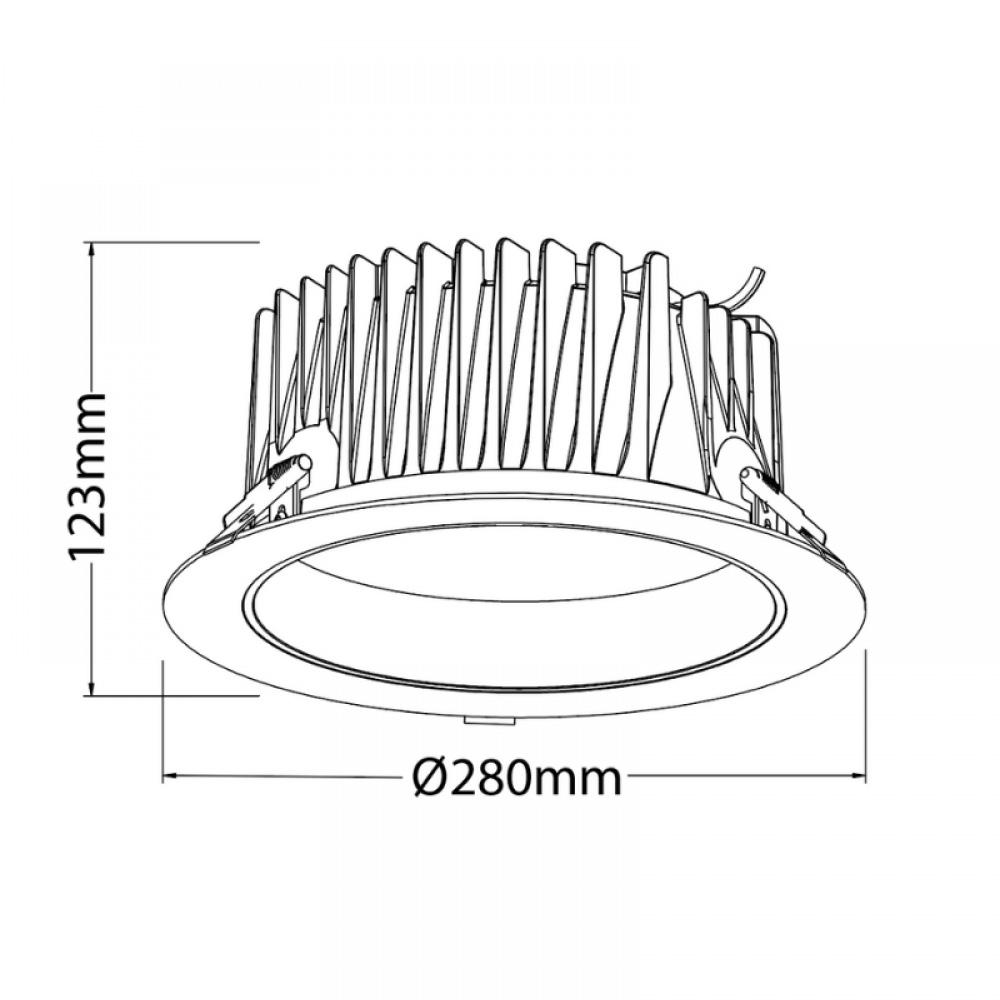

Height/depth
123mm
Outer diameter
280mm
Built-in diameter
224 - 260mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
Positions
Reflector colour
Silver
Colour temperature
3000 - 4000 - 5700K
Colour rendering index CRI
80-89
Luminous flux adjustable
No
Light outlet
Direct
Beam angle
41-80° - Wide beam
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
40 - 40V
Nominal current
0 - 750mA
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
Yes
With control gear
No
Degree of protection (IP), front side
IP44
Degree of protection (IP), rear side
IP20
Surface protection
Powder coating
Impact strength
IK02
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
30W
Rated luminous flux according to IEC 62722-2- 1
0 - 3000lm
Luminaire efficacy
100 - 100lm/W
Power factor
1
Suitable for lamp power
0 - 0W
Dimming method
Optional
Surface brushed
No
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
17
Reflector
High-gloss
Warranty
5 years
Product Name
Downlight|| Ø280mm | white | 60° | 3-CCT | 750mA | no driver
Beam angle
41-80° - Wide beam
Ean
8714984942608
Beam angle adjustable
No
Outer box qty
6st
Voltage type
AC
Lamp type
LED not exchangeable
Nominal voltage
40 - 40V
Lamp holder
None
Nominal current
0 - 750mA
Housing colour
White
Light distributor
Reflector
Housing material
Aluminium
Light distribution
Symmetric
Material cover
Plastic, transparent
Connectable conductor cross section
0.75 - 2.5mm²
Connection type
Stripped wire
Type of control gear
LED operating device current-controlled
Height/depth
123mm
Exchangeable control gear
Yes
Outer diameter
280mm
With control gear
No
Built-in diameter
224 - 260mm
Degree of protection (IP), front side
IP44
Suitable for built-in mounting
Yes
Degree of protection (IP), rear side
IP20
Suitable for surface mounting
No
Surface protection
Powder coating
Suitable for pedestal/floor mounting
No
Impact strength
IK02
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
Yes
Max. system power
30W
Suitable for light-track mounting
No
Rated luminous flux according to IEC 62722-2- 1
0 - 3000lm
Suitable for clamp-mounting
Yes
Luminaire efficacy
100 - 100lm/W
With movement sensor
No
Power factor
1
With presence detector
No
Suitable for lamp power
0 - 0W
With light sensor
No
Dimming method
Optional
Colour of light
White
Surface brushed
No
Colour consistency (McAdam ellipse)
SDCM3
Emergency power supply system
None
Colour of light adjustable
Positions
Emergency function monitoring system
None
Reflector colour
Silver
Adjustability
not adjustable
Colour temperature
3000 - 4000 - 5700K
Unified Glare Ratio (UGR)
17
Colour rendering index CRI
80-89
Reflector
High-gloss
Luminous flux adjustable
No
Warranty
5 years
Light outlet
Direct
The mirror reflector ensures optimal light distribution with minimal glare (UGR <19). Part of a series with nearly 40 models in various sizes and wattages, this downlight offers versatile solutions. Installation is quick and straightforward with europlug, GST18i3 or driver connector options.
More information and advice
Detailed information about this product, including related accessories, can be found in the product specifications. For questions or tailored advice, the lighting experts at Tronix Lighting are available at sales@tronixlighting.com or by phone at +31 413 330 380.
Datasheet
Datasheet-downlight-o280mm-white-60-3-cct-750ma-no-driver-136-411.pdf
Energy labels
Characteristics sheet
136-411-photometric-light-report.pdf
136-411-photometric-light-report-detailed.zip
136-411-eulumdat.zip
