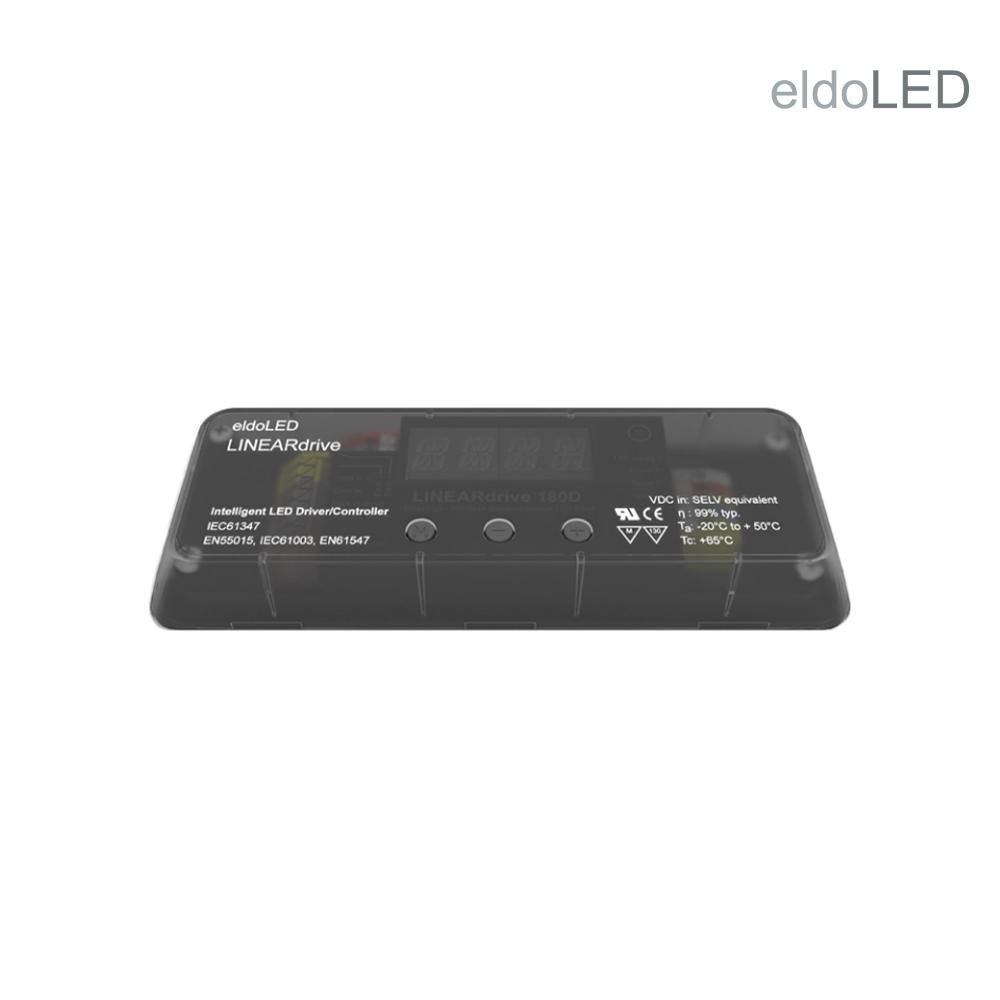

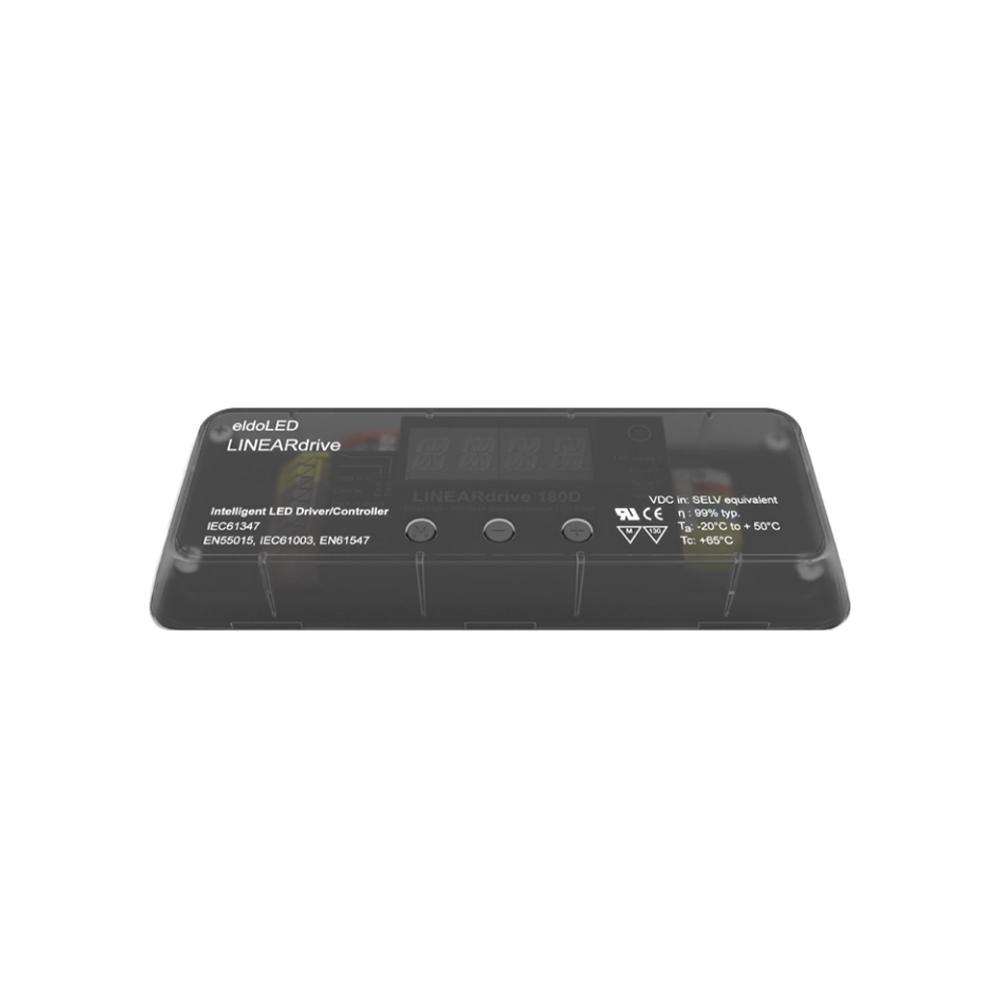

eldoLED | LINEARdrive 180/D | 4CH | 4 out | DMX
214-353Advanced DMX (RDM) LED controller for 12–24V RGBW, RGB, Tuneable White and single-colour lighting. Four independently controlled outputs with dimming down to 0.1% via HydraDrive.
Key product features
- Type of control: DMX
- Number of colour channels: 4
- Output voltage (V): 12 – 28
- Input voltage (V): 12 – 28
- Max. output current (A): 2
- Control type: Constant voltage
- Number of zones: 4
Product Name
eldoLED | LINEARdrive 180/D | 4CH | 4 out | DMX
Ean
8714984944244
Outer box qty
12st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
2A
Output voltage
12 - 28V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
153mm
Width
50mm
Height
23mm
Number of zones
4
Number of colour channels
4, RGBW
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 28V
Control method
DMX
DIN-rail mounting
No
Brand
eldoLED
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
eldoLED | LINEARdrive 180/D | 4CH | 4 out | DMX
Height
23mm
Ean
8714984944244
Number of zones
4
Outer box qty
12st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 28V
Max. output current
2A
Control method
DMX
Output voltage
12 - 28V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
eldoLED
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
153mm
Control type
Constant voltage
Width
50mm
Warranty
5 years
The eldoLED LINEARdrive 180D is a high-performance 4-channel constant voltage LED controller designed for DMX (RDM) applications, supporting loads up to 180 watts. Operating at 12–24V DC, it offers precise control of RGBW, RGB, tuneable white or single-colour LED strips or modules. Each output delivers up to 2 A in RGB mode or 1.5 A in RGBW setups.
Thanks to patented HydraDrive technology, the controller dims smoothly from 100% to 0.1%, making it ideal for visually sensitive environments such as studios and museums. Configuration is quick and intuitive via the built-in display with a 3-button interface. Settings include colour mode, channel assignment, dimming curve (logarithmic or linear), DMX address and show options. Alternatively, setup can be done using eldoLED’s TOOLbox Pro and FluxTool software.
The LINEARdrive 180D also supports external control via the Ext-in port for 0–10V dimmers, potentiometers or show selector switches. A LedSync output enables synchronisation with other eldoLED controllers. The compact and lightweight housing (153 × 50 × 23 mm) is suitable for integration into luminaires or control cabinets.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-eldoled-lineardrive-180d-4ch-4-out-dmx-214-353.pdf
Characteristics sheet
214-353_technical_datasheet_extended.pdf
