eldoLED | LINEARdrive 200D-D2Z1D | 1CH | 2 out | DALI DT6
214-358Professional 2-channel DALI LED controller for constant voltage systems from 12 to 28 volts. Two outputs, one shared channel. Flicker-free dimming down to 0.1% with HydraDrive, suitable for single-colour applications up to 224 watts.
Key product features
- Type of control: DALI
- Number of colour channels: 1
- Output voltage (V): 12 – 28
- Input voltage (V): 12 – 28
- Max. output current (A): 8
- Control type: Constant voltage
- Number of zones: 1
Product Name
eldoLED | LINEARdrive 200D-D2Z1D | 1CH | 2 out | DALI DT6
Ean
8714984954410
Outer box qty
12st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
8A
Output voltage
12 - 28V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
153mm
Width
50mm
Height
23mm
Number of zones
1
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 28V
Control method
DALI
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
eldoLED | LINEARdrive 200D-D2Z1D | 1CH | 2 out | DALI DT6
Height
23mm
Ean
8714984954410
Number of zones
1
Outer box qty
12st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 28V
Max. output current
8A
Control method
DALI
Output voltage
12 - 28V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
153mm
Control type
Constant voltage
Width
50mm
Warranty
5 years
The LINEARdrive 200D-D2Z1D by eldoLED is an advanced DALI Device Type 6 (DT6) LED controller, designed for constant voltage systems ranging from 12 to 28 volts. It features two synchronised outputs managed via a single channel, making it ideal for single-colour applications with multiple LED strips or light lines within one zone.
With a total output capacity of up to 224 watts and a combined current of 8 amps, this controller is suitable for high-power lighting installations. The integrated HydraDrive technology ensures exceptionally smooth, flicker-free dimming down to 0.1%, with selectable linear or logarithmic dimming curves.
The controller is compatible with all DALI-2 systems, including Helvar 910/920 and Lunatone DALI 4Net. It also supports analogue control via the EXT IN port, allowing connection to a potentiometer or 0–10V signal. Configuration is handled using TOOLbox Pro in combination with FluxTool software.

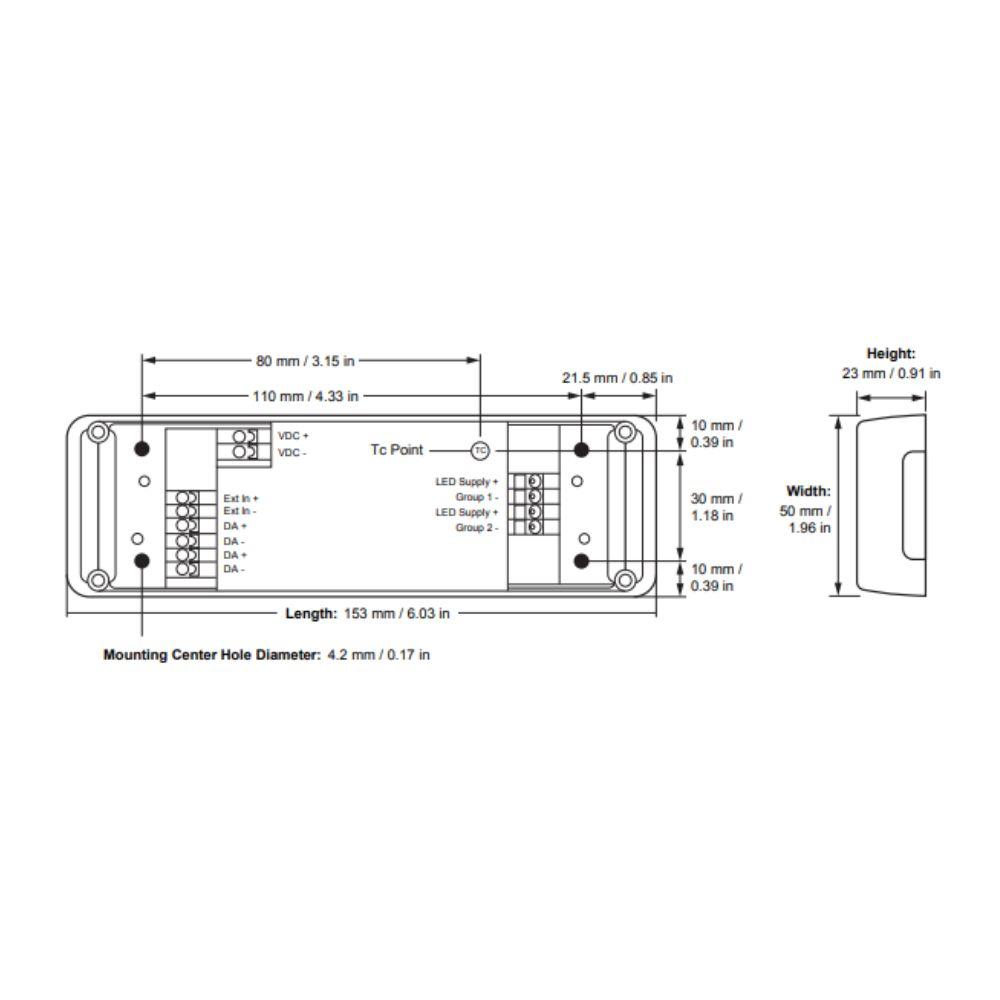

Its compact housing (153 × 50 × 23 mm, weight 149 grams) includes mounting holes for easy installation. An external short-circuit-protected power supply is required, matched to the system voltage. In the event of a power loss, settings are securely stored via an automatic last-write function.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-eldoled-lineardrive-200d-d2z1d-1ch-2-out-dali-dt6-214-358.pdf
Characteristics sheet
214-358_specification sheet.pdf
