eldoLED | LINEARdrive 200D-D2Z2D | 2CH | 2 out | DALI DT6
214-357Professional 2-channel DALI LED controller (12–28V DC) for Tuneable White, dual-channel or single-colour applications. Supports 2 zones, up to 224 W and flicker-free dimming down to 0.1%.
Key product features
- Type of control: DALI
- Number of colour channels: 2
- Output voltage (V): 12 – 28
- Input voltage (V): 12 – 28
- Max. output current (A): 8
- Control type: Constant voltage
- Number of zones: 2
Product Name
eldoLED | LINEARdrive 200D-D2Z2D | 2CH | 2 out | DALI DT6
Ean
8714984944558
Outer box qty
12st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
8A
Output voltage
12 - 28V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
153mm
Width
50mm
Height
23mm
Number of zones
2
Number of colour channels
2, Tuneable White
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 28V
Control method
DALI
DIN-rail mounting
No
Brand
eldoLED
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
eldoLED | LINEARdrive 200D-D2Z2D | 2CH | 2 out | DALI DT6
Height
23mm
Ean
8714984944558
Number of zones
2
Outer box qty
12st
Number of colour channels
2, Tuneable White
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 28V
Max. output current
8A
Control method
DALI
Output voltage
12 - 28V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
eldoLED
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
153mm
Control type
Constant voltage
Width
50mm
Warranty
5 years
This advanced constant voltage LED controller (LINEARdrive 200D-D2Z2D by eldoLED) offers maximum flexibility for Tuneable White and dual-channel lighting applications. The 2 outputs are independently controllable and support a combined output power of up to 224 W (up to 8 A total).
It operates on the DALI Device Type 6 (DT6) protocol and is compatible with systems such as Helvar 910/920 and Lunatone DALI 4Net. Thanks to HydraDrive technology, it enables smooth, flicker-free dimming from 100% to 0.1%, with selectable linear or logarithmic dimming curves. LightShape technology ensures precise alignment of colour temperature and intensity.
Local control is possible via the EXT IN input (potentiometer or 0–10V). Configuration is easily done using the TOOLbox Pro and FluxTool software from eldoLED. In case of a power failure, the device performs an automatic 'last-write' to retain the most recent settings.

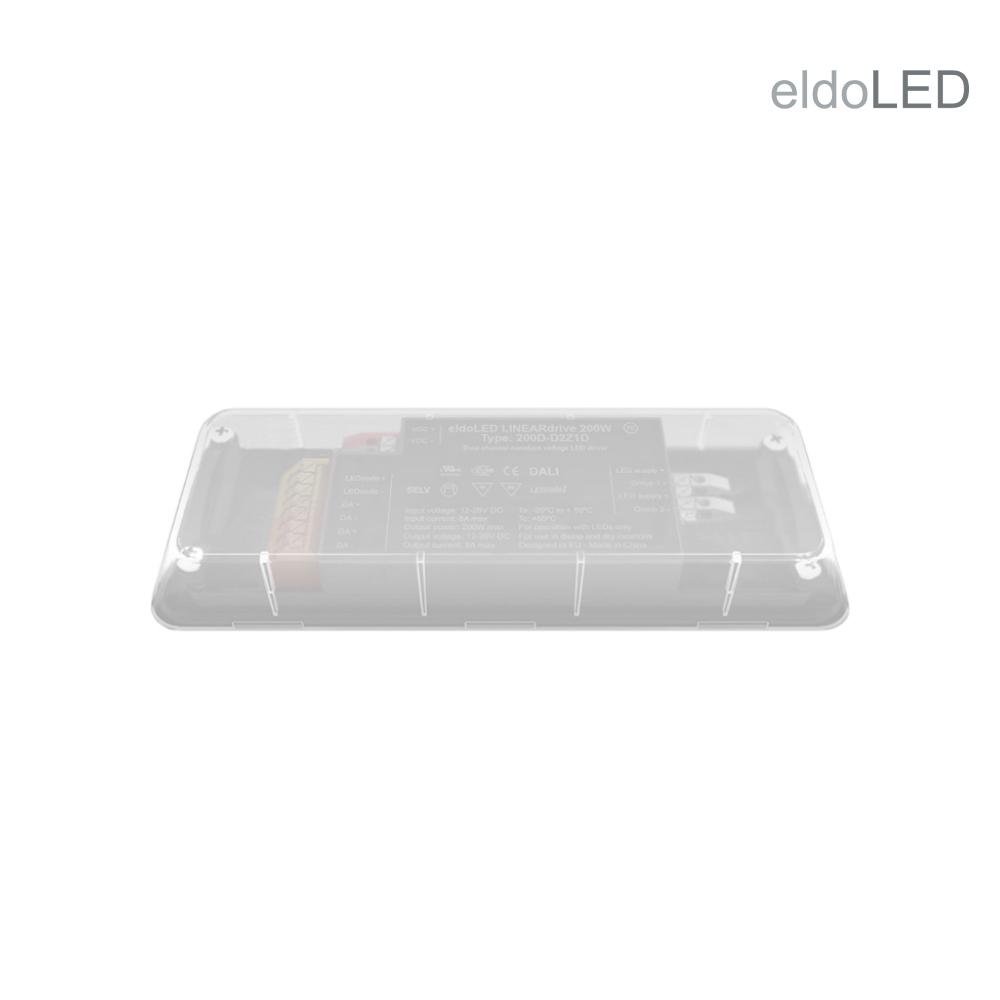

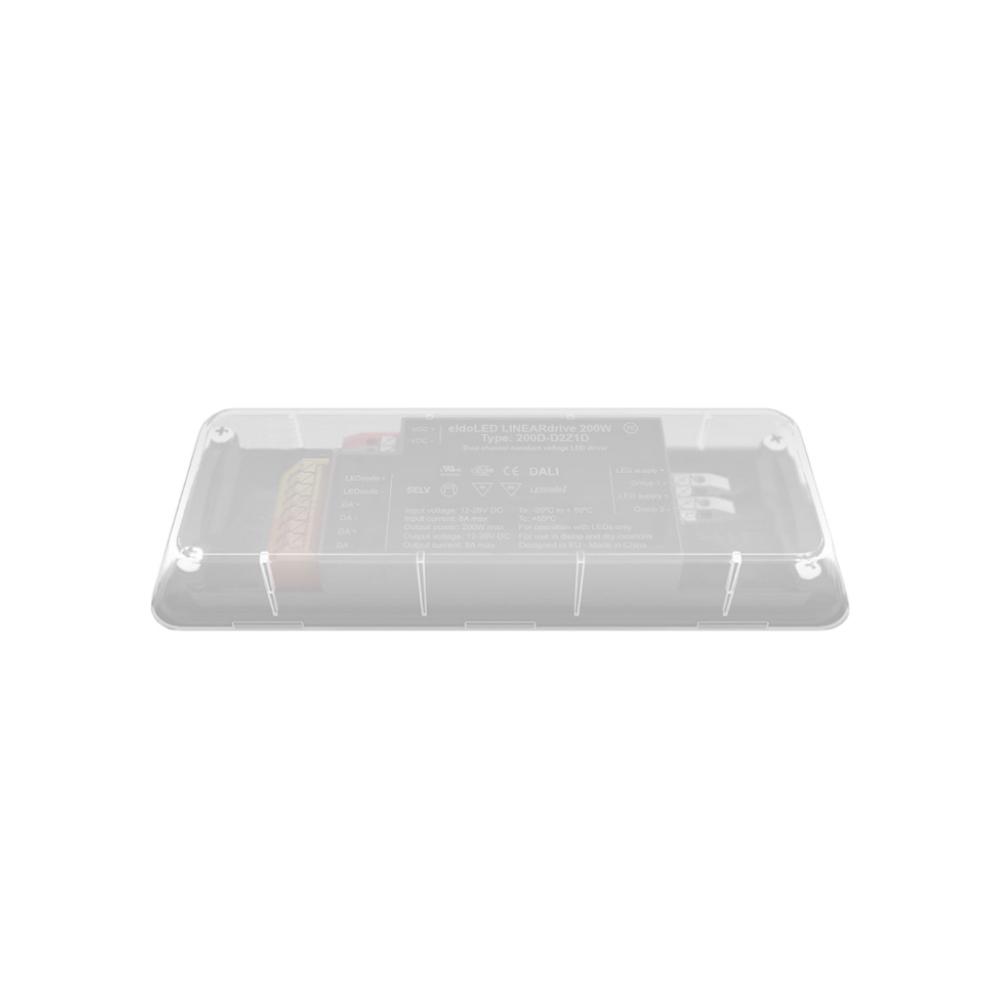

The compact IP20 housing (153 × 50 × 23 mm) is lightweight (149 g) and features screw holes for easy mounting. Operates on an external short-circuit-proof power supply matching the system voltage.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-eldoled-lineardrive-200d-d2z2d-2ch-2-out-dali-dt6-214-357.pdf
Characteristics sheet
214-357_technical_datasheet_extended.pdf
