eldoLED | LINEARdrive 211/D | 1CH | 2 out | 0-10V
214-354Professional 0–10V LED controller (12–28V DC) with a single channel and dual output (total 8 A). Suitable for white light applications up to 200 W, offering precise, flicker-free dimming down to 0.1%.
Key product features
- Number of colour channels: 1
- Output voltage (V): 12 – 28
- Input voltage (V): 12 – 28
- Max. output current (A): 8
- Control type: Constant voltage
- Type of control: 0/1–10V
- Number of zones: 1
Product Name
eldoLED | LINEARdrive 211/D | 1CH | 2 out | 0-10V
Ean
8714984944268
Outer box qty
12st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
8A
Output voltage
12 - 28V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
153mm
Width
50mm
Height
23mm
Number of zones
1
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 28V
Control method
0/1-10V
DIN-rail mounting
No
Brand
eldoLED
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
eldoLED | LINEARdrive 211/D | 1CH | 2 out | 0-10V
Height
23mm
Ean
8714984944268
Number of zones
1
Outer box qty
12st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 28V
Max. output current
8A
Control method
0/1-10V
Output voltage
12 - 28V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
eldoLED
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
153mm
Control type
Constant voltage
Width
50mm
Warranty
5 years

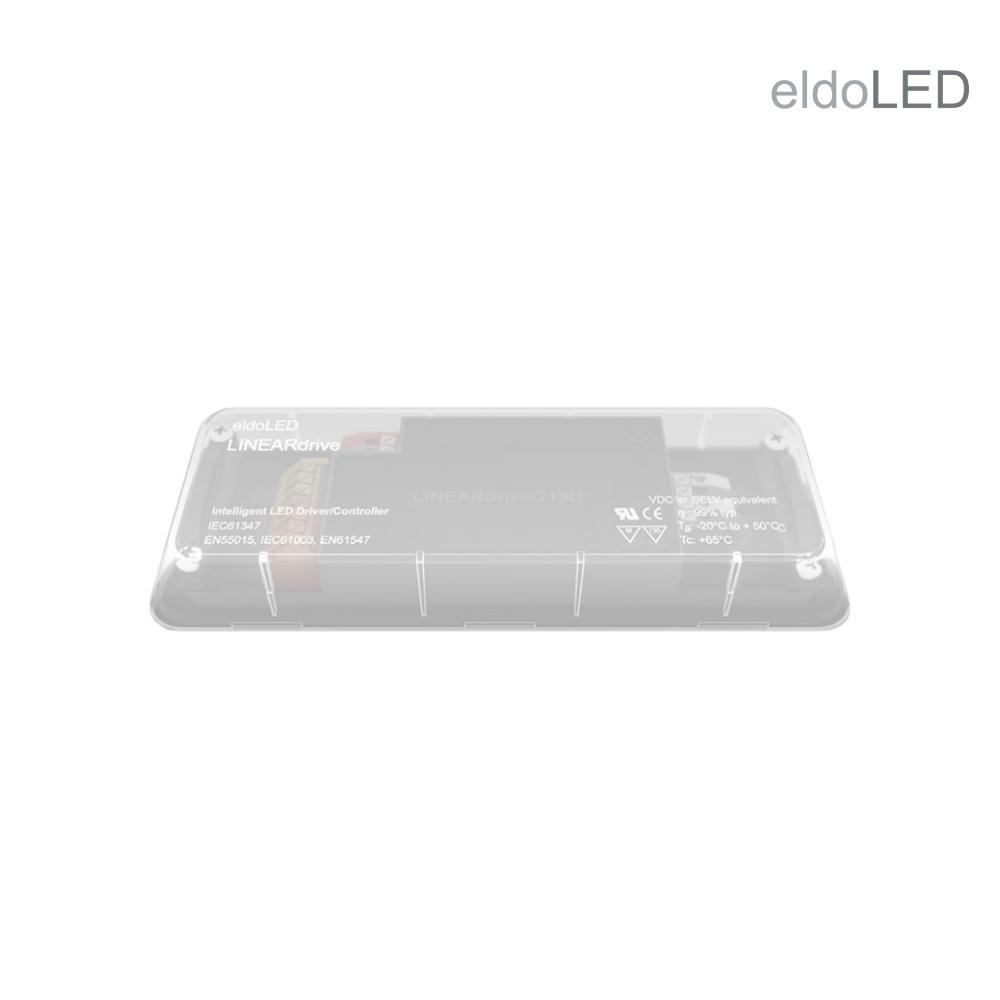

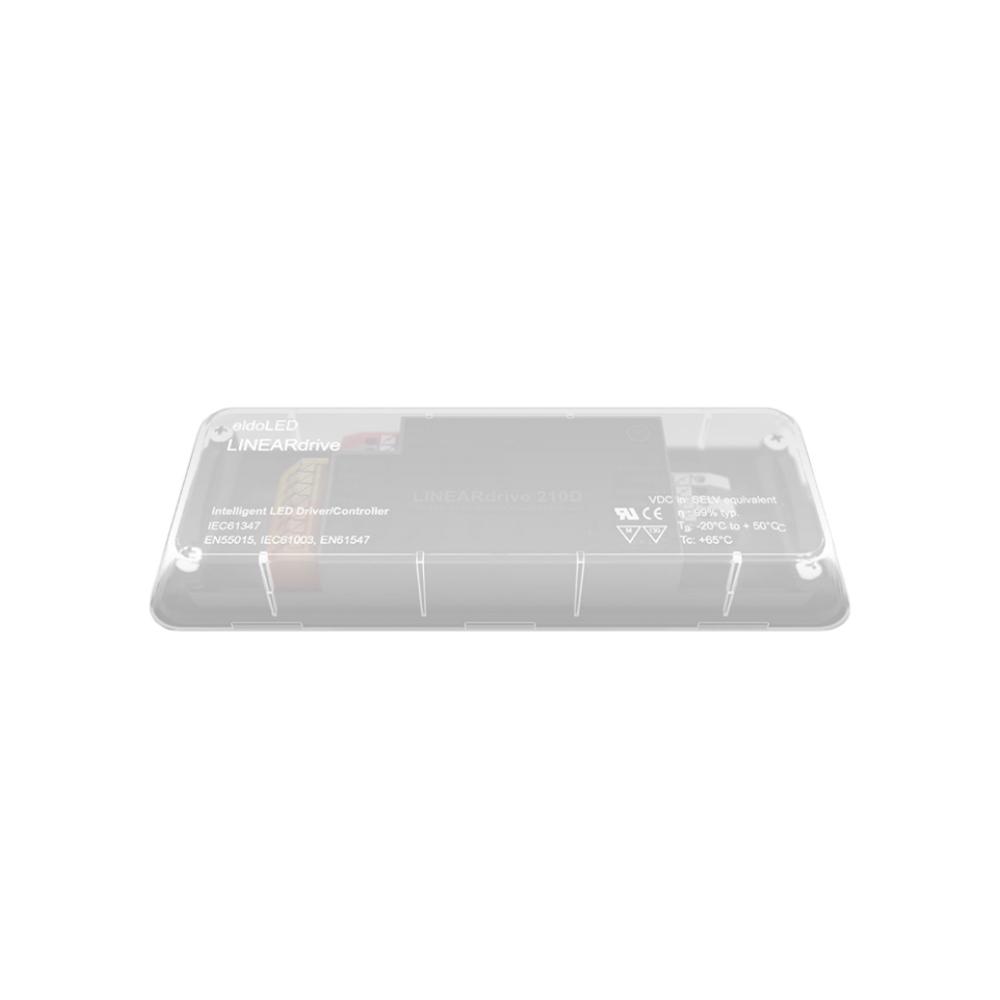

The eldoLED LINEARdrive 211D is a high-performance constant voltage LED controller for single-colour or tunable white applications. Operating at 12–28V DC, it offers 1 channel with 2 internally linked outputs – delivering a combined 8 A (up to 200 W depending on voltage).
Control is achieved via a 0–10V signal or through the EXT IN port using a 47 k? potentiometer or external sensor, enabling standalone operation without a central system. An AUX output supplies 12–28V power (max. 2 W) for peripheral equipment.
Thanks to HydraDrive technology, the controller dims smoothly and precisely down to 0.1%, with a choice of linear or logarithmic dimming curves. This makes it ideal for visually critical environments such as museums, retail spaces and medical applications.
The compact IP20 housing (153 × 50 × 23 mm) allows easy integration into luminaires or installation enclosures. Built-in protection against overcurrent and voltage spikes ensures long-term reliability.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-eldoled-lineardrive-211d-1ch-2-out-0-10v-214-354.pdf
Characteristics sheet
214-354_technical_datasheet_extended.pdf
