LED driver || 350/500/700mA | 25 watt | DALI dimmable
215-264This DALI LED driver provides a good balance between function and form, thanks in part to the variable output at your disposal. This makes it possible to switch between an output of 350, 500 or 700 mA, allowing you to combine this power supply with a wide selection of LED lamps.
Features
- Three different output options
- Compatible with DALI

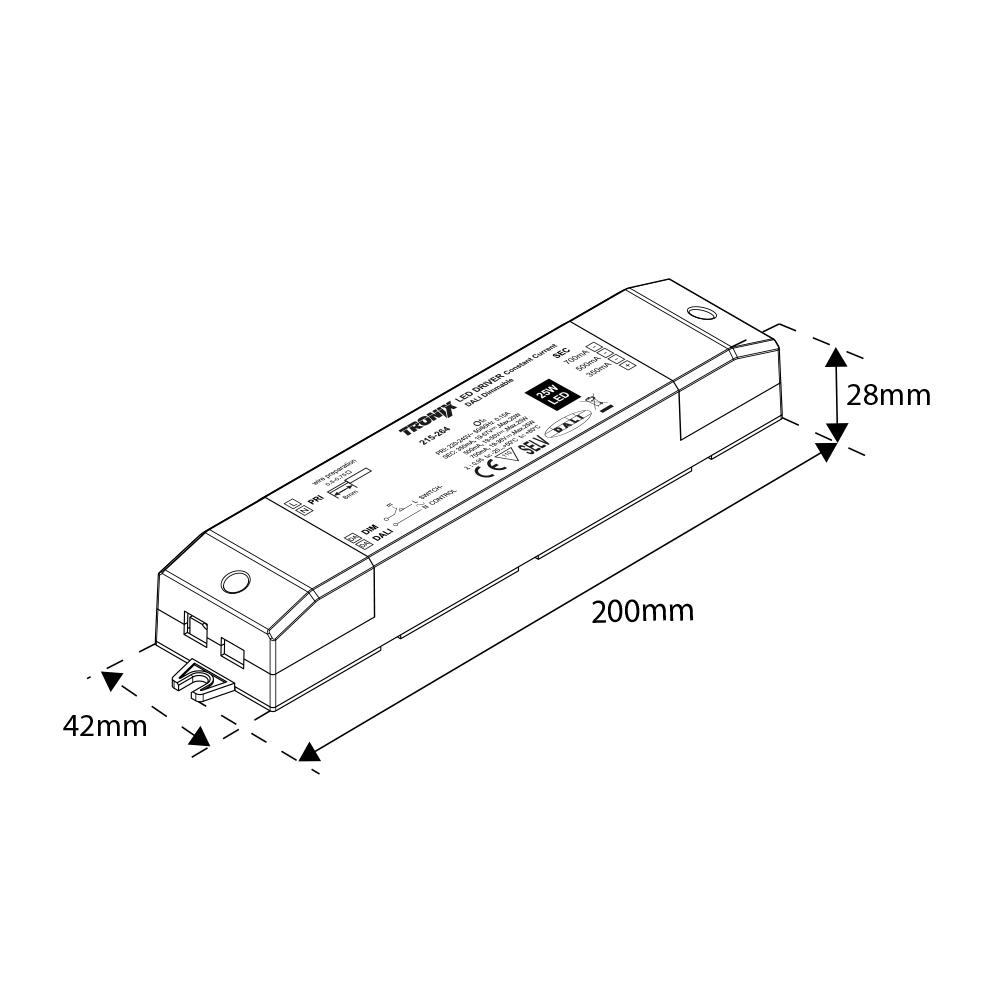

- Slim size 200*42*28 mm
Product Name
LED driver || 350/500/700mA | 25 watt | DALI dimmable
Ean
8714984924116
Outer box qty
12st
Housing
Plastic housing
Model
Static
Output voltage
12 - 57V
Output current
350 - 700mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
20 - 25W
Degree of protection (IP)
IP20
Length
200mm
Width
42mm
Height
28mm
Power consumption
25W
Input voltage
220 - 240V
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
DALI
Short-circuit protected
Yes
Ambient temperature
-20 - 50°C
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
LED driver || 350/500/700mA | 25 watt | DALI dimmable
Power consumption
25W
Ean
8714984924116
Input voltage
220 - 240V
Outer box qty
12st
PWM modulation
No
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
12 - 57V
Control method
DALI
Output current
350 - 700mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-20 - 50°C
Suitable for DC-voltage (primary side)
No
DIN-rail mounting
No
Output power
20 - 25W
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Dimmable
Yes
Length
200mm
Emergency power supply system
None
Width
42mm
Control type
Constant current
Height
28mm
Warranty
5 years
This DALI LED driver provides a good balance between function and form, thanks in part to the variable output at your disposal. This makes it possible to switch between an output of 350, 500 or 700 mA, allowing you to combine this power supply with a wide selection of LED lamps.
Features
Three different output options
Compatible with DALI
Slim size 200*42*28 mm
