LED driver | eldoLED SOLOdrive 241/A | 20W | 0-10V
215-621The SOLOdrive LED drivers from eldoLED feature a programmable output (constant current) and offer the ability to dim down to 0.1%. Also easy to apply in combination with single color, dimmable LED fixtures on a 0-10V basis.
Features
- Can be combined with a variety of LED lighting, including single color lighting on 0-10V
- Output current: 150 - 1050 mA
- Output voltage: 2 - 40 volts
Product Name
LED driver | eldoLED SOLOdrive 241/A | 20W | 0-10V
Ean
8714984943681
Outer box qty
50st
Housing
Plastic housing
Model
Static
Output voltage
2 - 40V
Output current
150 - 1050mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
Yes
Output power
20 - 20W
Degree of protection (IP)
IP20

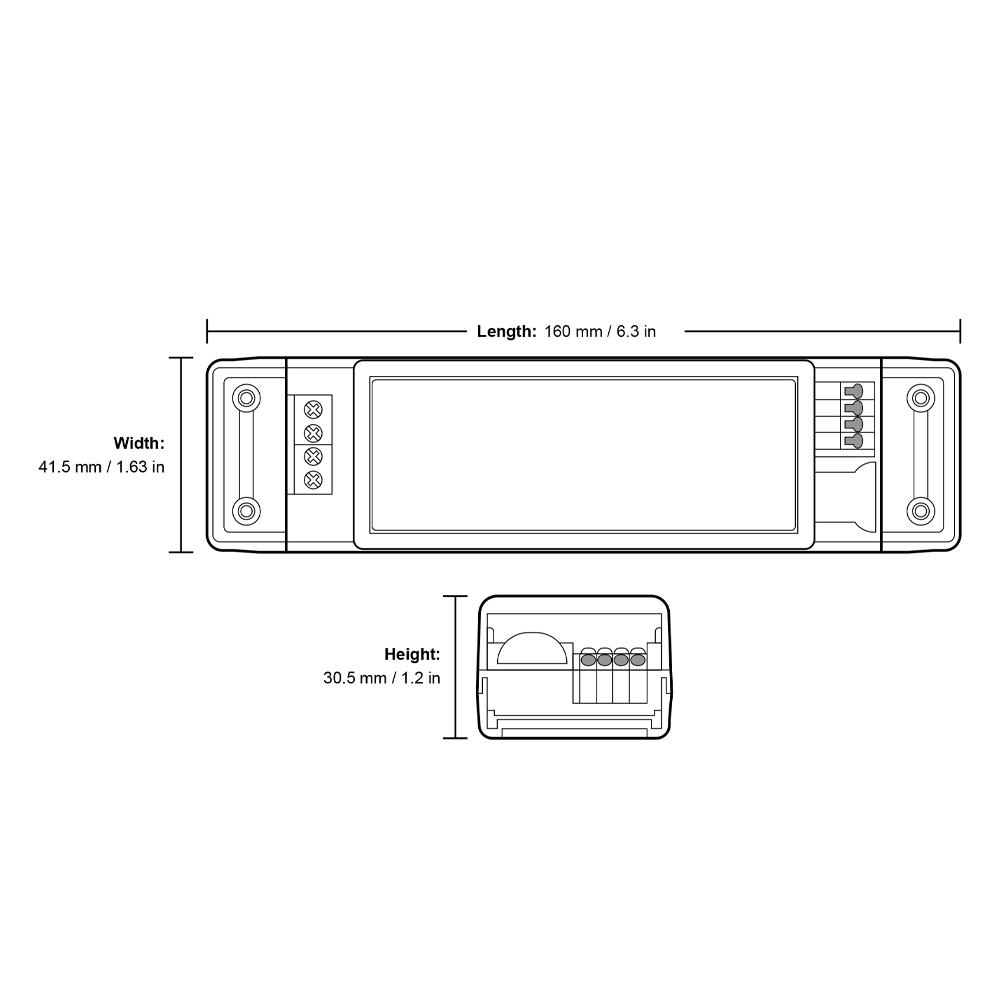

Length
160mm
Width
41.5mm
Height
30.5mm
Power consumption
20W
Input voltage
176 - 250V
Frequency input voltage
50 - 60Hz
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
0/1-10V
Short-circuit protected
Yes
Ambient temperature
-20 - 50°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
eldoLED
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
LED driver | eldoLED SOLOdrive 241/A | 20W | 0-10V
Input voltage
176 - 250V
Ean
8714984943681
Frequency input voltage
50 - 60Hz
Outer box qty
50st
PWM modulation
No
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
2 - 40V
Control method
0/1-10V
Output current
150 - 1050mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-20 - 50°C
Suitable for DC-voltage (primary side)
Yes
Driver lifetime
50000h
Output power
20 - 20W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
eldoLED
Length
160mm
Dimmable
Yes
Width
41.5mm
Emergency power supply system
None
Height
30.5mm
Control type
Constant current
Power consumption
20W
Warranty
5 years
The SOLOdrive LED drivers from eldoLED feature a programmable output (constant current) and offer the ability to dim down to 0.1%. Also easy to apply in combination with single color, dimmable LED fixtures on a 0-10V basis.
Features
Can be combined with a variety of LED lighting, including single color lighting on 0-10V
Output current: 150 - 1050 mA
Output voltage: 2 - 40 volts
Datasheet
Datasheet-led-driver-eldoled-solodrive-241a-20w-0-10v-215-621.pdf
Characteristics sheet
20220908103127243_-996039045.pdf
20220908103116727_1579022738.pdf
