LED driver | eldoLED SOLOdrive 560/A | 50W | DALI
215-271The SOLOdrive LED drivers from eldoLED feature a programmable output (constant current) and offer the ability to dim down to 0.1%. Also easy to apply in combination with single color, dimmable LED fixtures on a DALI basis.
Features
- Can be combined with the 214-231 Casambi module (via the LED code input)
- Can be combined with a variety of LED lighting, including single color lighting on DALI
- Output current: 150 - 1400 mA
- Output voltage: 2 - 55 volts
Product Name
LED driver | eldoLED SOLOdrive 560/A | 50W | DALI
Ean
8714984942295
Outer box qty
40st
Housing
Plastic housing
Model
Static
Output voltage
2 - 55V
Output current
150 - 1400mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
Yes
Output power
40 - 40W
Degree of protection (IP)
IP20

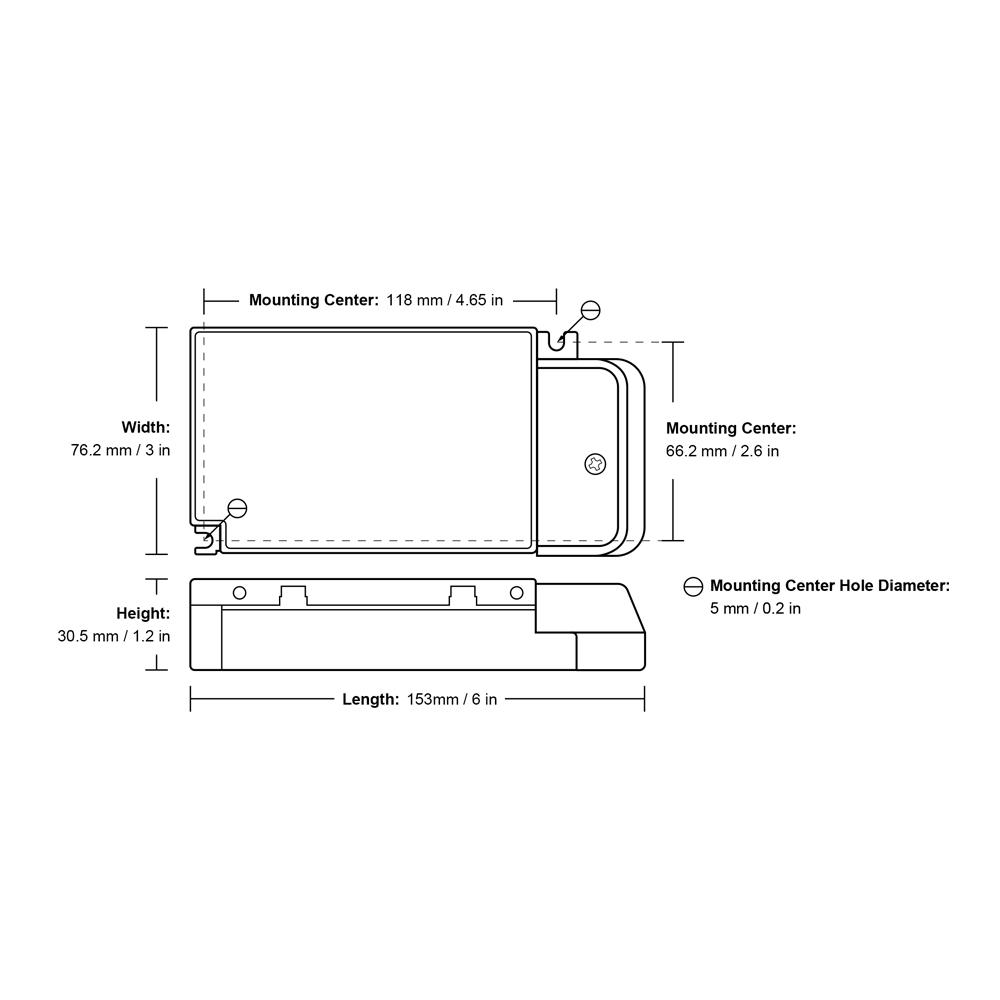

Length
152.5mm
Width
76.2mm
Height
30.1mm
Power consumption
40W
Input voltage
120 - 250V
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
DALI
Short-circuit protected
Yes
Ambient temperature
-20 - 50°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
eldoLED
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
LED driver | eldoLED SOLOdrive 560/A | 50W | DALI
Input voltage
120 - 250V
Ean
8714984942295
PWM modulation
No
Outer box qty
40st
Overload protection
Yes
Housing
Plastic housing
Overtemperature protection
Yes
Model
Static
Control method
DALI
Output voltage
2 - 55V
Short-circuit protected
Yes
Output current
150 - 1400mA
Ambient temperature
-20 - 50°C
Suitable for outdoor use
No
Driver lifetime
50000h
Suitable for DC-voltage (primary side)
Yes
DIN-rail mounting
No
Output power
40 - 40W
Brand
eldoLED
Degree of protection (IP)
IP20
Dimmable
Yes
Length
152.5mm
Emergency power supply system
None
Width
76.2mm
Control type
Constant current
Height
30.1mm
Warranty
5 years
Power consumption
40W
The SOLOdrive LED drivers from eldoLED feature a programmable output (constant current) and offer the ability to dim down to 0.1%. Also easy to apply in combination with single color, dimmable LED fixtures on a DALI basis.
Features
Can be combined with the 214-231 Casambi module (via the LED code input)
Can be combined with a variety of LED lighting, including single color lighting on DALI
Output current: 150 - 1400 mA
Output voltage: 2 - 55 volts
