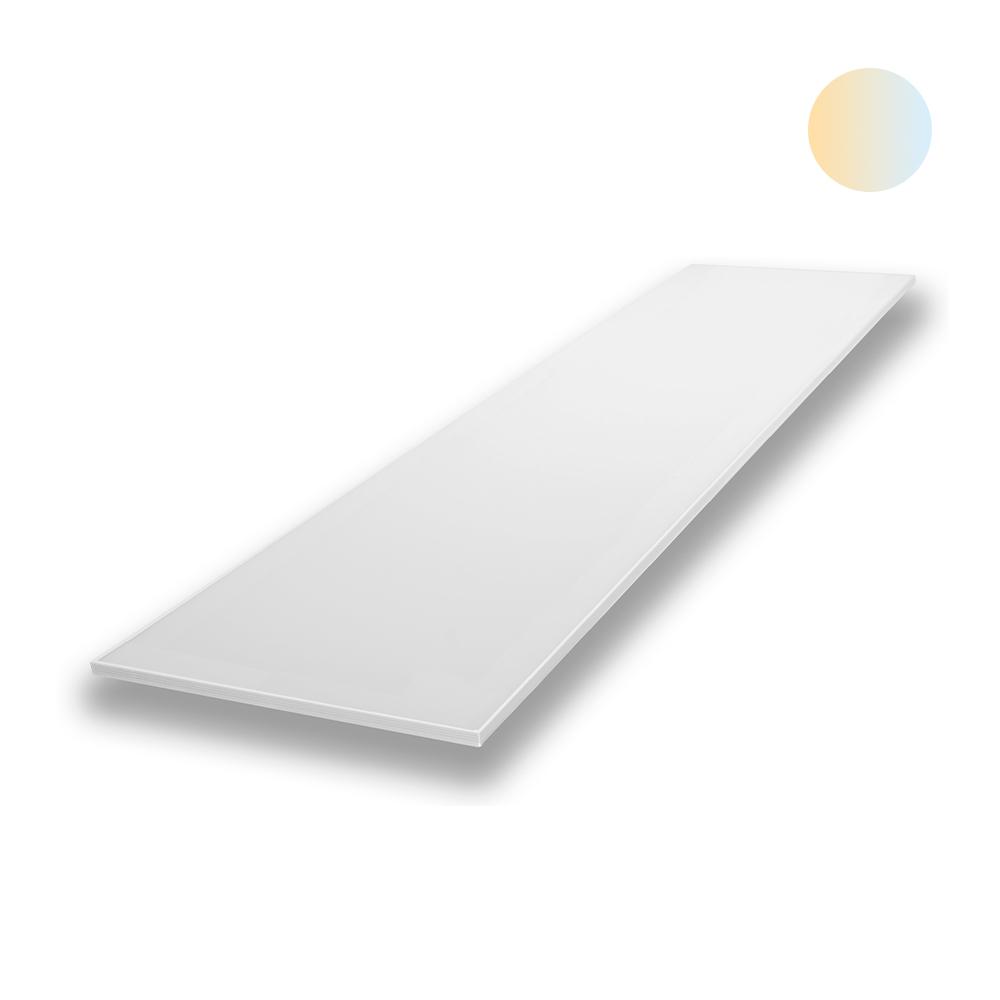

LED panel || narrow frame | 30*120cm | tuneable white | UGR<
174-256Create a natural course of light in your building with Tronix tuneable white LED panels, that are completely adjustable in both light intensity and color tone. With the matching controller, not only the amount of light is completely adjustable, but on top of that it is possible to choose from a complete color range, varying from 2700K (warm light) to 6000K (cold light). With these special panels you can create a more natural course of light: from dimmed warm light in the morning, to a higher intensity with cooler light around noon, and then slowly getting back again to a lower light level with warm white light.
Features
- High light efficiency of >100 Lm/W
- 5 year warranty
- Narrow frame 4mm
- UGR<19 value for minimal discomfort from glare and high productivity
- Driver and desk remote not included (see related products)
Product Name
LED panel || narrow frame | 30*120cm | tuneable white | UGR<
Ean
8714984938311
Outer box qty
4st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
White
Material cover
Other
Suitable for emergency lighting
Yes
Nominal current
1050 - 1050mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
No

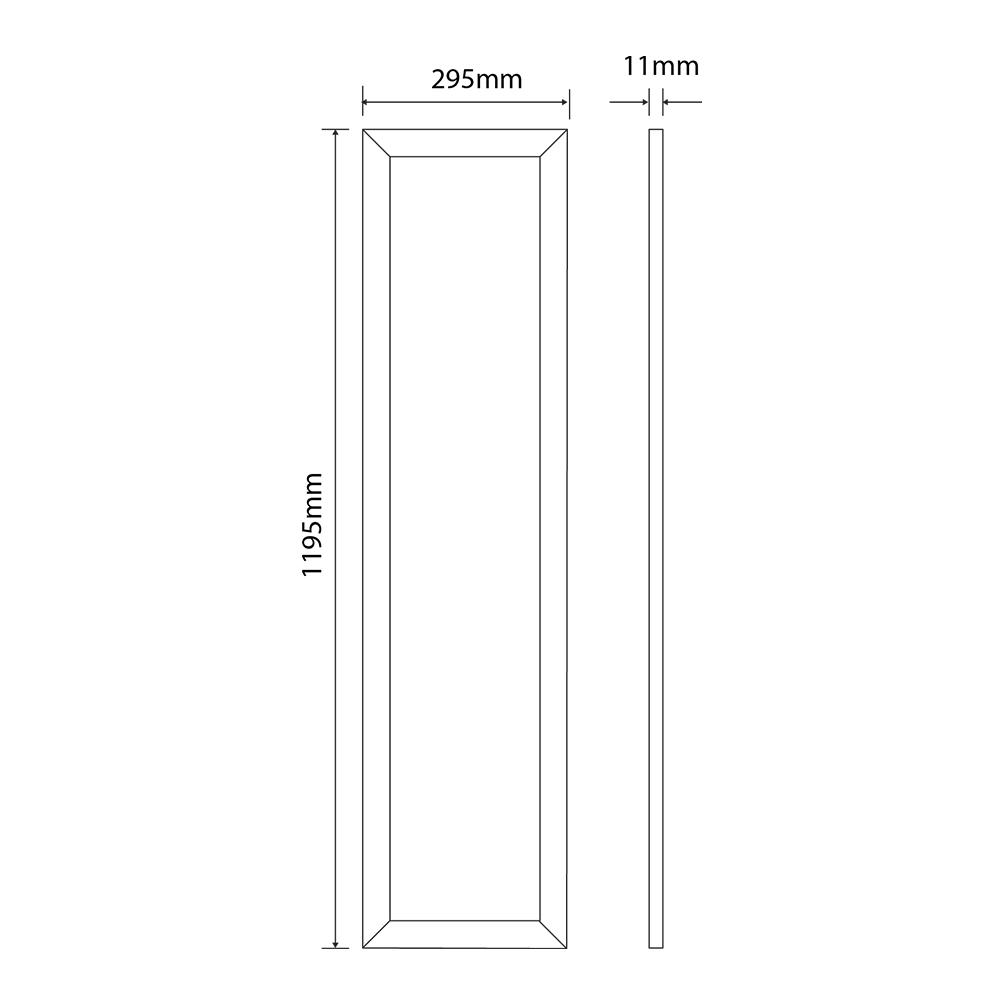

Built-in length
1195mm
Built-in width
295mm
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
34.3 - 34.3V
Length
1195mm
Width
295mm
Height/depth
11mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
Yes
Dimming 1-10 V
Yes
Dimming DALI
Yes
Dimming phase cut-off (trailing edge)
Yes
With movement sensor
No
With presence detector
No
Impact strength
IK02
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Indirect
Dimming RF
Yes
Dimming Zigbee
Yes
Light distributor
Diffuser lens/optic/panel
Surface protection housing
Lacquered
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
83000h
Colour of light adjustable
Continuously variable
Luminous flux adjustable
Continuously variable
Max. system power
36W
Beam angle adjustable
No
Power factor
0.9
Type of wiring
Ending
Number of poles
2
Built-in height/depth
11mm
Compatible with Casambi
No
Luminaire efficacy
100 - 100lm/W
Dimmable
Yes
Rated luminous flux according to IEC 62722-2- 1
3600 - 3600lm
Emergency power supply system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for workplace according to EN 12464-1
Yes
Unified Glare Ratio (UGR)
19
Degree of protection (IP), rear side
IP20
With mounting material
Yes
Size
30x120 cm
Colour temperature
Tuneable White
With connection cord and plug
Yes
Length of power cord
2000mm
Connection type
EU plug
Dimming method
Optional
Warranty
5 years
