LED spot | 50mm | 350mA | 9W | alu | 2700K
148-165Max. system powerful Ø50 mm LED spot module with constant current up to 350 mA and a narrow 28° beam. Ideal for high-quality accent lighting in retail, hospitality and interior design applications.
Key product features:
- Nominal current (mA): 0 - 350
- Max. system power (W): 9
- Colour temperature (K): 2700
- Housing colour: Aluminium
- Outer diameter (mm): 49.5
Product Name
LED spot | 50mm | 350mA | 9W | alu | 2700K
Ean
8714984920316
Outer box qty
100st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Aluminium
Housing material
Aluminium

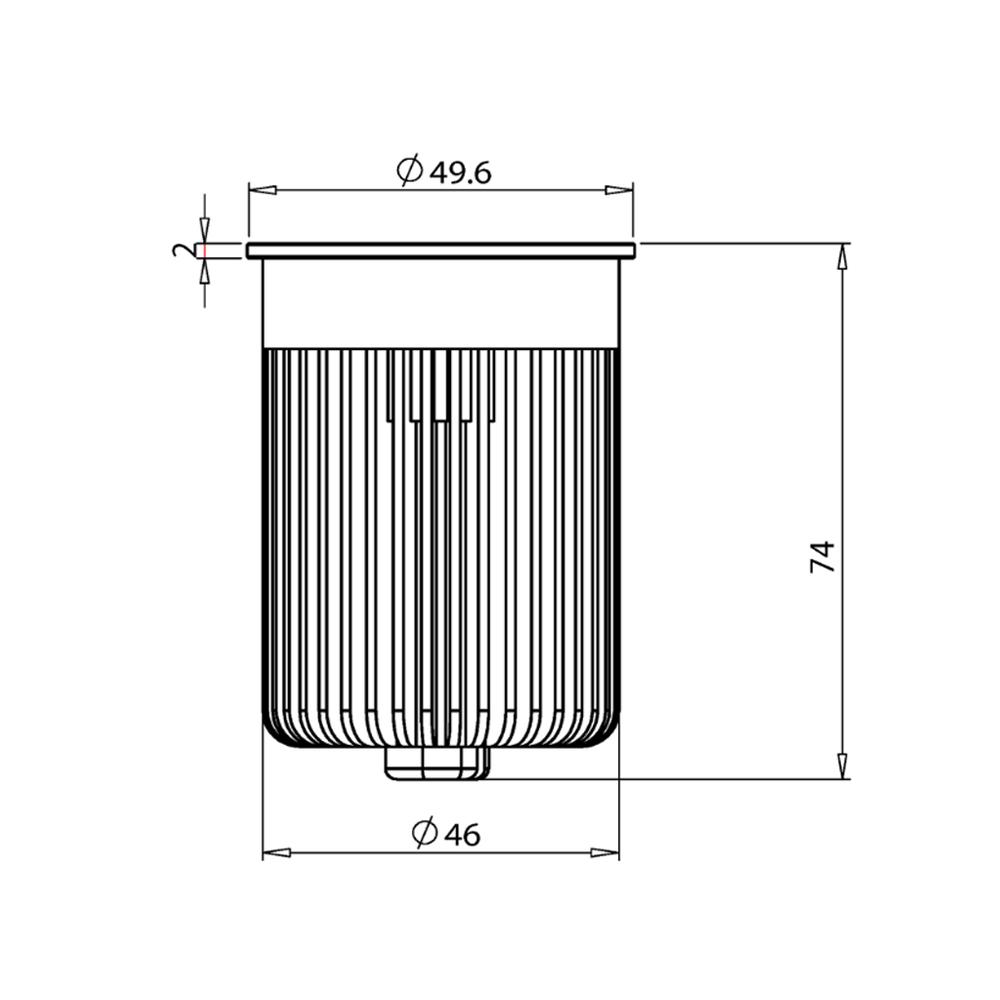

Height/depth
74mm
Outer diameter
49.5mm
Built-in diameter
46 - 46mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
No
Colour temperature
2700K
Colour rendering index CRI
90-100
Luminous flux adjustable
Continuously variable
Light outlet
Direct
Beam angle
21-40° - Medium beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
26 - 26V
Nominal current
0 - 350mA
Number of poles
2
Light source included
Yes, fixed LED
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.3 - 0.3mm²
Type of control gear
LED operating device current-controlled
With control gear
No
Degree of protection (IP), front side
IP44
Degree of protection (IP), rear side
IP20
Surface protection
Anodised
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
9W
Rated luminous flux according to IEC 62722-2- 1
0 - 810lm
Luminaire efficacy
90 - 90lm/W
Power factor
1
Suitable for lamp power
0 - 0W
Surface brushed
Yes
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
25
Reflector
High-gloss
Warranty
3 years
Control type
Constant current
Product Name
LED spot | 50mm | 350mA | 9W | alu | 2700K
Voltage type
DC
Ean
8714984920316
Nominal voltage
26 - 26V
Outer box qty
100st
Nominal current
0 - 350mA
Lamp type
LED not exchangeable
Number of poles
2
Lamp holder
None
Light source included
Yes, fixed LED
Housing colour
Aluminium
Light distributor
Reflector
Housing material
Aluminium
Light distribution
Symmetric
Height/depth
74mm
Connectable conductor cross section
0.3 - 0.3mm²
Outer diameter
49.5mm
Type of control gear
LED operating device current-controlled
Built-in diameter
46 - 46mm
With control gear
No
Suitable for built-in mounting
Yes
Degree of protection (IP), front side
IP44
Suitable for surface mounting
No
Degree of protection (IP), rear side
IP20
Suitable for pedestal/floor mounting
No
Surface protection
Anodised
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
Yes
Max. system power
9W
Suitable for light-track mounting
No
Rated luminous flux according to IEC 62722-2- 1
0 - 810lm
Suitable for clamp-mounting
No
Luminaire efficacy
90 - 90lm/W
With movement sensor
No
Power factor
1
With presence detector
No
Suitable for lamp power
0 - 0W
With light sensor
No
Surface brushed
Yes
Colour of light
White
Type of wiring
Ending
Colour consistency (McAdam ellipse)
SDCM3
Emergency power supply system
None
Colour of light adjustable
No
Emergency function monitoring system
None
Colour temperature
2700K
Adjustability
not adjustable
Colour rendering index CRI
90-100
Unified Glare Ratio (UGR)
25
Luminous flux adjustable
Continuously variable
Reflector
High-gloss
Light outlet
Direct
Warranty
3 years
Beam angle
21-40° - Medium beam
Control type
Constant current
Beam angle adjustable
No

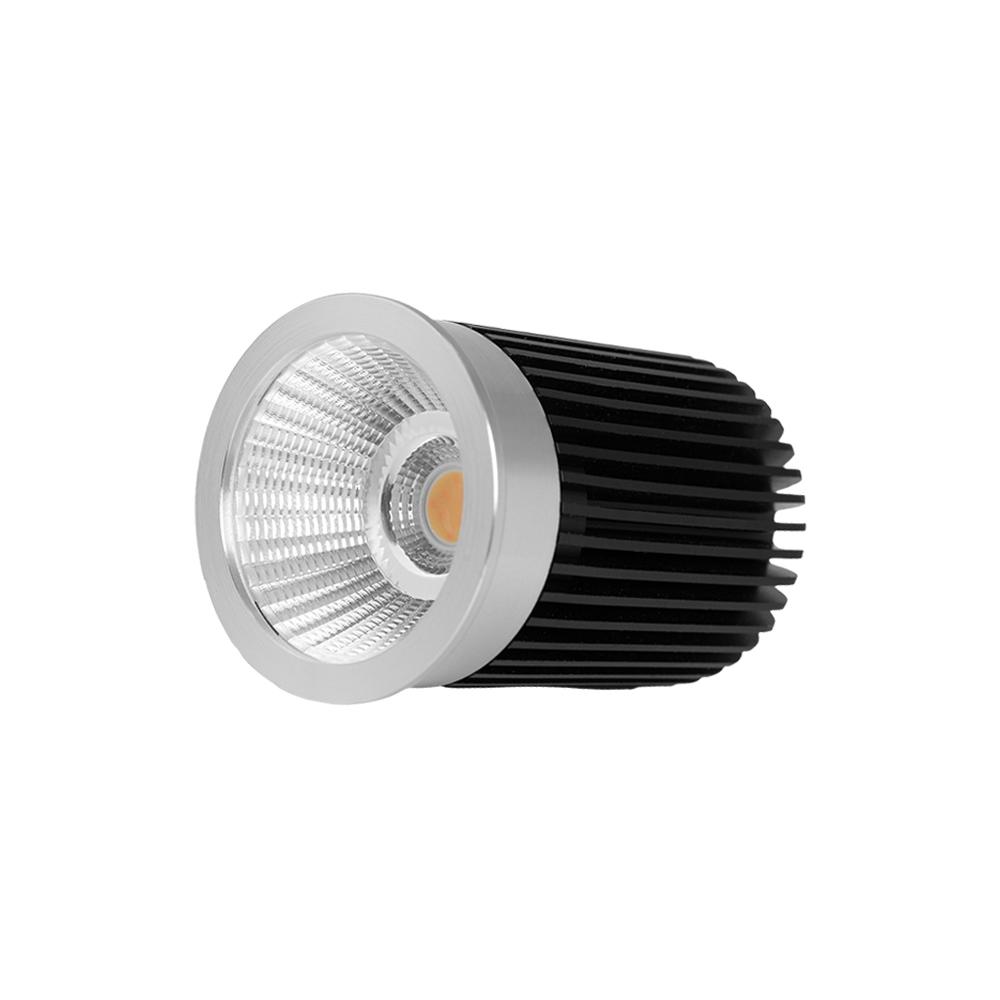

This aluminium-coloured LED spot module is designed for use in recessed luminaires. Powered by constant current up to 350 mA, it delivers a strong 9W output with efficient heat dissipation in a compact form factor. Ideal for professional lighting applications.
The 28° beam angle offers precise and focused illumination, perfect for highlighting objects, vertical surfaces or decorative elements. Available in 2700K and 3000K, this module provides warm white light with a natural colour rendering, ideal for use in showrooms, hospitality interiors or residential environments.
The module connects directly to a suitable constant current driver (350 mA). For easy installation, optional distribution blocks and extension cables are available, enabling plug-and-play setup.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-spot-50mm-350ma-9w-alu-2700k-148-165.pdf
Energy labels
Manual
20220908103204274_1824153805.pdf
Schema
20220908103227228_1814488707.pdf
Characteristics sheet
148-165-photometric-light-report.pdf
148-165.ldt
