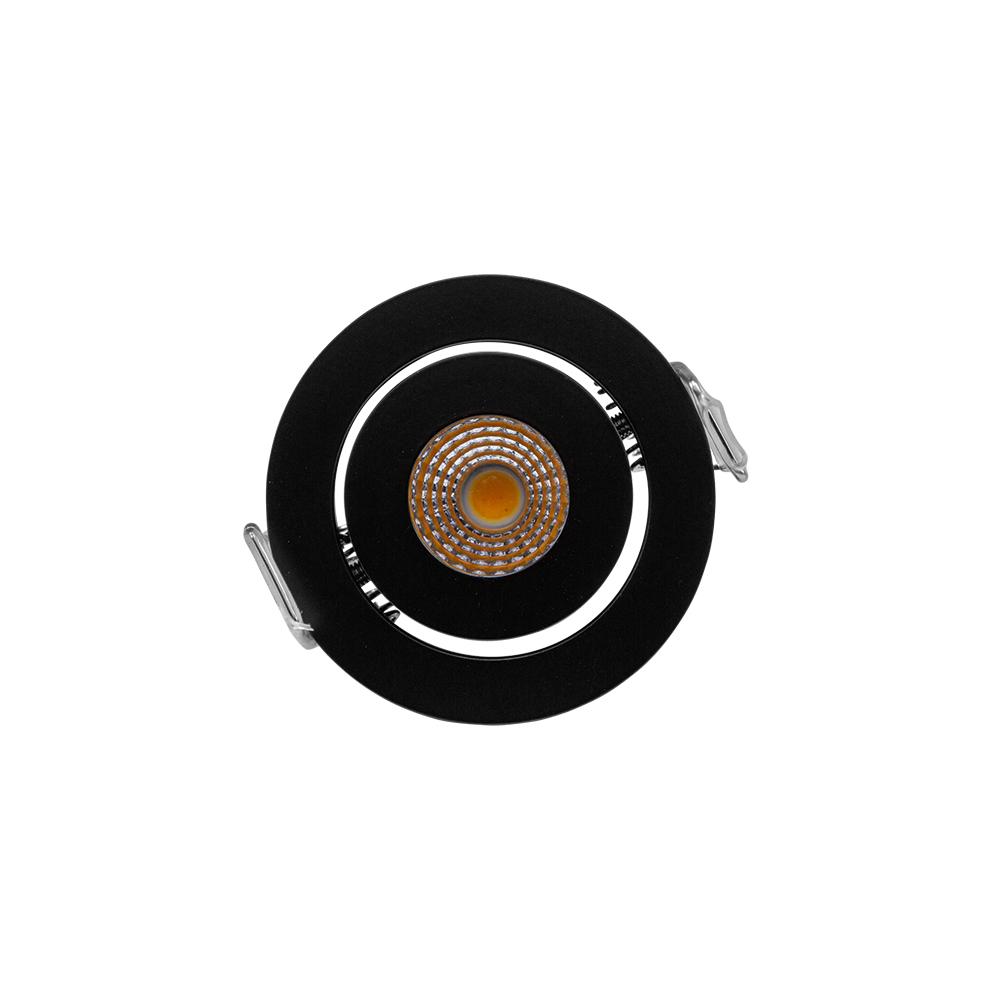

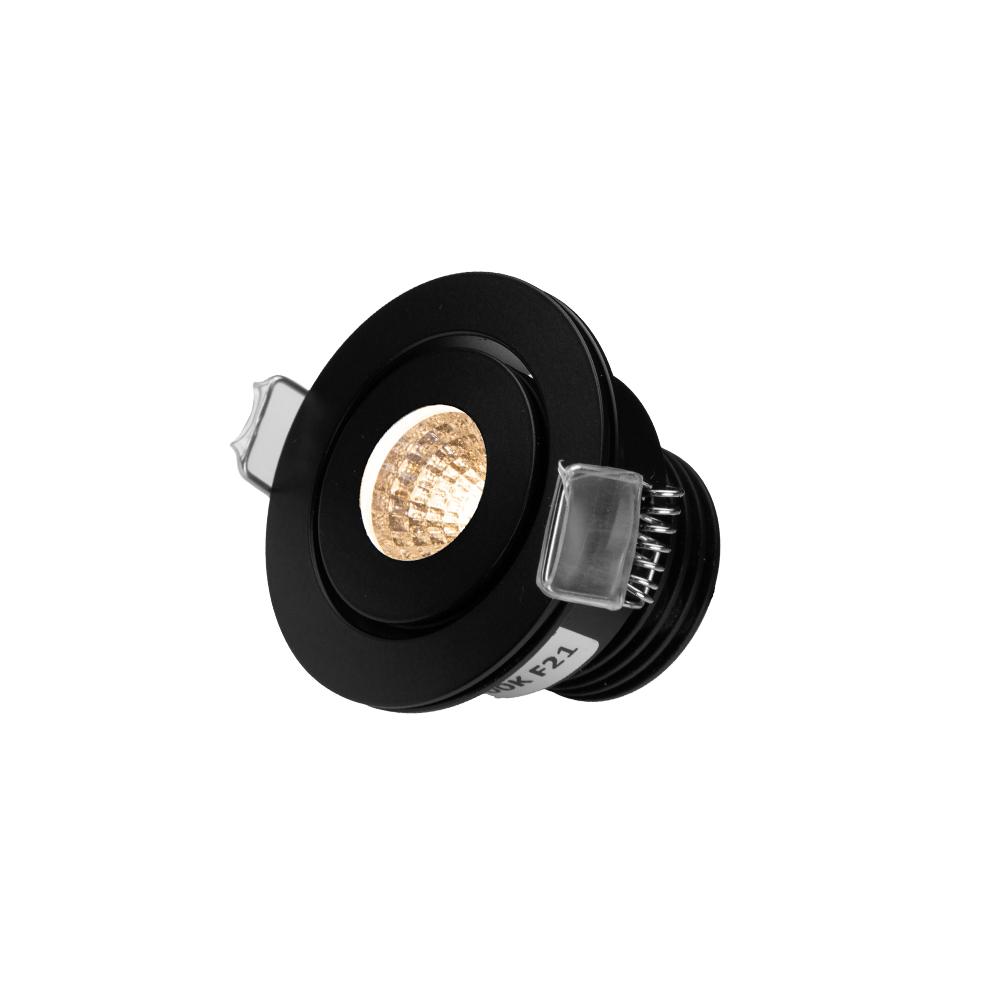

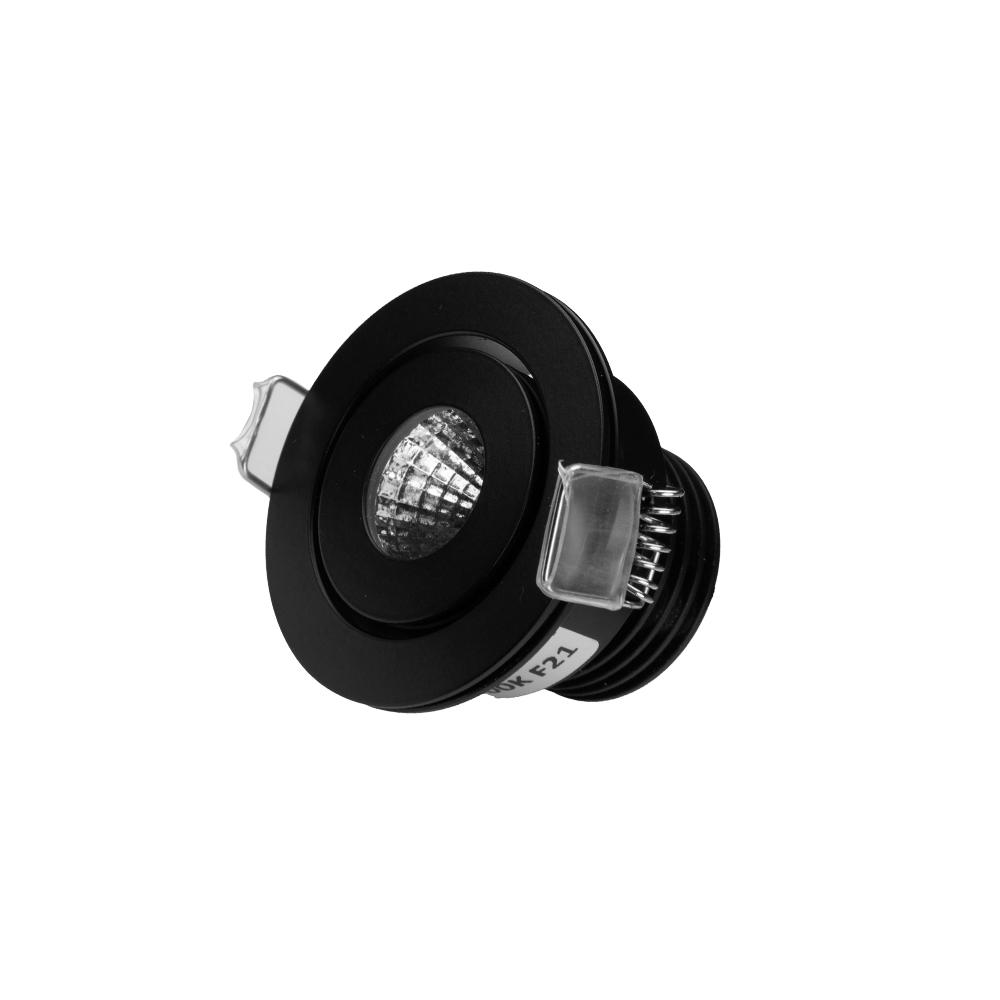

LED spot | downlight | 350mA | 3,3W | black | 3000K
148-152Compact and Max. system powerful 3.3W LED spot module with reflector. Ideal for focused accent lighting in furniture, interiors and covered outdoor areas. Available in various light colours and housing finishes for a clean, professional look.
Key product features
- Nominal current (mA): 0 - 350
- Max. system power (W): 3.3
- Colour temperature (K): 3000
- Housing colour: Black
- Built-in diameter (mm): 44 – 45
Product Name
LED spot | downlight | 350mA | 3,3W | black | 3000K
Ean
8714984940505
Outer box qty
100st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Black
Housing material
Aluminium
Height/depth
40.5mm
Outer diameter
49.28mm
Built-in diameter
43 - 43mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
No
Colour temperature
3000K
Colour rendering index CRI
90-100
Luminous flux adjustable
Continuously variable
Light outlet
Direct
Beam angle
21-40° - Medium beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
9.4 - 9.4V
Nominal current
0 - 350mA
Number of poles
2
Light source included
Yes, fixed LED
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.3 - 0.3mm²
Type of control gear
LED operating device current-controlled
With control gear
No
Degree of protection (IP), front side
IP44
Degree of protection (IP), rear side
IP20
Surface protection
Powder coating
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
3.3W
Rated luminous flux according to IEC 62722-2- 1
0 - 248lm
Luminaire efficacy
75 - 75lm/W
Power factor
0.9
Suitable for lamp power
0 - 0W
Surface brushed
No
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
Swivelling
Reflector
High-gloss
Warranty
3 years
Control type
Constant current
Product Name
LED spot | downlight | 350mA | 3,3W | black | 3000K
Beam angle adjustable
No
Ean
8714984940505
Voltage type
DC
Outer box qty
100st
Nominal voltage
9.4 - 9.4V
Lamp type
LED not exchangeable
Nominal current
0 - 350mA
Lamp holder
None
Number of poles
2
Housing colour
Black
Light source included
Yes, fixed LED
Housing material
Aluminium
Light distributor
Reflector
Height/depth
40.5mm
Light distribution
Symmetric
Outer diameter
49.28mm
Connectable conductor cross section
0.3 - 0.3mm²
Built-in diameter
43 - 43mm
Type of control gear
LED operating device current-controlled
Suitable for built-in mounting
Yes
With control gear
No
Suitable for surface mounting
No
Degree of protection (IP), front side
IP44
Suitable for pedestal/floor mounting
No
Degree of protection (IP), rear side
IP20
Suitable for wall mounting
No
Surface protection
Powder coating
Suitable for ceiling mounting
Yes
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for light-track mounting
No
Max. system power
3.3W
Suitable for clamp-mounting
Yes
Rated luminous flux according to IEC 62722-2- 1
0 - 248lm
With movement sensor
No
Luminaire efficacy
75 - 75lm/W
With presence detector
No
Power factor
0.9
With light sensor
No
Suitable for lamp power
0 - 0W
Colour of light
White
Surface brushed
No
Colour consistency (McAdam ellipse)
SDCM3
Type of wiring
Ending
Colour of light adjustable
No
Emergency power supply system
None
Colour temperature
3000K
Emergency function monitoring system
None
Colour rendering index CRI
90-100
Adjustability
Swivelling
Luminous flux adjustable
Continuously variable
Reflector
High-gloss
Light outlet
Direct
Warranty
3 years
Beam angle
21-40° - Medium beam
Control type
Constant current

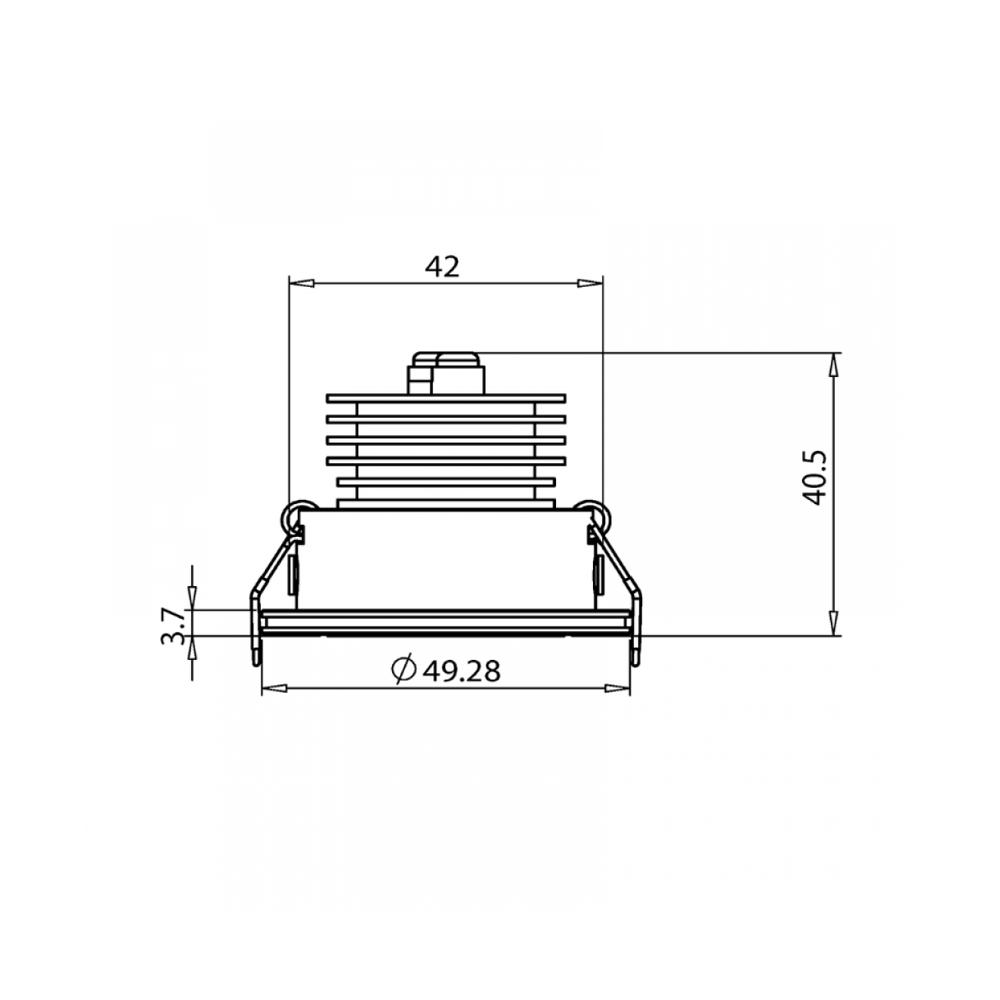

With a 50 mm outer diameter, 44 mm recess size and height of only 40.5 mm, this module fits neatly into compact spaces. Its aluminium housing. Available in white, black or aluminium finish. Ensures effective heat dissipation and a high-end visual appearance.
The module runs on constant current up to 350 mA and is compatible with professional driver systems. Offered in 2700K and 3000K with high CRI >90, it delivers warm, natural light. A built-in reflector ensures a smooth, directed beam without the need for additional lenses.
Perfect for display units, kitchens, furniture or hospitality interiors – and suitable for covered outdoor settings such as verandas and soffits. Installation is quick and efficient with optional distribution blocks and extension cables, allowing clean plug-and-play wiring of multiple units.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-spot-downlight-350ma-33w-black-3000k-148-152.pdf
Energy labels
Manual
20220908103204274_1824153805.pdf
Schema
20220908103227228_1814488707.pdf
Characteristics sheet
148-152-photometric-light-report.pdf
148-152.ldt
