LED strip || 24V | 120LED/m 3528 | 5m | IP20 | Pink
127-04624V flexible LED strip (12 LEDs = 100mm) with 3M adhesive tape on the back for easy installation.
Maximum 5 meters of LED strip in one single length. Looking to connect multiple lengths to one single power supply? In that case, choose separate LED strips of up to 5 meters each. For a 10-meter run, simply power the strip from both ends.
Features
- IP20 for indoor use
- Long lifespan of 54.000 hours (L70)
- Double layer PCB for good heat dissipation
Product Name
LED strip || 24V | 120LED/m 3528 | 5m | IP20 | Pink
Ean
8714984921467
Outer box qty
25st
Model
Strip
Lamp type
LED not exchangeable
Lamp voltage
0 - 24V
Number of nodes per meter
120
Lamp power per meter
9.6W
Beam angle
120°
Voltage type
DC
Type of control gear
LED operating device voltage-controlled
Input voltage tracklights
24V
With protective cover
No

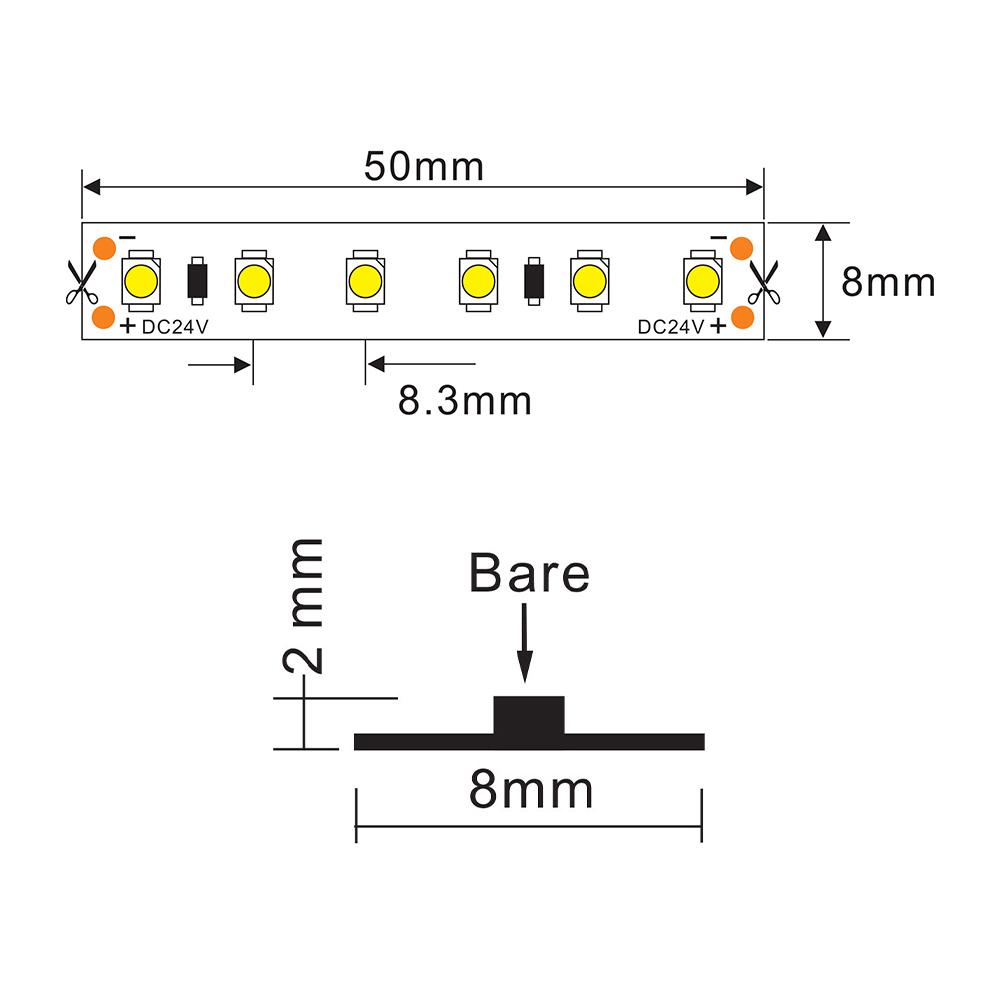

Length of particular segments
50mm
Degree of protection (IP)
IP20
Self-adhesive
Yes
Total length
5m
Width
8mm
Height/depth
2mm
Colour of light
Other
Suitable for dimmer
Yes
Exchangeable control gear
Yes
Connection type
Other
Rated lifetime L70/B50 at 25 °C
54000h
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
LED type
SMD
Max. system power
48W
Beam angle adjustable
No
Power factor
1
Type of wiring
Loop-through wiring included
Number of poles
2
Connectable conductor cross section
0.5 - 2.5mm²
Colour temperature
Pink
Warranty
3 years
Product Name
LED strip || 24V | 120LED/m 3528 | 5m | IP20 | Pink
Height/depth
2mm
Ean
8714984921467
Colour of light
Other
Outer box qty
25st
Suitable for dimmer
Yes
Model
Strip
Exchangeable control gear
Yes
Lamp type
LED not exchangeable
Connection type
Other
Lamp voltage
0 - 24V
Rated lifetime L70/B50 at 25 °C
54000h
Number of nodes per meter
120
Colour of light adjustable
No
Lamp power per meter
9.6W
Luminous flux adjustable
Continuously variable
Beam angle
120°
LED type
SMD
Voltage type
DC
Max. system power
48W
Type of control gear
LED operating device voltage-controlled
Beam angle adjustable
No
Input voltage tracklights
24V
Power factor
1
With protective cover
No
Type of wiring
Loop-through wiring included
Length of particular segments
50mm
Number of poles
2
Degree of protection (IP)
IP20
Connectable conductor cross section
0.5 - 2.5mm²
Self-adhesive
Yes
Colour temperature
Pink
Total length
5m
Warranty
3 years
Width
8mm
24V flexible LED strip (12 LEDs = 100mm) with 3M adhesive tape on the back for easy installation.
Maximum 5 meters of LED strip in one single length. Looking to connect multiple lengths to one single power supply? In that case, choose separate LED strips of up to 5 meters each. For a 10-meter run, simply power the strip from both ends.
Features
IP20 for indoor use
Long lifespan of 54.000 hours (L70)
Double layer PCB for good heat dissipation
Datasheet
Datasheet-led-strip-24v-120ledm-3528-5m-ip20-pink-127-046.pdf
Characteristics sheet
3528smd-120leds-8mm-specification.pdf
