LED strip | 24V | 560LED/m 2010 | 5m | IP65 | 2700K | CRI>90
127-197Ultra-dense 24V LED strip with 560 LEDs per meter. Provides a fully uniform light line, even in shallow profiles – ideal for high-end visible applications.
Key product features:
- Number of nodes per meter: 560
- Lamp power per meter (W): 20
- Colour temperature (K): 2700
- Width (mm): 10
- Length of particular sections (mm): 12.5
- Degree of protection (IP): IP65
- Luminous flux per meter (Lm): 1850
Product Name
LED strip | 24V | 560LED/m 2010 | 5m | IP65 | 2700K | CRI>90
Ean
8714984944640
Outer box qty
25st
Model
Strip
Lamp type
LED not exchangeable
Lamp voltage
0 - 24V
Number of nodes per meter
560
Lamp power per meter
20W
Beam angle
120°
Voltage type
DC
Type of control gear
LED operating device voltage-controlled
Input voltage tracklights
24V
With protective cover
No
Length of particular segments
12.5mm
Degree of protection (IP)
IP65
Self-adhesive
Yes
Luminous flux per meter
1856lm
Total length
5m
Width
10mm
Height/depth
1.4mm
Colour of light
White
Suitable for dimmer
Yes
Colour rendering index CRI
90-100
Exchangeable control gear
Yes
Connection type
Other
Rated lifetime L70/B50 at 25 °C
54000h
Colour of light adjustable
No
Luminous flux per foot
565.71lm
Luminous flux adjustable
Continuously variable
LED type
SMD
Max. system power
100W
Beam angle adjustable
No
Luminaire efficacy
86lm/W
Power factor
1
Type of wiring
Loop-through wiring included
Number of poles
2
Connectable conductor cross section
0.5 - 2.5mm²
Colour temperature
2700K
Warranty
3 years
Product Name
LED strip | 24V | 560LED/m 2010 | 5m | IP65 | 2700K | CRI>90
Colour of light
White
Ean
8714984944640
Suitable for dimmer
Yes
Outer box qty
25st
Colour rendering index CRI
90-100
Model
Strip
Exchangeable control gear
Yes
Lamp type
LED not exchangeable
Connection type
Other
Lamp voltage
0 - 24V
Rated lifetime L70/B50 at 25 °C
54000h
Number of nodes per meter
560
Colour of light adjustable
No
Lamp power per meter
20W
Luminous flux per foot
565.71lm
Beam angle
120°
Luminous flux adjustable
Continuously variable
Voltage type
DC
LED type
SMD
Type of control gear
LED operating device voltage-controlled
Max. system power
100W
Input voltage tracklights
24V
Beam angle adjustable
No
With protective cover
No
Luminaire efficacy
86lm/W
Length of particular segments
12.5mm
Power factor
1
Degree of protection (IP)
IP65
Type of wiring
Loop-through wiring included
Self-adhesive
Yes
Number of poles
2
Luminous flux per meter
1856lm
Connectable conductor cross section
0.5 - 2.5mm²
Total length
5m
Colour temperature
2700K
Width
10mm
Warranty
3 years
Height/depth
1.4mm
This high-end 24V LED strip with 560 2010 SMD LEDs per metre is perfect for projects demanding premium finish and lighting quality. The extremely high LED density creates a completely uniform, continuous light line – even in very shallow LED profiles, with no visible light points. Ideal for furniture design, bespoke interiors, high-end displays and architectural accents.
The compact 2010 SMD LED chip offers high efficiency and excellent colour stability. The fine LED distribution ensures smooth, shadow-free illumination without hotspots.
Available in 2300K, 2700K, 3000K and 4000K (IP20 and IP65), plus a 6000K version for bright functional lighting (IP20 only). Suitable for dry and slightly humid environments.

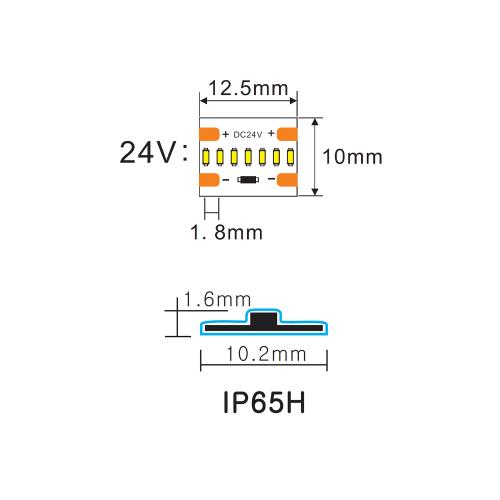

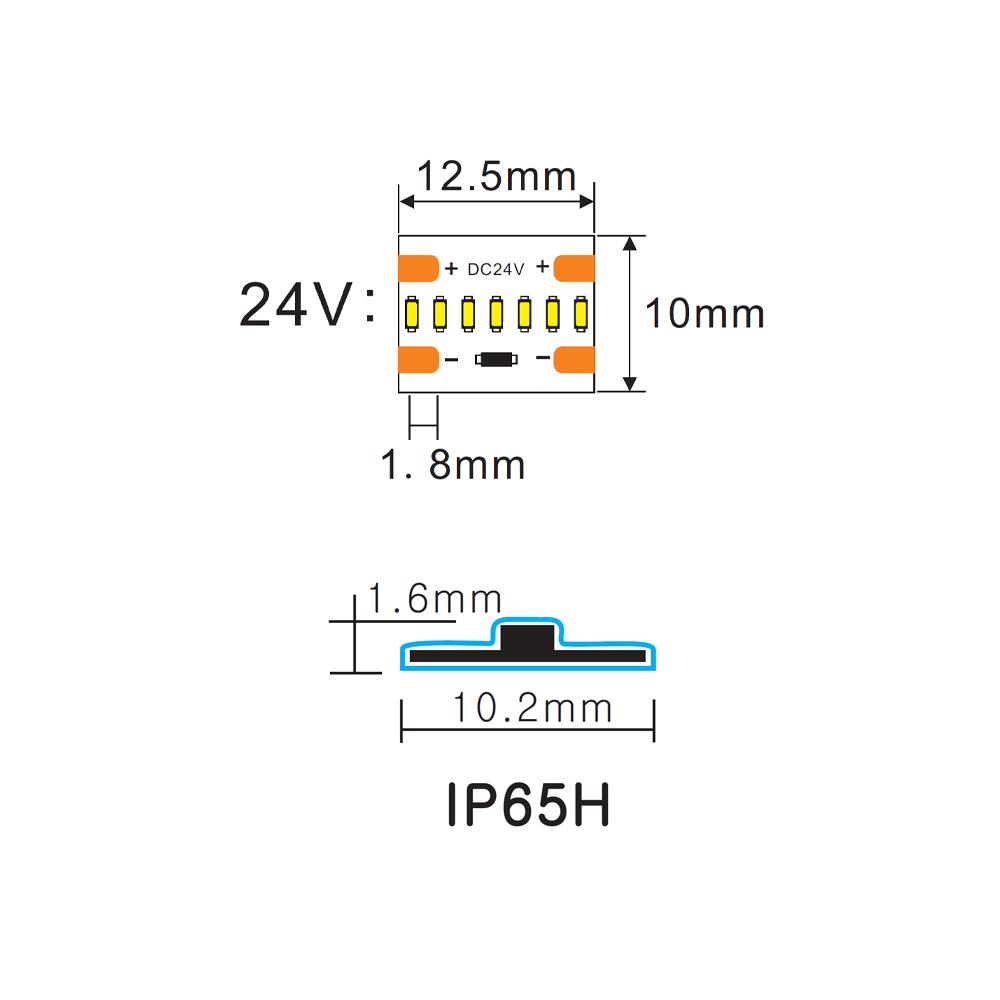

Thanks to the short 12.5 mm cutting section, precise customisation is possible. Effective heat dissipation is essential for optimal performance and lifespan. Use an aluminium LED profile to prevent overheating and ensure a clean finish. Combined with GALAXY LED profiles, this strip delivers a high-quality total lighting solution.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-strip-24v-560ledm-2010-5m-ip65-2700k-cri90-127-197.pdf
Energy labels
Characteristics sheet
127-197-photometric-light-report.pdf
127-197.ldt
