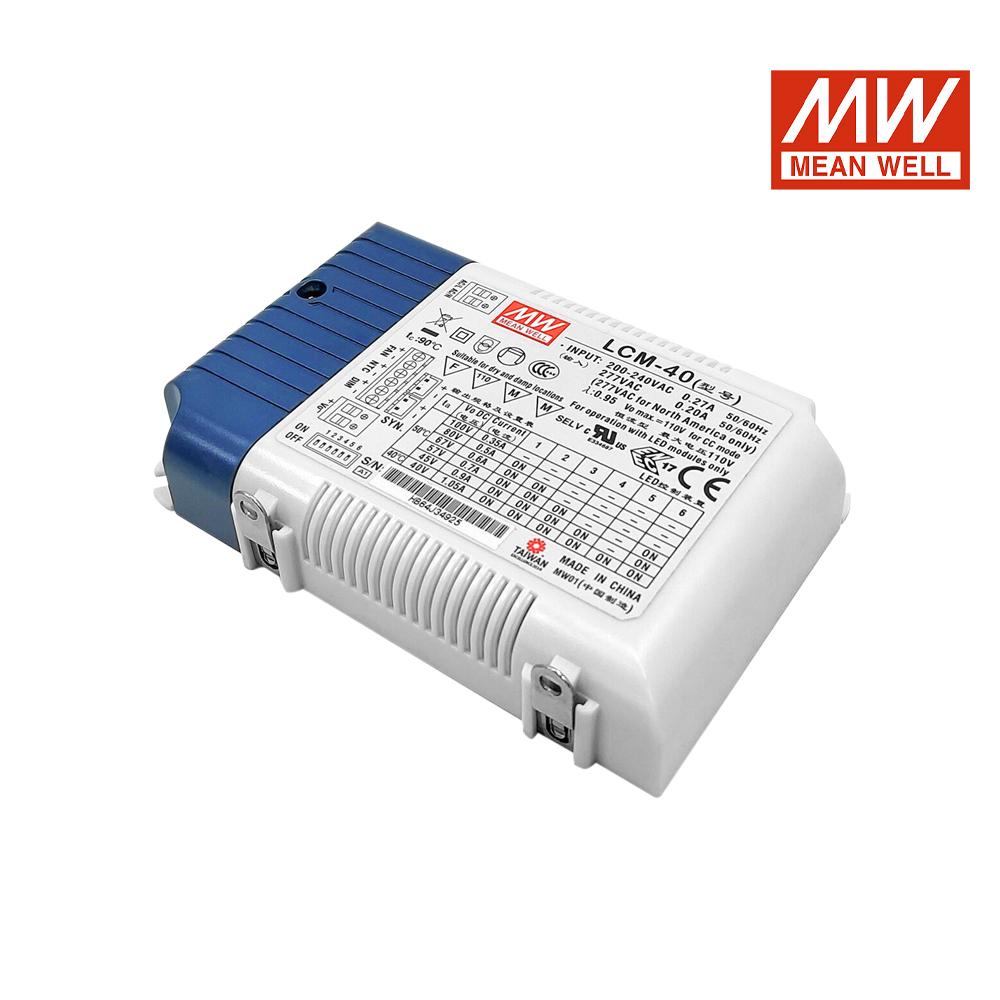

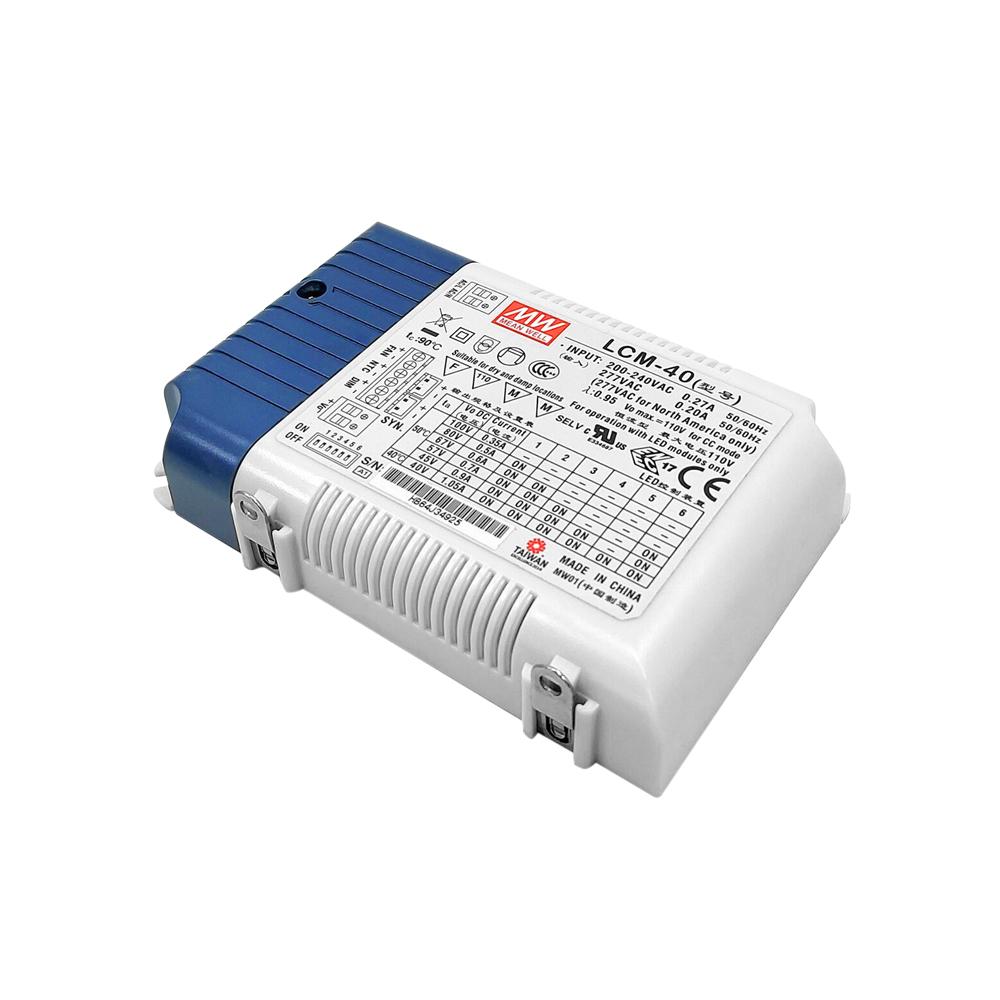

Meanwell | LCM-40 | 350~1050mA | 40W | IP20 | 1-10V dimmable
215-509Meanwell's LCM-40 series is a compact LED driver with an output of 40 Watts AC/DC. This driver is very efficient (92%), so the loss of energy is minimal and the extra functions can be used optimally. This makes this driver incredibly flexible when it comes to things like dimming or switching.
Features
- 3-in-1 dimming function for the perfect dimming experience
- Minimal power consumption in standby mode
- Up to 10 drivers can be synchronized for identical dimming experience
Product Name
Meanwell | LCM-40 | 350~1050mA | 40W | IP20 | 1-10V dimmable
Ean
8714984941403
Outer box qty
54st
Housing
Plastic housing
Model
Static
Output voltage
12 - 12V
Output current
350 - 1050mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
40 - 40W
Degree of protection (IP)
IP20

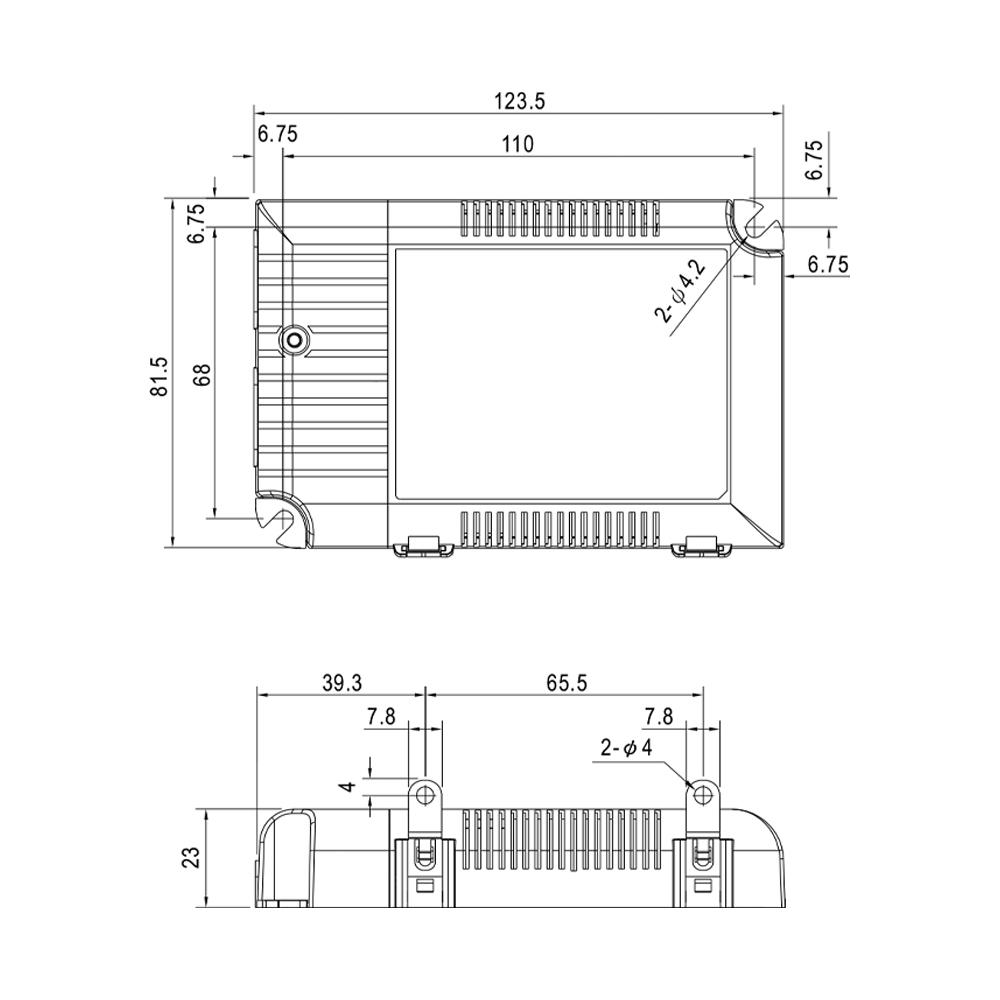

Length
123.5mm
Width
81.5mm
Height
23mm
Power consumption
40W
Input voltage
180 - 295V
Frequency input voltage
47 - 63Hz
PWM modulation
Yes
Overload protection
Yes
Overtemperature protection
Yes
Control method
0/1-10V
Short-circuit protected
Yes
Ambient temperature
-30 - 90°C
DIN-rail mounting
No
Brand
Meanwell
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
Meanwell | LCM-40 | 350~1050mA | 40W | IP20 | 1-10V dimmable
Input voltage
180 - 295V
Ean
8714984941403
Frequency input voltage
47 - 63Hz
Outer box qty
54st
PWM modulation
Yes
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
12 - 12V
Control method
0/1-10V
Output current
350 - 1050mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-30 - 90°C
Suitable for DC-voltage (primary side)
No
DIN-rail mounting
No
Output power
40 - 40W
Brand
Meanwell
Degree of protection (IP)
IP20
Dimmable
Yes
Length
123.5mm
Emergency power supply system
None
Width
81.5mm
Control type
Constant current
Height
23mm
Warranty
5 years
Power consumption
40W
Meanwell's LCM-40 series is a compact LED driver with an output of 40 Watts AC/DC. This driver is very efficient (92%), so the loss of energy is minimal and the extra functions can be used optimally. This makes this driver incredibly flexible when it comes to things like dimming or switching.
Features
3-in-1 dimming function for the perfect dimming experience
Minimal power consumption in standby mode
Up to 10 drivers can be synchronized for identical dimming experience
