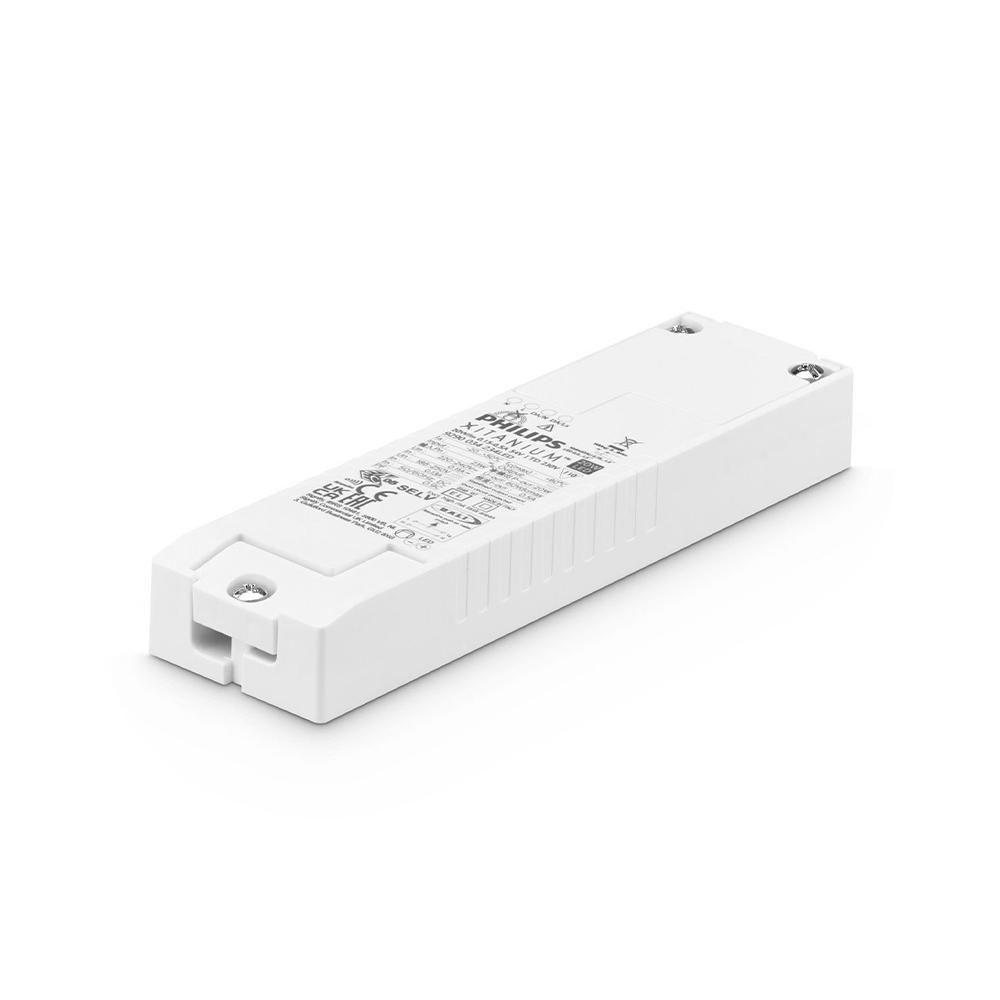

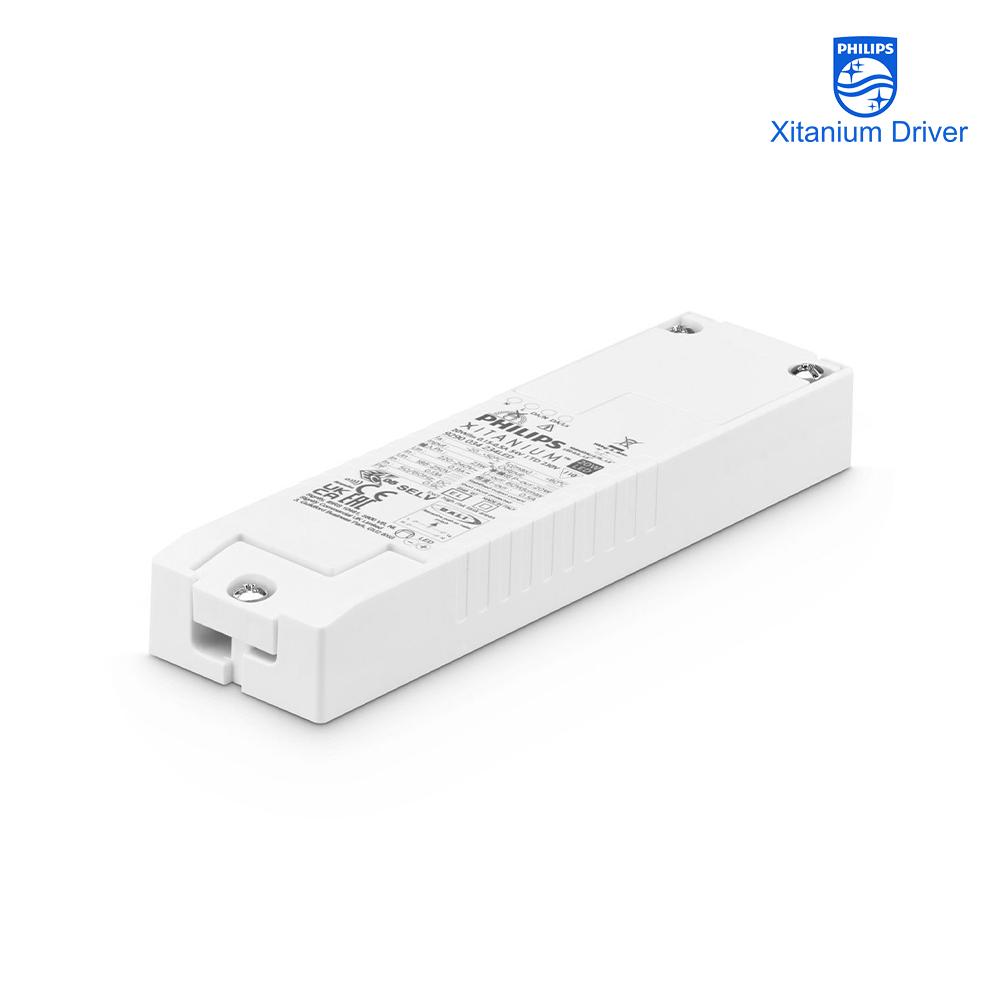

Philips driver | output prog. 0.3 - 1.05A | 36W | DALI dim
215-265This Philips Xitanium LED driver can be set via SimpleSet in an output of 0.3 to 1.05A. SimpleSet is the latest technology from Philips which makes it possible to wireless adjust the LED driver via NFC to a desired output. This means that only one LED driver is needed for multiple applications.
Features
- Easily install the MultiOne Configurator Software.
- Connect the MultiOne SimpleSet Interface and choose the Xitanium LED program configuration.
- Place the LED Driver to be configured on the SimpleSet platform with USB connection (exclusive, available on request).
- The software displays a green check mark to confirm the configuration.
- Didn't choose the right output? Reprogramming with SimpleSet can easily be done in the same way.
Not in possession of the MultiOne Software? Ask us to configure the SimpleSet drivers for you! sales@tronixlighting.com or +31 (0) 413 330 380.
Product Name
Philips driver | output prog. 0.3 - 1.05A | 36W | DALI dim
Ean
8714984932715
Outer box qty
36st
Housing
Plastic housing
Model
Static
Output voltage
5 - 54V
Output current
300 - 1050mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
0.03 - 36W
Degree of protection (IP)
IP20

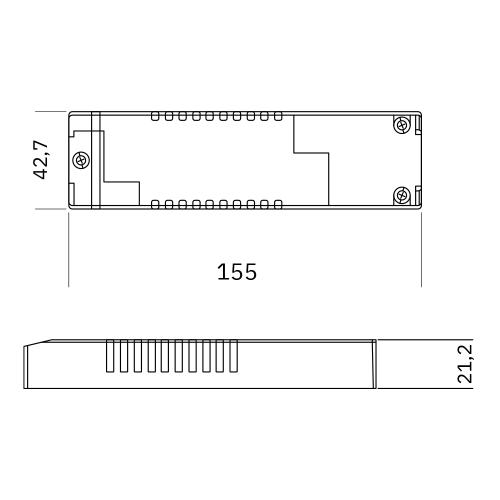

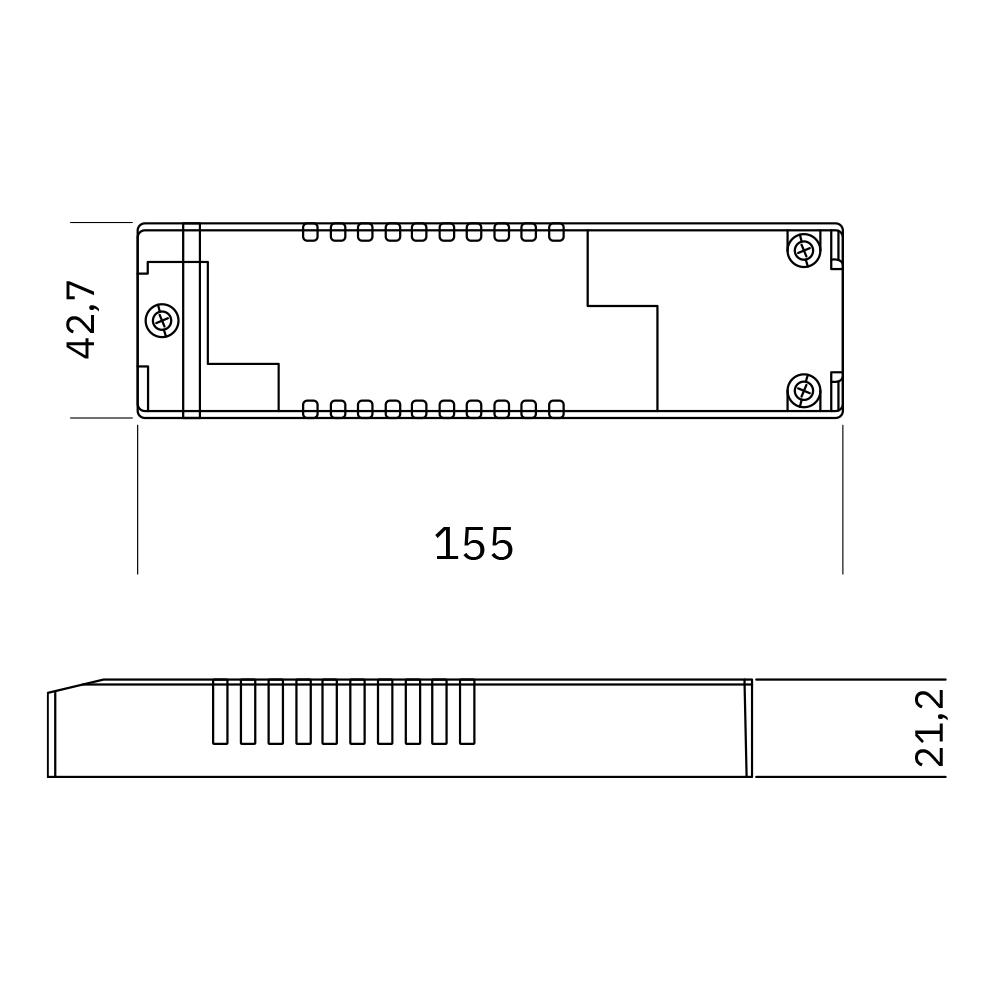

Length
155mm
Width
42.7mm
Height
21.2mm
Power consumption
36W
Input voltage
220 - 240V
Frequency input voltage
50 - 60Hz
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
DALI
Short-circuit protected
Yes
Ambient temperature
-20 - 50°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
Philips
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
Philips driver | output prog. 0.3 - 1.05A | 36W | DALI dim
Input voltage
220 - 240V
Ean
8714984932715
Frequency input voltage
50 - 60Hz
Outer box qty
36st
PWM modulation
No
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
5 - 54V
Control method
DALI
Output current
300 - 1050mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-20 - 50°C
Suitable for DC-voltage (primary side)
No
Driver lifetime
50000h
Output power
0.03 - 36W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Philips
Length
155mm
Dimmable
Yes
Width
42.7mm
Emergency power supply system
None
Height
21.2mm
Control type
Constant current
Power consumption
36W
Warranty
5 years
This Philips Xitanium LED driver can be set via SimpleSet in an output of 0.3 to 1.05A. SimpleSet is the latest technology from Philips which makes it possible to wireless adjust the LED driver via NFC to a desired output. This means that only one LED driver is needed for multiple applications.
Features
Easily install the MultiOne Configurator Software.
Connect the MultiOne SimpleSet Interface and choose the Xitanium LED program configuration.
Place the LED Driver to be configured on the SimpleSet platform with USB connection (exclusive, available on request).
The software displays a green check mark to confirm the configuration.
Didn't choose the right output? Reprogramming with SimpleSet can easily be done in the same way.
Not in possession of the MultiOne Software? Ask us to configure the SimpleSet drivers for you! sales@tronixlighting.com or +31 (0) 413 330 380.
Datasheet
Datasheet-philips-driver-output-prog-03-105a-36w-dali-dim-215-265.pdf
Characteristics sheet
215-265_technical_datasheet_extended.pdf
