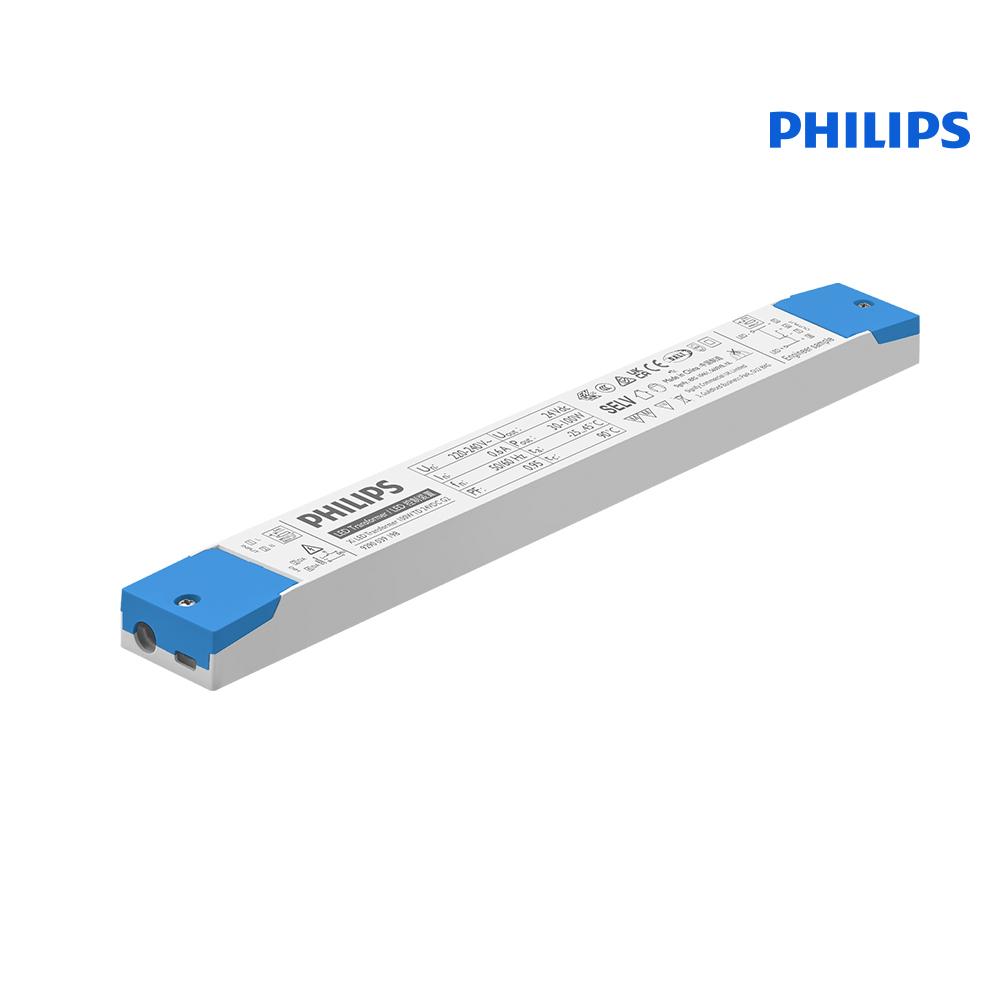

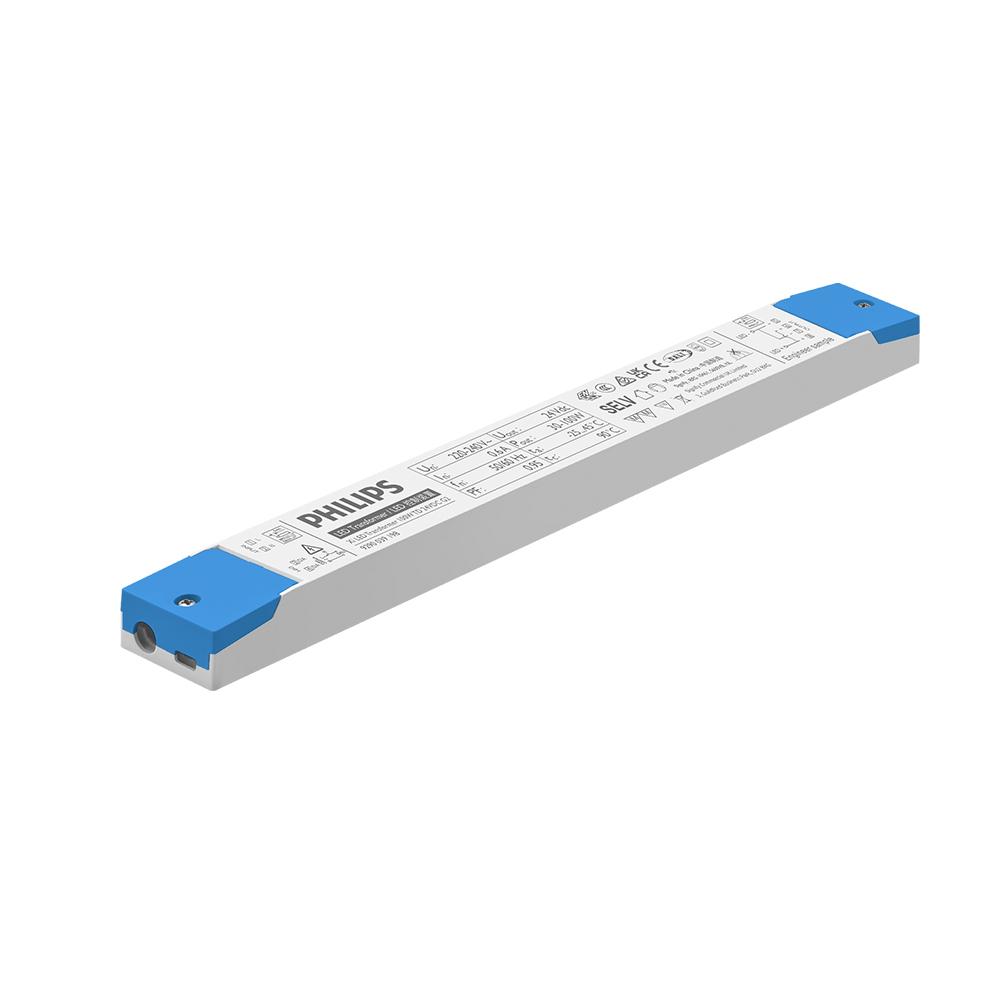

Philips power supply | 24V | IP20 | 100W | DALI dimmable V2
215-455This sturdy Philips LED driver has a maximum output of 100W and 24V and is extremely well suited for use with various light sources. In addition, the compact size makes the driver easy to place.
This product will soon be branded as Xitanium by Signify.
Features
- Output current 0 ~ 4166 mA
- Output power 0 ~ 100 Watt
- Compact size 350*30*18 mm
- Optionally dimmable thanks to the DALI 2 protocol
Product Name
Philips power supply | 24V | IP20 | 100W | DALI dimmable V2
Ean
8714984951167
Outer box qty
50st
Housing
Plastic housing
Model
Static
Output voltage
24 - 24V
Output current
0 - 4166mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
0 - 100W
Degree of protection (IP)
IP20
Length
350mm
Width
30mm
Height
18mm
Power consumption
100W
Input voltage
198 - 264V
Frequency input voltage
47 - 63Hz
Overload protection
Yes
Overtemperature protection
Yes
Control method
DALI
Short-circuit protected
Yes
Ambient temperature
-25 - 45°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
Philips
Dimmable
Yes
Emergency power supply system
None
Control type
Constant voltage
Warranty
5 years
Suitable for DIN rail (top hat rail) mounting
No
Interface Pulse Width Modulation (PWM)
No
Product Name
Philips power supply | 24V | IP20 | 100W | DALI dimmable V2
Frequency input voltage
47 - 63Hz
Ean
8714984951167
Overload protection
Yes
Outer box qty
50st
Overtemperature protection
Yes
Housing
Plastic housing
Control method
DALI
Model
Static
Short-circuit protected
Yes
Output voltage
24 - 24V
Ambient temperature
-25 - 45°C
Output current
0 - 4166mA
Driver lifetime
50000h
Suitable for outdoor use
No
DIN-rail mounting
No
Suitable for DC-voltage (primary side)
No
Brand
Philips
Output power
0 - 100W
Dimmable
Yes
Degree of protection (IP)
IP20
Emergency power supply system
None
Length
350mm
Control type
Constant voltage
Width
30mm
Warranty
5 years
Height
18mm
Suitable for DIN rail (top hat rail) mounting
No
Power consumption
100W
Interface Pulse Width Modulation (PWM)
No
Input voltage
198 - 264V
This sturdy Philips LED driver has a maximum output of 100W and 24V and is extremely well suited for use with various light sources. In addition, the compact size makes the driver easy to place.
