Refl downl || black | Ø190mm | 3000K | 750mA | no driver
136-268This downlight offers aesthetics and functionality. Its wide beam angle of 60° ensures optimal light distribution. A glass in front of the reflector keeps out moisture and dust, ideal for situations requiring a robust solution.
Key product features:
- Max. system power (W): 30
- Colour temperature (K): 3000
- Housing colour: Black
- Outer diameter (mm): 190
- Built-in diameter (mm): 160 - 170
- Connection type: Other
- Degree of protection (IP), front side: IP44
Product Name
Refl downl || black | Ø190mm | 3000K | 750mA | no driver
Ean
8714984937758
Outer box qty
12st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Black
Housing material
Aluminium
Material cover
Glass transparent
Connection type
Stripped wire

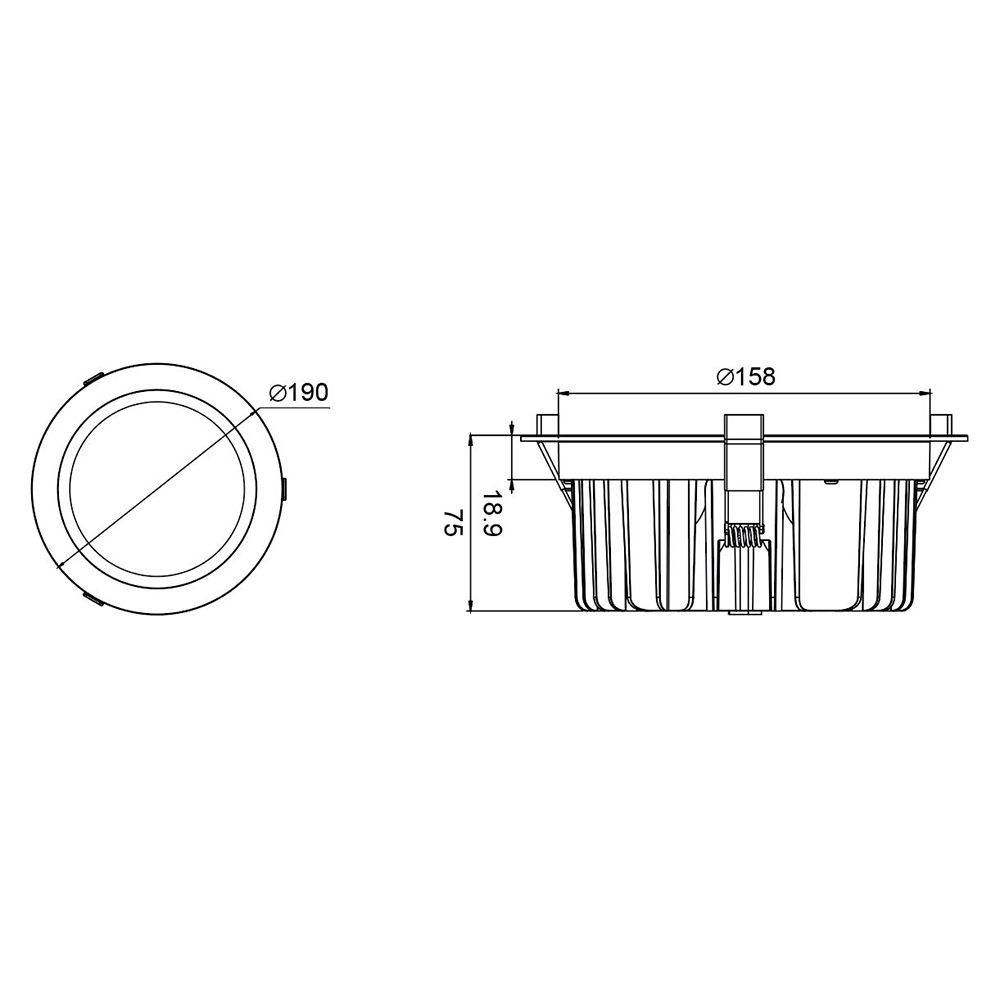

Height/depth
75mm
Outer diameter
190mm
Built-in diameter
160 - 170mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
No
Reflector colour
Silver
Colour temperature
3000K
Colour rendering index CRI
80-89
Luminous flux adjustable
No
Light outlet
Direct
Beam angle
41-80° - Wide beam
Beam angle adjustable
No
Voltage type
AC
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
No
Degree of protection (IP), front side
IP44
Degree of protection (IP), rear side
IP20
Surface protection
Powder coating
Impact strength
IK02
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
30W
Power factor
1
Suitable for lamp power
0 - 0W
Dimming method
Optional
Surface brushed
No
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
16
Reflector
High-gloss
Warranty
5 years
Product Name
Refl downl || black | Ø190mm | 3000K | 750mA | no driver
Luminous flux adjustable
No
Ean
8714984937758
Light outlet
Direct
Outer box qty
12st
Beam angle
41-80° - Wide beam
Lamp type
LED not exchangeable
Beam angle adjustable
No
Lamp holder
None
Voltage type
AC
Housing colour
Black
Light distributor
Reflector
Housing material
Aluminium
Light distribution
Symmetric
Material cover
Glass transparent
Connectable conductor cross section
0.75 - 2.5mm²
Connection type
Stripped wire
Type of control gear
LED operating device current-controlled
Height/depth
75mm
Exchangeable control gear
No
Outer diameter
190mm
With control gear
No
Built-in diameter
160 - 170mm
Degree of protection (IP), front side
IP44
Suitable for built-in mounting
Yes
Degree of protection (IP), rear side
IP20
Suitable for surface mounting
No
Surface protection
Powder coating
Suitable for pedestal/floor mounting
No
Impact strength
IK02
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
Yes
Max. system power
30W
Suitable for light-track mounting
No
Power factor
1
Suitable for clamp-mounting
Yes
Suitable for lamp power
0 - 0W
With movement sensor
No
Dimming method
Optional
With presence detector
No
Surface brushed
No
With light sensor
No
Emergency power supply system
None
Colour of light
White
Emergency function monitoring system
None
Colour consistency (McAdam ellipse)
SDCM3
Adjustability
not adjustable
Colour of light adjustable
No
Unified Glare Ratio (UGR)
16
Reflector colour
Silver
Reflector
High-gloss
Colour temperature
3000K
Warranty
5 years
Colour rendering index CRI
80-89
The glass cover extends the life of the downlight by protecting it from external influences. This ensures consistent light quality in a variety of environments, ideal for locations where reliability and durability are paramount.

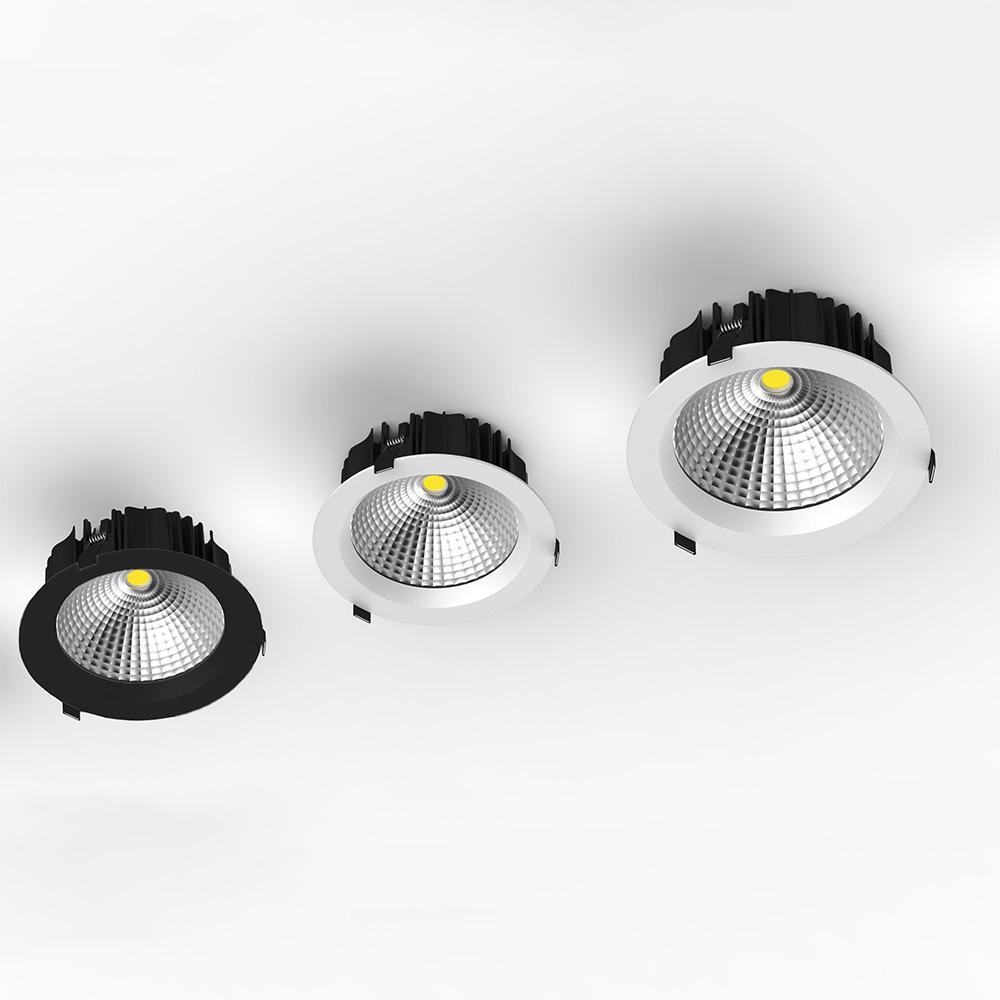

The extensive collection includes 24 models with different sizes, powers, light colors and connection options, including a europlug or GST18i3 plug. The series offers solutions for various lighting needs in both commercial and residential applications, with uniform style and functionality.
Additional Information
More details about this product can be found in the specifications. For accessories, available options, and related products, see the related items section. For inquiries or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-refl-downl-black-o190mm-3000k-750ma-no-driver-136-268.pdf
