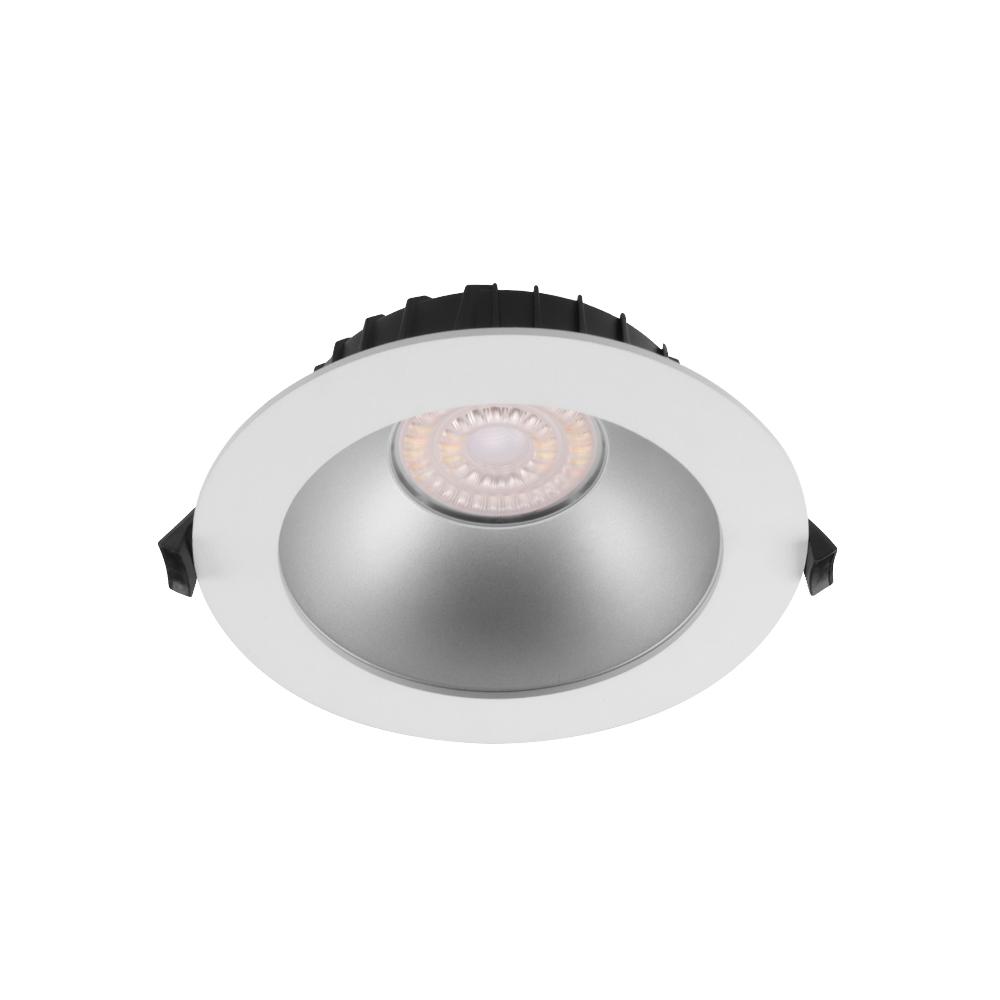

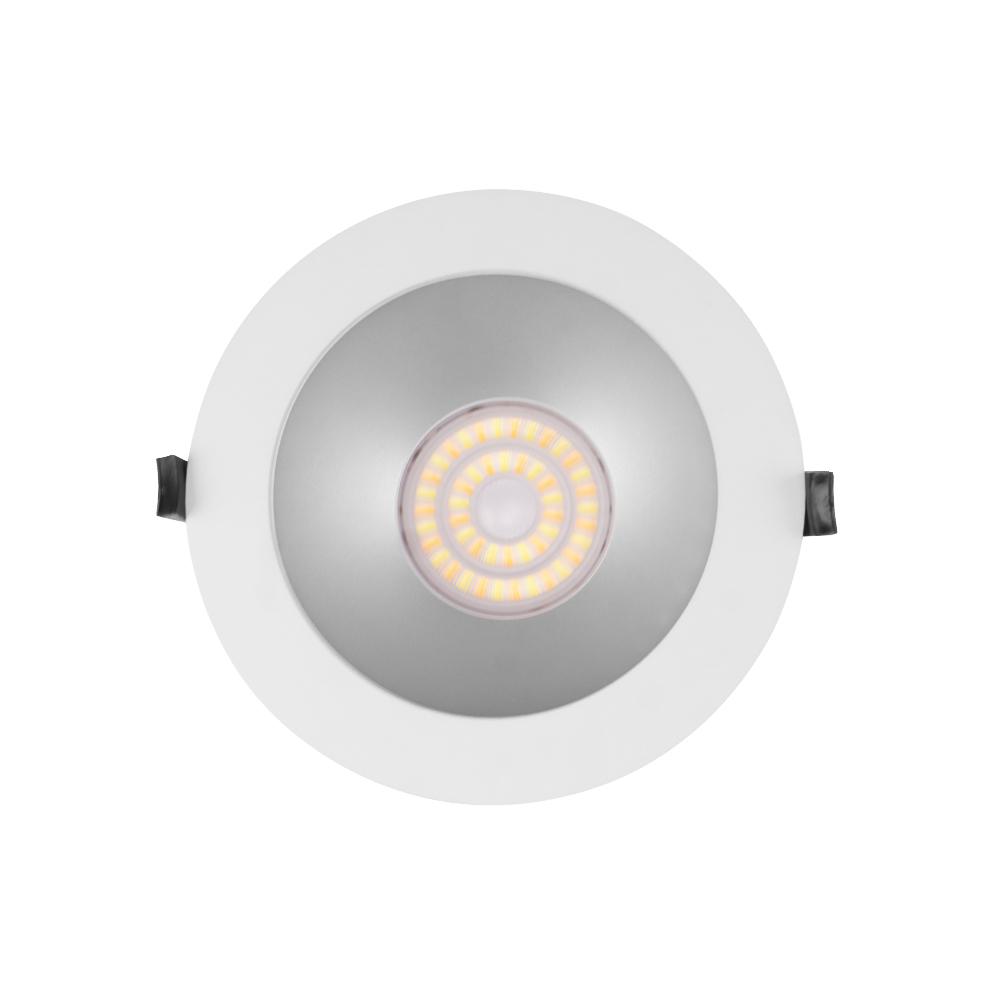

Refl downl matt | Ø170mm | white | 3-CCT | 360mA | no driver
136-322This downlight combines efficiency with bright illumination, featuring a matte reflector and lens. The low UGR rating prevents glare, while an Colour of light adjustable and makes this fixture ideal for a range of professional applications.
Key product features:
- Max. system power (W): 15
- Colour temperature (K): 3000 – 5700
- Housing colour: White
- Reflector: Matt
- Outer diameter (mm): 170
- Built-in diameter (mm): 138 - 160
- Connection type: Other
Product Name
Refl downl matt | Ø170mm | white | 3-CCT | 360mA | no driver
Ean
8714984949997
Outer box qty
24st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
White
Housing material
Aluminium
Material cover
Plastic, transparent
Connection type
Stripped wire

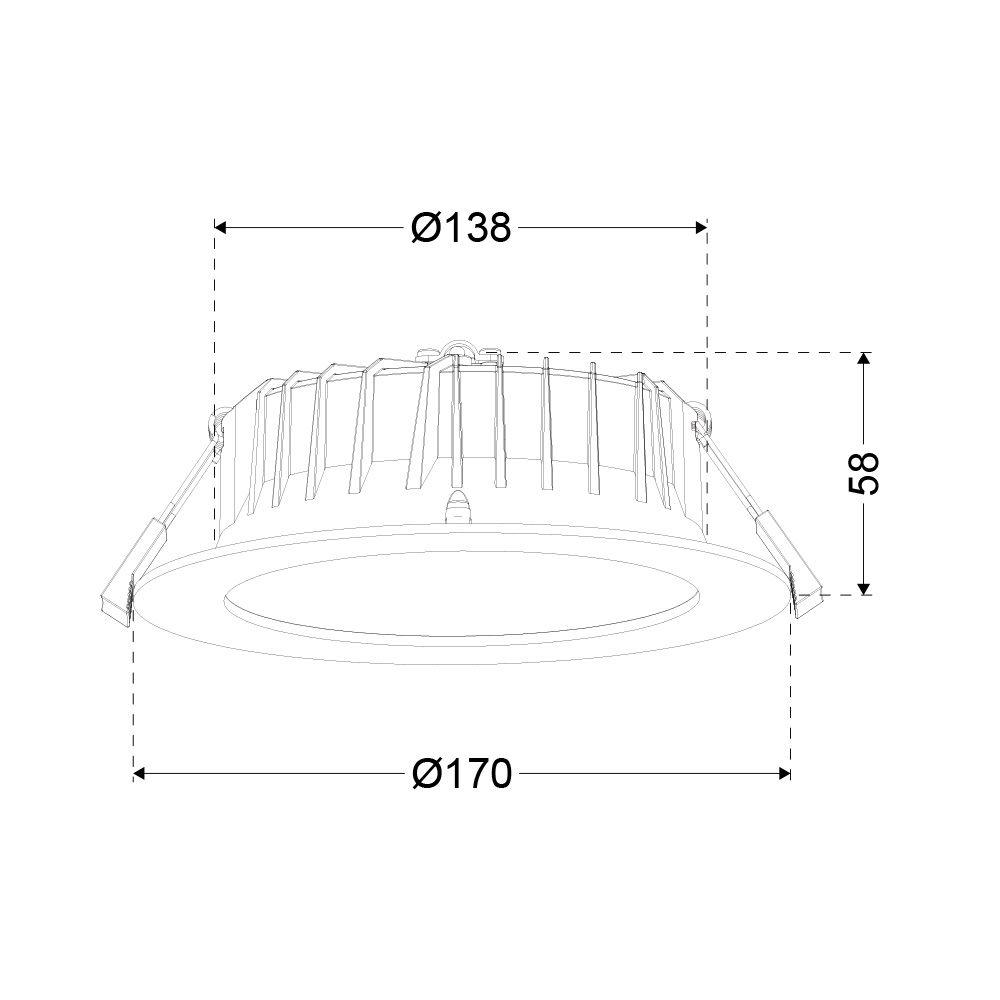

Height/depth
58mm
Outer diameter
170mm
Built-in diameter
138 - 160mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
Yes
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM6
Colour of light adjustable
Positions
Reflector colour
Silver
Colour temperature
3000 - 4000 - 5700K
Colour rendering index CRI
80-89
Luminous flux adjustable
Positions
Light outlet
Direct
Beam angle
41-80° - Wide beam
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
40 - 40V
Nominal current
0 - 360mA
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
Yes
With control gear
No
Degree of protection (IP), front side
IP54
Degree of protection (IP), rear side
IP20
Surface protection
Lacquered
Impact strength
IK02
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
15W
Rated luminous flux according to IEC 62722-2- 1
0 - 1800lm
Luminaire efficacy
120 - 120lm/W
Power factor
1
Suitable for lamp power
0 - 0W
Dimming method
Optional
Surface brushed
No
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
19.3
Reflector
Matt
Warranty
5 years
Product Name
Refl downl matt | Ø170mm | white | 3-CCT | 360mA | no driver
Beam angle
41-80° - Wide beam
Ean
8714984949997
Beam angle adjustable
No
Outer box qty
24st
Voltage type
AC
Lamp type
LED not exchangeable
Nominal voltage
40 - 40V
Lamp holder
None
Nominal current
0 - 360mA
Housing colour
White
Light distributor
Reflector
Housing material
Aluminium
Light distribution
Symmetric
Material cover
Plastic, transparent
Connectable conductor cross section
0.75 - 2.5mm²
Connection type
Stripped wire
Type of control gear
LED operating device current-controlled
Height/depth
58mm
Exchangeable control gear
Yes
Outer diameter
170mm
With control gear
No
Built-in diameter
138 - 160mm
Degree of protection (IP), front side
IP54
Suitable for built-in mounting
Yes
Degree of protection (IP), rear side
IP20
Suitable for surface mounting
Yes
Surface protection
Lacquered
Suitable for pedestal/floor mounting
No
Impact strength
IK02
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
Yes
Max. system power
15W
Suitable for light-track mounting
No
Rated luminous flux according to IEC 62722-2- 1
0 - 1800lm
Suitable for clamp-mounting
No
Luminaire efficacy
120 - 120lm/W
With movement sensor
No
Power factor
1
With presence detector
No
Suitable for lamp power
0 - 0W
With light sensor
No
Dimming method
Optional
Colour of light
White
Surface brushed
No
Colour consistency (McAdam ellipse)
SDCM6
Emergency power supply system
None
Colour of light adjustable
Positions
Emergency function monitoring system
None
Reflector colour
Silver
Adjustability
not adjustable
Colour temperature
3000 - 4000 - 5700K
Unified Glare Ratio (UGR)
19.3
Colour rendering index CRI
80-89
Reflector
Matt
Luminous flux adjustable
Positions
Warranty
5 years
Light outlet
Direct

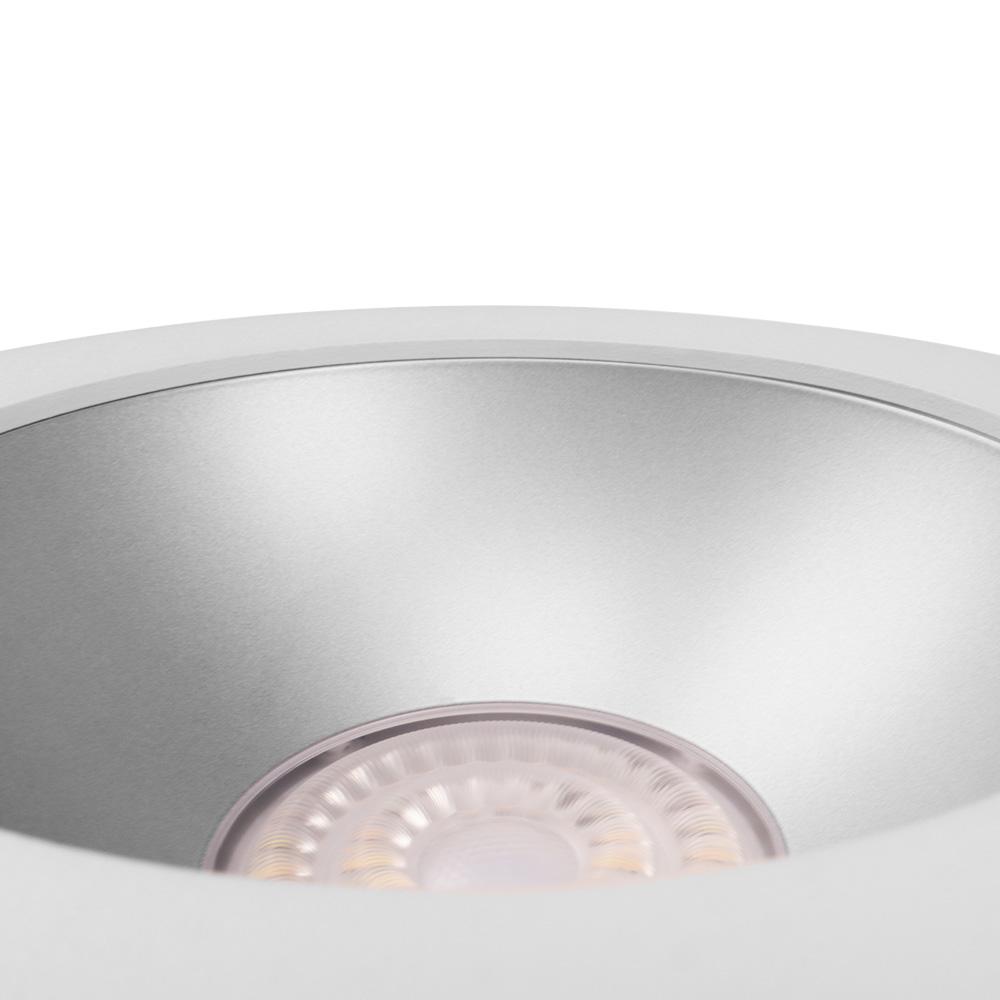

The matte reflector is less prone to dust and fingerprints compared to a mirror reflector, keeping the downlight cleaner for longer. This makes it a practical choice for spaces where aesthetics and ease of maintenance are key.
This downlight is part of an extensive collection available in various power levels, colors and sizes, ensuring a solution tailored to specific lighting needs.
For added flexibility, the downlight can also be surface-mounted using a compatible mounting kit. More information on this option is available under related products.
Additional Information
More details about this product can be found in the specifications. For accessories, available options, and related products, see the related items section. For inquiries or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-refl-downl-matt-o170mm-white-3-cct-360ma-no-driver-136-322.pdf
Energy labels
Characteristics sheet
136-322-photometric-light-report.pdf
136-322-photometric-light-report-detailed.zip
136-322-eulumdat.zip
