Spot | Ø40*16mm | 24V | 2.5W | black | 2700K/3000K | dim
148-816Compact dimmable 24V LED recessed spotlight, 2.5W, with selectable 2700K/3000K colour temperature and CRI >90. The Easy Connect connection allows quick, screw-free installation in furniture and interiors.
Key product features:
- Nom. voltage (V): 0–24
- Max. system power (W): 2.5
- Colour temperature (K): 2700–3000
- Housing colour: Black

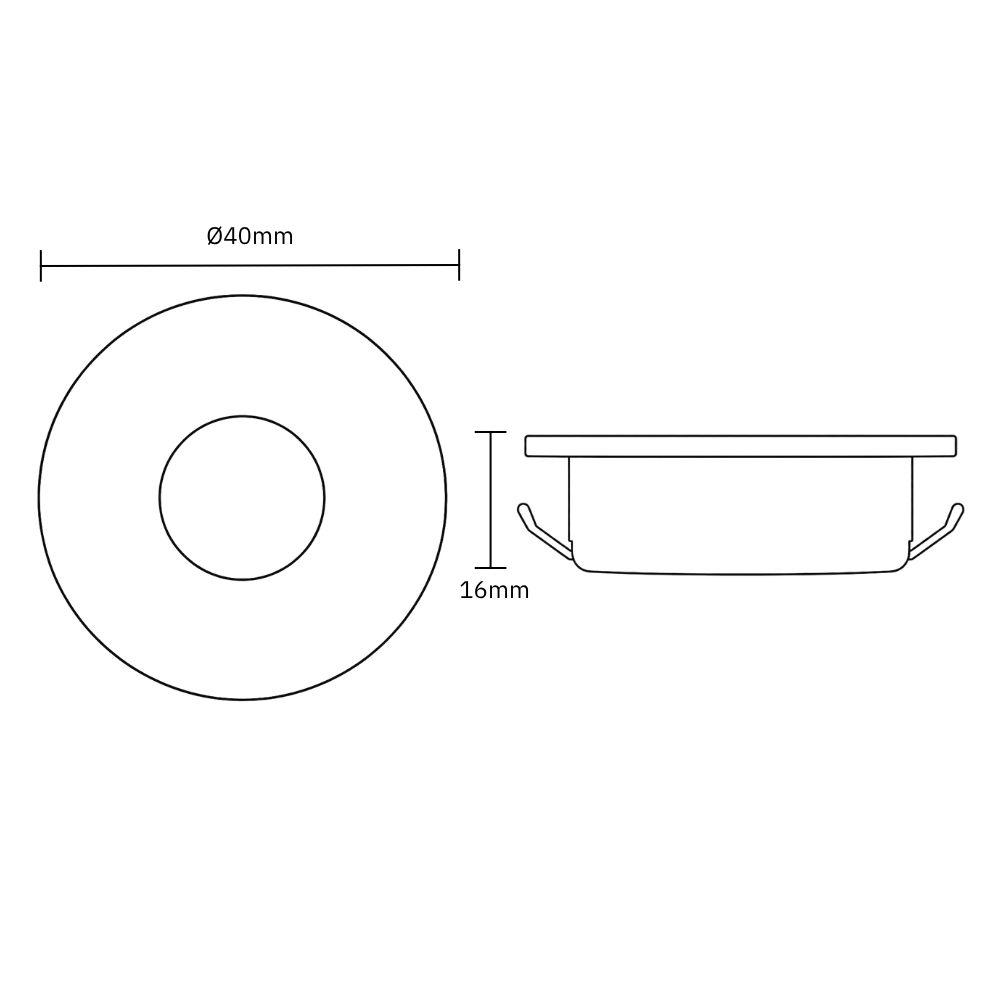

- Outer diameter (mm): 40
- Recessed height (mm): 16
- Cut-out diameter (mm): 35
Product Name
Spot | Ø40*16mm | 24V | 2.5W | black | 2700K/3000K | dim
Ean
8714984957107
Outer box qty
100st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Black
Housing material
Aluminium
Material cover
Plastic, opal
Height/depth
16mm
Outer diameter
40mm
Built-in diameter
35 - 35mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Colour
Black
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
Positions
Colour temperature
2700 - 3000K
Colour rendering index CRI
90-100
Luminous flux adjustable
Continuously variable
Light outlet
Direct
Beam angle
21-40° - Medium beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
0 - 24V
Nominal current
101 - 101mA
Number of poles
2
Light source included
Yes, fixed LED
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Connectable conductor cross section
0.3 - 0.3mm²
Type of control gear
LED operating device voltage-controlled
Exchangeable control gear
Yes
With control gear
No
Degree of protection (IP), front side
IP54
Degree of protection (IP), rear side
IP20
Surface protection
Powder coating
Impact strength
IK02
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
2.5W
Rated luminous flux according to IEC 62722-2- 1
0 - 142lm
Luminaire efficacy
59 - 59lm/W
Power factor
1
Suitable for lamp power
0 - 0W
Surface brushed
No
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Reflector
None
Warranty
5 years
Ambient temperature
-20 - 45°C
UGR level (Unified Glare Rating)
<= 22
Control type
Constant voltage
Product Name
Spot | Ø40*16mm | 24V | 2.5W | black | 2700K/3000K | dim
Voltage type
DC
Ean
8714984957107
Nominal voltage
0 - 24V
Outer box qty
100st
Nominal current
101 - 101mA
Lamp type
LED not exchangeable
Number of poles
2
Lamp holder
None
Light source included
Yes, fixed LED
Housing colour
Black
Light distributor
Diffuser lens/optic/panel
Housing material
Aluminium
Light distribution
Symmetric
Material cover
Plastic, opal
Connectable conductor cross section
0.3 - 0.3mm²
Height/depth
16mm
Type of control gear
LED operating device voltage-controlled
Outer diameter
40mm
Exchangeable control gear
Yes
Built-in diameter
35 - 35mm
With control gear
No
Suitable for built-in mounting
Yes
Degree of protection (IP), front side
IP54
Suitable for surface mounting
No
Degree of protection (IP), rear side
IP20
Suitable for pedestal/floor mounting
No
Surface protection
Powder coating
Colour
Black
Impact strength
IK02
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
Yes
Max. system power
2.5W
Suitable for light-track mounting
No
Rated luminous flux according to IEC 62722-2- 1
0 - 142lm
Suitable for clamp-mounting
Yes
Luminaire efficacy
59 - 59lm/W
With movement sensor
No
Power factor
1
With presence detector
No
Suitable for lamp power
0 - 0W
With light sensor
No
Surface brushed
No
Colour of light
White
Type of wiring
Ending
Colour consistency (McAdam ellipse)
SDCM3
Emergency power supply system
None
Colour of light adjustable
Positions
Emergency function monitoring system
None
Colour temperature
2700 - 3000K
Adjustability
not adjustable
Colour rendering index CRI
90-100
Reflector
None
Luminous flux adjustable
Continuously variable
Warranty
5 years
Light outlet
Direct
Ambient temperature
-20 - 45°C
Beam angle
21-40° - Medium beam
UGR level (Unified Glare Rating)
<= 22
Beam angle adjustable
No
Control type
Constant voltage
This compact LED recessed spotlight is suitable for professional use in furniture, cabinets, display cases, displays and interior projects. With an outer diameter of 40 mm and a cut-out diameter of 35 mm, the spotlight can be discreetly integrated into the interior.
The colour temperature can be set to 2700K or 3000K via the connection cable. This makes it easy to select the preferred warm light colour during installation. The high colour rendering of CRI >90 ensures that materials and colours are displayed naturally.
With a power of 2.5W and a beam angle of 38°, the spotlight provides focused light. It operates on 24V DC and is dimmable, allowing the light output to be adjusted to suit the application.
The Easy Connect connection allows quick, screw-free connection to a suitable 24V power supply or controller. This simplifies installation for repeat custom projects and professional interior construction.
The spotlight is available in white and black. It is supplied with a 1-metre connection cable and a 10 cm cable for selecting the colour temperature.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see the related items. For questions or advice, please contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-spot-o4016mm-24v-25w-black-2700k3000k-dim-148-816.pdf
Energy labels
Characteristics sheet
148-816-photometric-light-report.pdf
148-816-eulumdat.ldt
Manual
148-815_816_ manual.pdf
