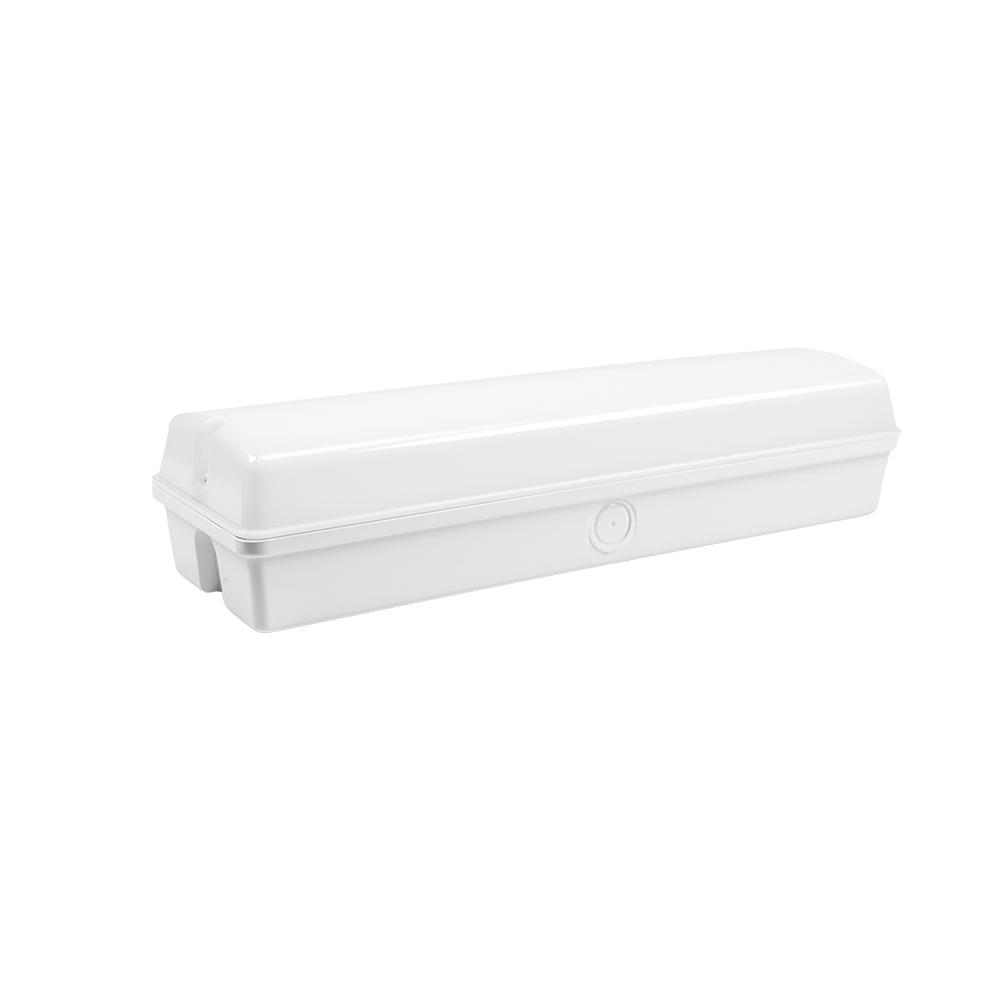

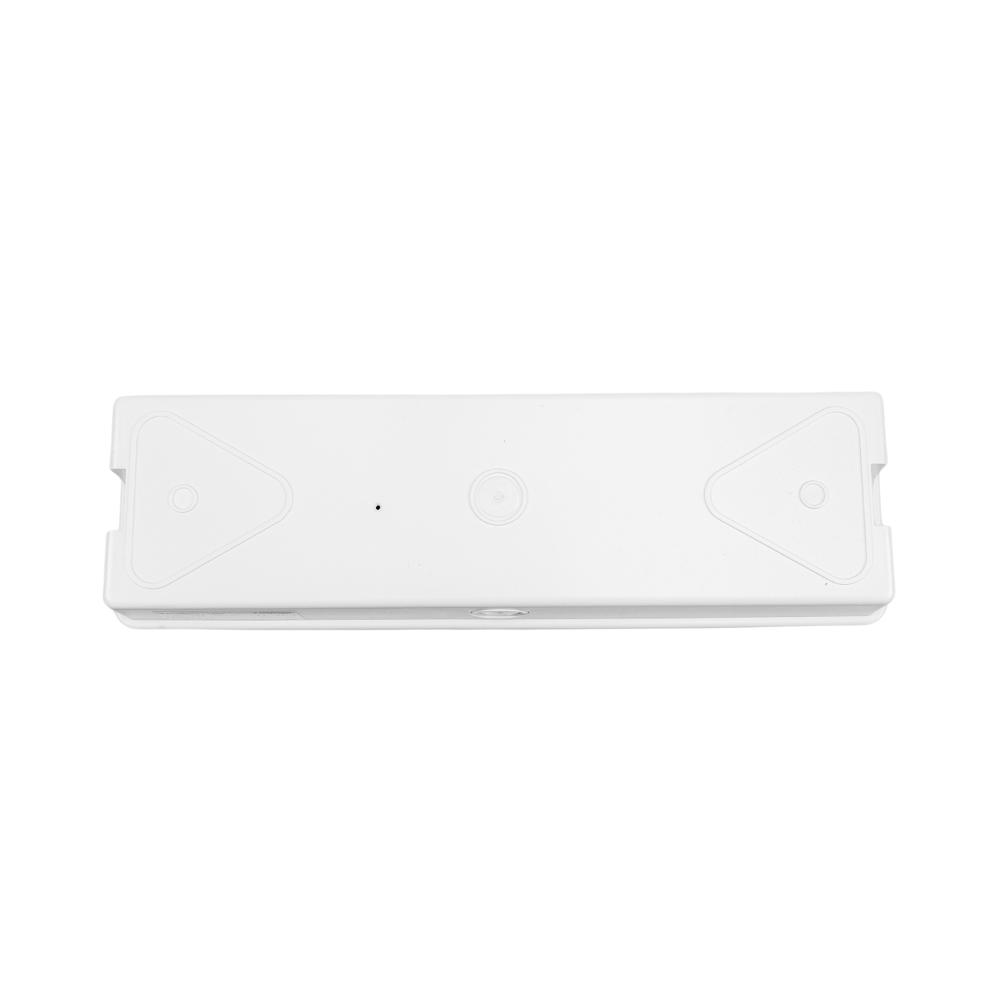

Vestibule bulkhead || rectangular 6,4 watt | 4000K | IP65
136-024This ceiling fixture is suitable for installation in various spaces such as offices, residential spaces, schools, hotels and other public spaces.
Features
- High quality internal driver with optimum heat regulation
- Can be directly connected by using the terminal block on the fixture
- Pleasant, effective color temperature of 4000K
- Long service life of 30.000 hours
- IP65 for installation in moist areas
Product Name
Vestibule bulkhead || rectangular 6,4 watt | 4000K | IP65
Ean
8714984914780
Outer box qty
12st
Lamp type
LED not exchangeable
Housing material
Plastic
Housing colour
White
Material cover
Plastic, opal
Suitable for emergency lighting
No
Nominal current
27 - 29mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes
Constant light output (CLO)
No
Type of grid
Matt
Nominal voltage
220 - 240V
Length
345mm
Width
107mm
Height/depth
75mm
Colour of light
White
Colour rendering index CRI
70-79
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
No
With presence detector
No
Impact strength
IK08
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Dimming RF
No
Dimming Zigbee
No
Light distributor
Other
Surface protection housing
Lacquered
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
30000h
Colour of light adjustable
No
Luminous flux adjustable
No
Max. system power
6.4W
Beam angle adjustable
No
Power factor
0.39
Type of wiring
Ending
Number of poles
3
Compatible with Casambi
No
Luminaire efficacy
50 - 50lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
320 - 320lm
Emergency power supply system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
25
Degree of protection (IP), front side
IP65
With mounting material
Yes
Colour temperature
4000K
With connection cord and plug
No
Warranty
2 years
Product Name
Vestibule bulkhead || rectangular 6,4 watt | 4000K | IP65
Beam angle
> 80° - Extreme wide beam
Ean
8714984914780
Light outlet
Direct
Outer box qty
12st
Dimming RF
No
Lamp type
LED not exchangeable
Dimming Zigbee
No
Housing material
Plastic
Light distributor
Other
Housing colour
White
Surface protection housing
Lacquered
Material cover
Plastic, opal
Colour consistency (McAdam ellipse)
SDCM6
Suitable for emergency lighting
No
Rated lifetime L70/B50 at 25 °C
30000h
Nominal current
27 - 29mA
Colour of light adjustable
No
Voltage type
AC
Luminous flux adjustable
No
Type of control gear
LED operating device current-controlled
Max. system power
6.4W
With control gear
Yes
Beam angle adjustable
No
Constant light output (CLO)
No
Power factor
0.39
Type of grid
Matt
Type of wiring
Ending
Nominal voltage
220 - 240V
Number of poles
3
Length
345mm
Compatible with Casambi
No
Width
107mm
Luminaire efficacy
50 - 50lm/W
Height/depth
75mm
Dimmable
No
Colour of light
White
Rated luminous flux according to IEC 62722-2- 1
320 - 320lm
Colour rendering index CRI
70-79
Emergency power supply system
None
Exchangeable control gear
No
Suitable for ceiling mounting
Yes
Dimming 0-10 V
No
Connectable conductor cross section
0.75 - 0.75mm²
Dimming 1-10 V
No
Suitable for wall mounting
Yes
Dimming DALI
No
Suitable for suspended mounting
No
Dimming phase cut-off (trailing edge)
No
Suitable for workplace according to EN 12464-1
No
With movement sensor
No
Unified Glare Ratio (UGR)
25
With presence detector
No
Degree of protection (IP), front side
IP65
Impact strength
IK08
With mounting material
Yes
With light sensor
No
Colour temperature
4000K
Suitable for surface mounting
Yes
With connection cord and plug
No
Suitable for built-in mounting
No
Warranty
2 years
Light distribution
Symmetric
This ceiling fixture is suitable for installation in various spaces such as offices, residential spaces, schools, hotels and other public spaces.
Features
High quality internal driver with optimum heat regulation
Can be directly connected by using the terminal block on the fixture
Pleasant, effective color temperature of 4000K
Long service life of 30.000 hours
IP65 for installation in moist areas
Datasheet
Datasheet-vestibule-bulkhead-rectangular-64-watt-4000k-ip65-136-024.pdf
Energy labels
Characteristics sheet
136-024_technical_datasheet_extended.pdf
Manual
136-024_Manual_NL.pdf
136-024_Manual_EN.pdf
