Wall lamp | black | 5,7W | 2700K | IP65 | dim

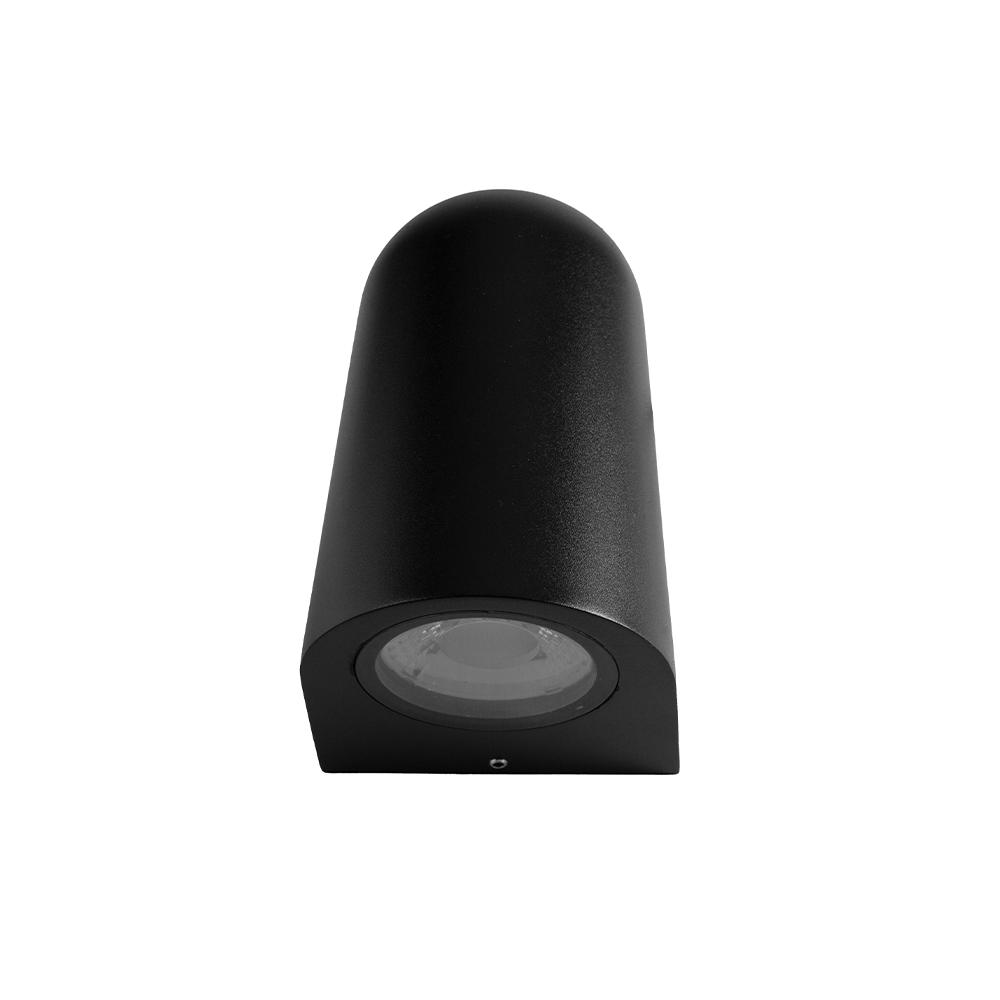

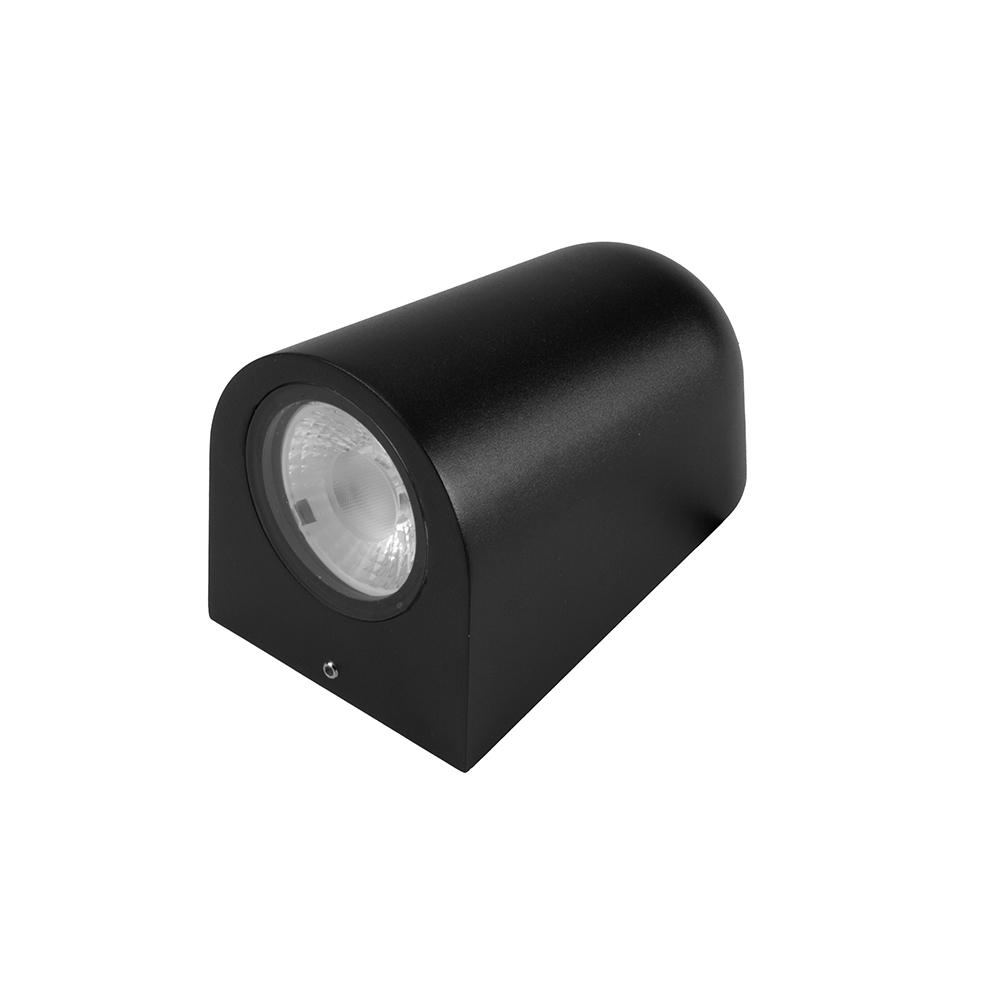

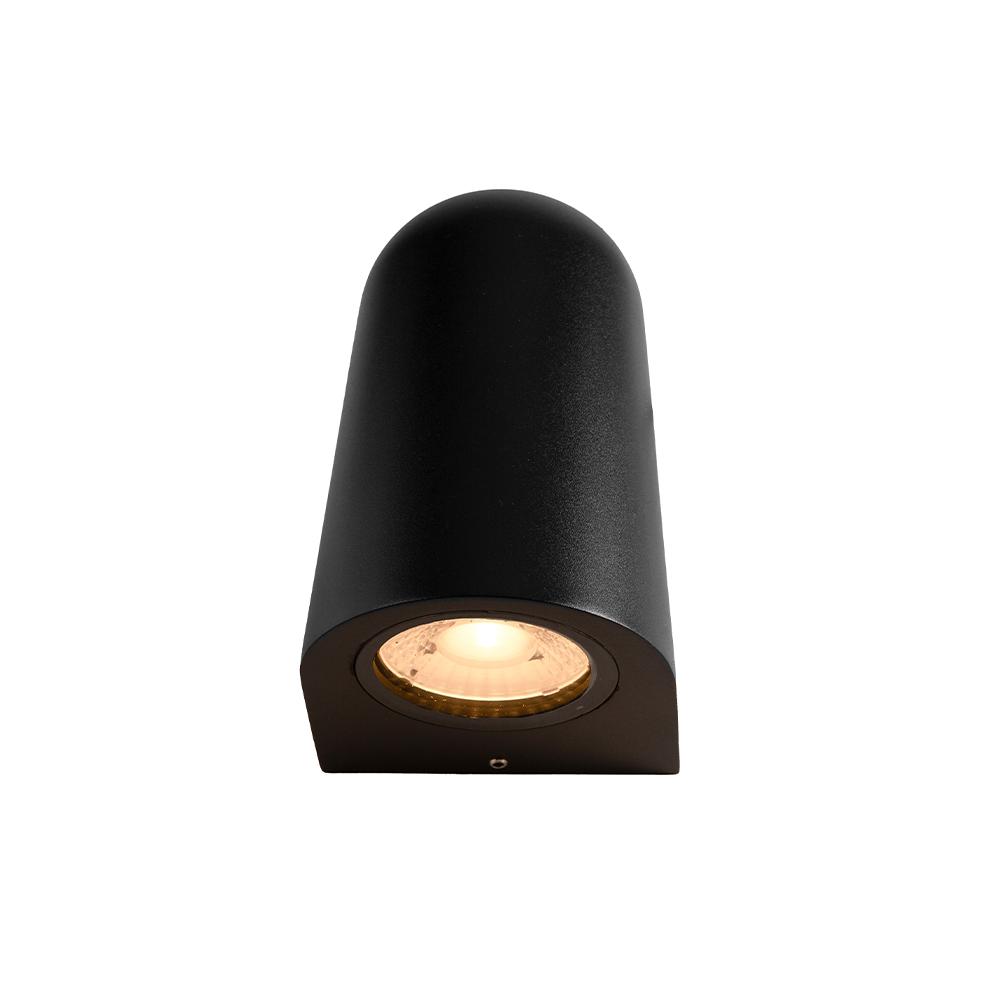

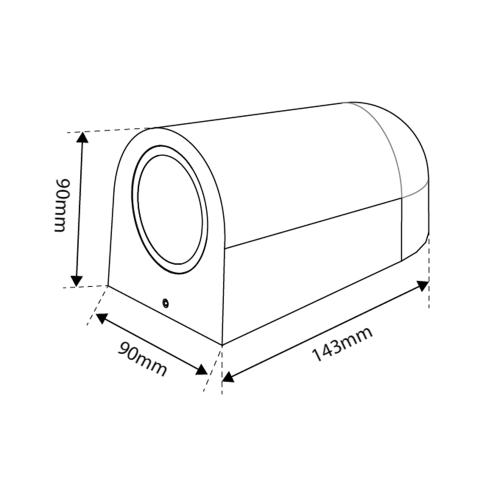

149-170This 143 mm high wall light has a Pyramid-like shape and is suitable for both indoor and outdoor use. The beam (38°) shines downward and is ideal for illuminating a wall, wall or garden fence.
Features
- IP65
- 143 mm high
- 640 Lm
- Incl. internal driver, trailing edge dimmable
Product Name
Wall lamp | black | 5,7W | 2700K | IP65 | dim
Ean
8714984941113
Outer box qty
20st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
Black
Material cover
Other
Suitable for emergency lighting
No
Nominal current
29 - 29mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
220 - 240V

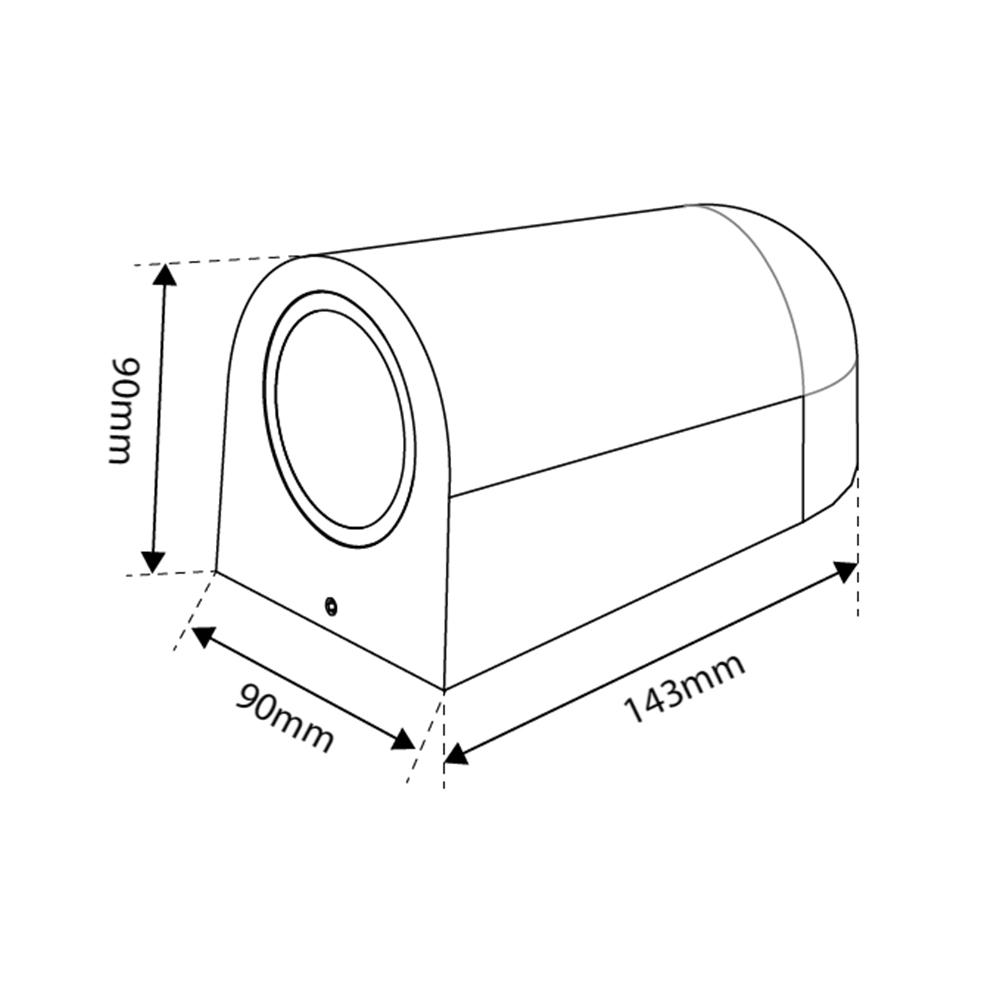

Length
90mm
Width
90mm
Height/depth
143mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
Yes
With movement sensor
No
With presence detector
No
Impact strength
IK06
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Light distribution
Symmetric/asymmetric
Beam angle
21-40° - Medium beam
Light outlet
Direct
Dimming RF
No
Dimming Zigbee
No
Light distributor
Other
Surface protection housing
Powder coating
Colour consistency (McAdam ellipse)
SDCM3
Rated lifetime L70/B50 at 25 °C
50000h
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Max. system power
5.8W
Beam angle adjustable
No
Power factor
0.95
Type of wiring
Ending
Number of poles
3
Compatible with Casambi
No
Luminaire efficacy
75 - 75lm/W
Dimmable
Yes
Rated luminous flux according to IEC 62722-2- 1
428 - 428lm
Emergency power supply system
None
Suitable for ceiling mounting
No
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
17.9
Degree of protection (IP), front side
IP65
With mounting material
Yes
Colour temperature
2700K
With connection cord and plug
No
Warranty
5 years
Product Name
Wall lamp | black | 5,7W | 2700K | IP65 | dim
Beam angle
21-40° - Medium beam
Ean
8714984941113
Light outlet
Direct
Outer box qty
20st
Dimming RF
No
Lamp type
LED not exchangeable
Dimming Zigbee
No
Housing material
Aluminium
Light distributor
Other
Housing colour
Black
Surface protection housing
Powder coating
Material cover
Other
Colour consistency (McAdam ellipse)
SDCM3
Suitable for emergency lighting
No
Rated lifetime L70/B50 at 25 °C
50000h
Nominal current
29 - 29mA
Colour of light adjustable
No
Voltage type
AC
Luminous flux adjustable
Continuously variable
Type of control gear
LED operating device current-controlled
Max. system power
5.8W
With control gear
Yes
Beam angle adjustable
No
Constant light output (CLO)
No
Power factor
0.95
Type of grid
None
Type of wiring
Ending
Nominal voltage
220 - 240V
Number of poles
3
Length
90mm
Compatible with Casambi
No
Width
90mm
Luminaire efficacy
75 - 75lm/W
Height/depth
143mm
Dimmable
Yes
Colour of light
White
Rated luminous flux according to IEC 62722-2- 1
428 - 428lm
Colour rendering index CRI
80-89
Emergency power supply system
None
Exchangeable control gear
No
Suitable for ceiling mounting
No
Dimming 0-10 V
No
Connectable conductor cross section
0.75 - 0.75mm²
Dimming 1-10 V
No
Suitable for wall mounting
Yes
Dimming DALI
No
Suitable for suspended mounting
No
Dimming phase cut-off (trailing edge)
Yes
Suitable for workplace according to EN 12464-1
No
With movement sensor
No
Unified Glare Ratio (UGR)
17.9
With presence detector
No
Degree of protection (IP), front side
IP65
Impact strength
IK06
With mounting material
Yes
With light sensor
No
Colour temperature
2700K
Suitable for surface mounting
Yes
With connection cord and plug
No
Suitable for built-in mounting
No
Warranty
5 years
Light distribution
Symmetric/asymmetric
This 143 mm high wall light has a Pyramid-like shape and is suitable for both indoor and outdoor use. The beam (38°) shines downward and is ideal for illuminating a wall, wall or garden fence.
Features
IP65
143 mm high
640 Lm
Incl. internal driver, trailing edge dimmable
Datasheet
Datasheet-wall-lamp-black-57w-2700k-ip65-dim-149-170.pdf
Energy labels
Manual
149-170_Manual_NL.pdf
149-170_Manual_EN.pdf
Characteristics sheet
149-170-photometric-light-report.pdf
149-170.ldt
