Wall lamp | up & down 175x90mm | black | 13W | 2700K | dim
149-155This ultra-slim 28 mm wall light combines style and functionality. The 2700K warm white up-and-down light creates an inviting ambiance in commercial and hospitality settings.
Key product features:
- Colour temperature (K): 2700
- Housing colour: Black
- Material cover: Glass transparent
- Length (mm): 175
- Max. system power (W): 13
- Dimmable: Yes
- Degree of protection (IP): IP54
Product Name
Wall lamp | up & down 175x90mm | black | 13W | 2700K | dim
Ean
8714984932975
Outer box qty
30st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
Black
Material cover
Glass transparent
Suitable for emergency lighting
No
Nominal current
47 - 47mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
220 - 240V
Length
175mm
Width
28mm
Height/depth
90mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
Yes
With movement sensor
No
With presence detector
No
Impact strength
IK06
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Dimming RF
No
Dimming Zigbee
No
Light distributor
None
Surface protection housing
Powder coating
Colour consistency (McAdam ellipse)
SDCM3
Rated lifetime L70/B50 at 25 °C
50000h
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Max. system power
13W
Beam angle adjustable
No
Power factor
0.96
Type of wiring
Ending
Number of poles
3
Compatible with Casambi
No
Luminaire efficacy
100 - 100lm/W
Dimmable
Yes
Rated luminous flux according to IEC 62722-2- 1
1300 - 1300lm
Emergency power supply system
None
Suitable for ceiling mounting
No
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
23
Degree of protection (IP), front side
IP54
With mounting material
Yes
Colour temperature
2700K
With connection cord and plug
No
Warranty
5 years
Product Name
Wall lamp | up & down 175x90mm | black | 13W | 2700K | dim
Beam angle
> 80° - Extreme wide beam
Ean
8714984932975
Light outlet
Direct
Outer box qty
30st
Dimming RF
No
Lamp type
LED not exchangeable
Dimming Zigbee
No
Housing material
Aluminium
Light distributor
None
Housing colour
Black
Surface protection housing
Powder coating
Material cover
Glass transparent
Colour consistency (McAdam ellipse)
SDCM3
Suitable for emergency lighting
No
Rated lifetime L70/B50 at 25 °C
50000h
Nominal current
47 - 47mA
Colour of light adjustable
No
Voltage type
AC
Luminous flux adjustable
Continuously variable
Type of control gear
LED operating device current-controlled
Max. system power
13W
With control gear
Yes
Beam angle adjustable
No
Constant light output (CLO)
No
Power factor
0.96
Type of grid
None
Type of wiring
Ending
Nominal voltage
220 - 240V
Number of poles
3
Length
175mm
Compatible with Casambi
No
Width
28mm
Luminaire efficacy
100 - 100lm/W
Height/depth
90mm
Dimmable
Yes
Colour of light
White
Rated luminous flux according to IEC 62722-2- 1
1300 - 1300lm
Colour rendering index CRI
80-89
Emergency power supply system
None
Exchangeable control gear
No
Suitable for ceiling mounting
No
Dimming 0-10 V
No
Connectable conductor cross section
0.75 - 0.75mm²
Dimming 1-10 V
No
Suitable for wall mounting
Yes
Dimming DALI
No
Suitable for suspended mounting
No
Dimming phase cut-off (trailing edge)
Yes
Suitable for workplace according to EN 12464-1
No
With movement sensor
No
Unified Glare Ratio (UGR)
23
With presence detector
No
Degree of protection (IP), front side
IP54
Impact strength
IK06
With mounting material
Yes
With light sensor
No
Colour temperature
2700K
Suitable for surface mounting
Yes
With connection cord and plug
No
Suitable for built-in mounting
No
Warranty
5 years
Light distribution
Symmetric
The sleek aluminum housing seamlessly integrates into modern interiors and project environments. With its 2700K warm light and dimmable functionality, this fixture provides adaptable illumination tailored to any ambiance. Ideal for hotels, restaurants, and offices, where design and functionality come together.

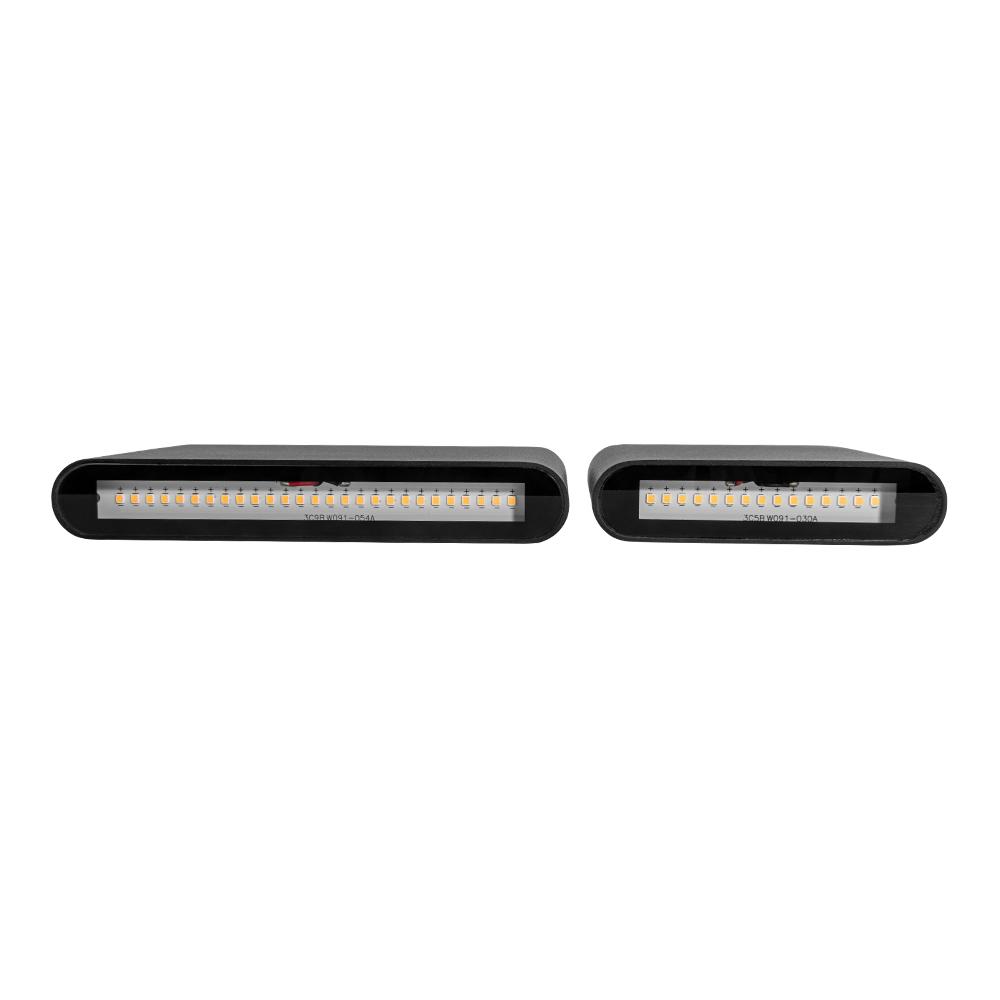

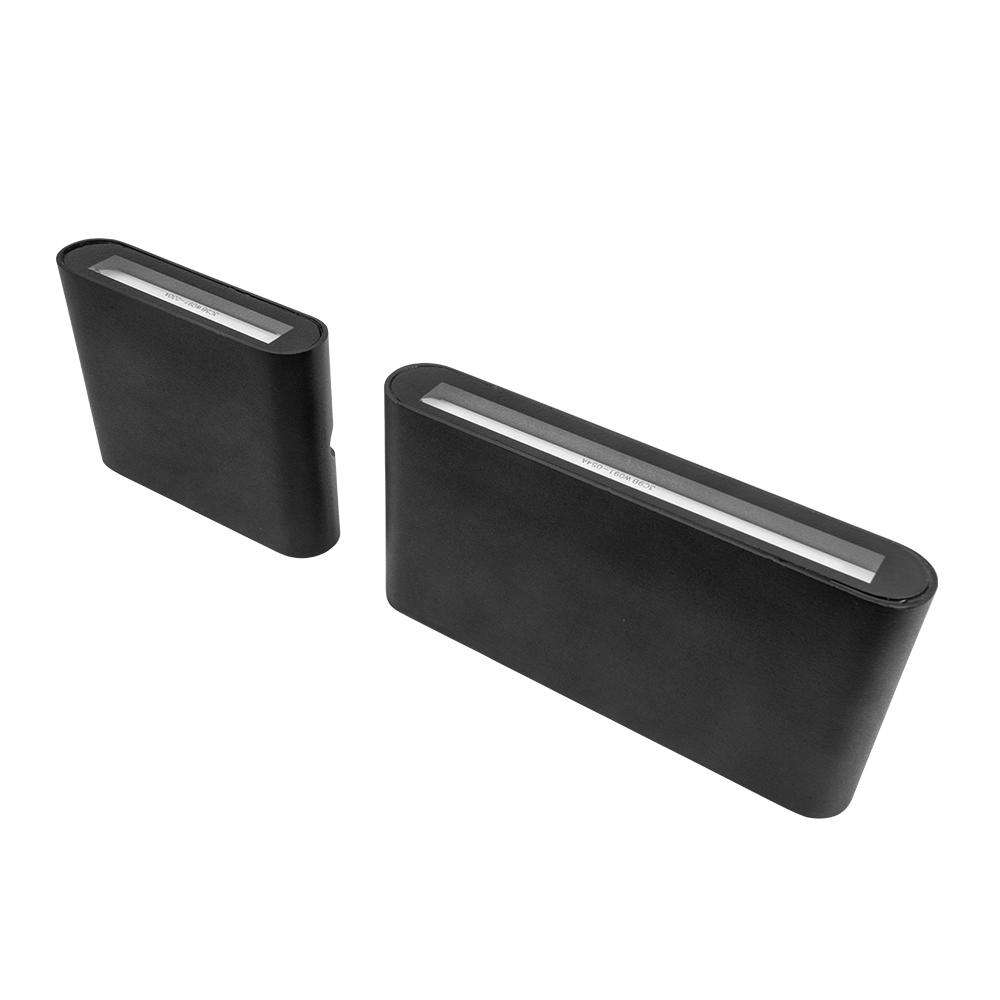

This wall light is part of a versatile series, available in black or white, with a choice of transparent or opal glass. Models come in 115 mm or 175 mm lengths and power options of 7 W or 13 W, ensuring the perfect solution for any application.
Additional Information
More details about this product can be found in the specifications. For accessories, available options, and related products, see the related items section. For inquiries or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-wall-lamp-up-down-175x90mm-black-13w-2700k-dim-149-155.pdf
Energy labels
Manual
149-155_Manual_NL.pdf
149-155_Manual_EN.pdf
Characteristics sheet
149-155-photometric-light-report.pdf
149-155.ldt
