Wall lamp | up & down | black | 5,5W | 3000K | non dim

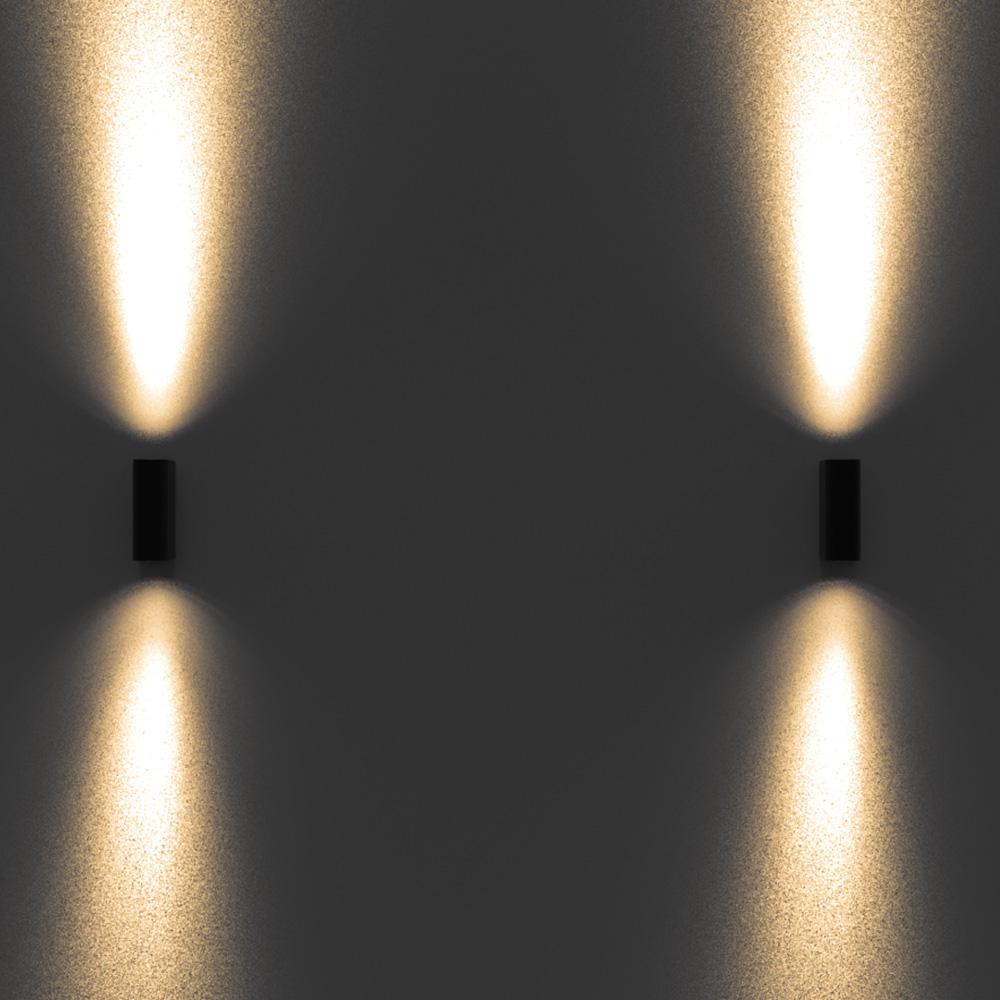

149-160This wall lamp is only 10 cm high, but the beam of 25° spreads a very attractive warm light. The light beam shines both upwards and downwards, giving a garden fence or exterior wall a playful effect.
Features
- IP65

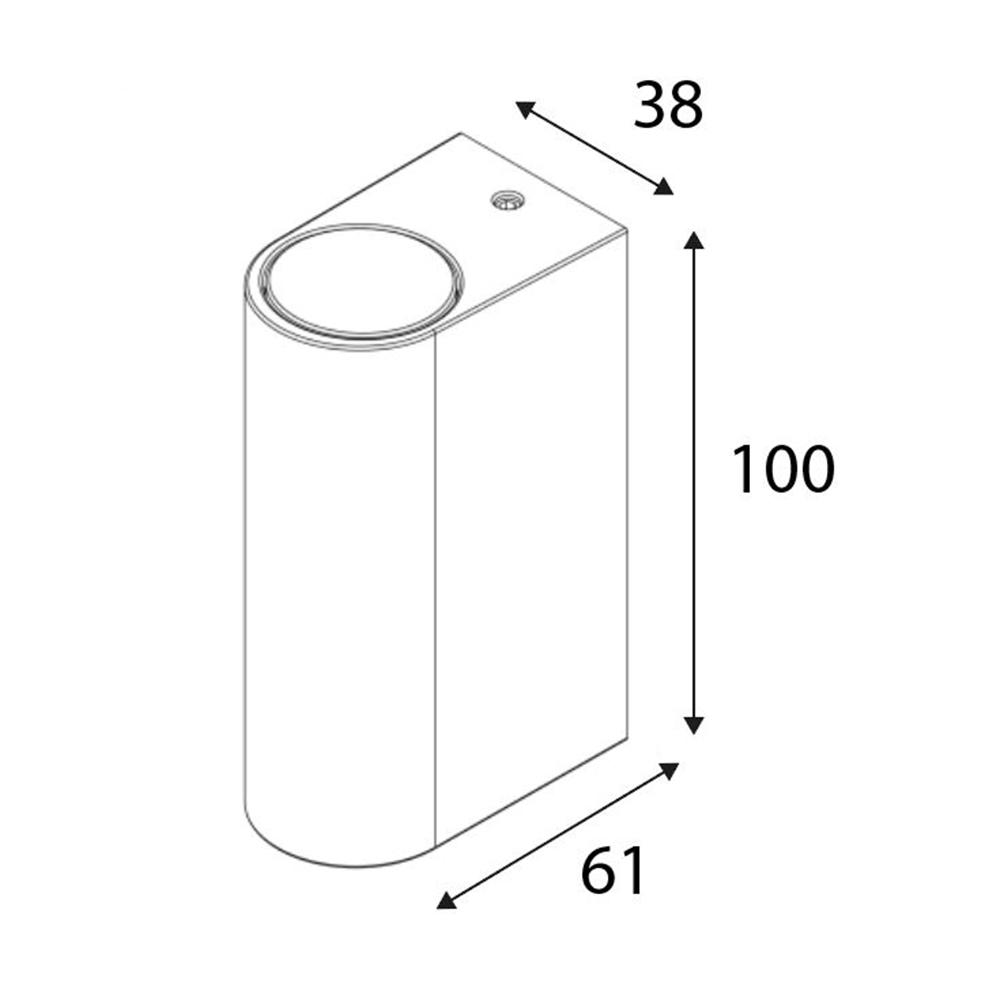

- Only 100 x 38 mm
- 2 x 161 Lm
- Incl. internal driver, non dimmable
Product Name
Wall lamp | up & down | black | 5,5W | 3000K | non dim
Ean
8714984935785
Outer box qty
40st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
Black
Material cover
Glass transparent
Suitable for emergency lighting
No
Nominal current
32 - 32mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
220 - 240V
Length
100mm
Width
38mm
Height/depth
61mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
No
With presence detector
No
Impact strength
IK06
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Light distribution
Symmetric
Beam angle
21-40° - Medium beam
Light outlet
Direct
Dimming RF
No
Dimming Zigbee
No
Light distributor
Focal lens
Surface protection housing
Powder coating
Colour consistency (McAdam ellipse)
SDCM3
Rated lifetime L70/B50 at 25 °C
50000h
Colour of light adjustable
No
Luminous flux adjustable
No
Max. system power
5.5W
Beam angle adjustable
No
Power factor
0.81
Type of wiring
Ending
Number of poles
3
Compatible with Casambi
No
Luminaire efficacy
80 - 80lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
440 - 440lm
Emergency power supply system
None
Suitable for ceiling mounting
No
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
4.6
Degree of protection (IP), front side
IP65
With mounting material
Yes
Colour temperature
3000K
With connection cord and plug
No
Warranty
5 years
Product Name
Wall lamp | up & down | black | 5,5W | 3000K | non dim
Beam angle
21-40° - Medium beam
Ean
8714984935785
Light outlet
Direct
Outer box qty
40st
Dimming RF
No
Lamp type
LED not exchangeable
Dimming Zigbee
No
Housing material
Aluminium
Light distributor
Focal lens
Housing colour
Black
Surface protection housing
Powder coating
Material cover
Glass transparent
Colour consistency (McAdam ellipse)
SDCM3
Suitable for emergency lighting
No
Rated lifetime L70/B50 at 25 °C
50000h
Nominal current
32 - 32mA
Colour of light adjustable
No
Voltage type
AC
Luminous flux adjustable
No
Type of control gear
LED operating device current-controlled
Max. system power
5.5W
With control gear
Yes
Beam angle adjustable
No
Constant light output (CLO)
No
Power factor
0.81
Type of grid
None
Type of wiring
Ending
Nominal voltage
220 - 240V
Number of poles
3
Length
100mm
Compatible with Casambi
No
Width
38mm
Luminaire efficacy
80 - 80lm/W
Height/depth
61mm
Dimmable
No
Colour of light
White
Rated luminous flux according to IEC 62722-2- 1
440 - 440lm
Colour rendering index CRI
80-89
Emergency power supply system
None
Exchangeable control gear
No
Suitable for ceiling mounting
No
Dimming 0-10 V
No
Connectable conductor cross section
0.75 - 0.75mm²
Dimming 1-10 V
No
Suitable for wall mounting
Yes
Dimming DALI
No
Suitable for suspended mounting
No
Dimming phase cut-off (trailing edge)
No
Suitable for workplace according to EN 12464-1
No
With movement sensor
No
Unified Glare Ratio (UGR)
4.6
With presence detector
No
Degree of protection (IP), front side
IP65
Impact strength
IK06
With mounting material
Yes
With light sensor
No
Colour temperature
3000K
Suitable for surface mounting
Yes
With connection cord and plug
No
Suitable for built-in mounting
No
Warranty
5 years
Light distribution
Symmetric
This wall lamp is only 10 cm high, but the beam of 25° spreads a very attractive warm light. The light beam shines both upwards and downwards, giving a garden fence or exterior wall a playful effect.
Features
IP65
Only 100 x 38 mm
2 x 161 Lm
Incl. internal driver, non dimmable
Datasheet
Datasheet-wall-lamp-up-down-black-55w-3000k-non-dim-149-160.pdf
Energy labels
Manual
149-160_Manual_NL.pdf
149-160_Manual_EN.pdf
Characteristics sheet
149-160-photometric-light-report.pdf
149-160.ldt
