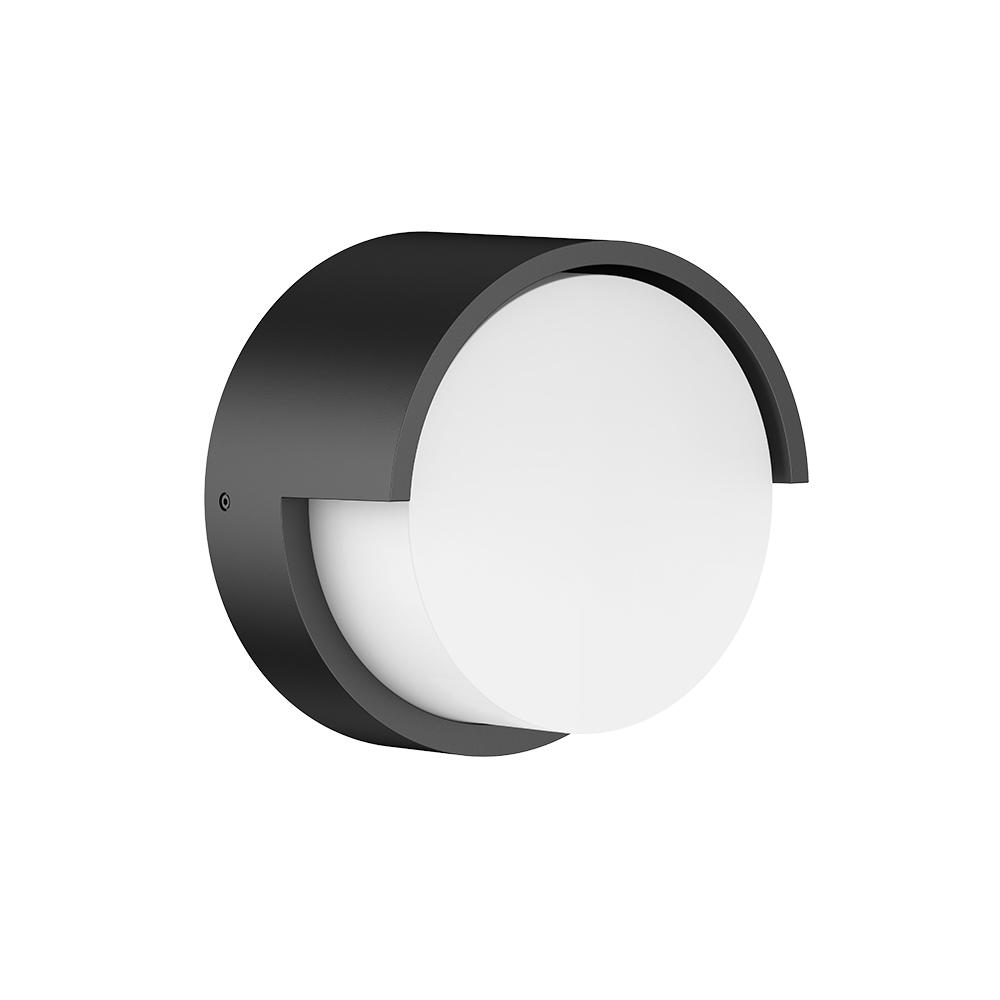

Wall light || Ø160mm | 6W | IP65 | 2700-3000K
136-255This IK08 wall mounted luminaire with UV resistant and corrosion resistant material is suitable for various (industrial) applications. For example, lighting of tunnels, parking garages or walkways. In addition, the fixture is also adjustable in two light colors (2700K-3000K).
Features
- ADC12 aluminum housing with good heat dissipation
- PC 94-V0 anti-UV plastic housing
- 94-V2 corrosion resistant diffuser
- IP65 waterproof
- CCT-2 switch: adjustable in 2700K and 3000K by means of a dip-switch in the fixture
- Available in two sizes
Product Name
Wall light || Ø160mm | 6W | IP65 | 2700-3000K
Ean
8714984942486
Outer box qty
12st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
Black
Material cover
Plastic, opal
Suitable for emergency lighting
No
Nominal current
30 - 30mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes

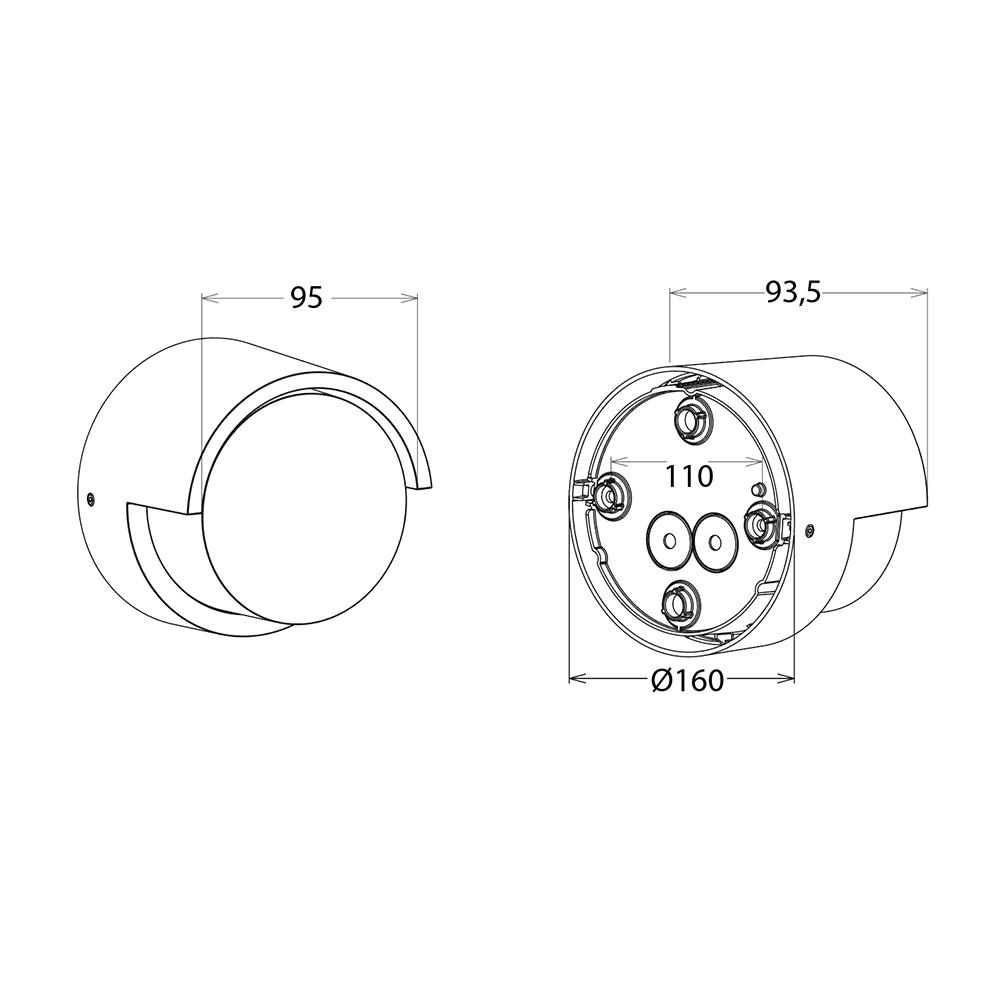

Outer diameter
160mm
Constant light output (CLO)
No
Type of grid
Matt
Nominal voltage
220 - 240V
Height/depth
93.5mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
No
With presence detector
No
Impact strength
IK06
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Dimming RF
No
Dimming Zigbee
No
Light distributor
Other
Surface protection housing
Lacquered
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
50000h
Colour of light adjustable
Positions
Luminous flux adjustable
No
Max. system power
6W
Beam angle adjustable
No
Power factor
0.9
Type of wiring
Ending
Number of poles
3
Compatible with Casambi
No
Luminaire efficacy
65 - 65lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
400 - 400lm
Emergency power supply system
None
Suitable for ceiling mounting
No
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
25
Degree of protection (IP), front side
IP65
With mounting material
Yes
Colour temperature
2700 - 3000K
With connection cord and plug
No
Warranty
5 years
Product Name
Wall light || Ø160mm | 6W | IP65 | 2700-3000K
Beam angle
> 80° - Extreme wide beam
Ean
8714984942486
Light outlet
Direct
Outer box qty
12st
Dimming RF
No
Lamp type
LED not exchangeable
Dimming Zigbee
No
Housing material
Aluminium
Light distributor
Other
Housing colour
Black
Surface protection housing
Lacquered
Material cover
Plastic, opal
Colour consistency (McAdam ellipse)
SDCM6
Suitable for emergency lighting
No
Rated lifetime L70/B50 at 25 °C
50000h
Nominal current
30 - 30mA
Colour of light adjustable
Positions
Voltage type
AC
Luminous flux adjustable
No
Type of control gear
LED operating device current-controlled
Max. system power
6W
With control gear
Yes
Beam angle adjustable
No
Outer diameter
160mm
Power factor
0.9
Constant light output (CLO)
No
Type of wiring
Ending
Type of grid
Matt
Number of poles
3
Nominal voltage
220 - 240V
Compatible with Casambi
No
Height/depth
93.5mm
Luminaire efficacy
65 - 65lm/W
Colour of light
White
Dimmable
No
Colour rendering index CRI
80-89
Rated luminous flux according to IEC 62722-2- 1
400 - 400lm
Exchangeable control gear
No
Emergency power supply system
None
Dimming 0-10 V
No
Suitable for ceiling mounting
No
Dimming 1-10 V
No
Connectable conductor cross section
0.75 - 0.75mm²
Dimming DALI
No
Suitable for wall mounting
Yes
Dimming phase cut-off (trailing edge)
No
Suitable for suspended mounting
No
With movement sensor
No
Suitable for workplace according to EN 12464-1
No
With presence detector
No
Unified Glare Ratio (UGR)
25
Impact strength
IK06
Degree of protection (IP), front side
IP65
With light sensor
No
With mounting material
Yes
Suitable for surface mounting
Yes
Colour temperature
2700 - 3000K
Suitable for built-in mounting
No
With connection cord and plug
No
Light distribution
Symmetric
Warranty
5 years
This IK08 wall mounted luminaire with UV resistant and corrosion resistant material is suitable for various (industrial) applications. For example, lighting of tunnels, parking garages or walkways. In addition, the fixture is also adjustable in two light colors (2700K-3000K).
Features
ADC12 aluminum housing with good heat dissipation
PC 94-V0 anti-UV plastic housing
94-V2 corrosion resistant diffuser
IP65 waterproof
CCT-2 switch: adjustable in 2700K and 3000K by means of a dip-switch in the fixture
Available in two sizes
Datasheet
Datasheet-wall-light-o160mm-6w-ip65-2700-3000k-136-255.pdf
Energy labels
Characteristics sheet
136-250_255_technical_datasheet_extended.pdf
Manual
136-255_Manual_NL.pdf
136-255_Manual_EN.pdf
