Ceiling light || Ø283mm | 5/10W | IP44 | 3000/4000K | sensor
136-222This ceiling light (Ø 283 mm) features 2-CCT (3000K/4000K), switchable wattage (5W/10W), and a high-frequency motion sensor. The opal cover ensures uniform light distribution, while the IK10 rating guarantees maximum Impact strength.
Key product features:
- Colour temperature (K): 3000 - 4000
- Material cover: Plastic, opal

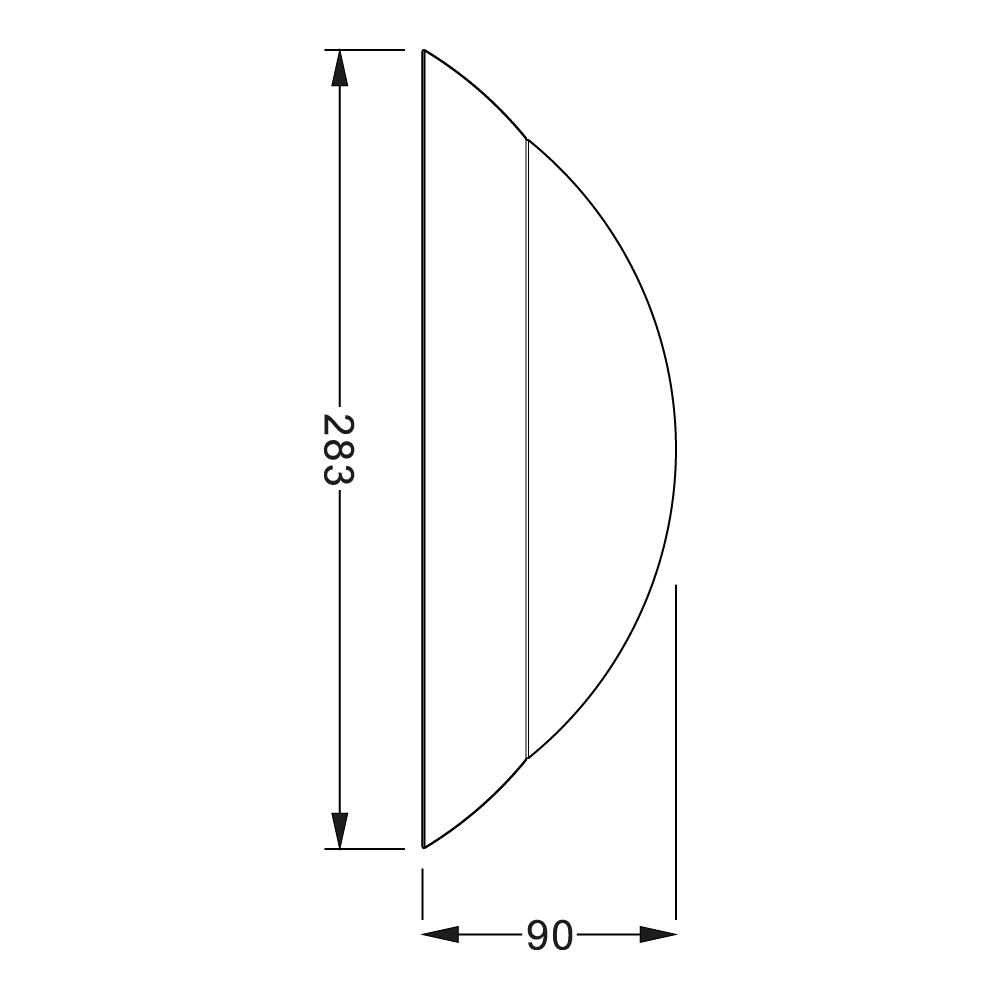

- Outer diameter (mm): 283
- With movement sensor: Yes
- Impact strength: IK10
- Max. system power (W): 10
- Movement sensor technology: High frequency
Product Name
Ceiling light || Ø283mm | 5/10W | IP44 | 3000/4000K | sensor
Ean
8714984948594
Outer box qty
10st
Lamp type
LED not exchangeable
Housing material
Plastic
Housing colour
White
Material cover
Plastic, opal
Suitable for emergency lighting
No
Nominal current
190 - 190mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes
Outer diameter
283mm
Constant light output (CLO)
No
Type of grid
Matt
Nominal voltage
220 - 240V
Height/depth
90mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
Yes
With presence detector
No
Impact strength
IK10
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Dimming RF
No
Dimming Zigbee
No
Light distributor
Other
Surface protection housing
Lacquered
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
50000h
Colour of light adjustable
Positions
Luminous flux adjustable
No
Max. system power
10W
Beam angle adjustable
No
Power factor
0.9
Type of wiring
Ending
Number of poles
3
Compatible with Casambi
No
Luminaire efficacy
110 - 110lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
550 - 1100lm
Emergency power supply system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Movement sensor/presence detector technology
High frequency
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
25
Degree of protection (IP), front side
IP44
With mounting material
Yes
Colour temperature
3000 - 4000K
With connection cord and plug
No
Warranty
3 years
Product Name
Ceiling light || Ø283mm | 5/10W | IP44 | 3000/4000K | sensor
Light outlet
Direct
Ean
8714984948594
Dimming RF
No
Outer box qty
10st
Dimming Zigbee
No
Lamp type
LED not exchangeable
Light distributor
Other
Housing material
Plastic
Surface protection housing
Lacquered
Housing colour
White
Colour consistency (McAdam ellipse)
SDCM6
Material cover
Plastic, opal
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for emergency lighting
No
Colour of light adjustable
Positions
Nominal current
190 - 190mA
Luminous flux adjustable
No
Voltage type
AC
Max. system power
10W
Type of control gear
LED operating device current-controlled
Beam angle adjustable
No
With control gear
Yes
Power factor
0.9
Outer diameter
283mm
Type of wiring
Ending
Constant light output (CLO)
No
Number of poles
3
Type of grid
Matt
Compatible with Casambi
No
Nominal voltage
220 - 240V
Luminaire efficacy
110 - 110lm/W
Height/depth
90mm
Dimmable
No
Colour of light
White
Rated luminous flux according to IEC 62722-2- 1
550 - 1100lm
Colour rendering index CRI
80-89
Emergency power supply system
None
Exchangeable control gear
No
Suitable for ceiling mounting
Yes
Dimming 0-10 V
No
Connectable conductor cross section
0.75 - 0.75mm²
Dimming 1-10 V
No
Suitable for wall mounting
Yes
Dimming DALI
No
Suitable for suspended mounting
No
Dimming phase cut-off (trailing edge)
No
Movement sensor/presence detector technology
High frequency
With movement sensor
Yes
Suitable for workplace according to EN 12464-1
No
With presence detector
No
Unified Glare Ratio (UGR)
25
Impact strength
IK10
Degree of protection (IP), front side
IP44
With light sensor
No
With mounting material
Yes
Suitable for surface mounting
Yes
Colour temperature
3000 - 4000K
Suitable for built-in mounting
No
With connection cord and plug
No
Light distribution
Symmetric
Warranty
3 years
Beam angle
> 80° - Extreme wide beam
This ceiling light offers versatile lighting options with a color temperature selection between warm white (3000K) and neutral white (4000K), and an adjustable wattage of 5W or 10W. The IK10 rating ensures durability, making it suitable for high-impact environments. The integrated high-frequency motion sensor is fully adjustable for optimal energy savings and security.
Adjustable sensor parameters:
- Hold time: 5s, 30s, 1 min, 3 min, 5 min, 10 min, 20 min or 30 min
- Detection sensitivity: 25%, 50%, 75% or 100%
- Daylight sensor (lux setting): 5, 15, 35, 150 or disabled
Additional Information
More details about this product can be found in the specifications. For accessories, available options, and related products, see the related items section. For inquiries or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-ceiling-light-o283mm-510w-ip44-30004000k-sensor-136-222.pdf
Energy labels
Manual
136-222_Manual.pdf
