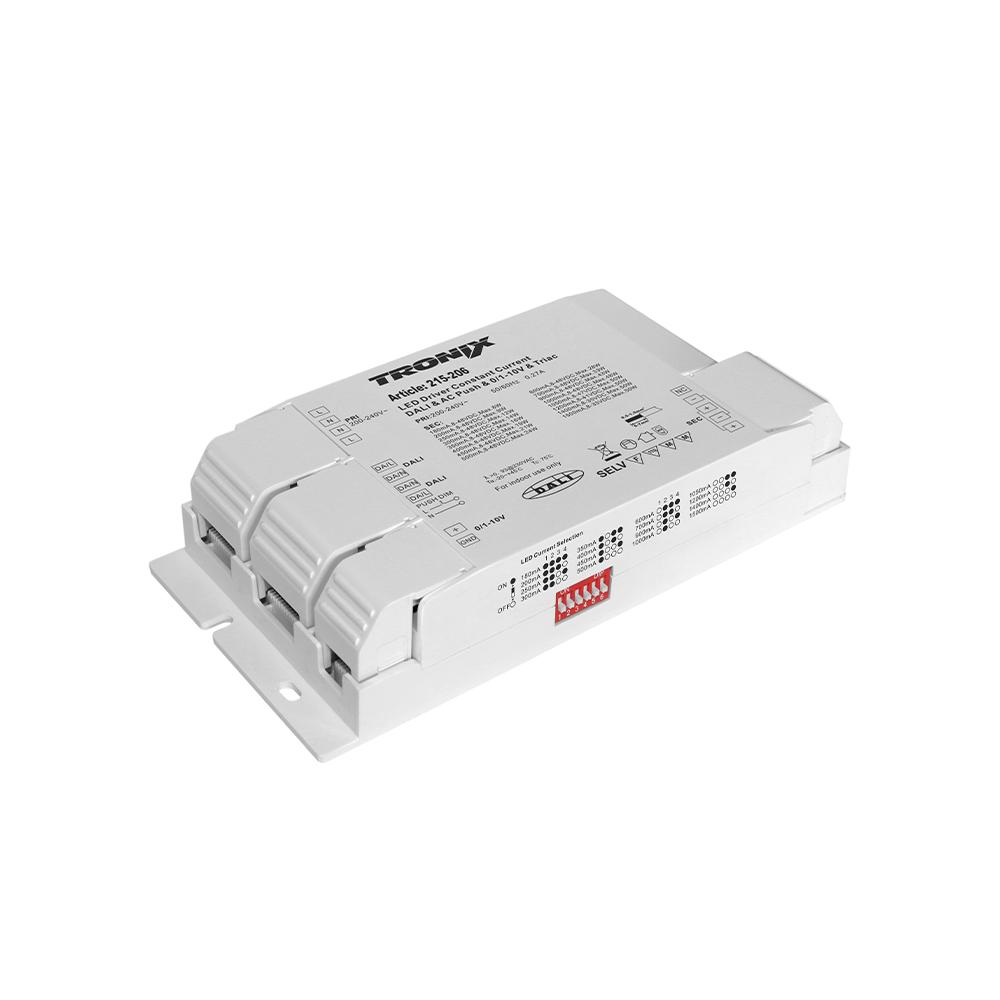

LED driver | 180~1500mA | 8,6~50W | multi dimmable | indoor
215-206What is so extraordinary about this trailing edge dim driver, is that it’s designed for a large number of different interfaces, such as DALI, Push and trailing edge, as well as 0/1-10V dim interfaces. As a result, this driver is able to work with different operating systems.
Features
- Equipped with a combined output: an Amplitude dimming output (100% -10%) and a PWM dimming output (10% -1%).
- Power factor of >0.9, high efficiency >83%
- Very smooth dimming, back dimming possible up to 1% without flicker effect or buzzing sound.
- Automatic assignment of 1 DALI address by DALI masters.
- Complies with IEC 62386-101, IEC 62386-102, IEC 62386-207 standards.
Product Name
LED driver | 180~1500mA | 8,6~50W | multi dimmable | indoor
Ean
8714984938588
Outer box qty
36st
Housing
Plastic housing
Model
Static
Output voltage
8 - 48V
Output current
180 - 1500mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
8.64 - 50W
Degree of protection (IP)
IP20

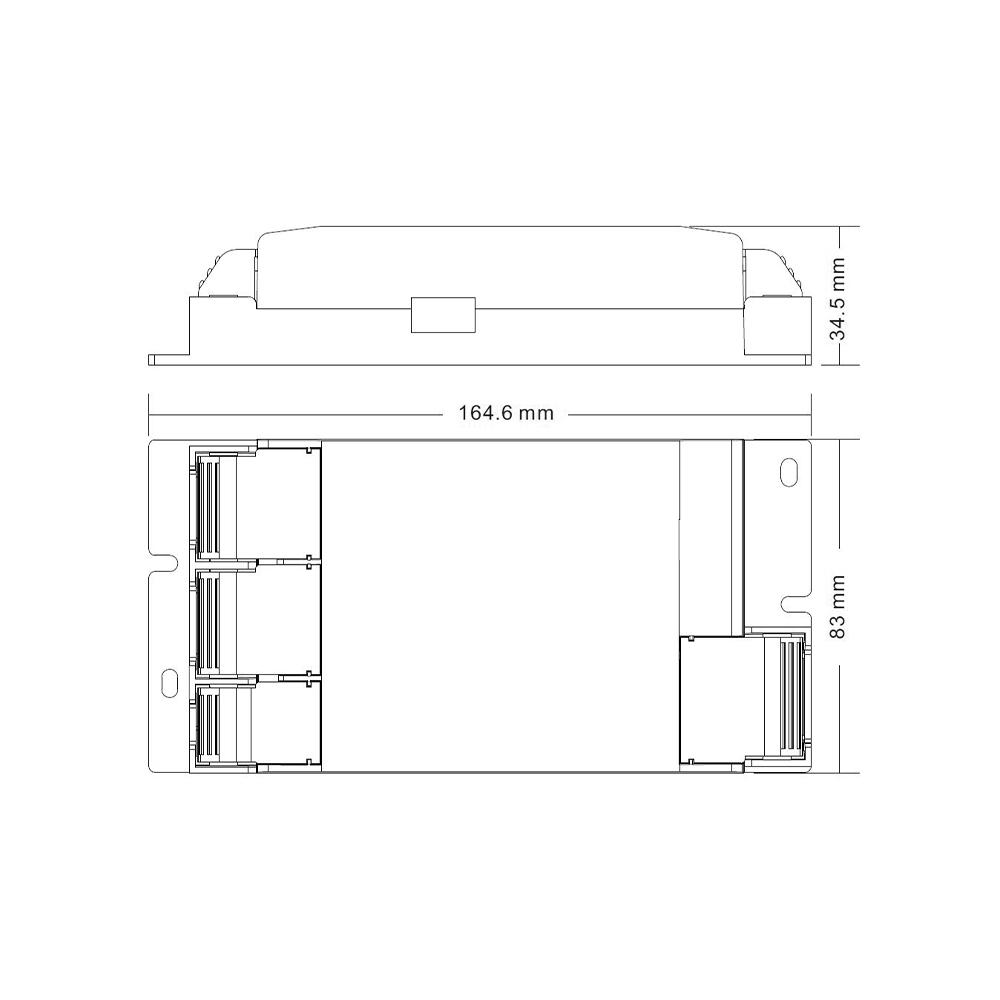

Length
165mm
Width
83mm
Height
35mm
Power consumption
50W
Input voltage
200 - 240V
Frequency input voltage
50 - 60Hz
PWM modulation
Yes
Overload protection
Yes
Overtemperature protection
Yes
Control method
Multi dimmable
Short-circuit protected
Yes
Ambient temperature
-20 - 45°C
Driver lifetime
100000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
LED driver | 180~1500mA | 8,6~50W | multi dimmable | indoor
Input voltage
200 - 240V
Ean
8714984938588
Frequency input voltage
50 - 60Hz
Outer box qty
36st
PWM modulation
Yes
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
8 - 48V
Control method
Multi dimmable
Output current
180 - 1500mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-20 - 45°C
Suitable for DC-voltage (primary side)
No
Driver lifetime
100000h
Output power
8.64 - 50W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
165mm
Dimmable
Yes
Width
83mm
Emergency power supply system
None
Height
35mm
Control type
Constant current
Power consumption
50W
Warranty
5 years
What is so extraordinary about this trailing edge dim driver, is that it’s designed for a large number of different interfaces, such as DALI, Push and trailing edge, as well as 0/1-10V dim interfaces. As a result, this driver is able to work with different operating systems.
Features
Equipped with a combined output: an Amplitude dimming output (100% -10%) and a PWM dimming output (10% -1%).
Power factor of >0.9, high efficiency >83%
Very smooth dimming, back dimming possible up to 1% without flicker effect or buzzing sound.
Automatic assignment of 1 DALI address by DALI masters.
Complies with IEC 62386-101, IEC 62386-102, IEC 62386-207 standards.
Datasheet
Datasheet-led-driver-1801500ma-8650w-multi-dimmable-indoor-215-206.pdf
Characteristics sheet
215-206_technical_datasheet_extended.pdf
