LED panel | 30*120 | 25W | 3-CCT | 2m cable EU plug
173-026This LED panel is suitable for installation in (suspended) ceilings of 60*60 cm. A hanging up method is also possible, using suspension cables or a surface mounting kit. The smooth, soft and flicker-free light spread by the LED panel, makes it extremely suitable for use in offices and retail spaces, but also think of indoor lighting of schools and any other public spaces.
Features
- High quality external driver with optimal heat dissipation
- Flicker-free (1%)
- Plug & Play by means of power cord and Euro plug
- CRI >80
- High light efficiency of >150 Lm / W
- 5 years warranty
- Adjustable by means of a CCT switch in the color temperatures 3000K, 4000K and 5700K
Product Name
LED panel | 30*120 | 25W | 3-CCT | 2m cable EU plug
Ean
8714984946828
Outer box qty
6st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
White
Material cover
Plastic, opal
Suitable for emergency lighting
Yes
Nominal current
107 - 107mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes

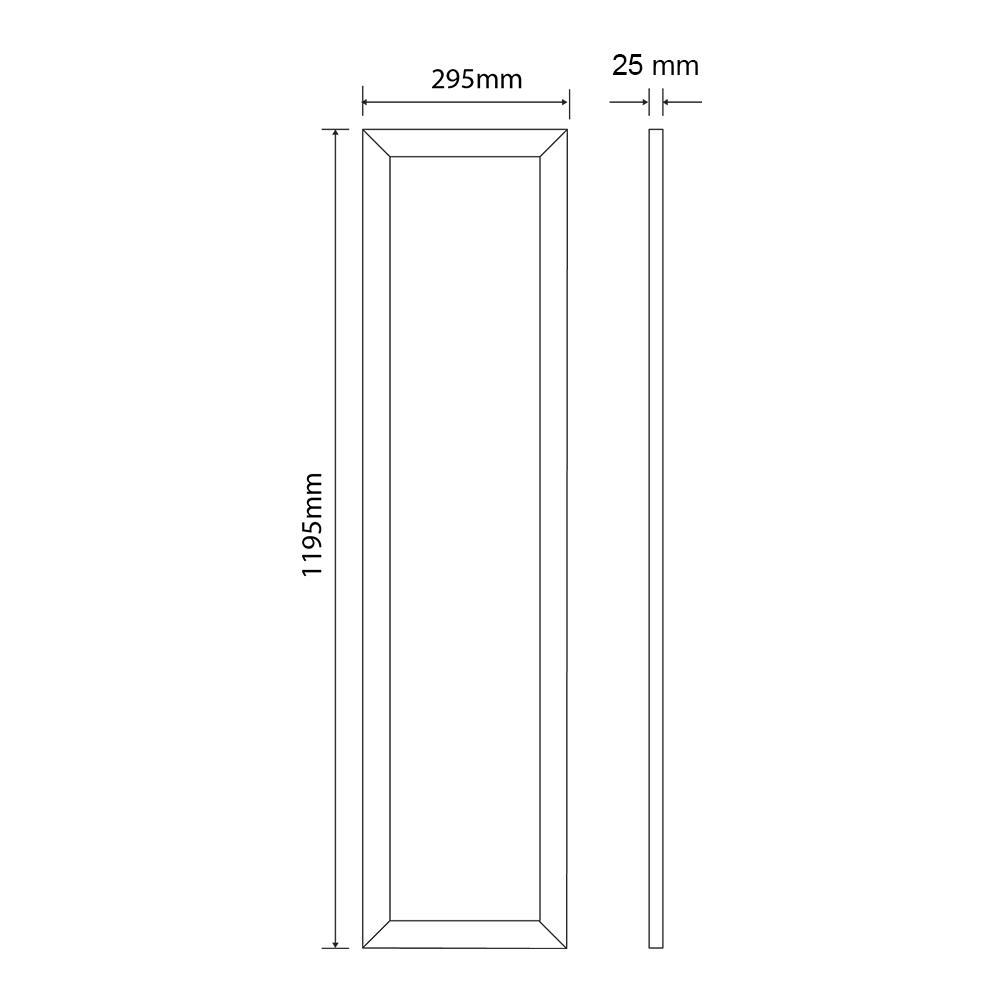

Built-in length
1195mm
Built-in width
295mm
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
220 - 240V
Length
1195mm
Width
295mm
Height/depth
25mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
No
With presence detector
No
Impact strength
IK02
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Indirect
Dimming RF
No
Dimming Zigbee
No
Light distributor
Diffuser lens/optic/panel
Surface protection housing
Lacquered
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
Positions
Luminous flux adjustable
No
Max. system power
25W
Beam angle adjustable
No
Power factor
0.91
Type of wiring
Ending
Number of poles
2
Built-in height/depth
25mm
Compatible with Casambi
No
Luminaire efficacy
150 - 150lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
3750 - 3750lm
Emergency power supply system
None
Emergency function monitoring system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
21.5
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP20
With mounting material
Yes
Size
30x120 cm
Colour temperature
3000 - 4000 - 5700K
With connection cord and plug
Yes
Length of power cord
2000mm
Connection type
EU plug
Dimming method
Non-dimmable
Warranty
5 years
Product Name
LED panel | 30*120 | 25W | 3-CCT | 2m cable EU plug
Dimming RF
No
Ean
8714984946828
Dimming Zigbee
No
Outer box qty
6st
Light distributor
Diffuser lens/optic/panel
Lamp type
LED not exchangeable
Surface protection housing
Lacquered
Housing material
Aluminium
Colour consistency (McAdam ellipse)
SDCM3
Housing colour
White
Colour of light adjustable
Positions
Material cover
Plastic, opal
Luminous flux adjustable
No
Suitable for emergency lighting
Yes
Max. system power
25W
Nominal current
107 - 107mA
Beam angle adjustable
No
Voltage type
AC
Power factor
0.91
Type of control gear
LED operating device current-controlled
Type of wiring
Ending
With control gear
Yes
Number of poles
2
Built-in length
1195mm
Built-in height/depth
25mm
Built-in width
295mm
Compatible with Casambi
No
Constant light output (CLO)
No
Luminaire efficacy
150 - 150lm/W
Type of grid
None
Dimmable
No
Nominal voltage
220 - 240V
Rated luminous flux according to IEC 62722-2- 1
3750 - 3750lm
Length
1195mm
Emergency power supply system
None
Width
295mm
Emergency function monitoring system
None
Height/depth
25mm
Suitable for ceiling mounting
Yes
Colour of light
White
Connectable conductor cross section
0.75 - 0.75mm²
Colour rendering index CRI
80-89
Suitable for wall mounting
Yes
Exchangeable control gear
Yes
Suitable for suspended mounting
Yes
Dimming 0-10 V
No
Suitable for workplace according to EN 12464-1
No
Dimming 1-10 V
No
Unified Glare Ratio (UGR)
21.5
Dimming DALI
No
Degree of protection (IP), rear side
IP20
Dimming phase cut-off (trailing edge)
No
Degree of protection (IP), front side
IP20
With movement sensor
No
With mounting material
Yes
With presence detector
No
Size
30x120 cm
Impact strength
IK02
Colour temperature
3000 - 4000 - 5700K
With light sensor
No
With connection cord and plug
Yes
Suitable for surface mounting
Yes
Length of power cord
2000mm
Suitable for built-in mounting
Yes
Connection type
EU plug
Light distribution
Symmetric
Dimming method
Non-dimmable
Beam angle
> 80° - Extreme wide beam
Warranty
5 years
Light outlet
Indirect
This sleek LED panel combines high efficiency with flexibility. A built-in switch allows for manual selection between three color temperatures (3000K, 4000K, 5700K), tailored to the desired ambience or application. With a luminous efficacy of 150 lm/W, it ensures energy savings and visual comfort. The long lifespan (L90B10 at 50,000 hours) guarantees consistent light quality. Available with or without UGR<19 louvre and with EU or GST18i3 plug for flexible installation.
More information
More information about this product can be found in the product specifications. For accessories, available options, and related products, see the related items. For inquiries or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-panel-30120-25w-3-cct-2m-cable-eu-plug-173-026.pdf
Energy labels
Characteristics sheet
173-026-photometric-light-report.pdf
173-026-photometric-light-report-detailed.zip
173-026-eulumdat.zip
