LED panel | 60*120 | 20/25/32/36/40W | 3-CCT | EU plug
173-042Large-format 60x120 cm LED panel with adjustable colour temperature and output. Supplied with EU plug and non-dimmable driver. Efficient and versatile for commercial applications.
Key product features:
- Colour temperature (K): 3000 - 5700
- Housing colour: White
- Connection type: Plug
- Unified Glare Ratio (UGR): 22
- Luminous flux adjustable: Steps
- Luminaire efficacy (lm/W): 160
Product Name
LED panel | 60*120 | 20/25/32/36/40W | 3-CCT | EU plug
Ean
8714984949416
Outer box qty
4st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
White
Material cover
Plastic, opal
Suitable for emergency lighting
Yes
Nominal current
163 - 163mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes
Built-in length
595mm
Built-in width
295mm
Built-in diameter
35mm
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
220 - 240V
Length
595mm
Width
295mm
Height/depth
11mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
No
With presence detector
No
Impact strength
IK02
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Dimming RF
No
Dimming Zigbee
No
Light distributor
Diffuser lens/optic/panel
Surface protection housing
Lacquered
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
83000h
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Max. system power
15W
Beam angle adjustable
No
Power factor
0.96
Type of wiring
Ending
Number of poles
2
Built-in height/depth
35mm
Compatible with Casambi
No
Luminaire efficacy
150 - 150lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
3000 - 6000lm
Emergency power supply system
None
Emergency function monitoring system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 2.5mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
20.2
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP20
With mounting material
Yes
Size
30x60 cm
Colour temperature
3000 - 4000 - 5700K
With connection cord and plug
Yes
Length of power cord
2000mm
Connection type
EU plug
Dimming method
Non-dimmable
Warranty
5 years
Product Name
LED panel | 60*120 | 20/25/32/36/40W | 3-CCT | EU plug
Dimming RF
No
Ean
8714984949416
Dimming Zigbee
No
Outer box qty
4st
Light distributor
Diffuser lens/optic/panel
Lamp type
LED not exchangeable
Surface protection housing
Lacquered
Housing material
Aluminium
Colour consistency (McAdam ellipse)
SDCM6
Housing colour
White
Rated lifetime L70/B50 at 25 °C
83000h
Material cover
Plastic, opal
Colour of light adjustable
Positions
Suitable for emergency lighting
Yes
Luminous flux adjustable
Positions
Nominal current
163 - 163mA
Max. system power
15W
Voltage type
AC
Beam angle adjustable
No
Type of control gear
LED operating device current-controlled
Power factor
0.96
With control gear
Yes
Type of wiring
Ending
Built-in length
595mm
Number of poles
2
Built-in width
295mm
Built-in height/depth
35mm
Built-in diameter
35mm
Compatible with Casambi
No
Constant light output (CLO)
No
Luminaire efficacy
150 - 150lm/W
Type of grid
None
Dimmable
No
Nominal voltage
220 - 240V
Rated luminous flux according to IEC 62722-2- 1
3000 - 6000lm
Length
595mm
Emergency power supply system
None
Width
295mm
Emergency function monitoring system
None
Height/depth
11mm
Suitable for ceiling mounting
Yes
Colour of light
White
Connectable conductor cross section
0.75 - 2.5mm²
Colour rendering index CRI
80-89
Suitable for wall mounting
Yes
Exchangeable control gear
Yes
Suitable for suspended mounting
Yes
Dimming 0-10 V
No
Suitable for workplace according to EN 12464-1
No
Dimming 1-10 V
No
Unified Glare Ratio (UGR)
20.2
Dimming DALI
No
Degree of protection (IP), rear side
IP20
Dimming phase cut-off (trailing edge)
No
Degree of protection (IP), front side
IP20
With movement sensor
No
With mounting material
Yes
With presence detector
No
Size
30x60 cm
Impact strength
IK02
Colour temperature
3000 - 4000 - 5700K
With light sensor
No
With connection cord and plug
Yes
Suitable for surface mounting
Yes
Length of power cord
2000mm
Suitable for built-in mounting
Yes
Connection type
EU plug
Light distribution
Symmetric
Dimming method
Non-dimmable
Beam angle
> 80° - Extreme wide beam
Warranty
5 years
Light outlet
Direct

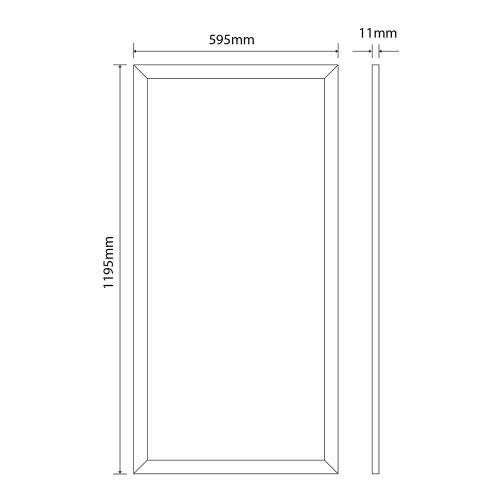

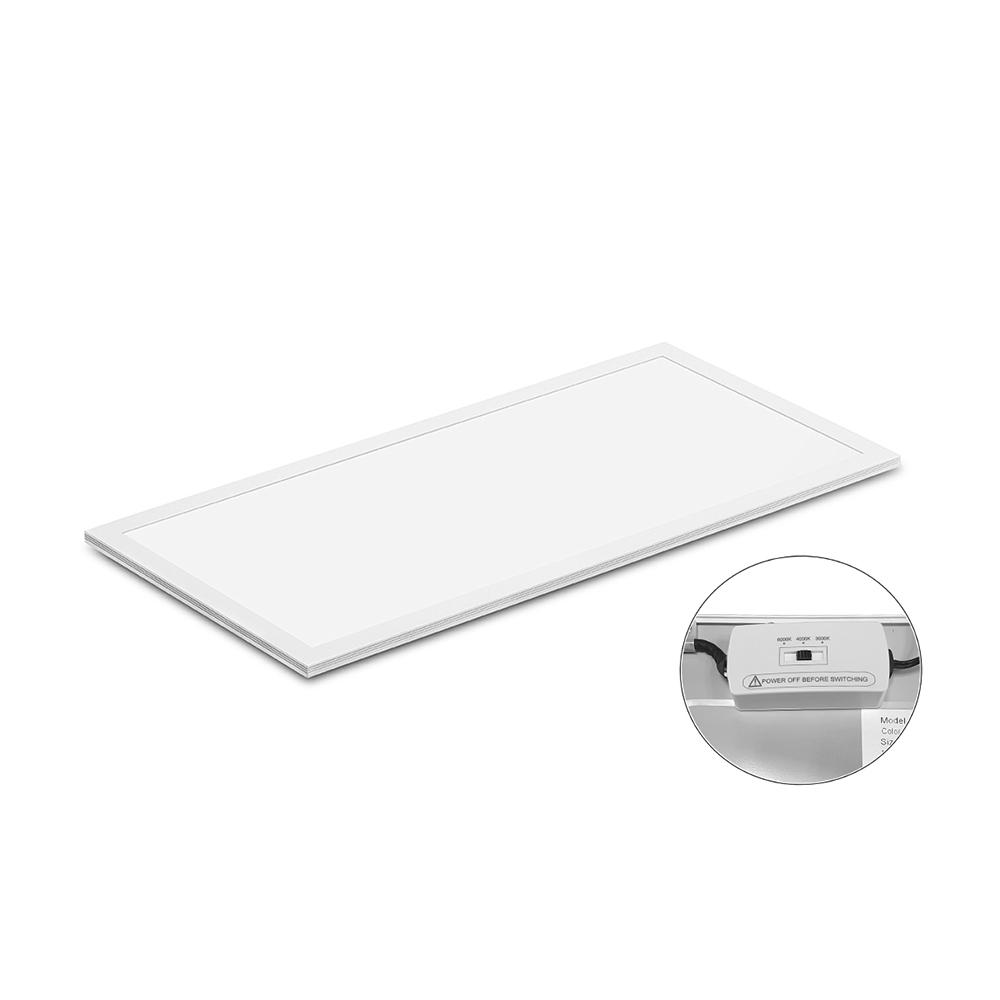

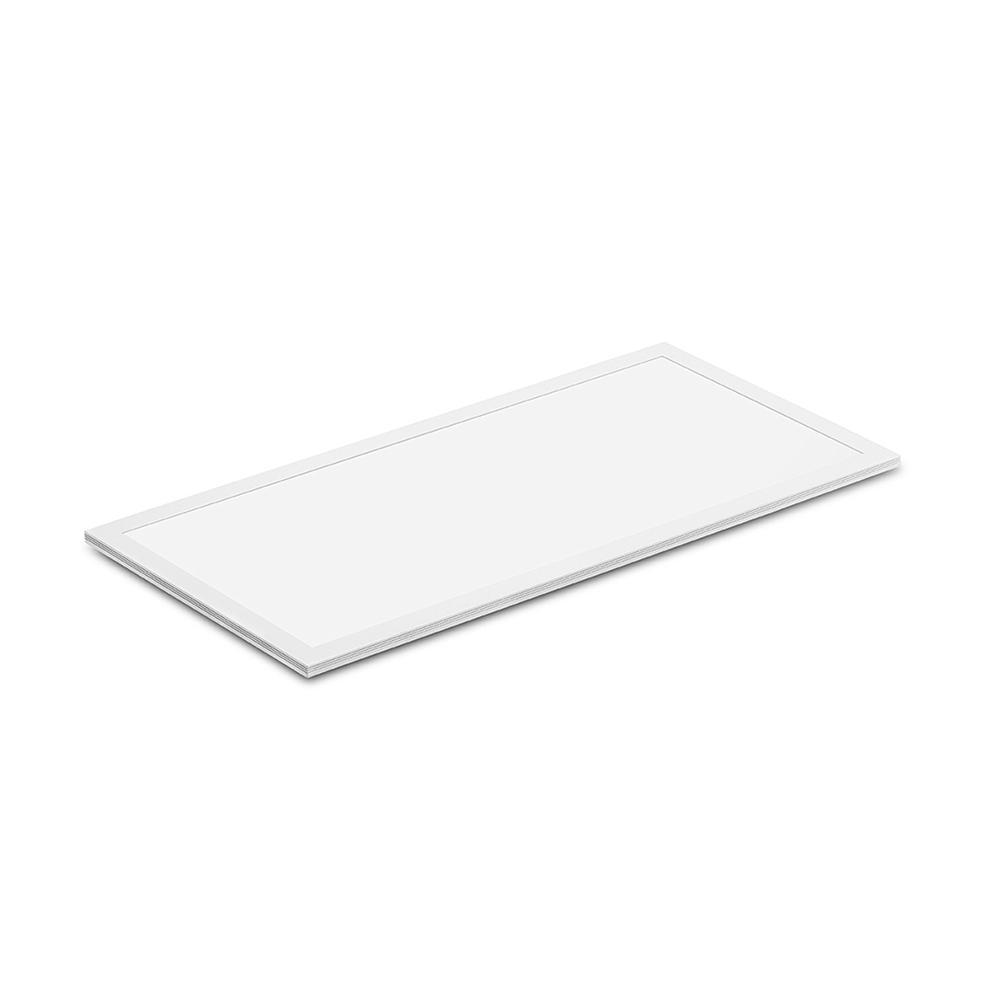

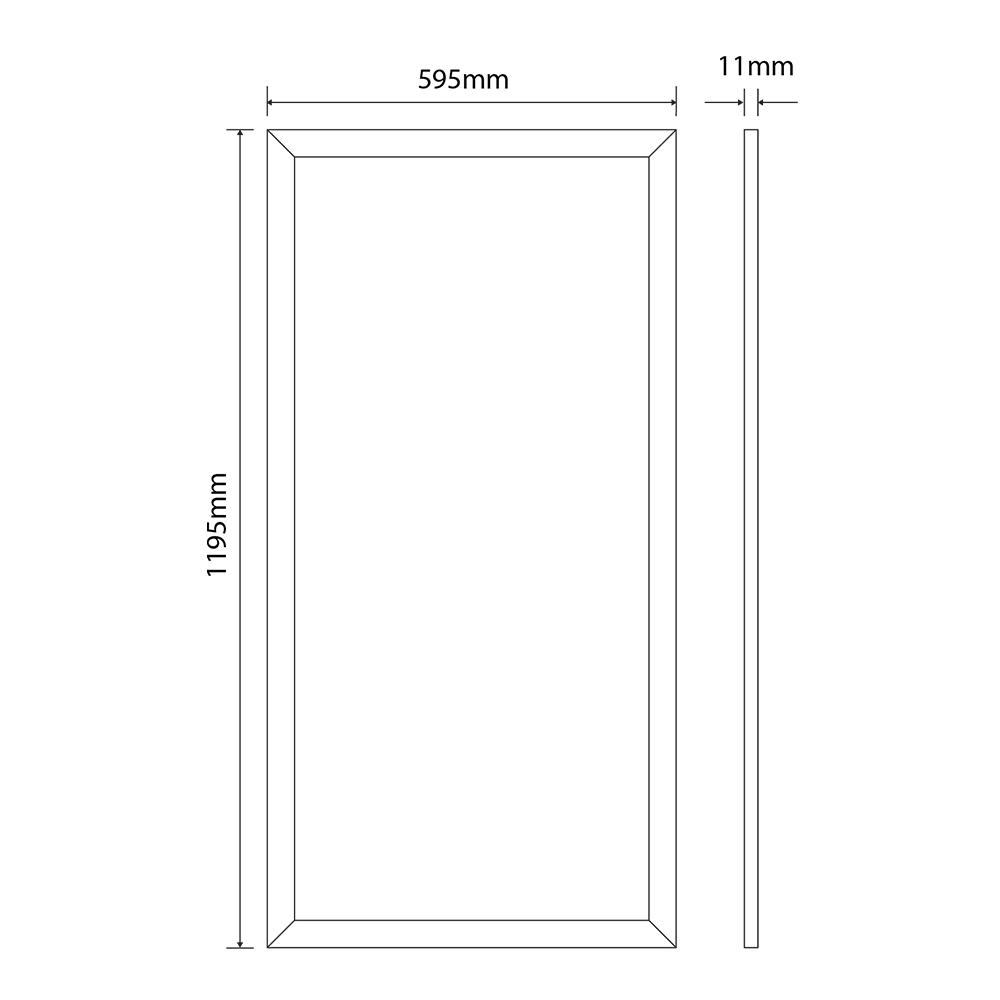

This LED panel with a size of 595 x 1195 mm fits standard 60x120 cm grid ceilings. A built-in selector allows choosing between three colour temperatures (3000K, 4000K, 5700K) and power settings from 20W to 40W, offering adaptable light levels.
Delivering over 160 lm/W, this panel is an energy-efficient choice for office spaces, schools, and general commercial settings. Supplied with non-dimmable driver and EU plug for quick installation.
More information
More information about this product can be found in the product specifications. For accessories, available options, and related products, see the related items. For inquiries or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-panel-60120-2025323640w-3-cct-eu-plug-173-042.pdf
Energy labels
Characteristics sheet
173-042-photometric-light-report.pdf
173-042-photometric-light-report-detailed.zip
173-042-eulumdat.zip
