LED panel | reflector | 60*60 | 3-CCT | white | GST18i3
173-064This versatile LED panel provides optimal light comfort with integrated reflectors for smooth, uniform light output. Ideal for various work and living environments.
Key product features:
- Colour temperature (K): 3000 - 5700
- Housing colour: White
- Connection type: Plug
- Light distributor: Reflector
- Unified Glare Ratio (UGR): 17
- Luminaire efficacy (lm/W): 130 - 141
Product Name
LED panel | reflector | 60*60 | 3-CCT | white | GST18i3
Ean
8714984950757
Outer box qty
5st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
White
Material cover
Other
Suitable for emergency lighting
Yes
Nominal current
112 - 112mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes

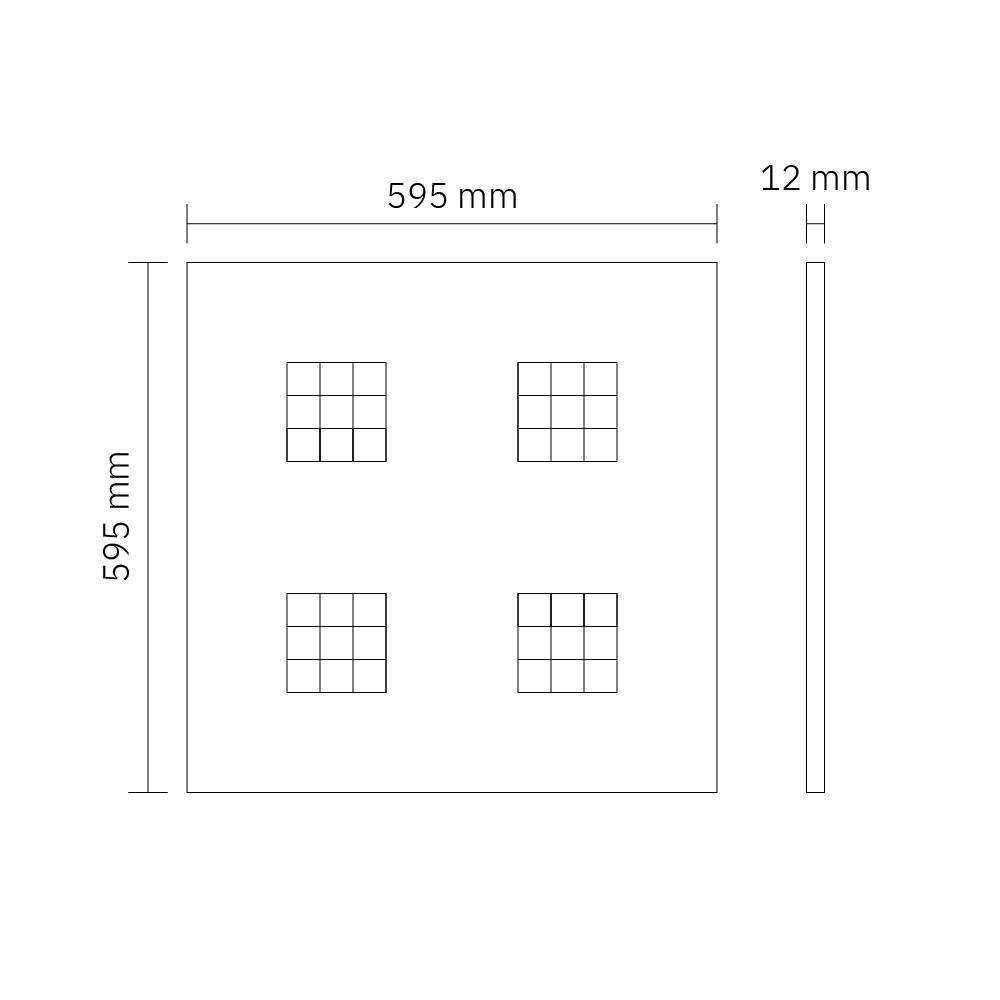

Built-in length
595mm
Built-in width
595mm
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
220 - 240V
Length
595mm
Width
595mm
Height/depth
12mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
No
With presence detector
No
Impact strength
IK02
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct/indirect
Dimming RF
No
Dimming Zigbee
No
Light distributor
Reflector
Surface protection housing
Powder coating
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
50000h
Colour of light adjustable
Positions
Luminous flux adjustable
No
Max. system power
26W
Beam angle adjustable
No
Power factor
0.93
Type of wiring
Ending
Number of poles
2
Built-in height/depth
12mm
Compatible with Casambi
No
Luminaire efficacy
150 - 150lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
3750 - 3750lm
Emergency power supply system
None
Emergency function monitoring system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for workplace according to EN 12464-1
Yes
Unified Glare Ratio (UGR)
17
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP20
With mounting material
Yes
Size
60x60 cm
Colour temperature
3000 - 4000 - 5700K
With connection cord and plug
Yes
Length of power cord
300mm
Connection type
GST18i3
Dimming method
Non-dimmable
Warranty
5 years
Product Name
LED panel | reflector | 60*60 | 3-CCT | white | GST18i3
Dimming RF
No
Ean
8714984950757
Dimming Zigbee
No
Outer box qty
5st
Light distributor
Reflector
Lamp type
LED not exchangeable
Surface protection housing
Powder coating
Housing material
Aluminium
Colour consistency (McAdam ellipse)
SDCM6
Housing colour
White
Rated lifetime L70/B50 at 25 °C
50000h
Material cover
Other
Colour of light adjustable
Positions
Suitable for emergency lighting
Yes
Luminous flux adjustable
No
Nominal current
112 - 112mA
Max. system power
26W
Voltage type
AC
Beam angle adjustable
No
Type of control gear
LED operating device current-controlled
Power factor
0.93
With control gear
Yes
Type of wiring
Ending
Built-in length
595mm
Number of poles
2
Built-in width
595mm
Built-in height/depth
12mm
Constant light output (CLO)
No
Compatible with Casambi
No
Type of grid
None
Luminaire efficacy
150 - 150lm/W
Nominal voltage
220 - 240V
Dimmable
No
Length
595mm
Rated luminous flux according to IEC 62722-2- 1
3750 - 3750lm
Width
595mm
Emergency power supply system
None
Height/depth
12mm
Emergency function monitoring system
None
Colour of light
White
Suitable for ceiling mounting
Yes
Colour rendering index CRI
80-89
Connectable conductor cross section
0.75 - 0.75mm²
Exchangeable control gear
No
Suitable for wall mounting
Yes
Dimming 0-10 V
No
Suitable for suspended mounting
Yes
Dimming 1-10 V
No
Suitable for workplace according to EN 12464-1
Yes
Dimming DALI
No
Unified Glare Ratio (UGR)
17
Dimming phase cut-off (trailing edge)
No
Degree of protection (IP), rear side
IP20
With movement sensor
No
Degree of protection (IP), front side
IP20
With presence detector
No
With mounting material
Yes
Impact strength
IK02
Size
60x60 cm
With light sensor
No
Colour temperature
3000 - 4000 - 5700K
Suitable for surface mounting
Yes
With connection cord and plug
Yes
Suitable for built-in mounting
Yes
Length of power cord
300mm
Light distribution
Symmetric
Connection type
GST18i3
Beam angle
> 80° - Extreme wide beam
Dimming method
Non-dimmable
Light outlet
Direct/indirect
Warranty
5 years
Thanks to the low UGR value of this LED panel, glare is significantly reduced, which is crucial for places like offices and schools where comfort and functionality are essential.
Additionally, the LED panel features a minimalist design that seamlessly integrates with drop ceilings, making this reflector-equipped LED panel perfect for applications that require aesthetics and well-being enhancement in office environments.
This LED panel with reflector is part of a small collection of LED panels, which are available in both black and white housings. Using a euro or GST18i3 plug, this collection fits seamlessly into a variety of projects.
Additional Information
More details about this product can be found in the specifications. For accessories, available options, and related products, see the related items section. For inquiries or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-panel-reflector-6060-3-cct-white-gst18i3-173-064.pdf
Energy labels
Characteristics sheet
173-064-photometric-light-report.pdf
173-064-photometric-light-report-detailed.zip
173-064-eulumdat.zip
