LED strip | 24V | 180LED/m 3528 | 5m | IP20 | 2700K | CRI>90
127-094Powerful 24V LED strip with 180 pcs 3528 LEDs per meter. Delivers a sleek, uniform light output with stable performance for visible and indirect applications.
Key product features:
- Number of nodes per meter: 180
- Lamp power per meter (W): 14.4
- Colour temperature (K): 2700
- Width (mm): 10

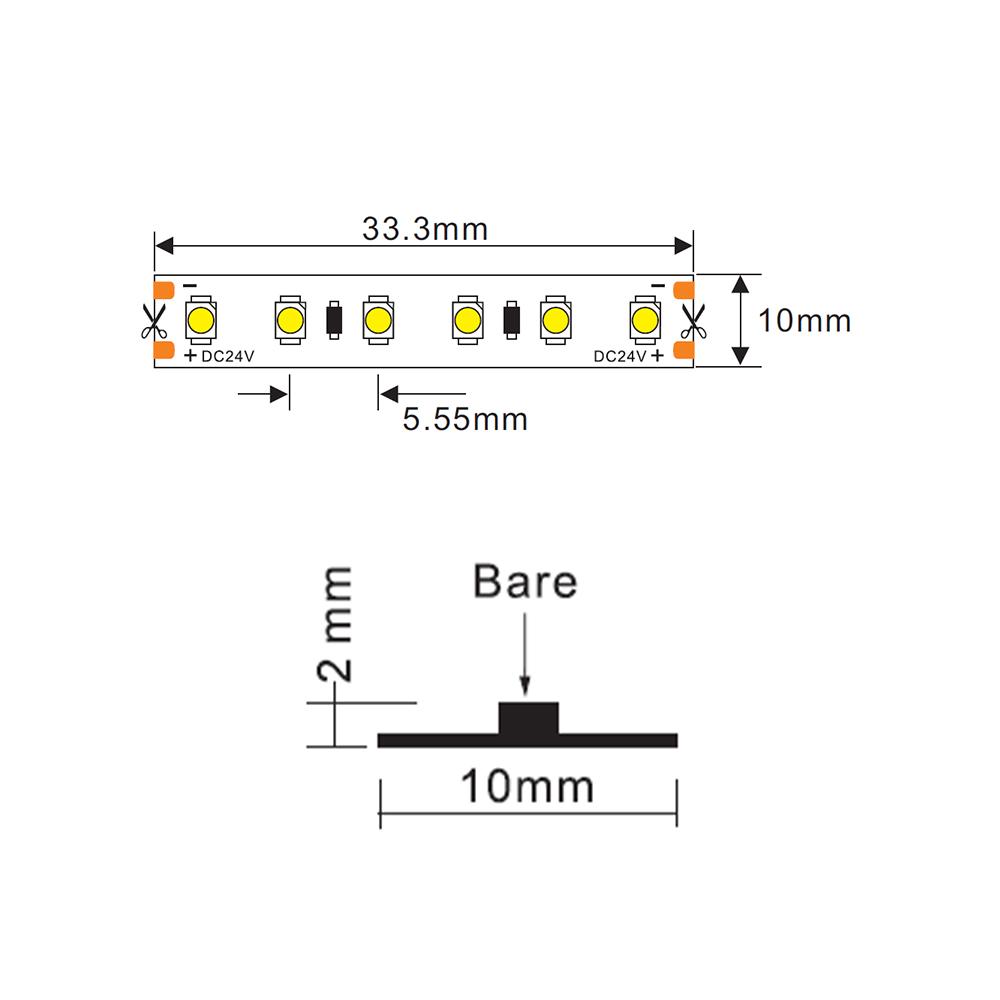

- Length of particular sections (mm): 33.3
- Degree of protection (IP): IP20
- Luminous flux per meter (Lm): 883
Product Name
LED strip | 24V | 180LED/m 3528 | 5m | IP20 | 2700K | CRI>90
Ean
8714984927421
Outer box qty
25st
Model
Strip
Lamp type
LED not exchangeable
Lamp voltage
0 - 24V
Number of nodes per meter
180
Lamp power per meter
14.4W
Beam angle
120°
Voltage type
DC
Type of control gear
LED operating device voltage-controlled
Input voltage tracklights
24V
With protective cover
No
Length of particular segments
33mm
Degree of protection (IP)
IP20
Self-adhesive
Yes
Luminous flux per meter
966lm
Total length
5m
Width
10mm
Height/depth
2mm
Colour of light
White
Suitable for dimmer
Yes
Colour rendering index CRI
90-100
Exchangeable control gear
Yes
Connection type
Other
Rated lifetime L70/B50 at 25 °C
54000h
Colour of light adjustable
No
Luminous flux per foot
294.44lm
Luminous flux adjustable
Continuously variable
LED type
SMD
Max. system power
72W
Beam angle adjustable
No
Luminaire efficacy
67lm/W
Power factor
1
Type of wiring
Loop-through wiring included
Number of poles
2
Connectable conductor cross section
0.5 - 2.5mm²
Colour temperature
2700K
Warranty
3 years
Product Name
LED strip | 24V | 180LED/m 3528 | 5m | IP20 | 2700K | CRI>90
Colour of light
White
Ean
8714984927421
Suitable for dimmer
Yes
Outer box qty
25st
Colour rendering index CRI
90-100
Model
Strip
Exchangeable control gear
Yes
Lamp type
LED not exchangeable
Connection type
Other
Lamp voltage
0 - 24V
Rated lifetime L70/B50 at 25 °C
54000h
Number of nodes per meter
180
Colour of light adjustable
No
Lamp power per meter
14.4W
Luminous flux per foot
294.44lm
Beam angle
120°
Luminous flux adjustable
Continuously variable
Voltage type
DC
LED type
SMD
Type of control gear
LED operating device voltage-controlled
Max. system power
72W
Input voltage tracklights
24V
Beam angle adjustable
No
With protective cover
No
Luminaire efficacy
67lm/W
Length of particular segments
33mm
Power factor
1
Degree of protection (IP)
IP20
Type of wiring
Loop-through wiring included
Self-adhesive
Yes
Number of poles
2
Luminous flux per meter
966lm
Connectable conductor cross section
0.5 - 2.5mm²
Total length
5m
Colour temperature
2700K
Width
10mm
Warranty
3 years
Height/depth
2mm

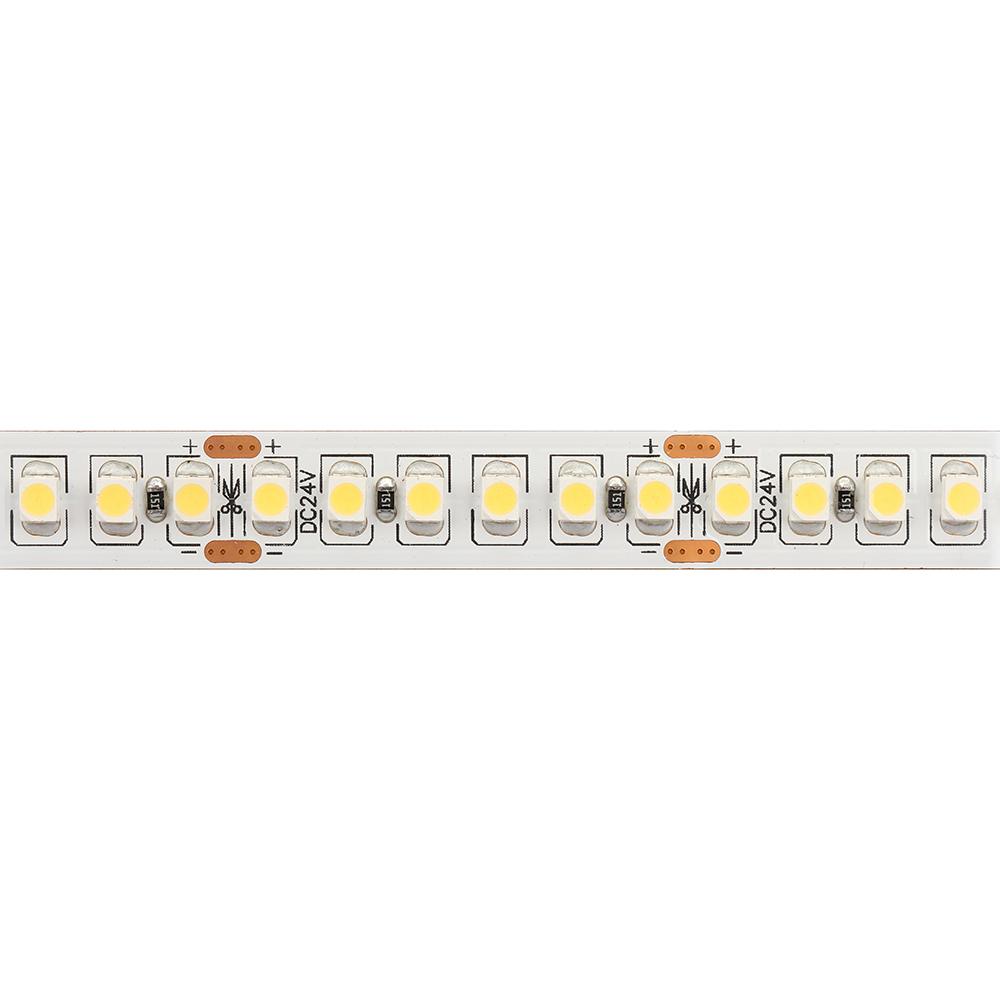

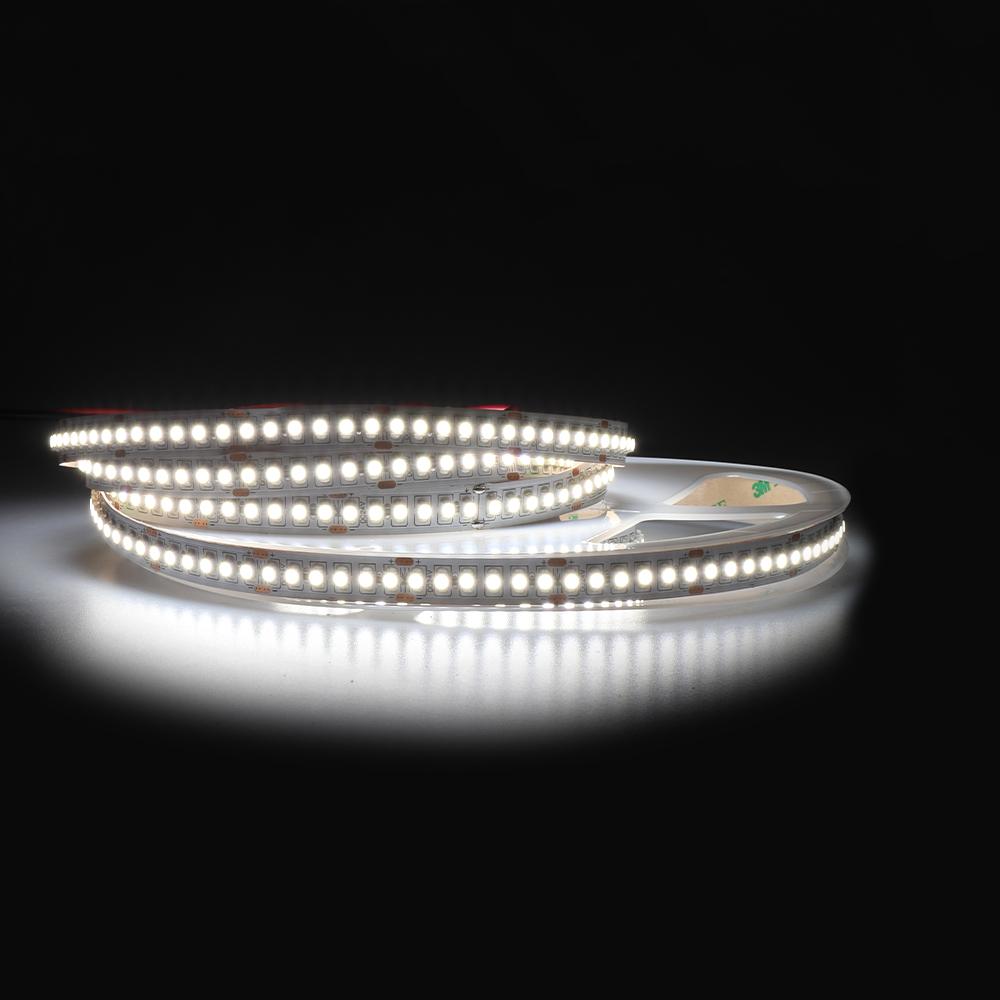

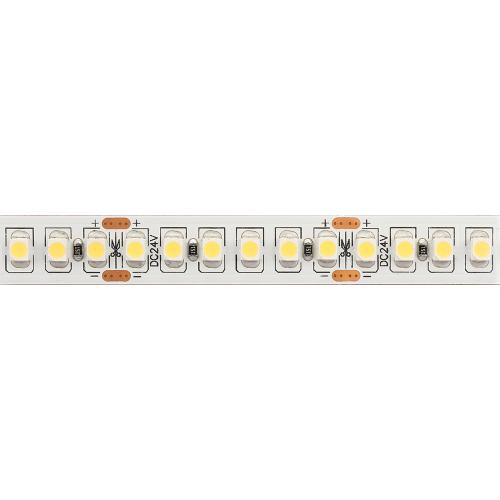

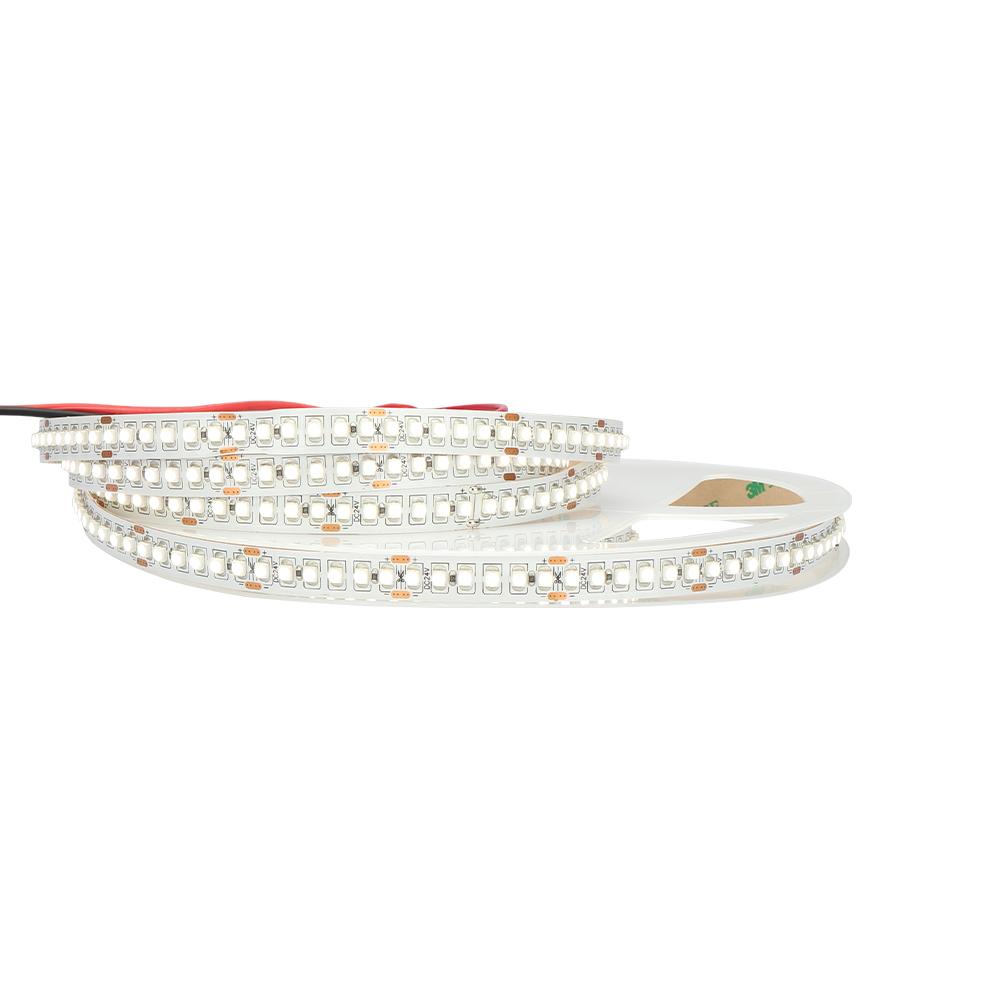

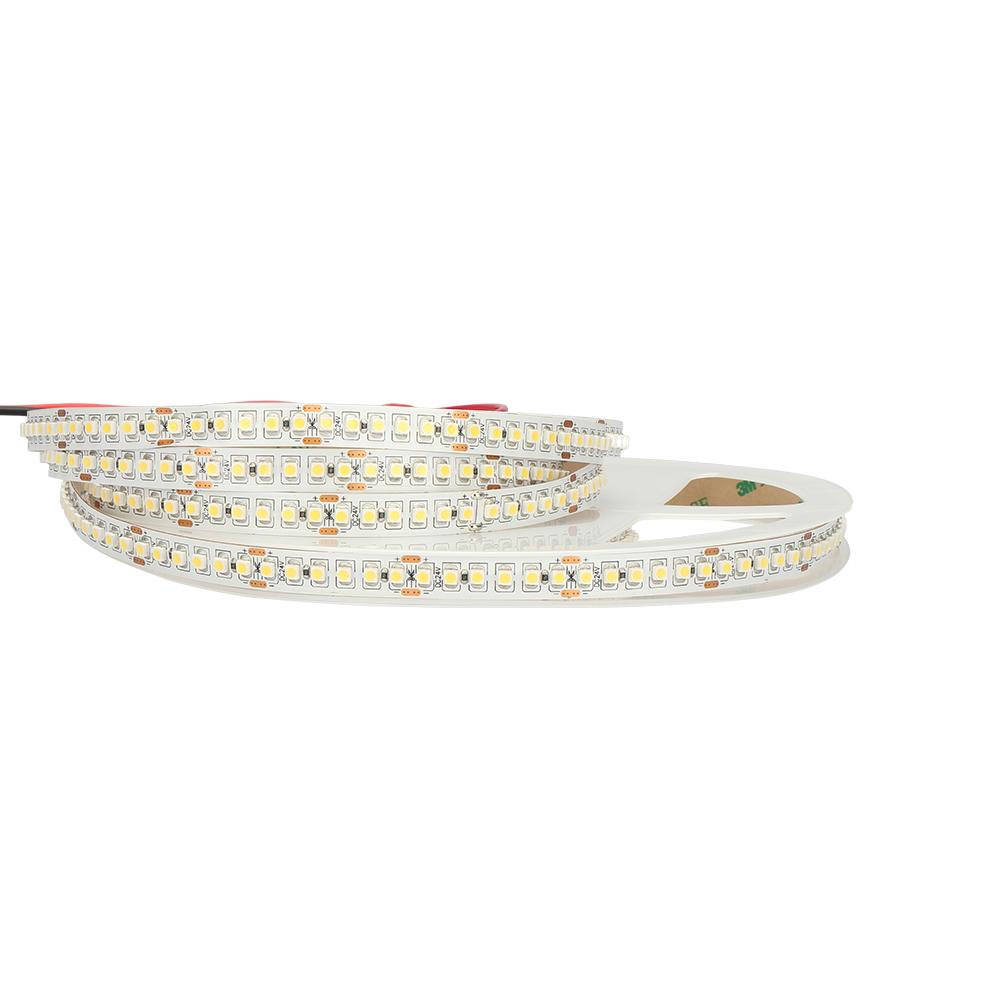

This 24V LED strip with 180 pcs 3528 SMD LEDs per metre offers a calm, uniform light output, ideal for direct view and shallow profiles. Proven 3528 technology ensures stable long-term performance.
Available in 2700K and 3000K (IP20, IP65) and in 4000K (IP20), suitable for dry interiors and splashproof environments.
The combination of calm light output, consistent colour temperature and reliable build quality makes this a solid choice for professional projects.
Effective heat dissipation is essential for optimal performance and a long lifespan. Use an aluminium LED profile to prevent overheating and ensure a clean finish. Combined with GALAXY profiles, this creates a high-quality total solution.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-strip-24v-180ledm-3528-5m-ip20-2700k-cri90-127-094.pdf
Energy labels
Characteristics sheet
127-094-photometric-light-report.pdf
127-094.ldt
