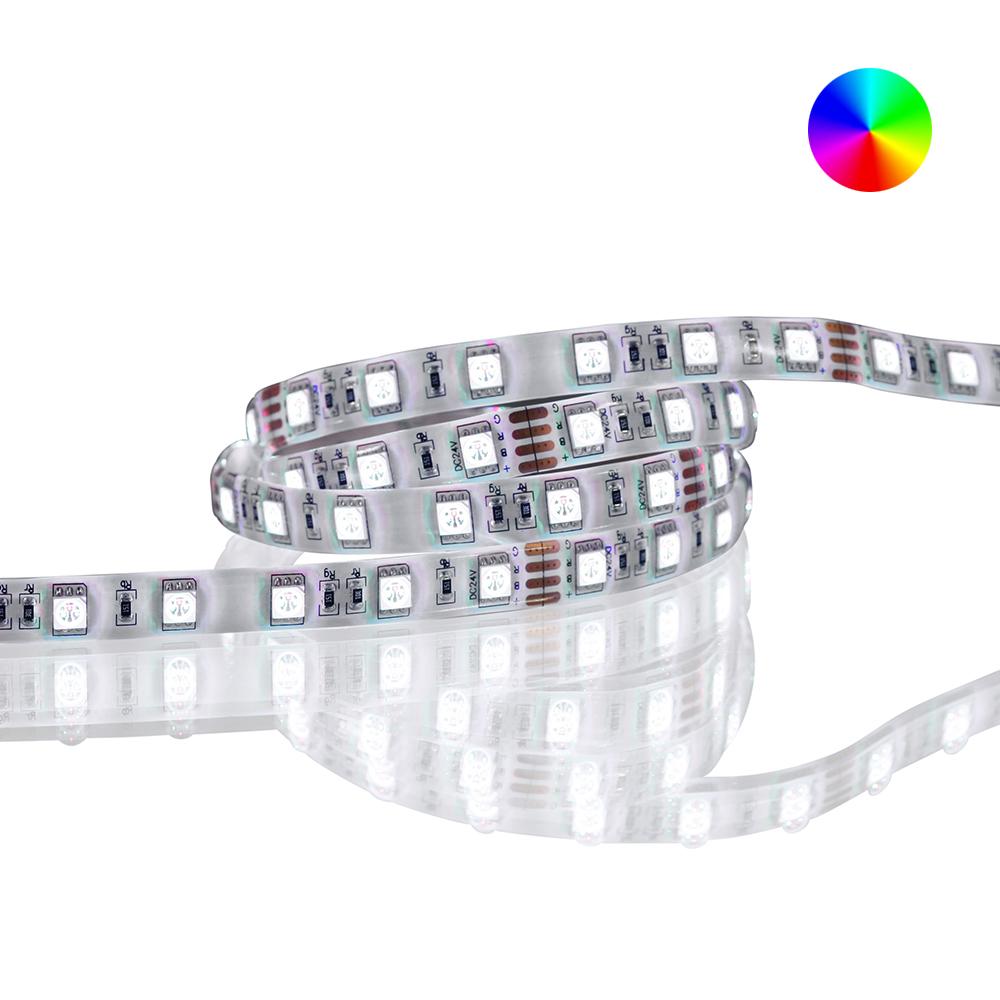

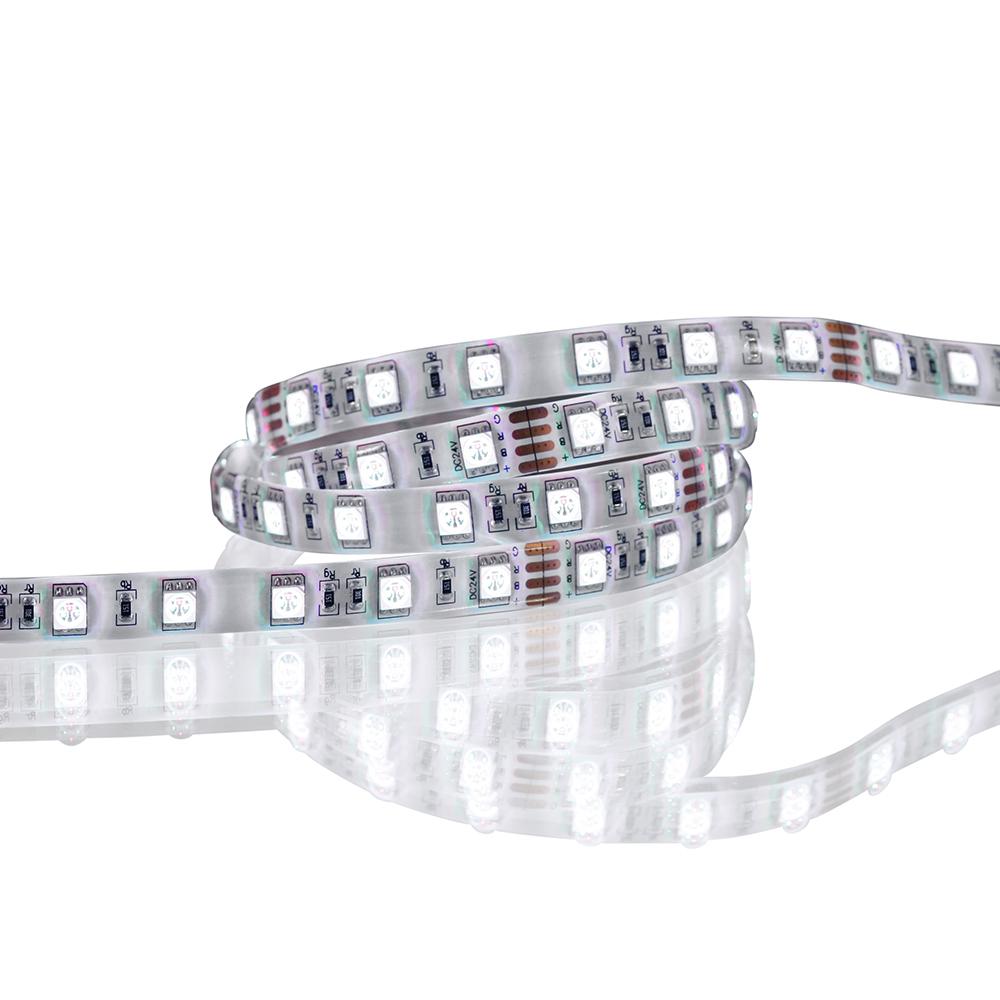

LED strip | 24V | 60LED/m 5050 | 5m | IP52 | RGB
127-010Powerful 24V RGB LED strip with 5050 LEDs. Designed for dynamic colour lighting with smooth transitions, suitable for DMX, RGB and DALI control.
Key product features:
- Number of light sources per metre: 60
- Lamp power per metre (W): 14.4
- Width (mm): 10
- Length of single sections (mm): 100
- Degree of protection (IP): IP52
- Luminous flux per metre (Lm): 620
- Light colour: RGB
Product Name
LED strip | 24V | 60LED/m 5050 | 5m | IP52 | RGB
Ean
8714984908482
Outer box qty
25st
Model
Strip
Lamp type
LED not exchangeable
Lamp voltage
0 - 24V
Number of nodes per meter
60
Lamp power per meter
14.4W
Beam angle
120°
Voltage type
DC
Type of control gear
LED operating device voltage-controlled
Input voltage tracklights
24V
With protective cover
Yes

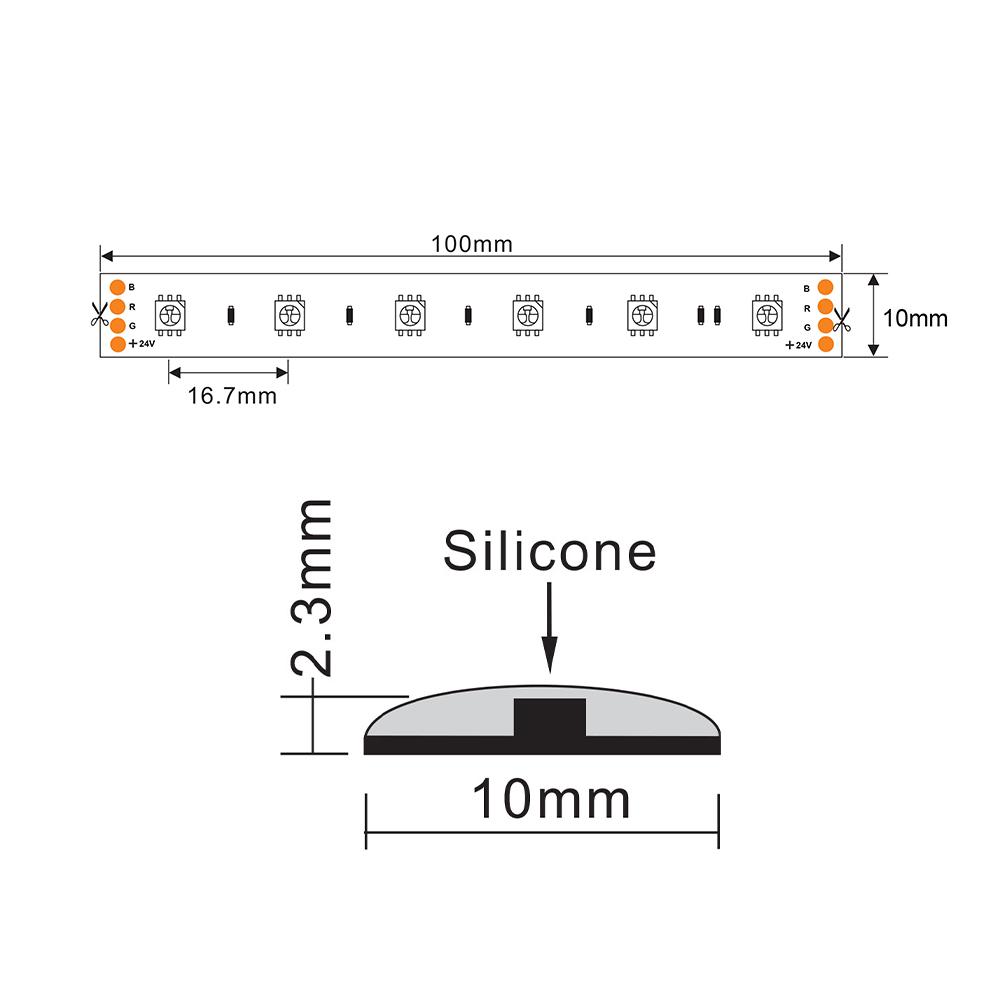

Length of particular segments
100mm
Degree of protection (IP)
IP52
Self-adhesive
Yes
Luminous flux per meter
621lm
Total length
5m
Width
10mm
Height/depth
2.3mm
Colour of light
RGB
Suitable for dimmer
Yes
Exchangeable control gear
Yes
Connection type
Other
Rated lifetime L70/B50 at 25 °C
54000h
Colour of light adjustable
Continuously variable
Luminous flux per foot
189.28lm
Luminous flux adjustable
Continuously variable
LED type
SMD
Max. system power
72W
Beam angle adjustable
No
Luminaire efficacy
42lm/W
Power factor
1
Type of wiring
Loop-through wiring included
Number of poles
4
Connectable conductor cross section
0.5 - 2.5mm²
Colour temperature
RGB
Warranty
3 years
Product Name
LED strip | 24V | 60LED/m 5050 | 5m | IP52 | RGB
Height/depth
2.3mm
Ean
8714984908482
Colour of light
RGB
Outer box qty
25st
Suitable for dimmer
Yes
Model
Strip
Exchangeable control gear
Yes
Lamp type
LED not exchangeable
Connection type
Other
Lamp voltage
0 - 24V
Rated lifetime L70/B50 at 25 °C
54000h
Number of nodes per meter
60
Colour of light adjustable
Continuously variable
Lamp power per meter
14.4W
Luminous flux per foot
189.28lm
Beam angle
120°
Luminous flux adjustable
Continuously variable
Voltage type
DC
LED type
SMD
Type of control gear
LED operating device voltage-controlled
Max. system power
72W
Input voltage tracklights
24V
Beam angle adjustable
No
With protective cover
Yes
Luminaire efficacy
42lm/W
Length of particular segments
100mm
Power factor
1
Degree of protection (IP)
IP52
Type of wiring
Loop-through wiring included
Self-adhesive
Yes
Number of poles
4
Luminous flux per meter
621lm
Connectable conductor cross section
0.5 - 2.5mm²
Total length
5m
Colour temperature
RGB
Width
10mm
Warranty
3 years

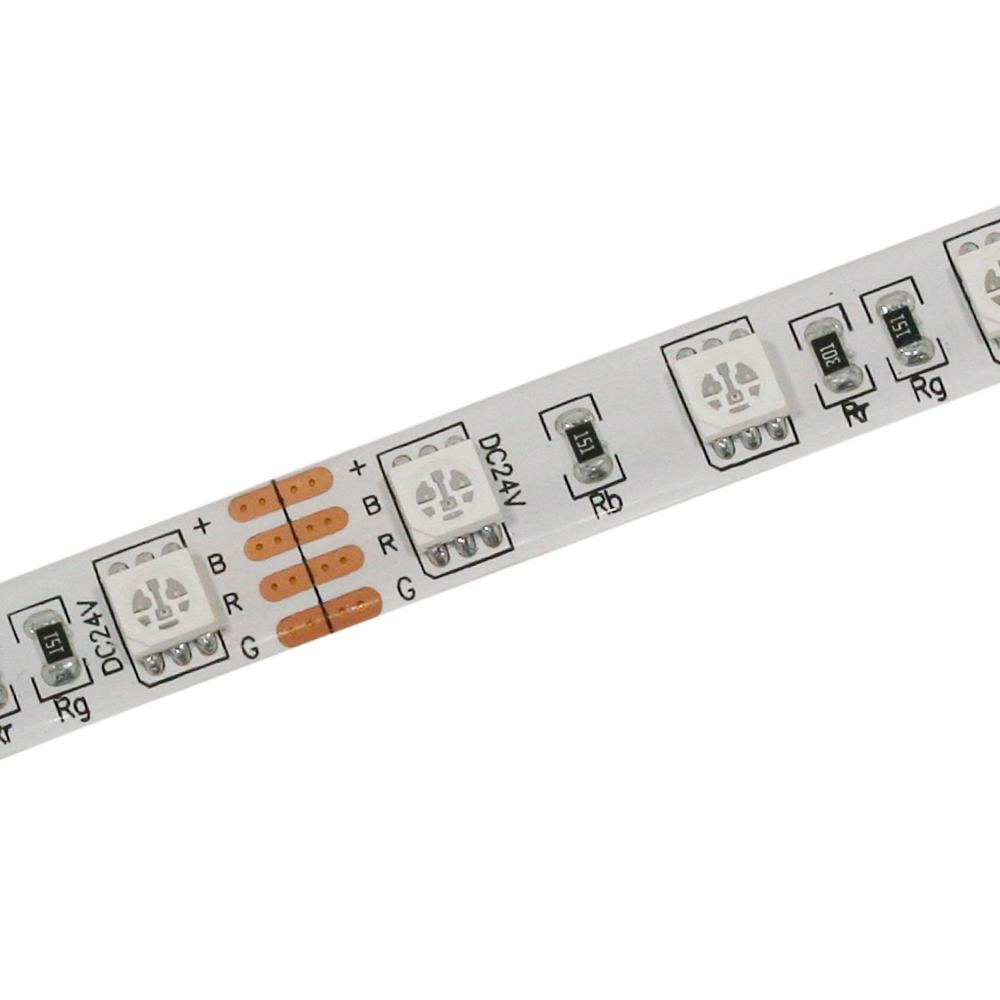

This 24V RGB LED strip with 60 powerful 5050 SMD LEDs per metre offers a versatile solution for dynamic and atmospheric lighting. Each 5050 SMD LED chip contains three integrated colour elements – red, green and blue – delivering vivid colour mixing and smooth transitions via an external RGB controller.
With stable output and reliable blending, this strip is perfect for visual accents, indirect colour effects or themed applications in interiors, retail, hospitality and entertainment. A section length of 100 mm makes custom installation easy.
Compatible with DMX, DALI, Zigbee, Casambi and DimmIt. This makes the strip easy to integrate into a wide range of lighting control systems and smart home solutions, from professional installations to smart residential and working environments.
Effective heat dissipation is essential for optimal performance and a long lifespan. Use an aluminium LED profile to prevent overheating and ensure a clean finish. Combined with GALAXY profiles, this creates a high-quality total solution.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-strip-24v-60ledm-5050-5m-ip52-rgb-127-010.pdf
Characteristics sheet
127-010-photometric-light-report.pdf
127-010.ldt
