Spot || black | cut out Ø68-73mm | 6W | 2200K | dim

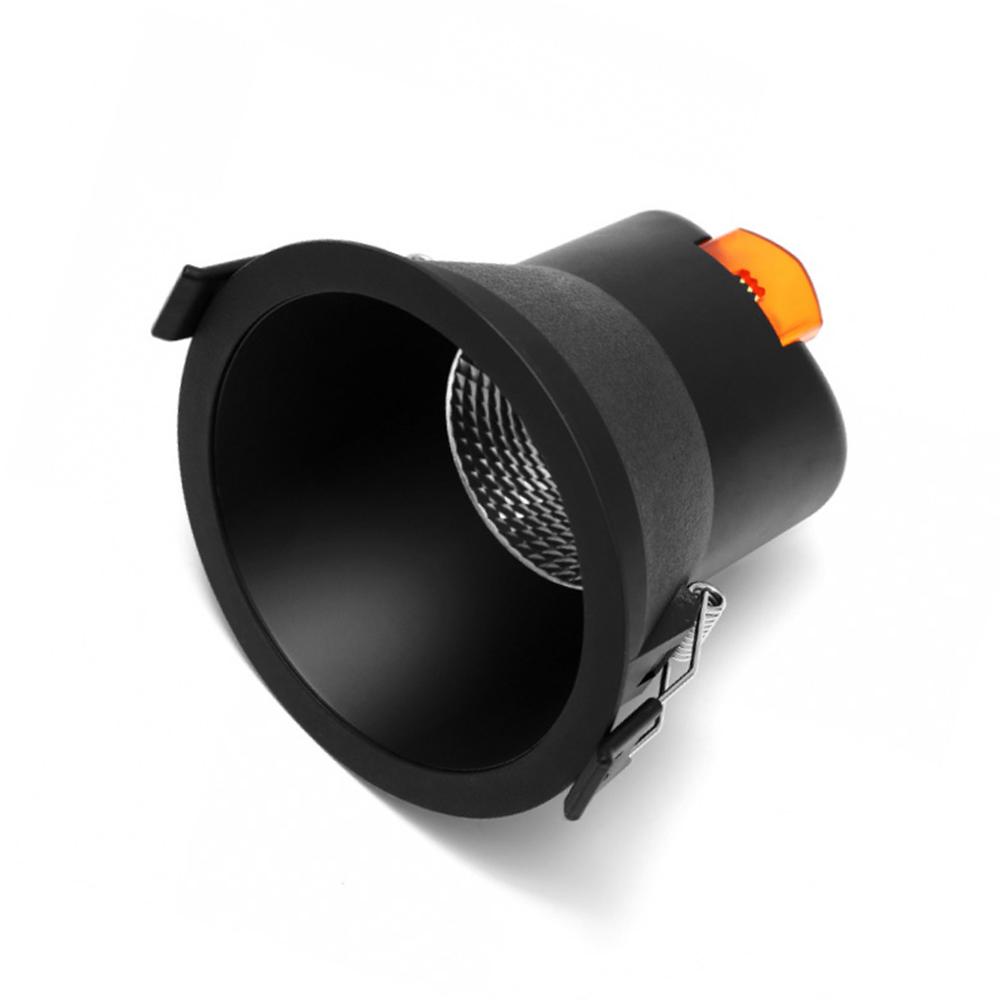

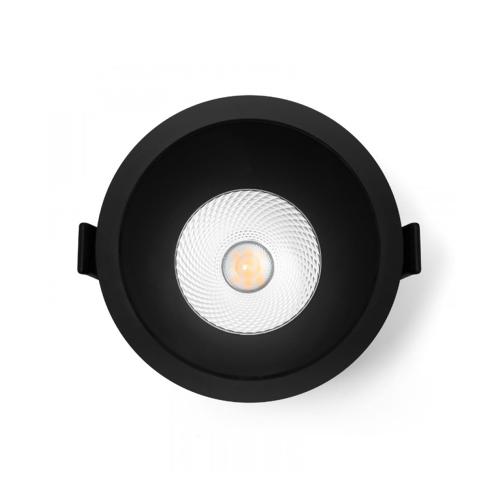

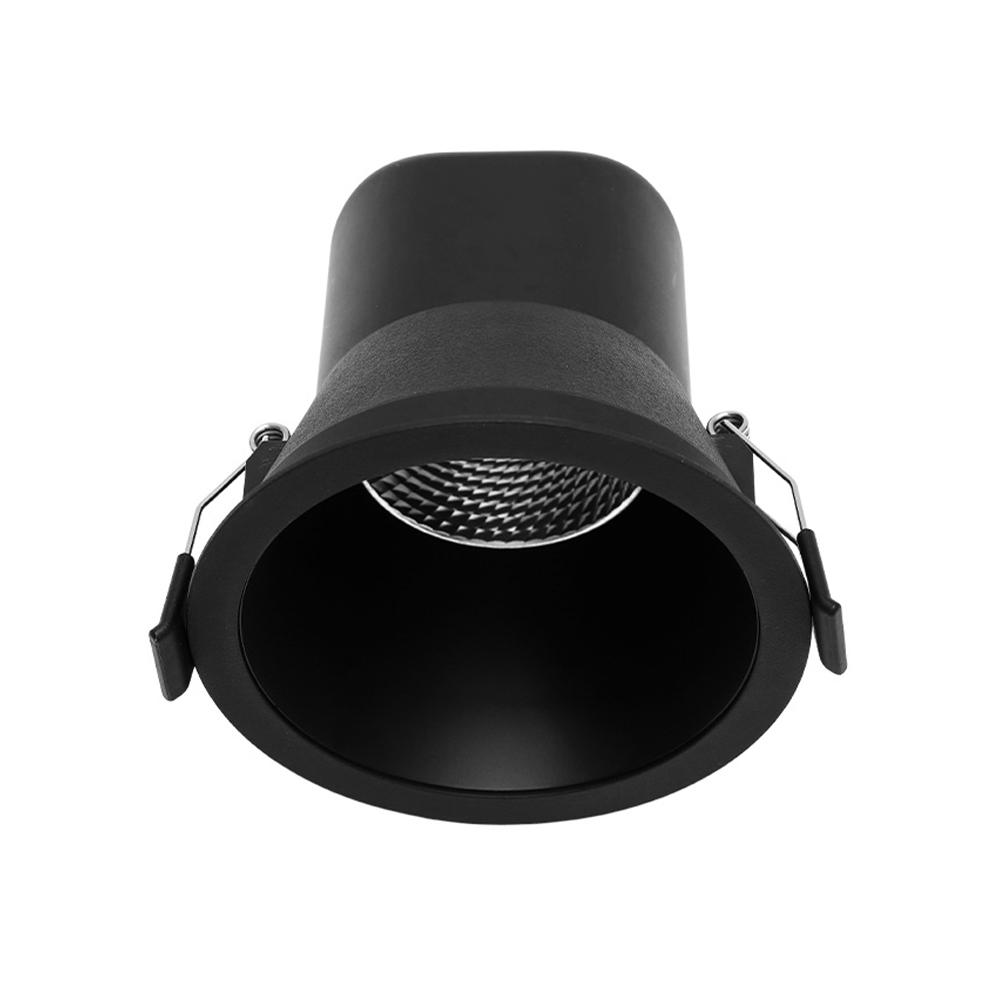

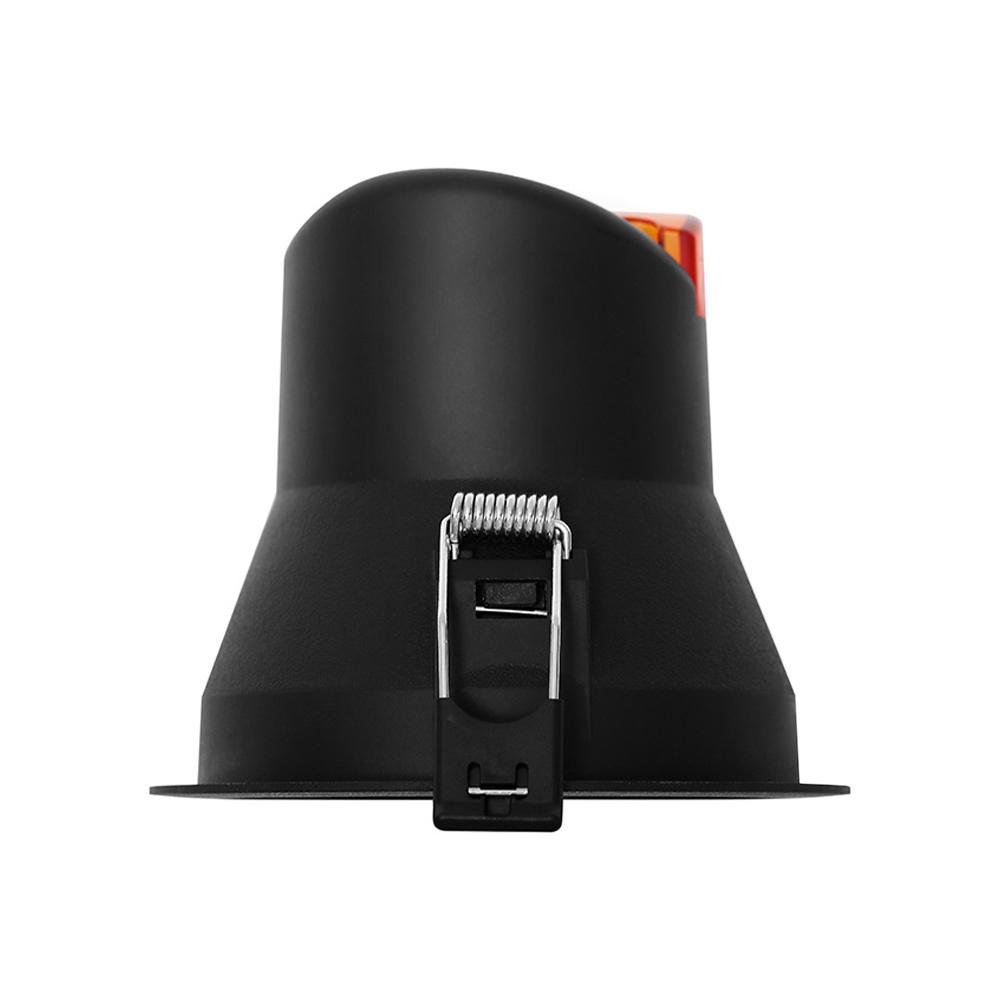

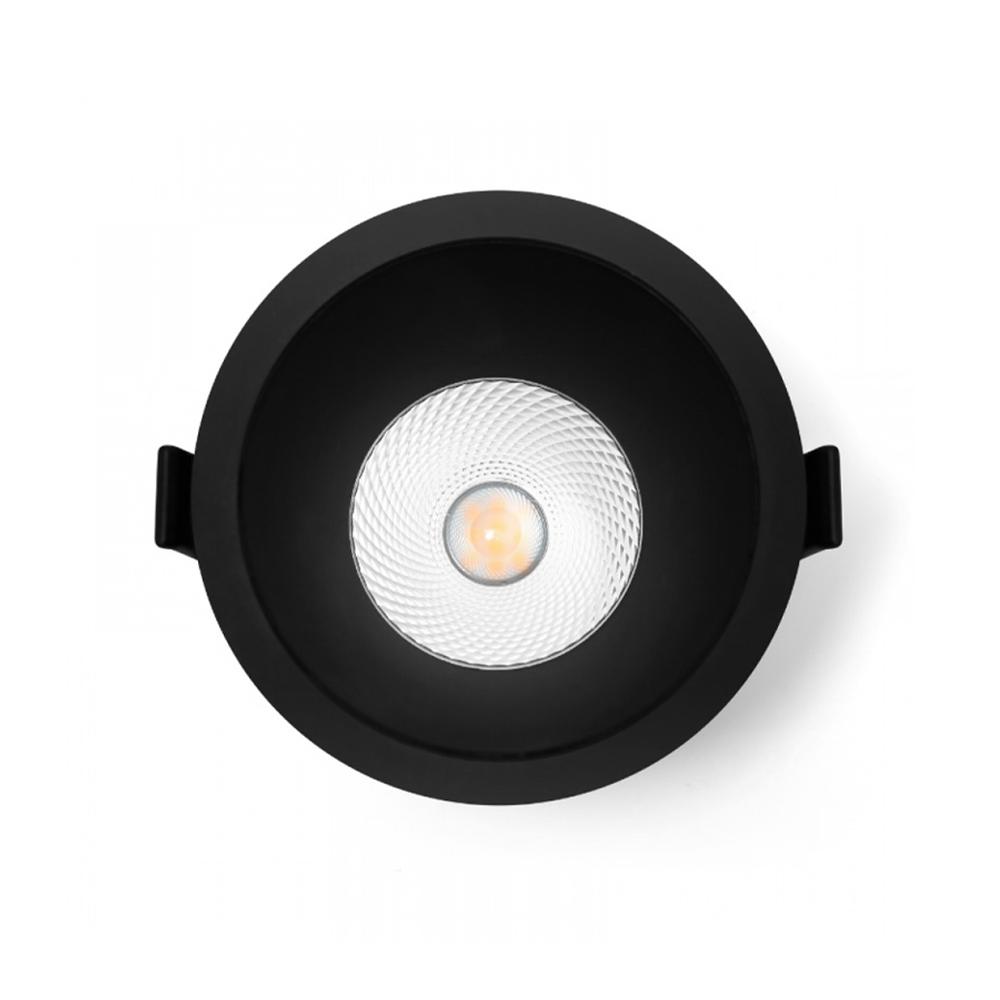

136-178This downlight is an efficient replacement for GU10 spotlights. The deep housing and high-quality reflector minimize glare and allow for subtle placement in the ceiling. The internal driver allows quick, easy installation.
Key product features:
- Power (W): 6
- Color temperature (K): 2200
- Housing Colour: Black
- Beam angle: 21-40° - Medium beam
- Outer diameter (mm): 81
- Built-in diameter (mm): 68 - 73
- Dimmable: Yes
Product Name
Spot || black | cut out Ø68-73mm | 6W | 2200K | dim
Ean
8714984939042
Outer box qty
60st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Black
Housing material
Plastic
Material cover
Without cover
Connection type
Stripped wire
Height/depth
87.7mm
Outer diameter
81mm
Built-in diameter
68 - 73mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
No
Reflector colour
Black
Colour temperature
2200K
Colour rendering index CRI
80-89
Luminous flux adjustable
Continuously variable
Light outlet
Direct
Beam angle
21-40° - Medium beam
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
30 - 30mA
Number of poles
2
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP), front side
IP44
Degree of protection (IP), rear side
IP20
Surface protection
Untreated
Impact strength
IK02
Rated lifetime L70/B50 at 25 °C
30000h
Max. system power
6W
Rated luminous flux according to IEC 62722-2- 1
360 - 360lm
Luminaire efficacy
60 - 60lm/W
Power factor
0.79
Suitable for lamp power
0 - 0W
Dimming method
Trailing edge dimming
Surface brushed
No
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
10.8
Reflector
High-gloss
Warranty
3 years
Product Name
Spot || black | cut out Ø68-73mm | 6W | 2200K | dim
Beam angle adjustable
No
Ean
8714984939042
Voltage type
AC
Outer box qty
60st
Nominal voltage
220 - 240V
Lamp type
LED not exchangeable
Nominal current
30 - 30mA
Lamp holder
None
Number of poles
2
Housing colour
Black
Light distributor
Reflector
Housing material
Plastic
Light distribution
Symmetric
Material cover
Without cover
Connectable conductor cross section
0.75 - 2.5mm²
Connection type
Stripped wire
Type of control gear
LED operating device current-controlled
Height/depth
87.7mm
Exchangeable control gear
No
Outer diameter
81mm
With control gear
Yes
Built-in diameter
68 - 73mm
Degree of protection (IP), front side
IP44
Suitable for built-in mounting
Yes
Degree of protection (IP), rear side
IP20
Suitable for surface mounting
No
Surface protection
Untreated
Suitable for pedestal/floor mounting
No
Impact strength
IK02
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
30000h
Suitable for ceiling mounting
Yes
Max. system power
6W
Suitable for light-track mounting
No
Rated luminous flux according to IEC 62722-2- 1
360 - 360lm
Suitable for clamp-mounting
Yes
Luminaire efficacy
60 - 60lm/W
With movement sensor
No
Power factor
0.79
With presence detector
No
Suitable for lamp power
0 - 0W
With light sensor
No
Dimming method
Trailing edge dimming
Colour of light
White
Surface brushed
No
Colour consistency (McAdam ellipse)
SDCM3
Type of wiring
Ending
Colour of light adjustable
No
Emergency power supply system
None
Reflector colour
Black
Emergency function monitoring system
None
Colour temperature
2200K
Adjustability
not adjustable
Colour rendering index CRI
80-89
Unified Glare Ratio (UGR)
10.8
Luminous flux adjustable
Continuously variable
Reflector
High-gloss
Light outlet
Direct
Warranty
3 years
Beam angle
21-40° - Medium beam
A high gloss reflector and low UGR value (<17) prevent light interference. Ideal for both functional and ambient lighting.
This downlight is available in several variants, including different wattages (6 or 9 W), color temperatures (2200K, 2700K, 3000K, 4000K), sizes (81 or 103 mm) and housing colors (white or black).
Additional Information
More details about this product can be found in the specifications. For accessories, available options, and related products, see the related items section. For inquiries or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-spot-black-cut-out-o68-73mm-6w-2200k-dim-136-178.pdf
Energy labels
Manual
136-178_Manual_NL.pdf
136-178_Manual_EN.pdf
Characteristics sheet
136-178-photometric-light-report.pdf
136-178.ldt
