Batten light flat | 1200mm | 30W | IP20 | 3-CCT
136-311Versatile and ultra-slim LED fixture with integrated 230V driver, adjustable colour temperature and wide beam. Ideal for tight spaces and task lighting.
Key product features:
- Suitable for surface mounting: Yes
- Colour temperature (K): 3000 – 5700
- Length (mm): 690
- Width (mm): 30
- Height/depth (mm): 20
- Max. system power (W): 18
Product Name
Batten light flat | 1200mm | 30W | IP20 | 3-CCT
Ean
8714984939790
Outer box qty
24st
Dimmable
No
Connection type
Other
Lamp type
LED not exchangeable
Housing colour
White
Material
Plastic

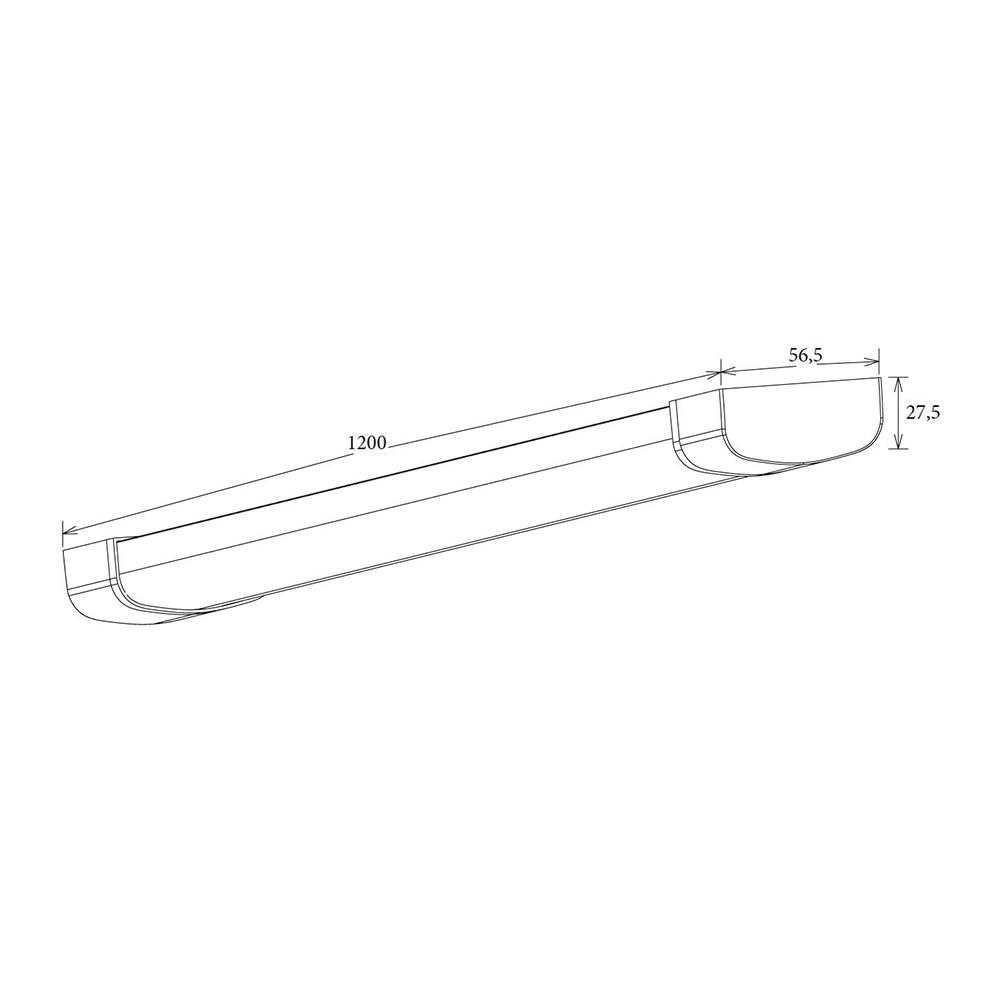

Length
120cm
Length
1200mm
Width
57mm
Height/depth
28mm
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour temperature
3000 - 4000 - 5700K
Colour rendering index CRI
80-89
Colour of light adjustable
Positions
Luminous flux adjustable
No
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
232 - 232V
Nominal current
124 - 124mA
Number of poles
3
Light distributor
Diffuser lens/optic/panel
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP)
IP20
Impact strength
IK06
Rated lifetime L70/B50 at 25 °C
30000h
Max. system power
30W
Rated luminous flux according to IEC 62722-2- 1
4200 - 4200lm
Luminaire efficacy
140lm/W
Power factor
0.98
Type of wiring
Ending
Suitable for emergency lighting
No
Emergency power supply system
None
Emergency function monitoring system
None
Warranty
3 years
Product Name
Batten light flat | 1200mm | 30W | IP20 | 3-CCT
Voltage type
AC
Ean
8714984939790
Nominal voltage
232 - 232V
Outer box qty
24st
Nominal current
124 - 124mA
Dimmable
No
Number of poles
3
Connection type
Other
Light distributor
Diffuser lens/optic/panel
Lamp type
LED not exchangeable
Connectable conductor cross section
0.75 - 2.5mm²
Housing colour
White
Type of control gear
LED operating device current-controlled
Material
Plastic
Exchangeable control gear
No
Length
120cm
With control gear
Yes
Length
1200mm
Degree of protection (IP)
IP20
Width
57mm
Impact strength
IK06
Height/depth
28mm
Rated lifetime L70/B50 at 25 °C
30000h
With movement sensor
No
Max. system power
30W
With presence detector
No
Rated luminous flux according to IEC 62722-2- 1
4200 - 4200lm
With light sensor
No
Luminaire efficacy
140lm/W
Colour of light
White
Power factor
0.98
Colour temperature
3000 - 4000 - 5700K
Type of wiring
Ending
Colour rendering index CRI
80-89
Suitable for emergency lighting
No
Colour of light adjustable
Positions
Emergency power supply system
None
Luminous flux adjustable
No
Emergency function monitoring system
None
Beam angle adjustable
No
Warranty
3 years

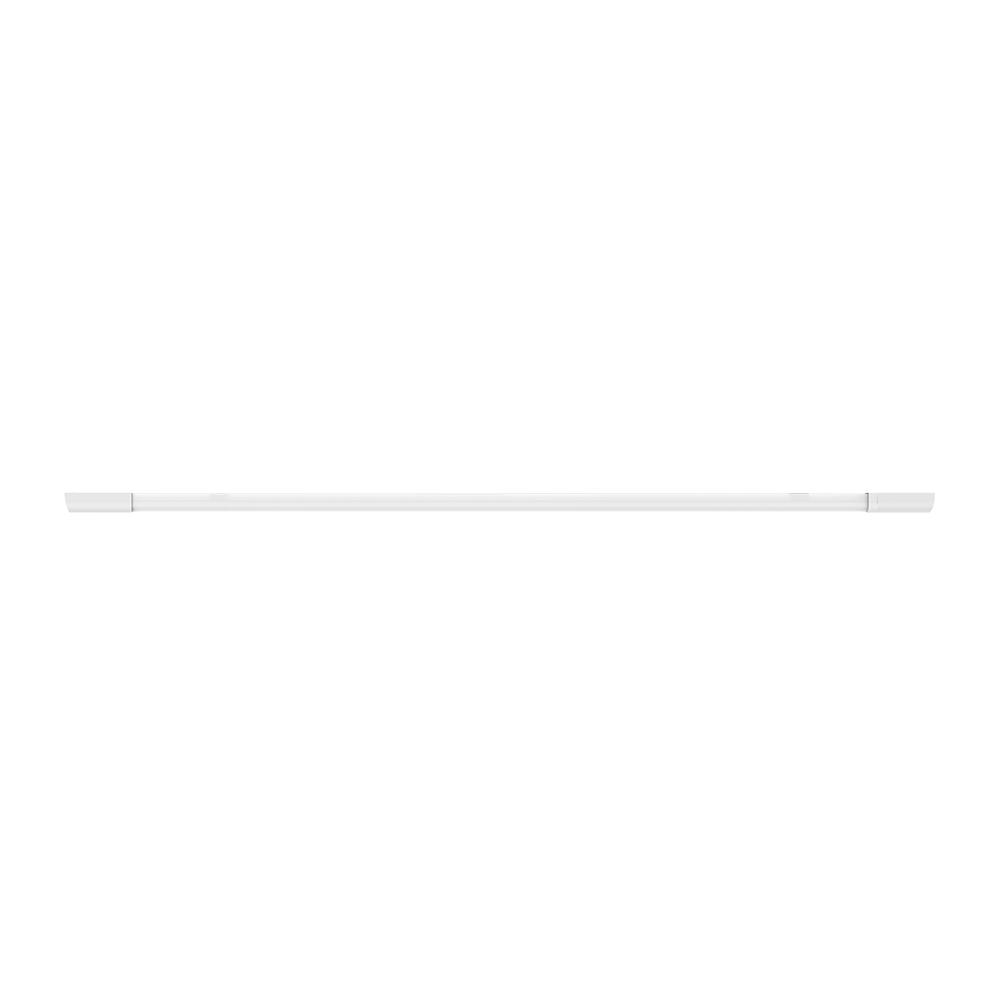

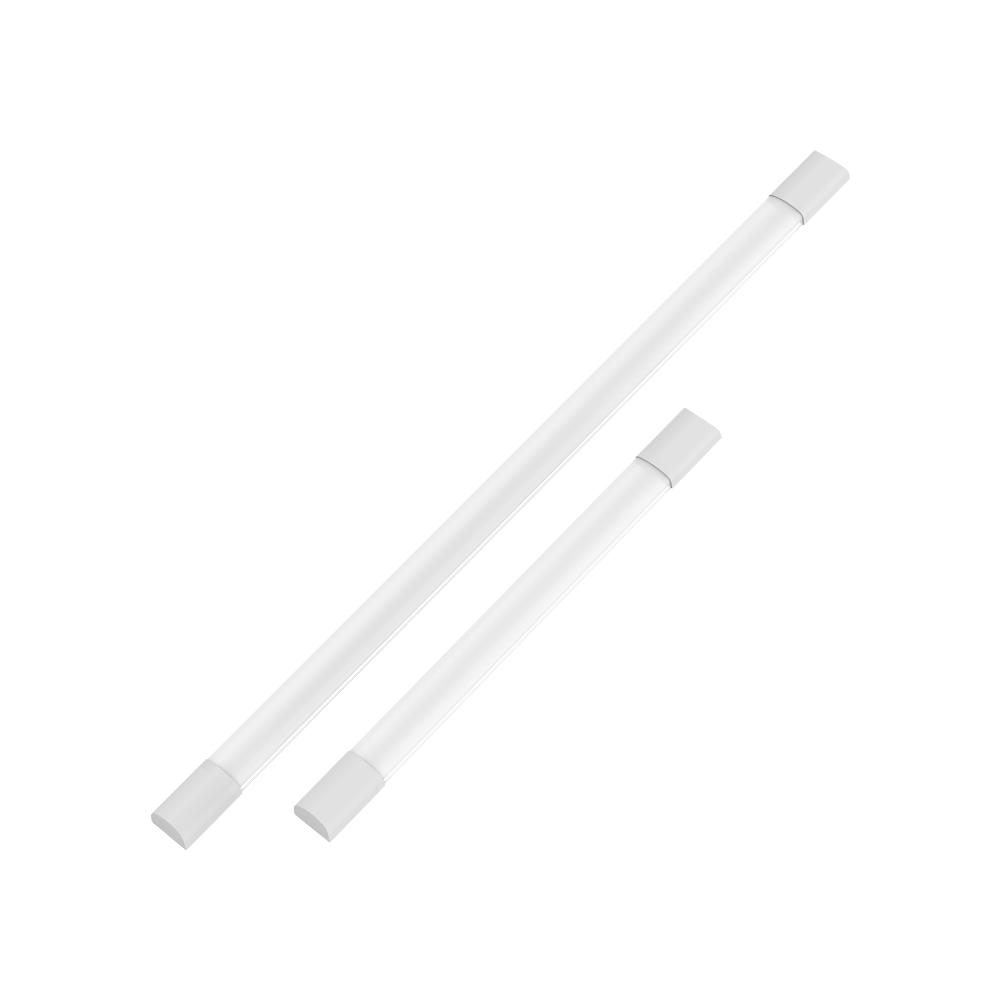

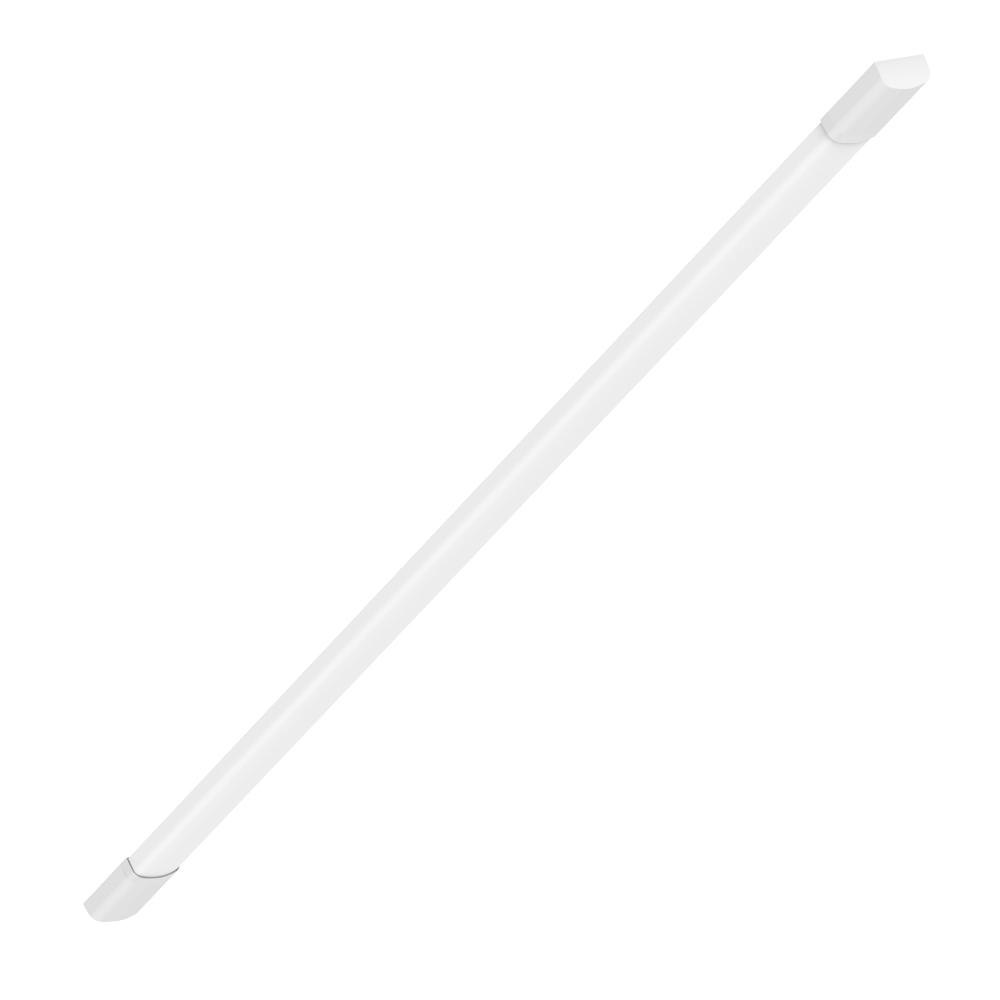

The Tronix LED batten luminaires 136-310 (60 cm) and 136-311 (120 cm) are ultra-slim fixtures, specifically developed for installations with limited mounting height, such as corridors, stairwells, storage areas, and technical rooms. Their subtle design and wide beam angle make them suitable for various professional applications.
The housing is made of white plastic (RAL 9016) with a polycarbonate diffuser, delivering uniform 120° light distribution. Featuring an integrated 230V driver and switchable colour temperature (3000K, 4000K or 5700K), these fixtures are ideal for both functional and ambient lighting — including under-cabinet use, above worktops or in display cases.

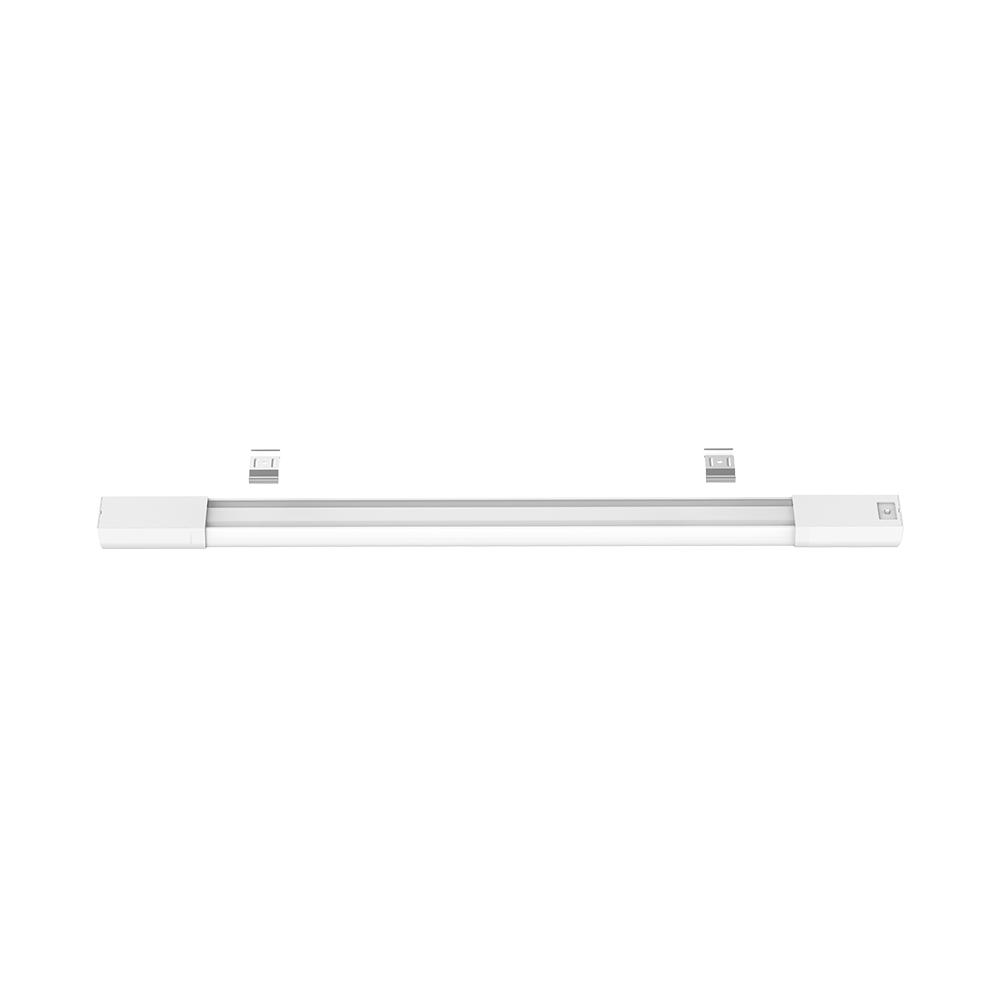

The 60 cm model delivers approx. 2100 lumens at 18W, while the 120 cm version delivers approx. 4200 lumens at 30W. A screwless connector enables quick installation. With IP20 rating and appropriate impact resistance, these batten lights are suited for dry indoor environments.
More information
More information about this product can be found in the product specifications. For accessories, available options, and related products, see the related items. For inquiries or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-batten-light-flat-1200mm-30w-ip20-3-cct-136-311.pdf
Energy labels
Manual
136-311_Manual_NL.pdf
136-311_Manual_EN.pdf
Characteristics sheet
136-311-photometric-light-report.pdf
136-311-photometric-light-report-detailed.zip
136-311-eulumdat.zip
