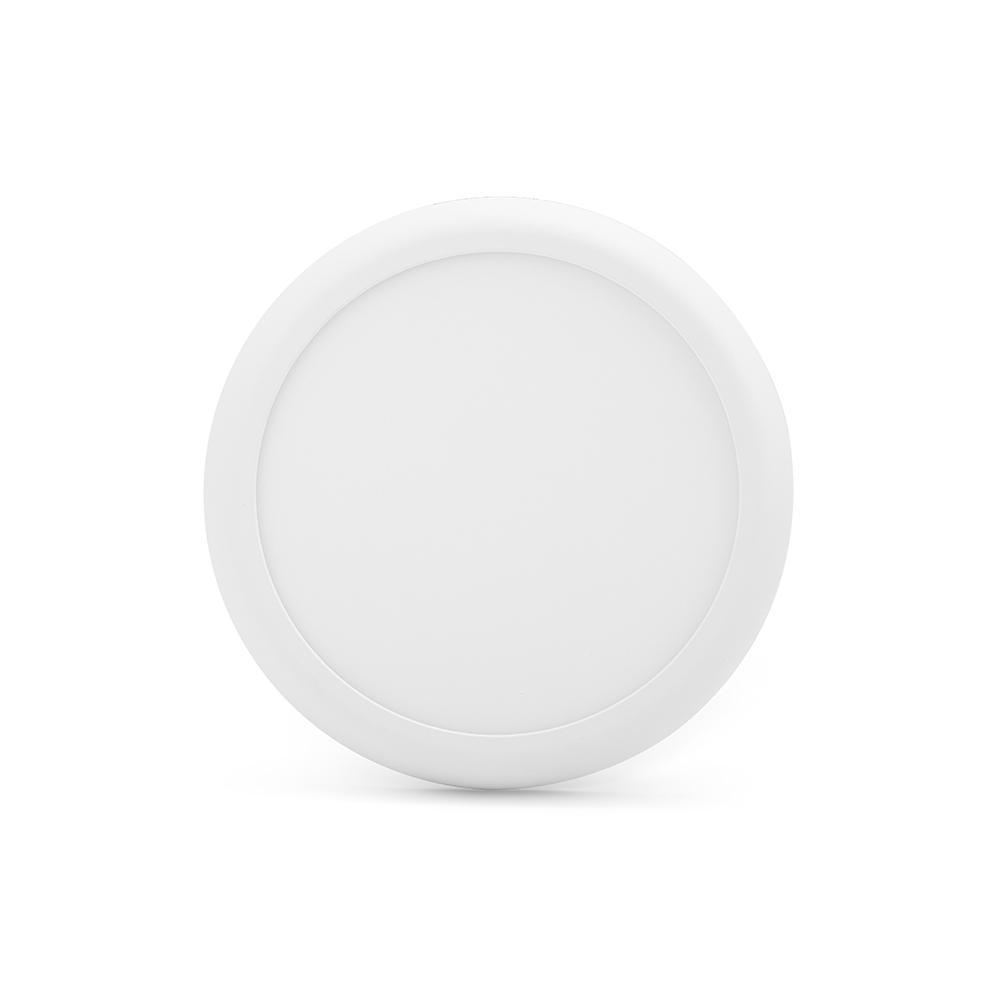

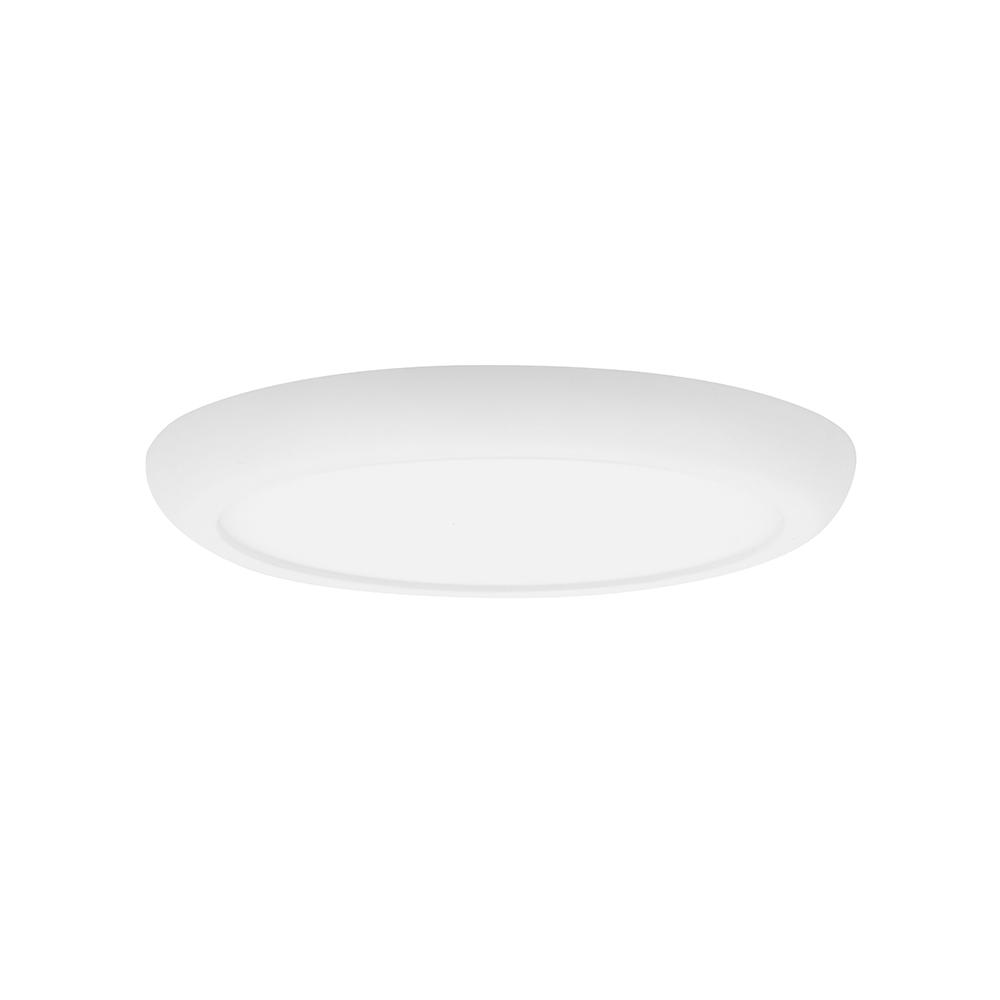

Ceiling downlight || 18 watt | 3-CCT | recessed/surface
136-221This multifunctional ceiling lamp can be used for both recessed and surface mounting. In addition, it can be pre-set to power (12W / 18W) and light color (3000K / 4000K / 6000K).
Features
- Can be hung as a surface-mounted ceiling lamp with a mounting bracket.

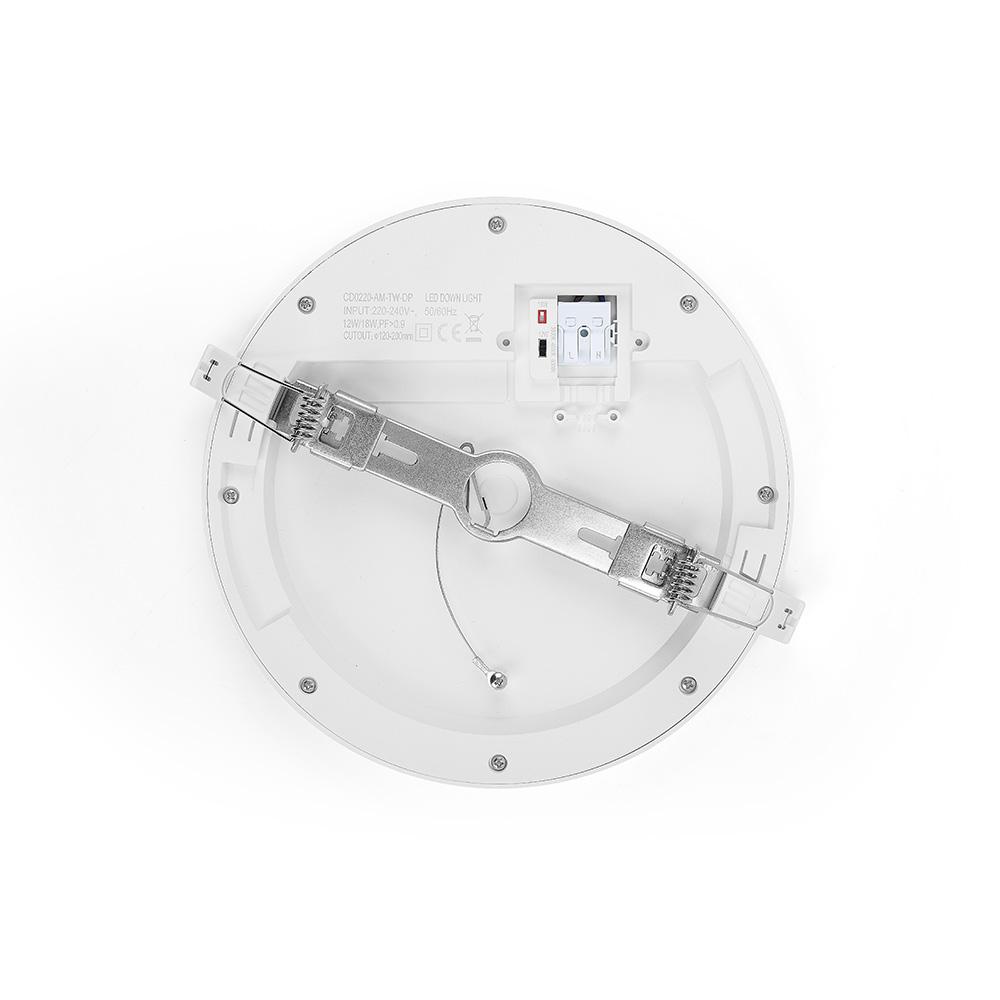

- When installing the lamp, it is easy to attach with two adjustable clamping springs (installation size 12 to 20 cm). The lamp is then placed against the ceiling.
Product Name
Ceiling downlight || 18 watt | 3-CCT | recessed/surface
Ean
8714984937987
Outer box qty
30st
Lamp type
LED not exchangeable
Housing material
Plastic
Housing colour
White
Material cover
Plastic, opal
Suitable for emergency lighting
No
Nominal current
75 - 82mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes

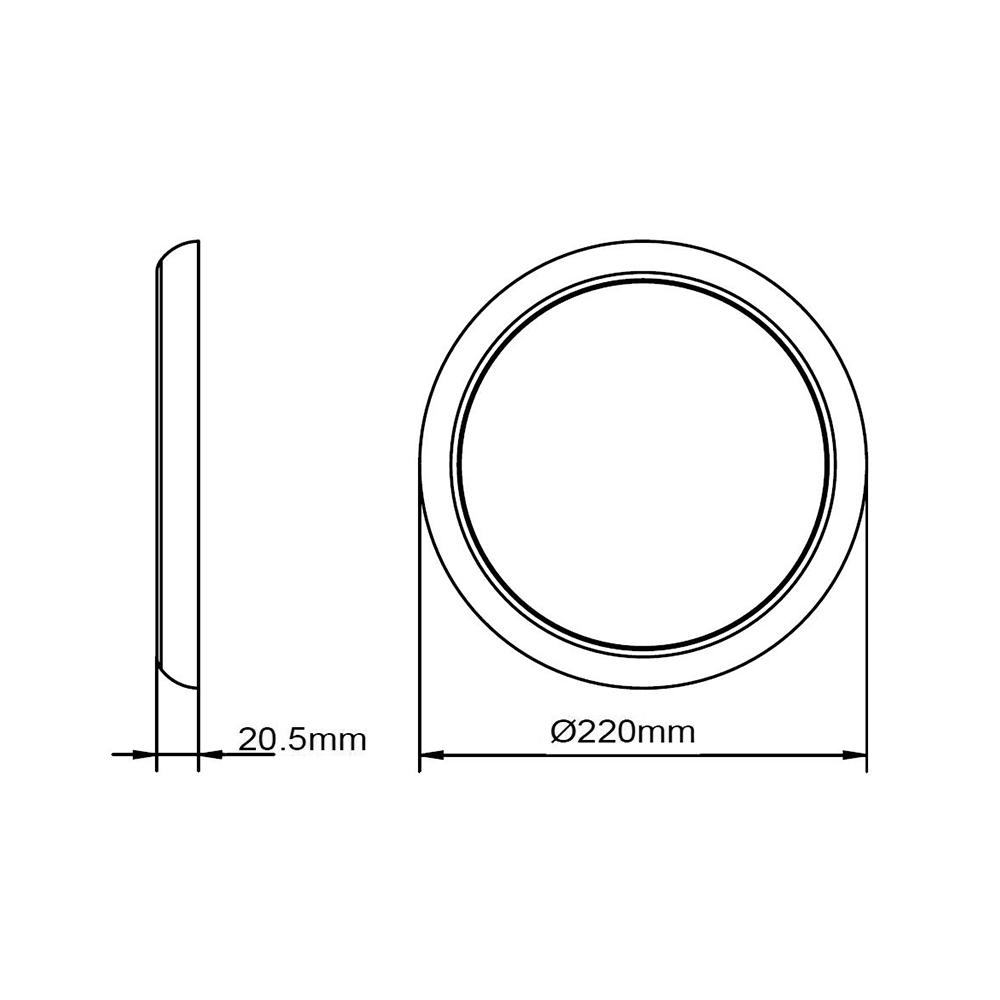

Outer diameter
220mm
Built-in diameter
120mm
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
220 - 240V
Height/depth
20.5mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
No
With presence detector
No
Impact strength
IK03
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Indirect
Dimming RF
No
Dimming Zigbee
No
Light distributor
Other
Surface protection housing
Untreated
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
30000h
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Max. system power
12W
Beam angle adjustable
No
Power factor
0.9
Type of wiring
Ending
Number of poles
3
Built-in height/depth
20.5mm
Compatible with Casambi
No
Luminaire efficacy
75 - 75lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
1350 - 1350lm
Emergency power supply system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
25
Degree of protection (IP), front side
IP44
With mounting material
Yes
Colour temperature
3000 - 4000 - 6000K
With connection cord and plug
No
Warranty
3 years
Product Name
Ceiling downlight || 18 watt | 3-CCT | recessed/surface
Beam angle
> 80° - Extreme wide beam
Ean
8714984937987
Light outlet
Indirect
Outer box qty
30st
Dimming RF
No
Lamp type
LED not exchangeable
Dimming Zigbee
No
Housing material
Plastic
Light distributor
Other
Housing colour
White
Surface protection housing
Untreated
Material cover
Plastic, opal
Colour consistency (McAdam ellipse)
SDCM6
Suitable for emergency lighting
No
Rated lifetime L70/B50 at 25 °C
30000h
Nominal current
75 - 82mA
Colour of light adjustable
No
Voltage type
AC
Luminous flux adjustable
Continuously variable
Type of control gear
LED operating device current-controlled
Max. system power
12W
With control gear
Yes
Beam angle adjustable
No
Outer diameter
220mm
Power factor
0.9
Built-in diameter
120mm
Type of wiring
Ending
Constant light output (CLO)
No
Number of poles
3
Type of grid
None
Built-in height/depth
20.5mm
Nominal voltage
220 - 240V
Compatible with Casambi
No
Height/depth
20.5mm
Luminaire efficacy
75 - 75lm/W
Colour of light
White
Dimmable
No
Colour rendering index CRI
80-89
Rated luminous flux according to IEC 62722-2- 1
1350 - 1350lm
Exchangeable control gear
No
Emergency power supply system
None
Dimming 0-10 V
No
Suitable for ceiling mounting
Yes
Dimming 1-10 V
No
Connectable conductor cross section
0.75 - 0.75mm²
Dimming DALI
No
Suitable for wall mounting
Yes
Dimming phase cut-off (trailing edge)
No
Suitable for suspended mounting
No
With movement sensor
No
Suitable for workplace according to EN 12464-1
No
With presence detector
No
Unified Glare Ratio (UGR)
25
Impact strength
IK03
Degree of protection (IP), front side
IP44
With light sensor
No
With mounting material
Yes
Suitable for surface mounting
Yes
Colour temperature
3000 - 4000 - 6000K
Suitable for built-in mounting
Yes
With connection cord and plug
No
Light distribution
Symmetric
Warranty
3 years
This multifunctional ceiling lamp can be used for both recessed and surface mounting. In addition, it can be pre-set to power (12W / 18W) and light color (3000K / 4000K / 6000K).
Features
Can be hung as a surface-mounted ceiling lamp with a mounting bracket.
When installing the lamp, it is easy to attach with two adjustable clamping springs (installation size 12 to 20 cm). The lamp is then placed against the ceiling.
Datasheet
Datasheet-ceiling-downlight-18-watt-3-cct-recessedsurface-136-221.pdf
Energy labels
Other attachment
136-221_4000K_12W_Luminaire_photometric_test_report.pdf
136-221_4000K_18W_Luminaire_photometric_test_report.pdf
136-221_4000K_12W_IES.IES
136-221_4000K_18W_IES.IES
Manual
136-221_Manual_NL.pdf
136-221_Manual_EN.pdf
