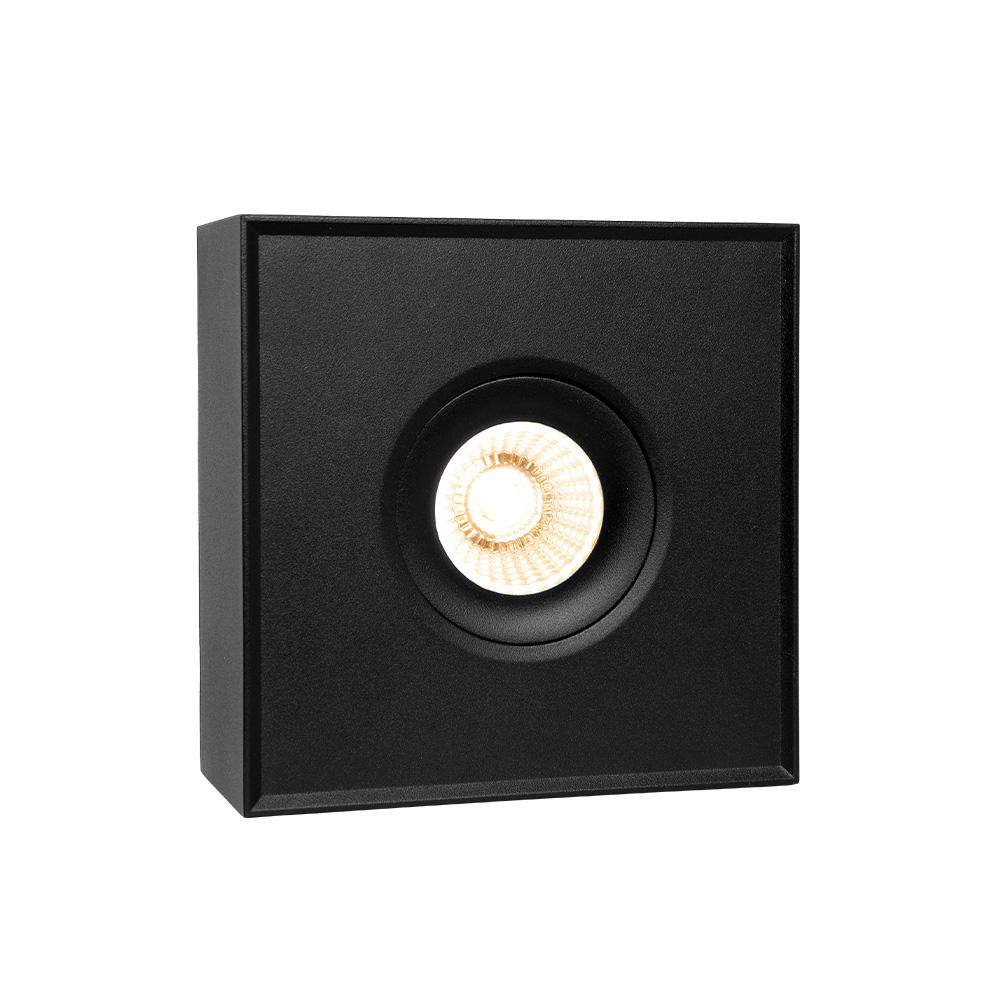

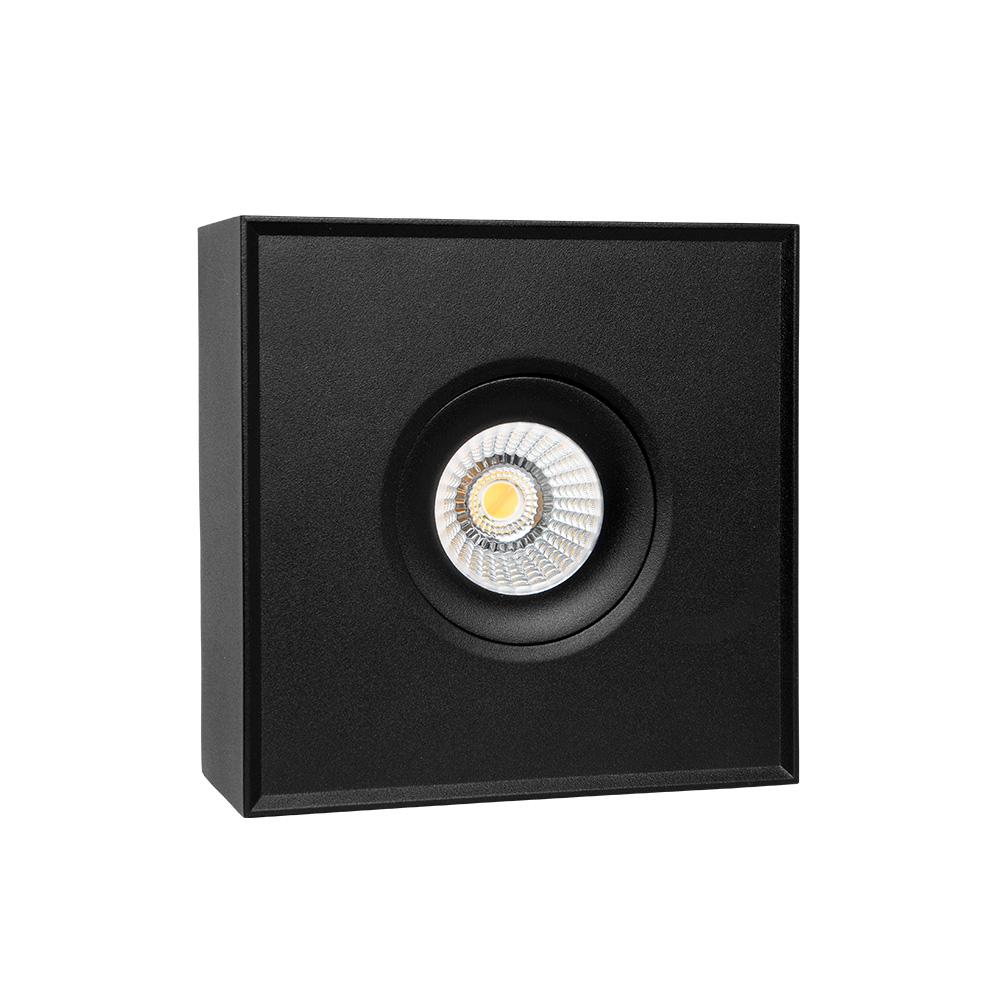

Ceiling light || 8W | 60° | dim to warm 3000~2000K | black
136-232Due to its modern appearance and high-quality features, these surface-mounted spots can be used in many spaces. Think of reception areas, living areas, hospitality Industry, shops, offices or under a terras roof.
Features
- Dim to warm from 3000K to 2000K
- Pre-assembled screw holes for universal flush-mounted boxes
- Adjustable spotlight (20°)
- Long service life> 50,000 hours
- High CRI value> 90
Product Name
Ceiling light || 8W | 60° | dim to warm 3000~2000K | black
Ean
8714984940703
Outer box qty
24st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
Black
Material cover
Plastic, transparent
Suitable for emergency lighting
No
Nominal current
33.5 - 40mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
220 - 240V

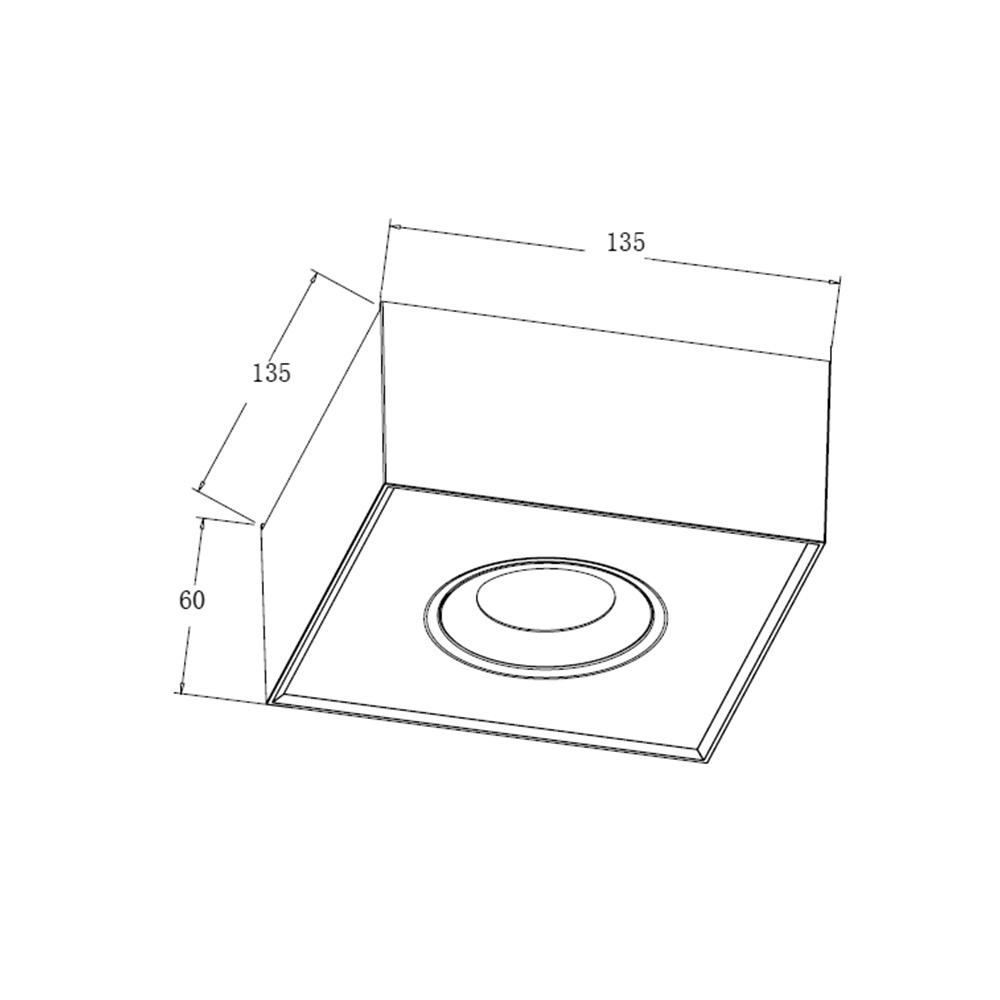

Length
135mm
Width
135mm
Height/depth
60mm
Colour of light
White
Colour rendering index CRI
90-100
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
Yes
With movement sensor
No
With presence detector
No
Impact strength
IK02
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Light distribution
Symmetric
Beam angle
41-80° - Wide beam
Light outlet
Direct
Dimming RF
No
Dimming Zigbee
No
Light distributor
Reflector
Surface protection housing
Powder coating
Colour consistency (McAdam ellipse)
SDCM3
Rated lifetime L70/B50 at 25 °C
50000h
Colour of light adjustable
Continuously variable
Luminous flux adjustable
Continuously variable
Max. system power
8W
Beam angle adjustable
No
Power factor
0.94
Type of wiring
Ending
Number of poles
3
Compatible with Casambi
No
Luminaire efficacy
55 - 55lm/W
Dimmable
Yes
Rated luminous flux according to IEC 62722-2- 1
275 - 440lm
Emergency power supply system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
19
Degree of protection (IP), front side
IP65
With mounting material
Yes
Colour temperature
Dim To Warm
With connection cord and plug
No
Warranty
3 years
Product Name
Ceiling light || 8W | 60° | dim to warm 3000~2000K | black
Beam angle
41-80° - Wide beam
Ean
8714984940703
Light outlet
Direct
Outer box qty
24st
Dimming RF
No
Lamp type
LED not exchangeable
Dimming Zigbee
No
Housing material
Aluminium
Light distributor
Reflector
Housing colour
Black
Surface protection housing
Powder coating
Material cover
Plastic, transparent
Colour consistency (McAdam ellipse)
SDCM3
Suitable for emergency lighting
No
Rated lifetime L70/B50 at 25 °C
50000h
Nominal current
33.5 - 40mA
Colour of light adjustable
Continuously variable
Voltage type
AC
Luminous flux adjustable
Continuously variable
Type of control gear
LED operating device current-controlled
Max. system power
8W
With control gear
Yes
Beam angle adjustable
No
Constant light output (CLO)
No
Power factor
0.94
Type of grid
None
Type of wiring
Ending
Nominal voltage
220 - 240V
Number of poles
3
Length
135mm
Compatible with Casambi
No
Width
135mm
Luminaire efficacy
55 - 55lm/W
Height/depth
60mm
Dimmable
Yes
Colour of light
White
Rated luminous flux according to IEC 62722-2- 1
275 - 440lm
Colour rendering index CRI
90-100
Emergency power supply system
None
Exchangeable control gear
No
Suitable for ceiling mounting
Yes
Dimming 0-10 V
No
Connectable conductor cross section
0.75 - 0.75mm²
Dimming 1-10 V
No
Suitable for wall mounting
Yes
Dimming DALI
No
Suitable for suspended mounting
No
Dimming phase cut-off (trailing edge)
Yes
Suitable for workplace according to EN 12464-1
No
With movement sensor
No
Unified Glare Ratio (UGR)
19
With presence detector
No
Degree of protection (IP), front side
IP65
Impact strength
IK02
With mounting material
Yes
With light sensor
No
Colour temperature
Dim To Warm
Suitable for surface mounting
Yes
With connection cord and plug
No
Suitable for built-in mounting
No
Warranty
3 years
Light distribution
Symmetric
Due to its modern appearance and high-quality features, these surface-mounted spots can be used in many spaces. Think of reception areas, living areas, hospitality Industry, shops, offices or under a terras roof.
Features
Dim to warm from 3000K to 2000K
Pre-assembled screw holes for universal flush-mounted boxes
Adjustable spotlight (20°)
Long service life> 50,000 hours
High CRI value> 90
Datasheet
Datasheet-ceiling-light-8w-60-dim-to-warm-30002000k-black-136-232.pdf
Energy labels
Characteristics sheet
136-232_technical_datasheet_extended.pdf
Manual
136-232_Manual_NL.pdf
136-232_Manual_EN.pdf
