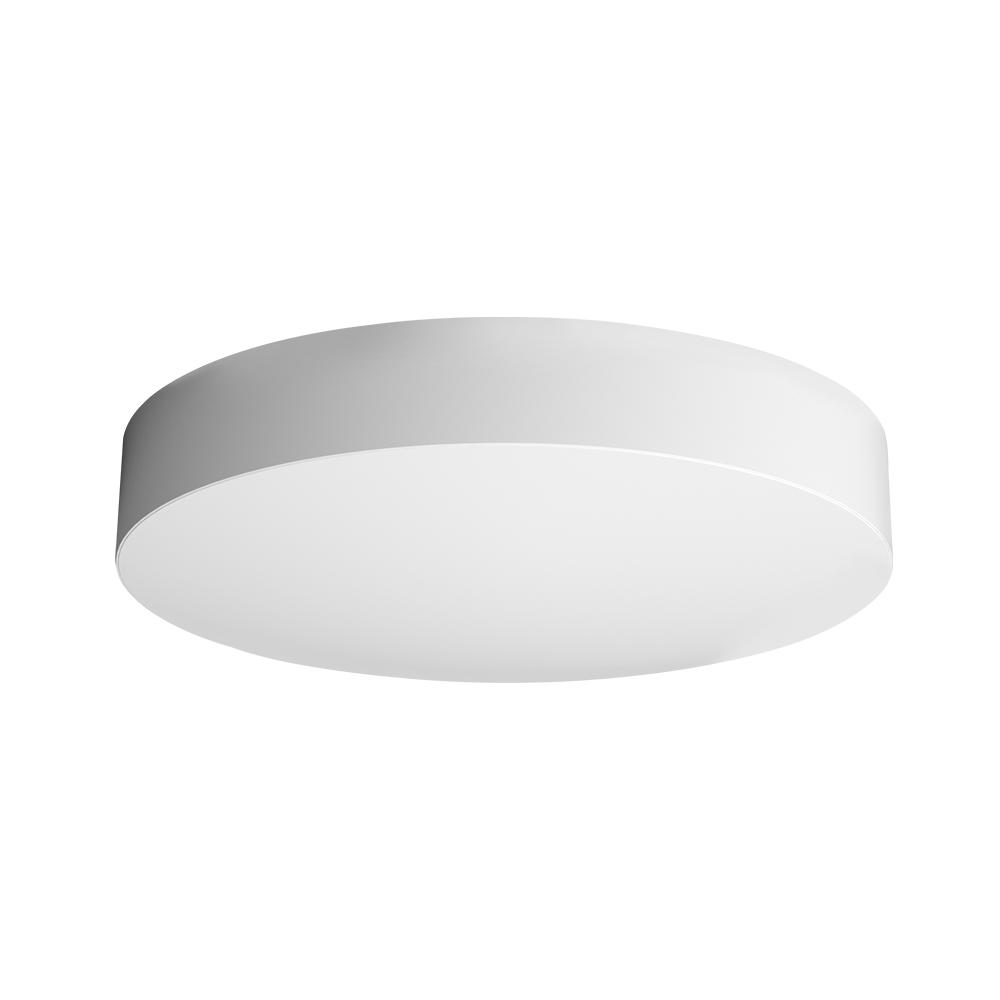

Ceiling light | Ø280mm | 10/15W | 3-CCT
136-047Robust ceiling light with adjustable light color 3000, 4000 and 5700K and power (10-15W). Features drop protection, IK08 impact strength and IP54 protection. Ideal for safe, versatile lighting in demanding environments.
Key product features:
- Colour temperature (K): 3000 - 5700
- Housing colour: White
- Impact strength: IK08
- Max. system power (W): 10 - 15
Product Name
Ceiling light | Ø280mm | 10/15W | 3-CCT
Ean
8714984949782
Outer box qty
10st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
White
Material cover
Plastic, opal
Suitable for emergency lighting
No
Nominal current
67 - 67mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes

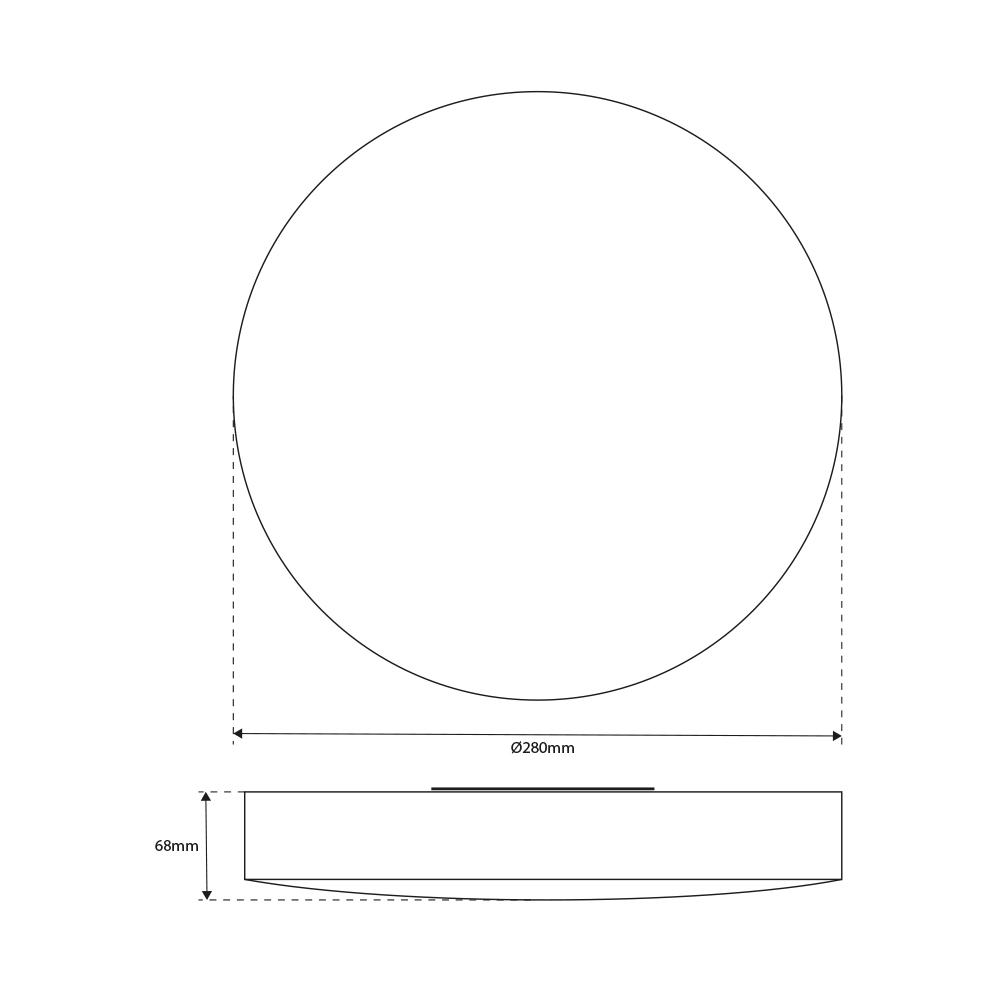

Outer diameter
280mm
Constant light output (CLO)
No
Type of grid
Matt
Nominal voltage
220 - 240V
Height/depth
68mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
No
With presence detector
No
Impact strength
IK08
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Dimming RF
No
Dimming Zigbee
No
Light distributor
Other
Surface protection housing
Lacquered
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
50000h
Colour of light adjustable
Positions
Luminous flux adjustable
No
Max. system power
15W
Beam angle adjustable
No
Power factor
0.9
Type of wiring
Ending
Number of poles
3
Compatible with Casambi
No
Luminaire efficacy
100 - 100lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
1000 - 1500lm
Emergency power supply system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 2.5mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
23.6
Degree of protection (IP), front side
IP53
With mounting material
Yes
Colour temperature
3000 - 4000 - 5700K
With connection cord and plug
No
Warranty
5 years
Product Name
Ceiling light | Ø280mm | 10/15W | 3-CCT
Beam angle
> 80° - Extreme wide beam
Ean
8714984949782
Light outlet
Direct
Outer box qty
10st
Dimming RF
No
Lamp type
LED not exchangeable
Dimming Zigbee
No
Housing material
Aluminium
Light distributor
Other
Housing colour
White
Surface protection housing
Lacquered
Material cover
Plastic, opal
Colour consistency (McAdam ellipse)
SDCM6
Suitable for emergency lighting
No
Rated lifetime L70/B50 at 25 °C
50000h
Nominal current
67 - 67mA
Colour of light adjustable
Positions
Voltage type
AC
Luminous flux adjustable
No
Type of control gear
LED operating device current-controlled
Max. system power
15W
With control gear
Yes
Beam angle adjustable
No
Outer diameter
280mm
Power factor
0.9
Constant light output (CLO)
No
Type of wiring
Ending
Type of grid
Matt
Number of poles
3
Nominal voltage
220 - 240V
Compatible with Casambi
No
Height/depth
68mm
Luminaire efficacy
100 - 100lm/W
Colour of light
White
Dimmable
No
Colour rendering index CRI
80-89
Rated luminous flux according to IEC 62722-2- 1
1000 - 1500lm
Exchangeable control gear
No
Emergency power supply system
None
Dimming 0-10 V
No
Suitable for ceiling mounting
Yes
Dimming 1-10 V
No
Connectable conductor cross section
0.75 - 2.5mm²
Dimming DALI
No
Suitable for wall mounting
Yes
Dimming phase cut-off (trailing edge)
No
Suitable for suspended mounting
No
With movement sensor
No
Suitable for workplace according to EN 12464-1
No
With presence detector
No
Unified Glare Ratio (UGR)
23.6
Impact strength
IK08
Degree of protection (IP), front side
IP53
With light sensor
No
With mounting material
Yes
Suitable for surface mounting
Yes
Colour temperature
3000 - 4000 - 5700K
Suitable for built-in mounting
No
With connection cord and plug
No
Light distribution
Symmetric
Warranty
5 years
This versatile ceiling light offers adjustable light colors (3000K, 4000K and 5700K) and wattages (10/15W), suitable for any situation. The robust housing with IP54 and IK08 rating ensures protection against impact, dust and water. Fall protection with braid wire ensures safe installation in demanding environments.
Additional Information
More details about this product can be found in the specifications. For accessories, available options, and related products, see the related items section. For inquiries or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-ceiling-light-o280mm-1015w-3-cct-136-047.pdf
Energy labels
Manual
136-047_manual.pdf
Characteristics sheet
136-047-photometric-light-report.pdf
136-047-photometric-light-report-detailed.zip.zip
136-047-eulumdat.zip
