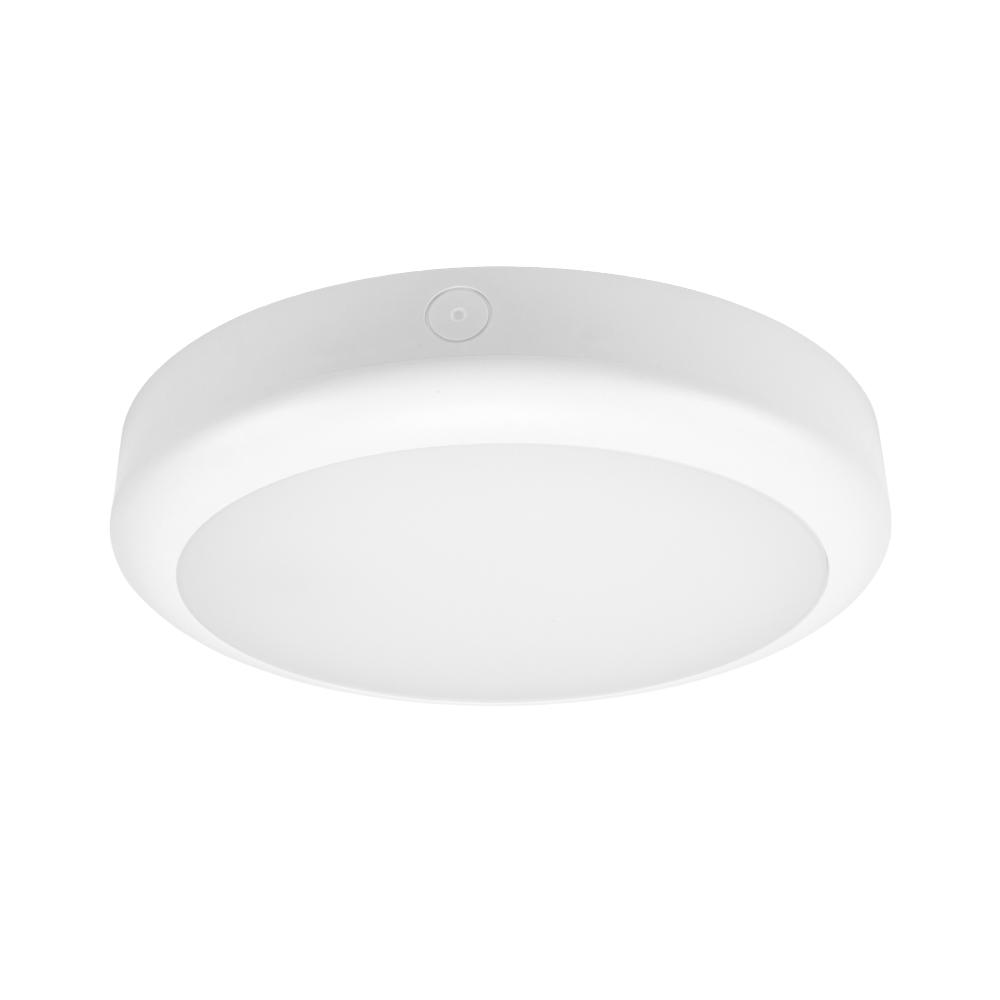

Ceiling light || Ø300mm | 15W | IP65 | 3-CCT
136-043Due to the simple adjustment of light color, this ceiling fixture is suitable for placement in various spaces such as offices, living spaces, schools, hotels and other public spaces.
Features
- High quality internal driver with optimum heat regulation
- Can be directly connected by using the terminal block on the fixture
- Adjustable by a CCT switch in the color temperatures 3000K, 4000K and 5700K
- Long service life of 50,000 hours
- IP65 for installation in moist areas
Product Name
Ceiling light || Ø300mm | 15W | IP65 | 3-CCT
Ean
8714984931978
Outer box qty
6st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
White
Material cover
Plastic, opal
Suitable for emergency lighting
No
Nominal current
62.5 - 68mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes

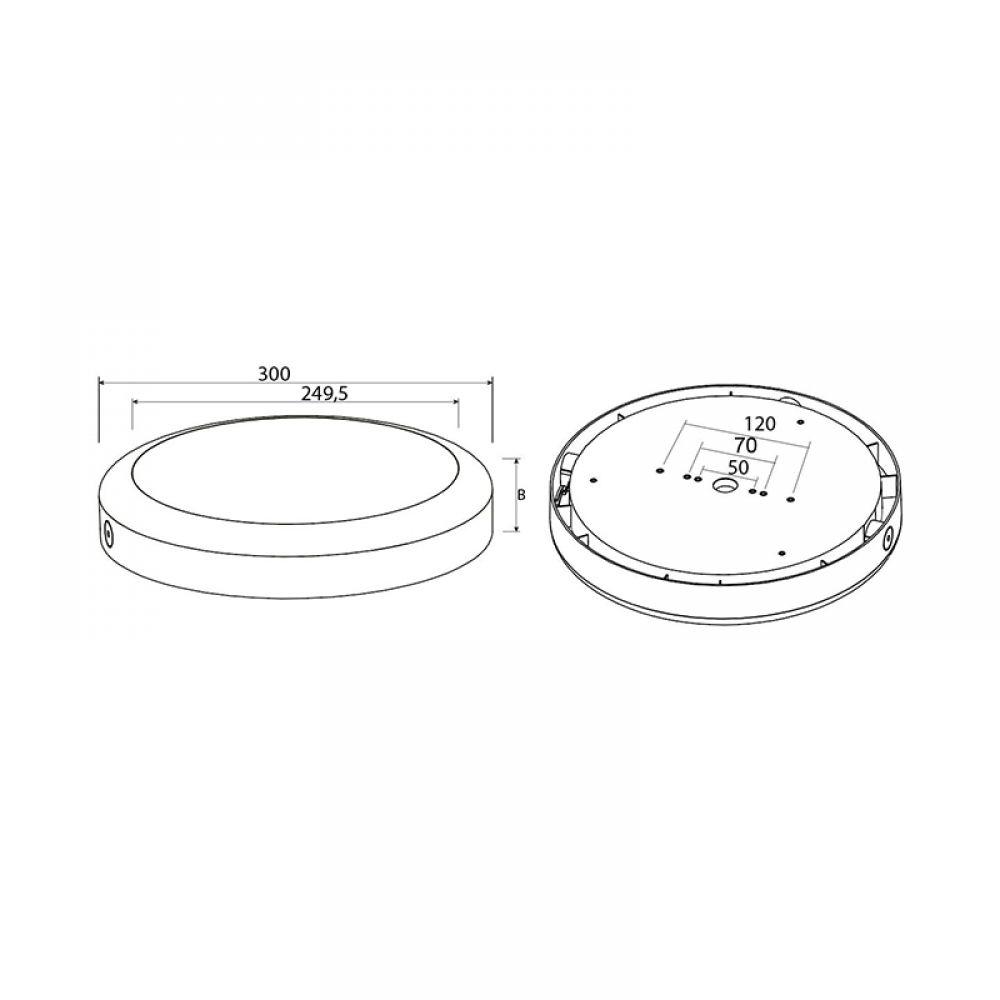

Outer diameter
300mm
Constant light output (CLO)
No
Type of grid
Matt
Nominal voltage
220 - 240V
Height/depth
60mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
No
With presence detector
No
Impact strength
IK08
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Dimming RF
No
Dimming Zigbee
No
Light distributor
Other
Surface protection housing
Lacquered
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
50000h
Colour of light adjustable
Positions
Luminous flux adjustable
No
Max. system power
15W
Beam angle adjustable
No
Power factor
0.9
Type of wiring
Ending
Number of poles
3
Compatible with Casambi
No
Luminaire efficacy
100 - 100lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
1500 - 1500lm
Emergency power supply system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
25
Degree of protection (IP), front side
IP65
With mounting material
Yes
Colour temperature
3000 - 4000 - 5700K
With connection cord and plug
No
Warranty
5 years
Product Name
Ceiling light || Ø300mm | 15W | IP65 | 3-CCT
Beam angle
> 80° - Extreme wide beam
Ean
8714984931978
Light outlet
Direct
Outer box qty
6st
Dimming RF
No
Lamp type
LED not exchangeable
Dimming Zigbee
No
Housing material
Aluminium
Light distributor
Other
Housing colour
White
Surface protection housing
Lacquered
Material cover
Plastic, opal
Colour consistency (McAdam ellipse)
SDCM6
Suitable for emergency lighting
No
Rated lifetime L70/B50 at 25 °C
50000h
Nominal current
62.5 - 68mA
Colour of light adjustable
Positions
Voltage type
AC
Luminous flux adjustable
No
Type of control gear
LED operating device current-controlled
Max. system power
15W
With control gear
Yes
Beam angle adjustable
No
Outer diameter
300mm
Power factor
0.9
Constant light output (CLO)
No
Type of wiring
Ending
Type of grid
Matt
Number of poles
3
Nominal voltage
220 - 240V
Compatible with Casambi
No
Height/depth
60mm
Luminaire efficacy
100 - 100lm/W
Colour of light
White
Dimmable
No
Colour rendering index CRI
80-89
Rated luminous flux according to IEC 62722-2- 1
1500 - 1500lm
Exchangeable control gear
No
Emergency power supply system
None
Dimming 0-10 V
No
Suitable for ceiling mounting
Yes
Dimming 1-10 V
No
Connectable conductor cross section
0.75 - 0.75mm²
Dimming DALI
No
Suitable for wall mounting
Yes
Dimming phase cut-off (trailing edge)
No
Suitable for suspended mounting
No
With movement sensor
No
Suitable for workplace according to EN 12464-1
No
With presence detector
No
Unified Glare Ratio (UGR)
25
Impact strength
IK08
Degree of protection (IP), front side
IP65
With light sensor
No
With mounting material
Yes
Suitable for surface mounting
Yes
Colour temperature
3000 - 4000 - 5700K
Suitable for built-in mounting
No
With connection cord and plug
No
Light distribution
Symmetric
Warranty
5 years
Due to the simple adjustment of light color, this ceiling fixture is suitable for placement in various spaces such as offices, living spaces, schools, hotels and other public spaces.
Features
High quality internal driver with optimum heat regulation
Can be directly connected by using the terminal block on the fixture
Adjustable by a CCT switch in the color temperatures 3000K, 4000K and 5700K
Long service life of 50,000 hours
IP65 for installation in moist areas
Datasheet
Datasheet-ceiling-light-o300mm-15w-ip65-3-cct-136-043.pdf
Energy labels
Other attachment
136-043_3000K_Luminaire_photometric_test_report.pdf
136-043_4000K_Luminaire_photometric_test_report.pdf
136-043_5700K_Luminaire_photometric_test_report.pdf
136-043_3000K_IES.IES
136-043_4000K_IES.IES
136-043_5700K_IES.IES
Characteristics sheet
136-043_044_technical_datasheet_extended.pdf
Manual
136-043_Manual_NL.pdf
136-043_Manual_EN.pdf
