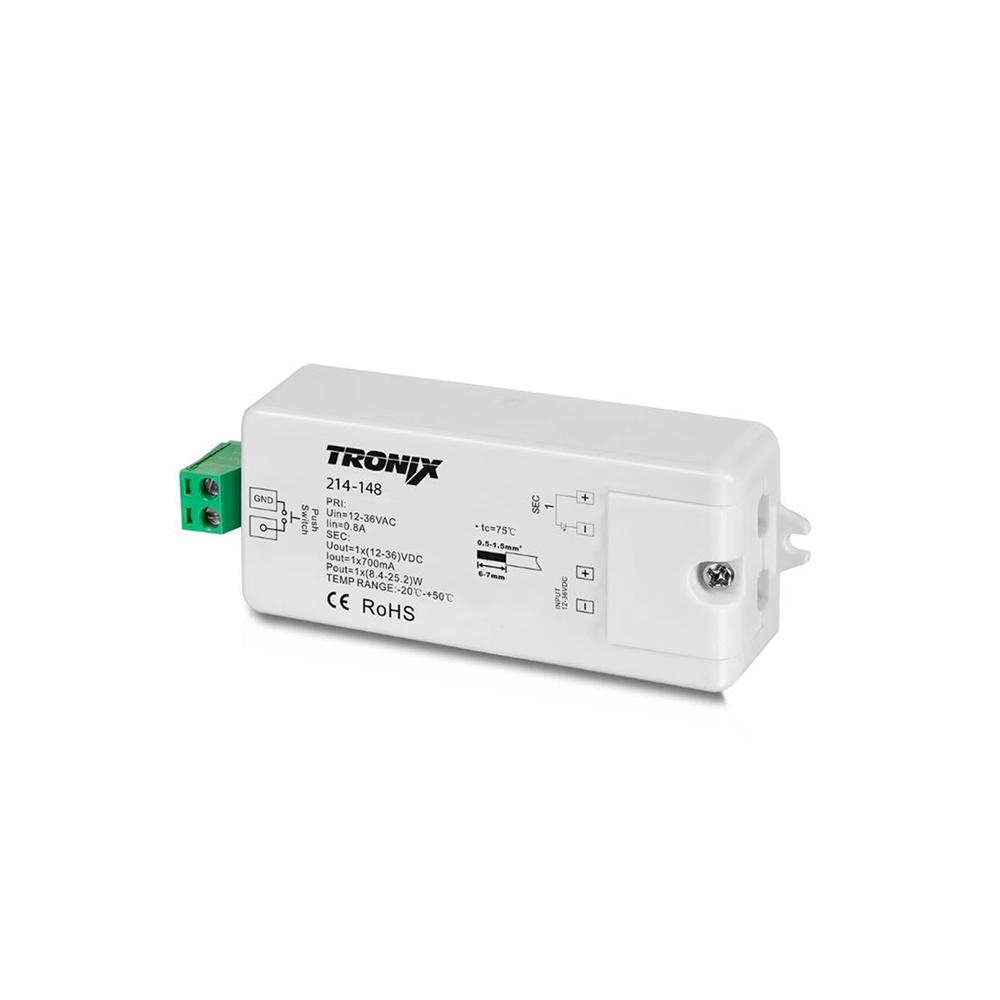

Constant current receiver | 1 channel x 700mA
214-1481-channel RF receiver for single-colour LED lighting (12–36V DC, max. 8 A). Supports wireless switching and dimming via remote control or push switch. Requires external power supply.
Key product features
- Type of control: RF
- Number of colour channels: 1
- Input voltage (V): 12 – 36
- Max. output current (A): 0.7
- Control type: Constant current
Product Name
Constant current receiver | 1 channel x 700mA
Ean
8714984915077
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
0.7A
Output voltage
12 - 36V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
101mm
Width
36mm
Height
21mm
Number of zones
1
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
12 - 36V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant current
Warranty
5 years
Product Name
Constant current receiver | 1 channel x 700mA
Height
21mm
Ean
8714984915077
Number of zones
1
Outer box qty
1st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
No
Programmable
No
Input voltage
12 - 36V
Max. output current
0.7A
Control method
RF
Output voltage
12 - 36V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
101mm
Control type
Constant current
Width
36mm
Warranty
5 years
Compact 1-channel RF receiver for wireless switching and dimming of single-colour LED lighting with constant current output (700 mA). Suitable for 12–36V DC installations with an output range of 8.4 to 25.2 watts.
Compatible with various RF remotes and supports local control via push switch. Short press switches lighting on or off; long press dims light continuously. Pairing with an RF transmitter is simple via the learning key. One receiver can be controlled by up to 8 remotes.
An external power supply is required, tailored to the system voltage and LED load. The receiver is IP20 rated and suitable for dry indoor areas. Thanks to its compact size (95 × 37 × 20 mm), it is ideal for tight installation spaces.
Offers a reliable wireless solution for professional applications in residential, retail, hospitality and light commercial projects.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
